Endoscopic forehead lift instruments exist because the technique arrived before the tools did. Peak Surgicals stocks 29 patterns across the Daniel and Ramirez families, from Ramirez Type Endoscopic Forehead ($19.80) to Daniel Endoscopic Forehead Forceps ($55.00), all in German stainless steel and CE marked and built under ISO 13485. Compare all 29 patterns in the grid below.
The Technique Came First, the Instruments Second
The endoscopic forehead lift was demonstrated before there were instruments to perform it properly. Oscar Ramirez used an endoscope in a biplanar forehead lift in January 1992 and presented it that April in Baltimore, and the limiting factor recorded at the time was not technique but the lack of specific instrumentation for working under a flap. The patterns carrying his name, and Rollin Daniel's, were designed to remove that limit.
The approach reaches the same result as an open coronal forehead lift while substantially reducing two of its costs: postoperative numbness of the scalp, and the hair loss that follows a long coronal incision. It does that by working through short incisions in a subperiosteal and subgaleal plane, which means every instrument has to reach the orbital rim through a corridor it cannot open wide. Length, shaft curvature and tip profile all follow from that. We supply every pattern at MOQ 1.
The Daniel Family: Elevation, Nerve Protection, Division

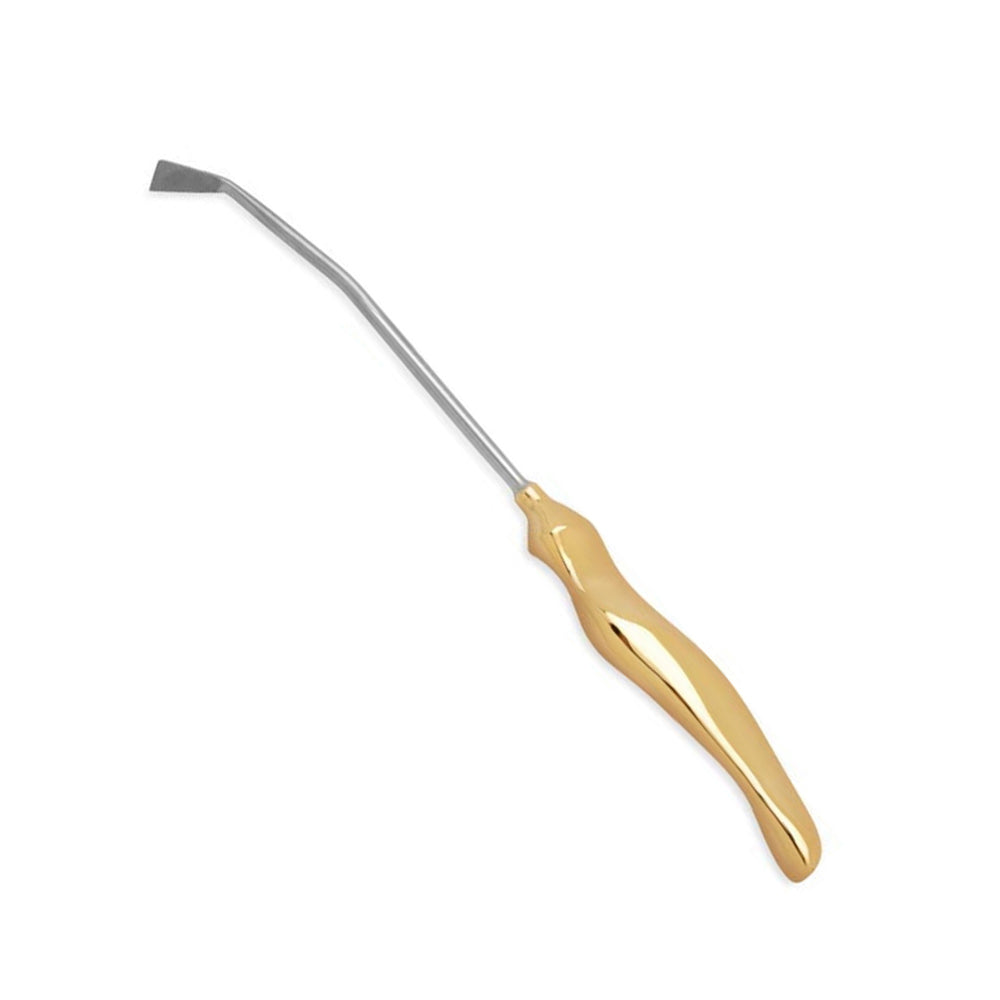

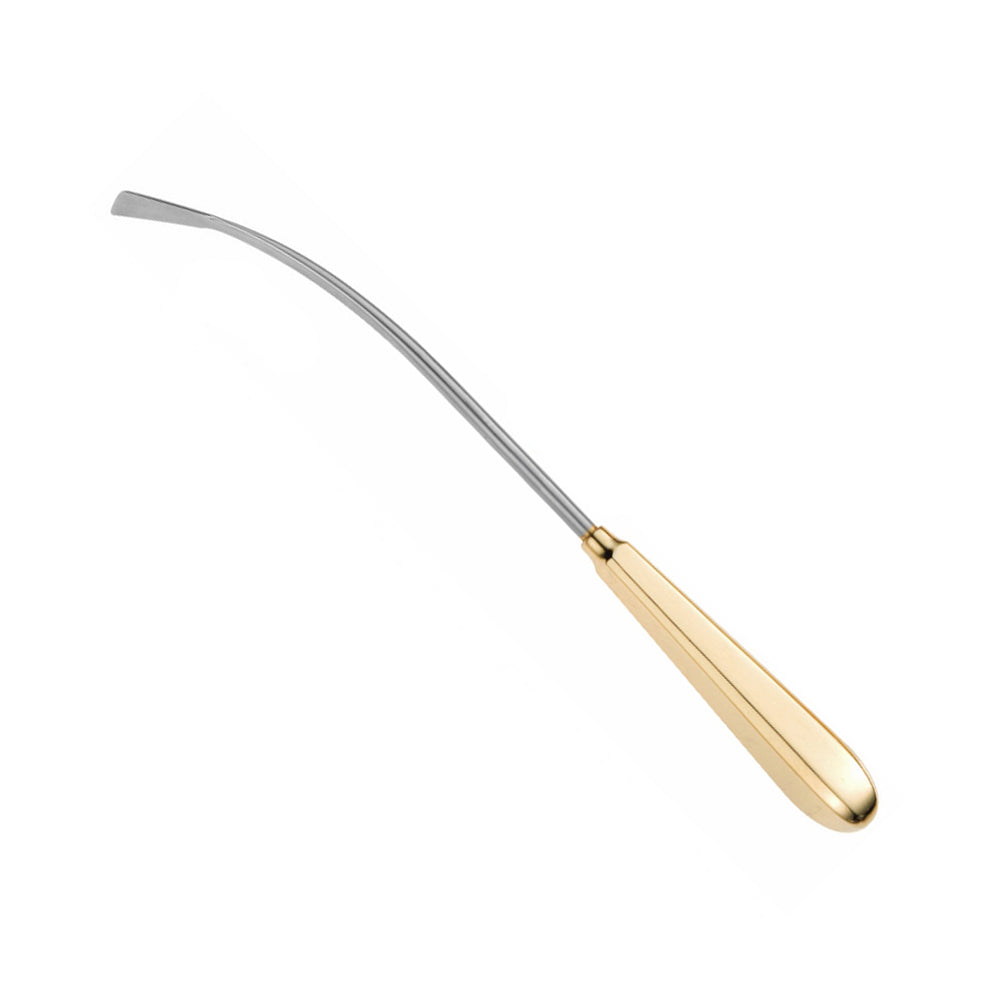

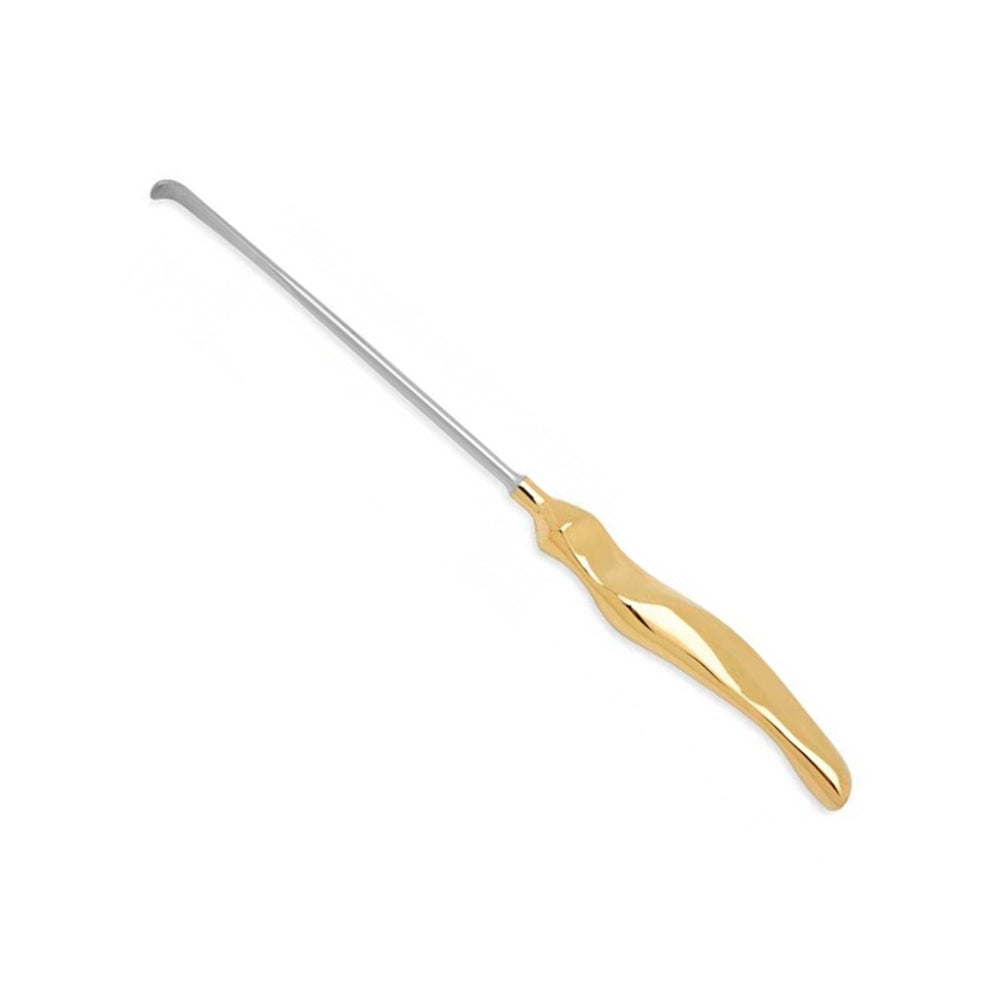

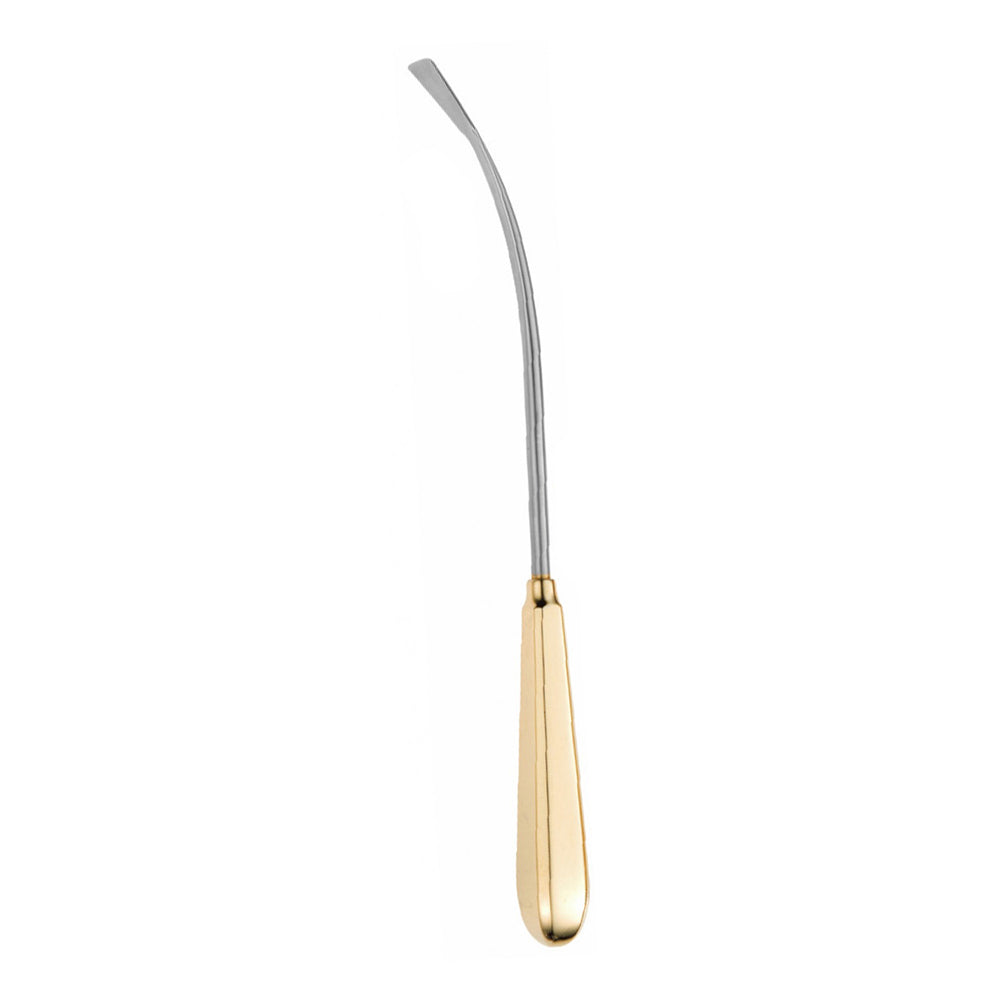

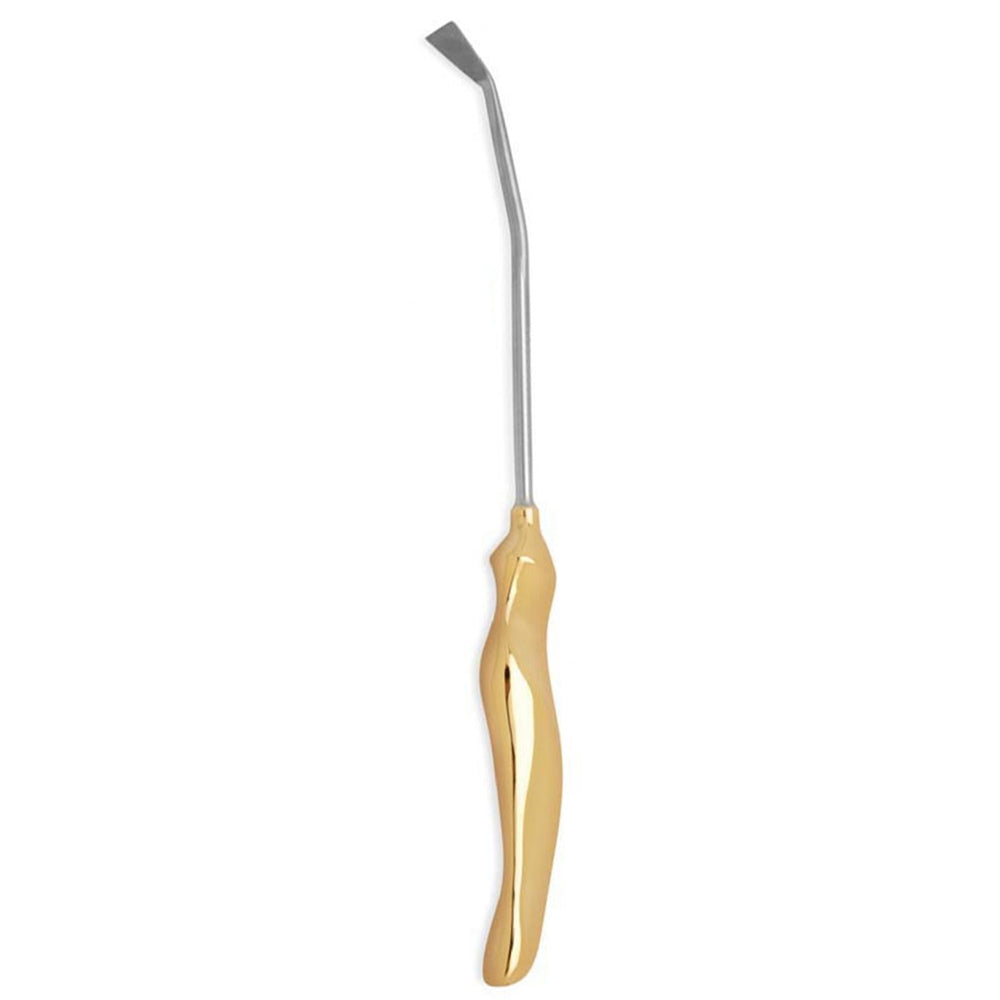

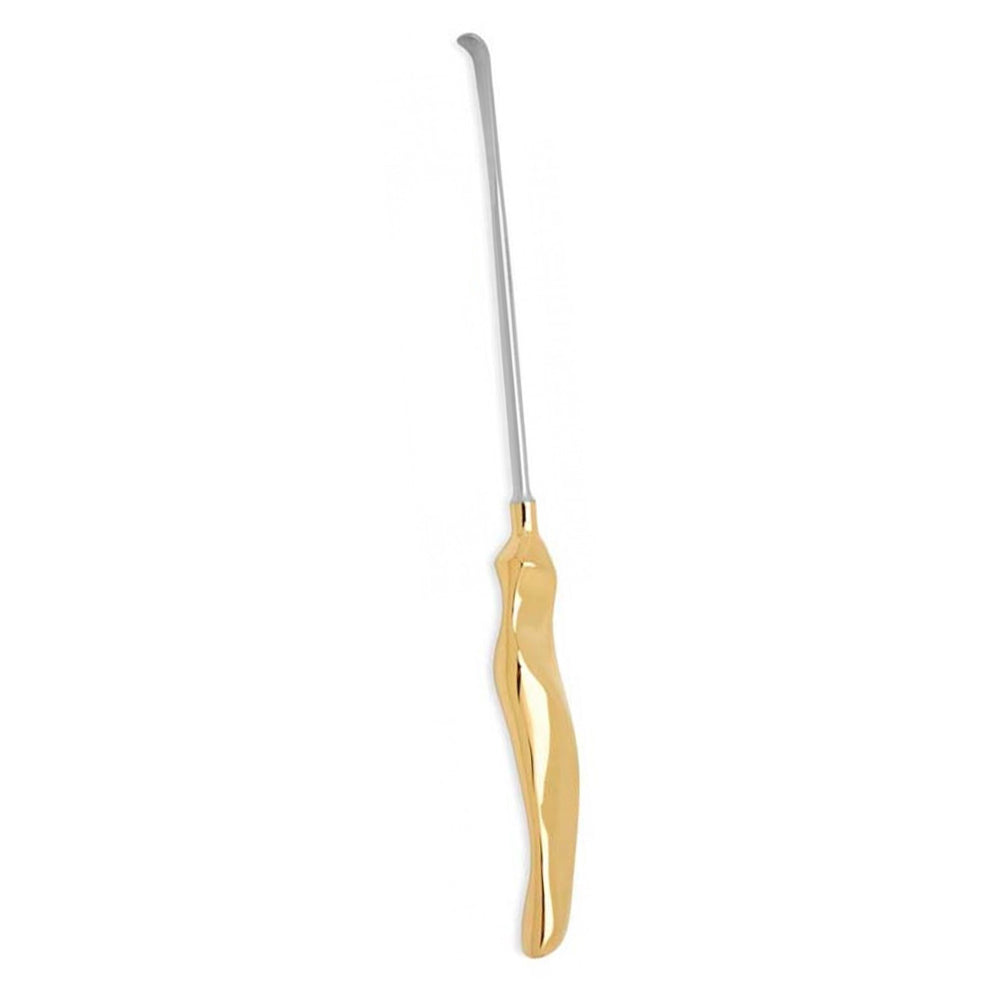

The Daniel family covers the working steps once the plane is open. Elevators lift and hold the flap: Daniel Endoscopic Forehead Scalp Straight Elevator (PS-ES-0014, $27.50) and Daniel Endoscopic Forehead Scalp Curved (PS-ES-0013, $27.50) give the two shaft geometries the approach needs, and Daniel Endoscopic Forehead Suction Elevator ($27.50) adds evacuation so the field stays visible without a second instrument occupying the corridor.

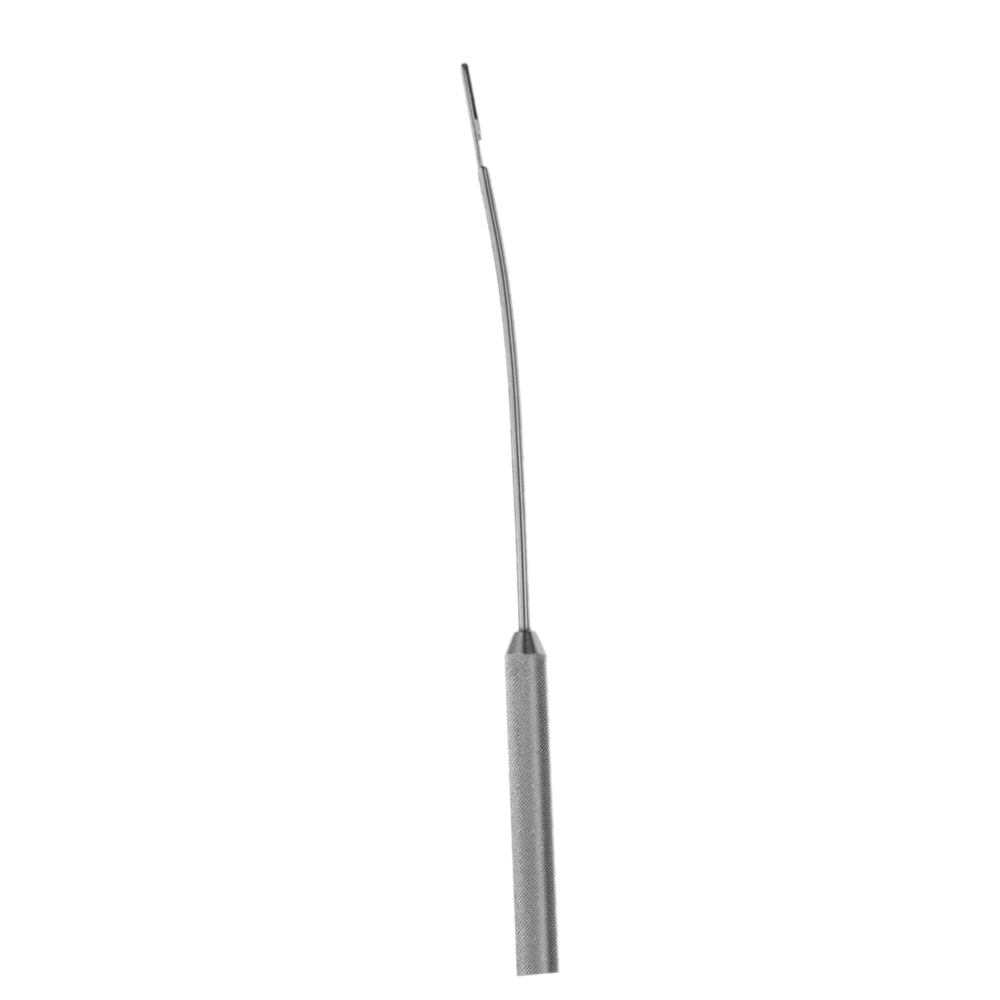

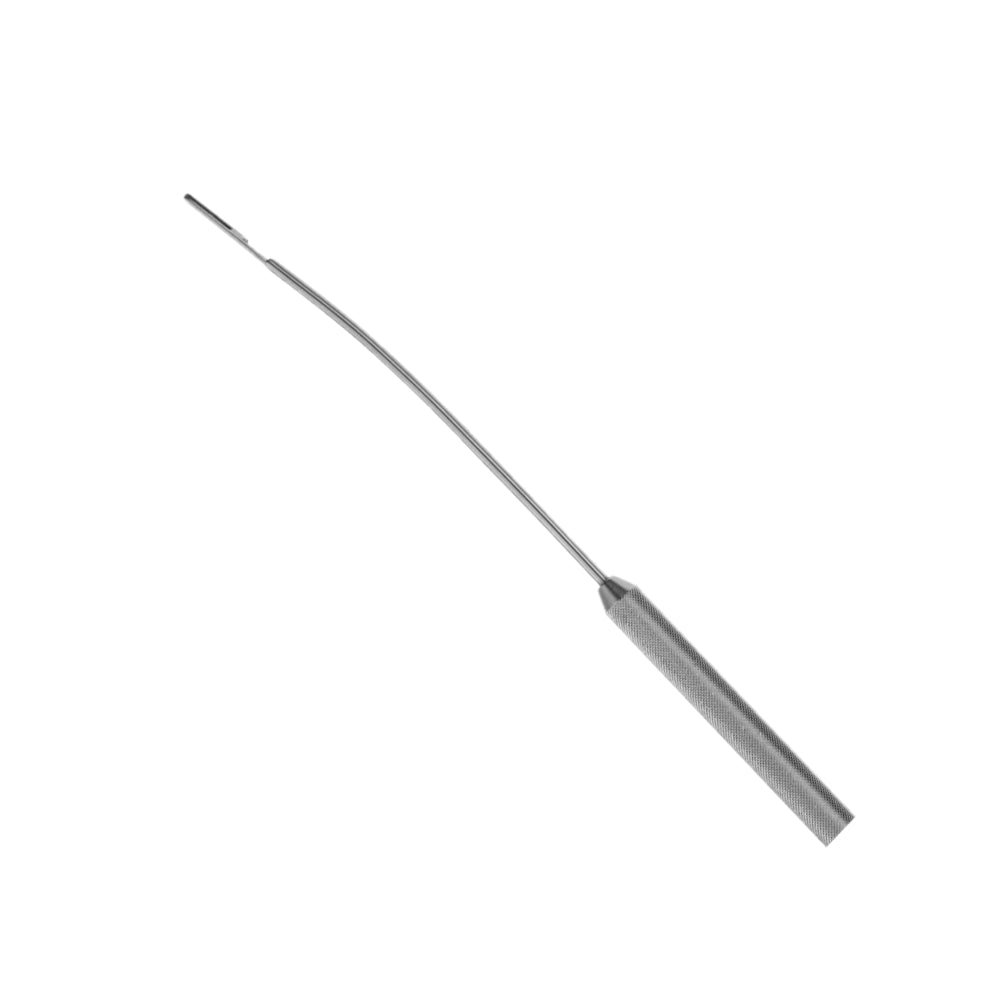

Nerve work has its own patterns. Daniel Endoscopic Forehead Nerve Hook (PS-ES-007, $22.00) and Daniel Endoscopic Forehead Nerve Retractor (PS-ES-009, $27.50) isolate and protect the supraorbital and supratrochlear branches during release at the arcus marginalis, which is the step where sensory loss is won or lost. Daniel Endoscopic Forehead Scissors ($44.00), Daniel Endoscopic Forehead Knife ($27.50) and Daniel Endo Cup Biopsy Forceps (PS-ES-001, $55.00) complete the set for division and tissue sampling.
The Ramirez Ladder Is a Sequence, Not a Choice
The Ramirez patterns are a graduated set rather than a menu of alternatives, and this is the part buyers most often get wrong. Ramirez-type endofacelift dissectors are numbered in order of use, each shaped for a specific manoeuvre and a specific depth, so the lengths descend as the dissection advances rather than offering a choice of one.

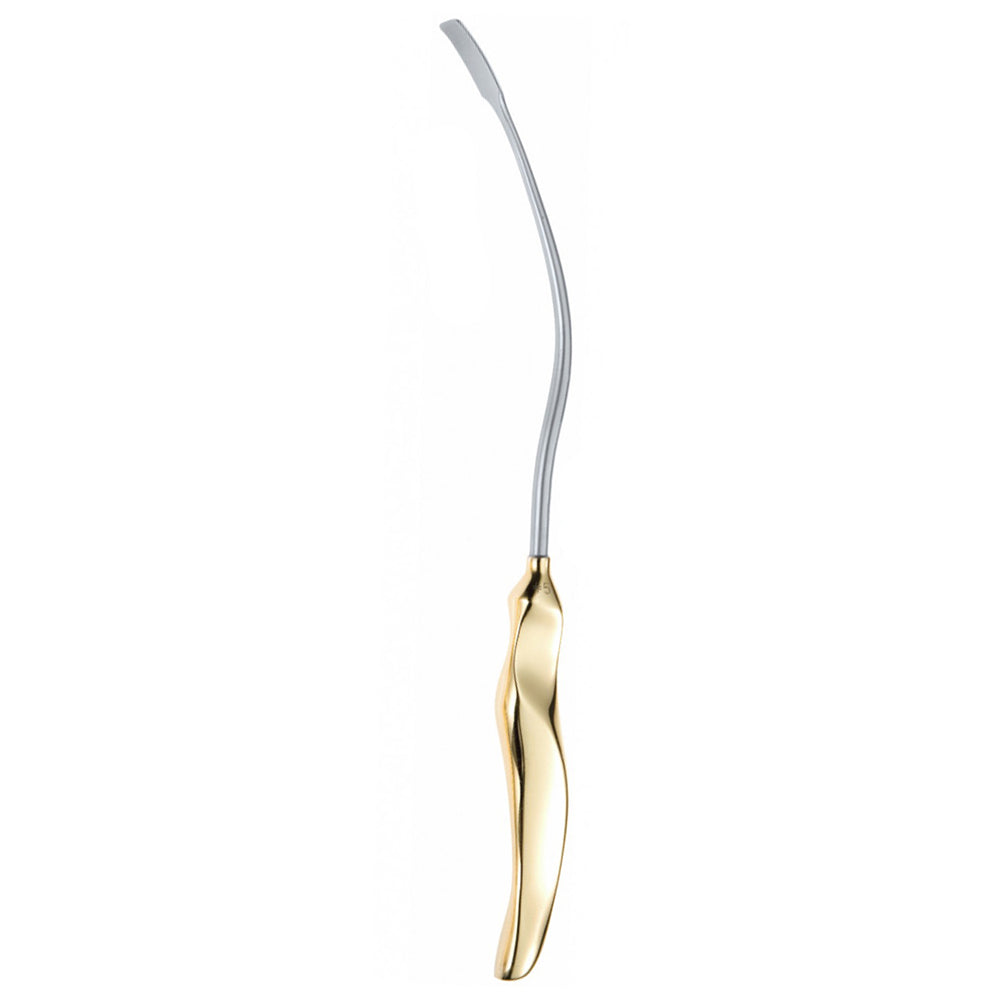

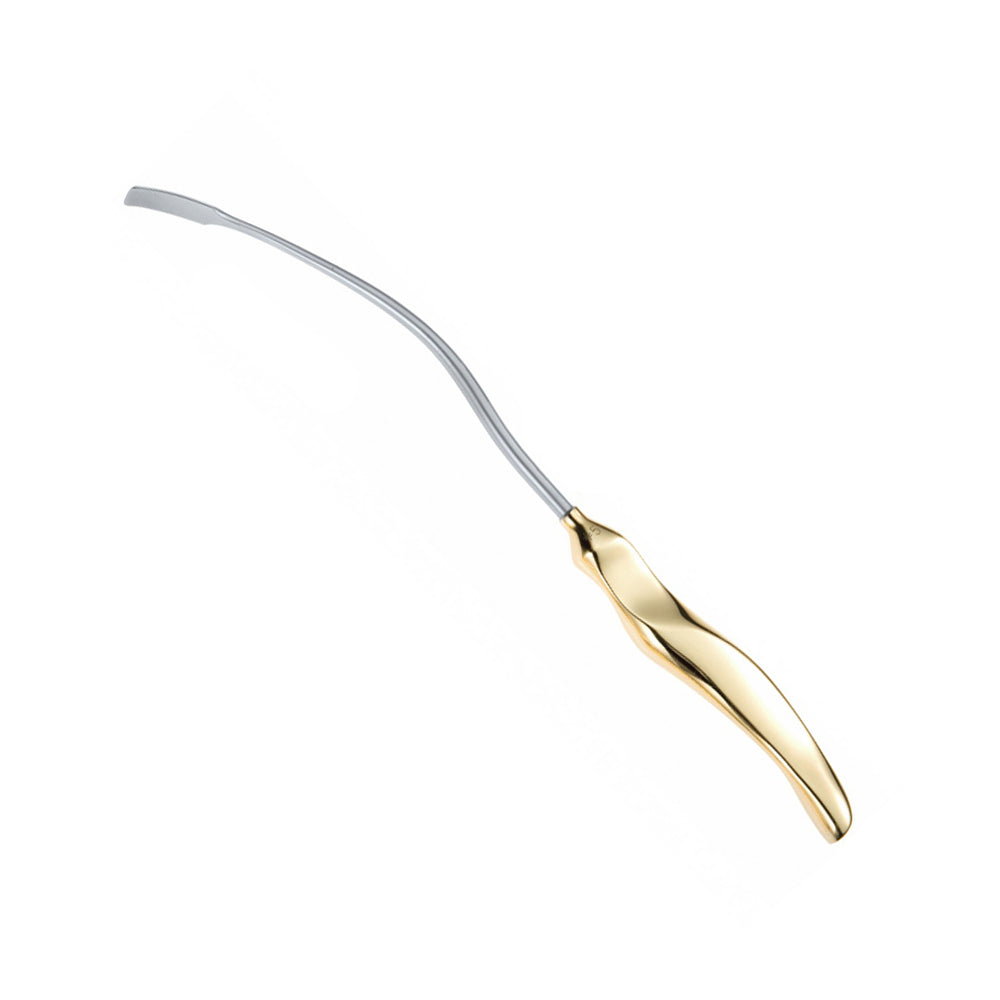

Peak carries that ladder across Ramirez Type Endoscopic Forehead 26.5cm (PS-ES-0028, $27.50), 26cm (PS-ES-0029, $27.50), 25cm (PS-ES-0024, $27.50) and 24cm (PS-ES-0026, $27.50), with Ramirez Type Endoscopic Facelift 23cm ($22.00) and 22.5cm ($27.50) extending into midface work. Endoscopic Forehead Front Glabellar Dissector Ramirez Type (PS-ES-0025, $27.50) handles the glabellar release where the depressor muscles are addressed. A surgeon buying one length is buying one step.
Straight or Contoured? Choose Against the Anatomy
Shaft geometry is the selection rule that runs across both families. Contoured and curved shafts follow the frontal bone and suit dissection across the forehead itself; straight shafts are used laterally, on the temporal dissections at the outer edges where there is no curve to follow. Choosing against the anatomy rather than the label is what keeps the tip in plane.
Three further patterns sit outside the two main families. Del Campo Dissector TC 21cm (PS-ES-0019, $44.00) carries tungsten carbide inlays for a harder working edge, Graivier Mid Face Dissector (PS-ES-0020, $38.50) is configured for the midface pocket rather than the forehead, and Scalp Suction Elevator (PS-ES-0031, $27.50) combines elevation and evacuation for scalp flap work.
Material, Reprocessing and Certification
Every pattern is forged from German stainless steel and passivated for corrosion resistance across repeated cycles. The inspection point is the shaft and the tip together: sight down the shaft against a straight edge, because these instruments work at length through a narrow corridor and a slight bend puts the tip somewhere the surgeon is not looking. Check the working edge for rounding, and on suction patterns confirm the lumen is clear along its full length. Clean immediately with a neutral-pH enzymatic solution, flushing suction lumens before residue dries, then rinse with deionised water and dry fully before autoclaving at 134°C.
These are Class I reusable devices, CE marked and built under ISO 13485, with a one-year manufacturing warranty. We ship at MOQ 1 with free shipping over $99, and OEM production is available for distributors. See Facelift Surgery Sets for complete trays, or browse all Plastic Surgery Instruments. Talk to us about OEM terms.
