Starter for Jewett Nail – Entry Preparation Instrument for Proximal Femoral Fixation

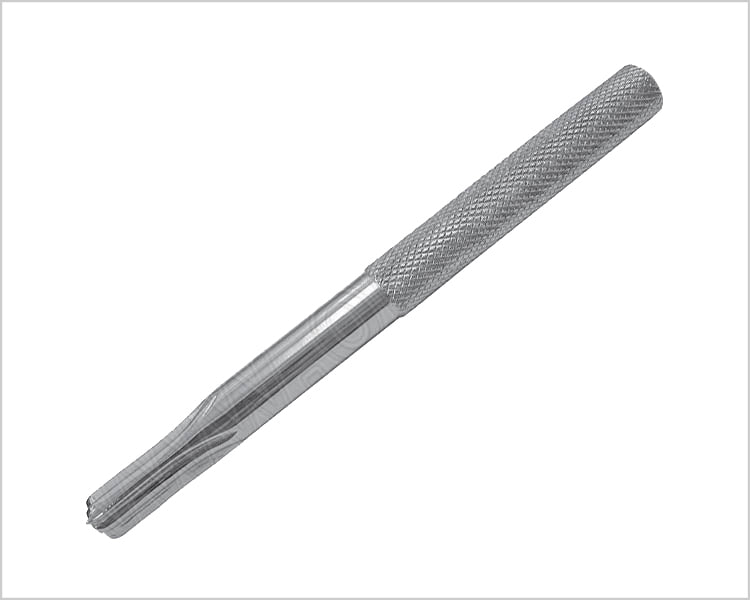

Starter for Jewett Nail, SKU PS-OP-7477 and catalog code PS-387.020, is a reusable orthopedic instrument manufactured from German-forged stainless steel for preparing the initial entry pathway required before placement of a compatible Jewett nail plate. The instrument has a cylindrical knurled hand-control section, rigid central shaft, and longitudinally fluted distal working end designed to engage cortical bone while the surgeon establishes the planned nail trajectory. It is used as part of the instrumentation sequence for fixed-angle Jewett nail-plate fixation of proximal femoral fractures, particularly intertrochanteric and selected pertrochanteric fracture patterns where this implant system is employed. After fracture reduction and determination of the intended nail position, the working end is aligned with the selected entry point and advanced to create or define the preliminary osseous pathway for subsequent implant instrumentation. The knurled surface supports controlled manual rotation and axial handling while the rigid shaft maintains directional alignment. This single-piece pattern is intended for orthopedic trauma surgeons, hospital operating rooms, fracture fixation sets, and reusable implant-specific instrument trays containing the corresponding Jewett driver and impactor-extractor.

Fluted Starter Tip, Rigid Shaft and Knurled Hand Control

The Starter for Jewett Nail functions by combining a manually controlled gripping surface with a rigid shaft and a longitudinally fluted distal working section. The textured cylindrical handle increases friction between the gloved hand and instrument so the surgeon can apply controlled rotational and axial movement without relying on finger rings, a ratchet, or a powered drive mechanism. Force applied at the proximal grip is transmitted directly along the straight shaft to the working end, helping maintain alignment with the planned nail trajectory. The distal flutes create defined cutting and channel-forming edges that initiate the entry pathway in bone rather than functioning as a plate-holding or final impaction surface. This geometry is clinically important because the entry channel must correspond to the intended path of the fixed-angle Jewett nail component through the proximal femur. The smooth transition between handle, shaft, and working region provides a continuous structural pathway during manual manipulation. Unlike the Jewett nail impactor-extractor, which transmits force to seat or retrieve the implant, the starter is used earlier in the sequence to prepare access. Unlike the driver handle, it directly contacts bone through its fluted distal section during entry preparation.

Proximal Femoral Fracture Fixation Workflow

During fixation with a Jewett nail plate, the Starter for Jewett Nail is used after the proximal femoral fracture has been exposed, reduced, and the intended implant orientation has been established. Jewett nail plates have historically been used for intertrochanteric, pertrochanteric, and related proximal femoral fracture patterns in which a fixed-angle nail component passes through the proximal femur toward the femoral neck and head while the attached plate lies along the lateral femoral cortex. Once the surgeon determines the required entry point and trajectory, the starter is positioned against the proximal lateral femoral surface and its fluted end is directed along the planned path. Controlled manual advancement establishes the initial bone entry and helps prepare a centered route for the subsequent nail-specific instrumentation. After the pathway has been established, the starter is withdrawn and the appropriate Jewett nail insertion components are introduced according to the implant system technique. The driver handle assists subsequent nail handling, while the dedicated impactor-extractor supports seating or removal. Because the Jewett construct is a fixed-angle device, accurate initial trajectory is important for maintaining the intended relationship between the nail portion, femoral neck, plate, and lateral cortex during definitive fixation.

Single Configuration and Instrument Selection Within the Jewett System

The Starter for Jewett Nail is supplied as a single catalog configuration under code PS-387.020 rather than as a multi-size set. Its role is defined by function within the Jewett nail-plate instrumentation sequence rather than by interchangeable gauge options. The knurled proximal region provides the principal hand interface, the central shaft determines the longitudinal working axis, and the fluted distal section performs the entry-preparation step. Instrument selection should distinguish the starter from the other dedicated tools used with this implant family. A Driver Handle for Jewett Nail is intended to control the implant or associated insertion component during placement, whereas the Jewett Nail Impactor-Extractor is configured for force transmission during final advancement and for controlled extraction when removal is required. The starter precedes those functions by establishing the preliminary osseous channel. This separation of functions allows each instrument to be used for the mechanical task represented by its working geometry. In an orthopedic trauma tray, PS-387.020 can therefore be grouped with the compatible Jewett nail plate, driver, impactor-extractor, guide instrumentation, reduction tools, drills, and fixation equipment used during proximal femoral open reduction and internal fixation.

German Stainless Steel, Reprocessing and Procurement Standards

The Starter for Jewett Nail is constructed as a reusable medical-grade instrument, with German-forged stainless steel providing the rigidity, corrosion resistance, and repeated-processing capability required for orthopedic bone instrumentation. Its metallic construction permits direct inspection of the knurled grip, shaft, and fluted working section after each procedure. The functional flutes require particular attention during cleaning because bone particles and biological material can remain between longitudinal cutting surfaces if gross soil is allowed to dry. After use, the instrument should be cleaned promptly, thoroughly rinsed, dried, and inspected for bent shaft geometry, damaged flutes, corrosion, surface defects, or deformation that could alter the prepared entry path. Reprocessing should follow the healthcare facility's validated cleaning and steam-sterilization protocol for reusable stainless steel orthopedic instruments. The Peak Surgicals listing identifies the device as reusable and displays CE, FDA, and ISO certification information. For procurement documentation, CE conformity and ISO 13485 quality-management status should be recorded according to the applicable supplied documentation, while U.S. FDA status should be handled according to the device's relevant registration, listing, labeling, and regulatory records rather than described as blanket individual approval. The single-piece design also simplifies tray inspection and inventory reconciliation.

How does the Starter for Jewett Nail differ from a Jewett Nail Impactor-Extractor?
The Starter for Jewett Nail prepares the initial bone entry pathway before the definitive nail component is advanced. The Jewett Nail Impactor-Extractor performs a later mechanical function by transmitting force to seat the compatible implant and assisting with controlled removal when required. The starter therefore has a fluted bone-engaging working end suited to initiating the pathway. An impactor-extractor uses an implant-engaging interface designed to transmit insertion or extraction force rather than cut the initial channel. The Starter for Jewett Nail is consequently used before final nail advancement in the fixation sequence. Both instruments belong to the same implant-specific workflow but should not be substituted for one another.

Why does this instrument use a fluted distal working end?
The fluted working section allows the Starter for Jewett Nail to engage bone while the initial entry pathway is created. Longitudinal cutting surfaces provide controlled contact during manual axial advancement and rotation. This differs from a smooth probe or driver, which would not provide the same channel-forming geometry. During proximal femoral fixation, the starter is aligned with the intended trajectory of the Jewett nail component before the pathway is developed. Maintaining this direction is important because the nail and plate form a fixed-angle construct. The surgeon therefore uses the fluted tip to establish the preliminary route while preserving the planned relationship between the proximal femur and definitive implant.

What do CE, ISO 13485 and FDA requirements mean when purchasing this instrument?
The Starter for Jewett Nail is sold within Peak Surgicals' medical-device manufacturing and procurement framework. ISO 13485 relates to the quality-management system governing controlled medical-device manufacturing processes. CE documentation addresses conformity requirements for applicable regulated markets. For United States procurement, FDA requirements involve the applicable manufacturer registration, device listing, labeling, quality-system, and regulatory documentation. FDA approved should not be used as a blanket description for every reusable manual orthopedic instrument unless that particular status applies to the device. Hospitals and distributors should maintain the relevant regulatory documentation together with vendor qualification, purchasing, and reusable-instrument records.

How does the knurled grip control the starter during entry preparation?
The knurled cylindrical portion of the Starter for Jewett Nail forms the surgeon's primary manual control surface. Its cross-hatched texture increases friction against surgical gloves during axial pressure and controlled rotational movement. The rigid connection between grip and shaft transfers those movements directly to the fluted distal end. This allows the surgeon to maintain the planned direction while the working section engages the proximal femoral cortex. The pattern does not depend on a ratchet, spring, box lock, or powered drive mechanism for its primary action. Accurate control therefore comes from hand positioning, instrument alignment, and deliberate manual advancement along the selected Jewett nail trajectory.

How should sterile processing teams clean and manage the Starter for Jewett Nail?
The Starter for Jewett Nail should be treated as a reusable orthopedic bone instrument after each surgical procedure. Gross bone and biological material should be removed promptly, with particular attention to the grooves between the distal flutes and the recesses of the knurled grip. After cleaning, the instrument should be thoroughly rinsed and dried before inspection under adequate lighting. Sterile processing personnel should check the working flutes for damage, the shaft for bending, and all stainless steel surfaces for corrosion or abnormal wear. The instrument can then be packaged and processed through the facility's validated sterilization cycle for compatible reusable orthopedic instrumentation. Catalog code PS-387.020 and Shopify SKU PS-OP-7477 can be retained in tray and procurement records to distinguish the starter from the corresponding Jewett driver and impactor-extractor.
