PEAK SURGICALS
SKU:PS-OP-485
Couldn't load pickup availability
The Peak Surgicals Small Fragment Screw Combo Set combines standard cortex, safety-lock and cancellous screw families with instruments for managing a small-fragment orthopedic fixation inventory. The product is listed under Shopify SKU PS-OP-485 and set reference PS790, with a current listed price of $1,034.65 USD per set.
The set includes 2.7mm and 3.5mm cortex and safety-lock screw ranges, 4.0mm short-thread and full-thread cancellous screw ranges, torque screwdrivers, driver shafts, drill sleeves, drill bits, bone taps, a depth gauge, drill guides, handles and an organizing container. It is intended for trained orthopedic professionals, hospitals, surgical centers and medical procurement departments. Compatibility with the intended plate system, drivers and operative technique must be confirmed before ordering or clinical use.
The 2.7mm inventory includes self-tapping stainless steel cortex screws and safety-lock screws listed from 10mm to 60mm in 2mm increments. The current catalog lists five screws per available length for each 2.7mm family.
The 3.5mm inventory includes self-tapping stainless steel cortex screws from 10mm to 60mm in 2mm increments. The 3.5mm safety-lock range extends from 10mm to 60mm in 2mm increments, followed by longer 65mm, 70mm, 75mm, 80mm, 85mm and 90mm options. Five screws are listed per available length. Selection must be based on the compatible plate system, applicable instructions for use and the planned orthopedic procedure.
The set contains two separate 4.0mm stainless steel cancellous screw families. The short-thread range and full-thread range are each listed from 10mm to 60mm in 2mm increments, with two screws per available length. Keeping the two thread configurations separately organized helps clinical and inventory teams identify the specified component during preparation.
The product page does not state the exact stainless steel alloy, implant grade, surface treatment or supplied sterility of these screws. Procurement teams should request the applicable material certificates, regulatory documents, instructions for use and sterilization status for the supplied configuration.
The accompanying instrument inventory includes 2.7mm and 3.5mm quick-coupling torque screwdrivers, hexagonal and Torx driver shafts, drill sleeves for safety-lock screws, multiple quick-coupling drill bits, cortex and cancellous bone taps, a small depth gauge, drill guides, a T-type quick-coupling handle and a small hexagonal screwdriver.
These instruments support screw preparation, measurement, insertion and inventory organization within a small-fragment orthopedic workflow. Instrument compatibility, torque requirements, cleaning instructions and validated reprocessing procedures must be confirmed from the applicable manufacturer documentation before use.

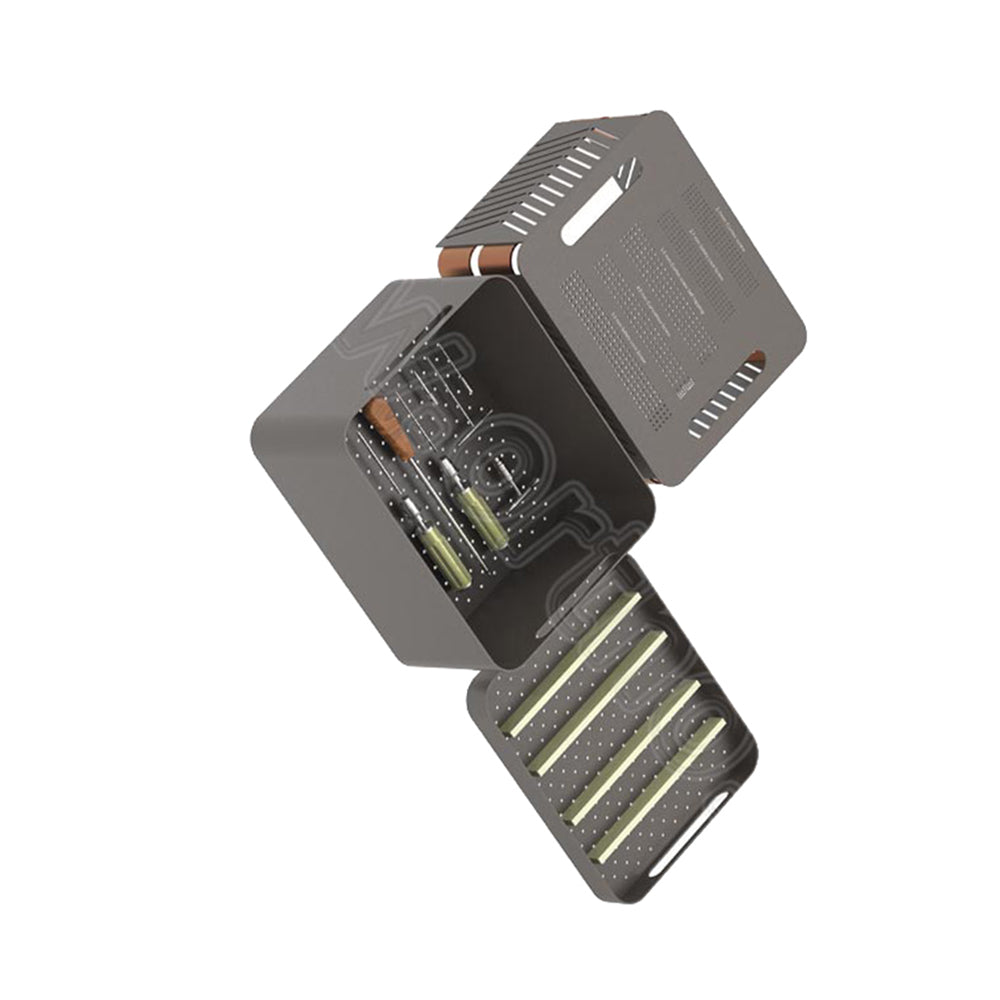

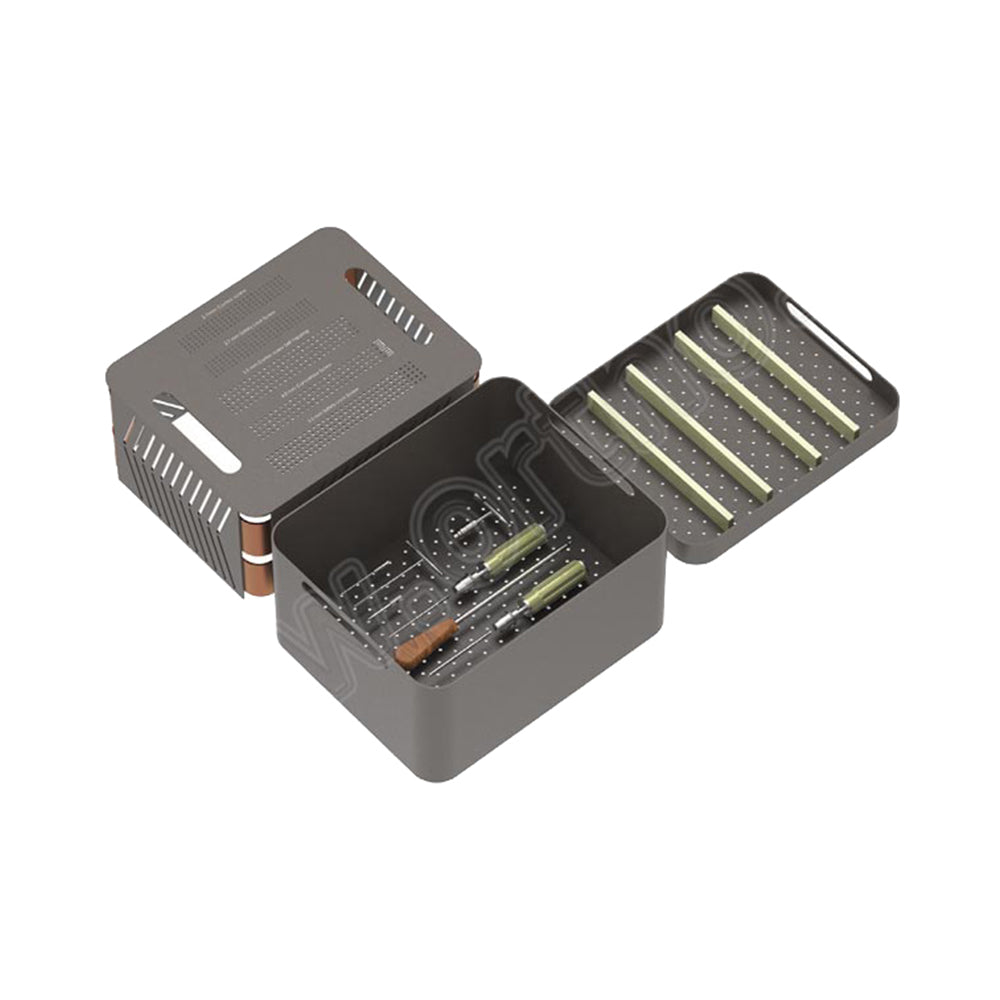

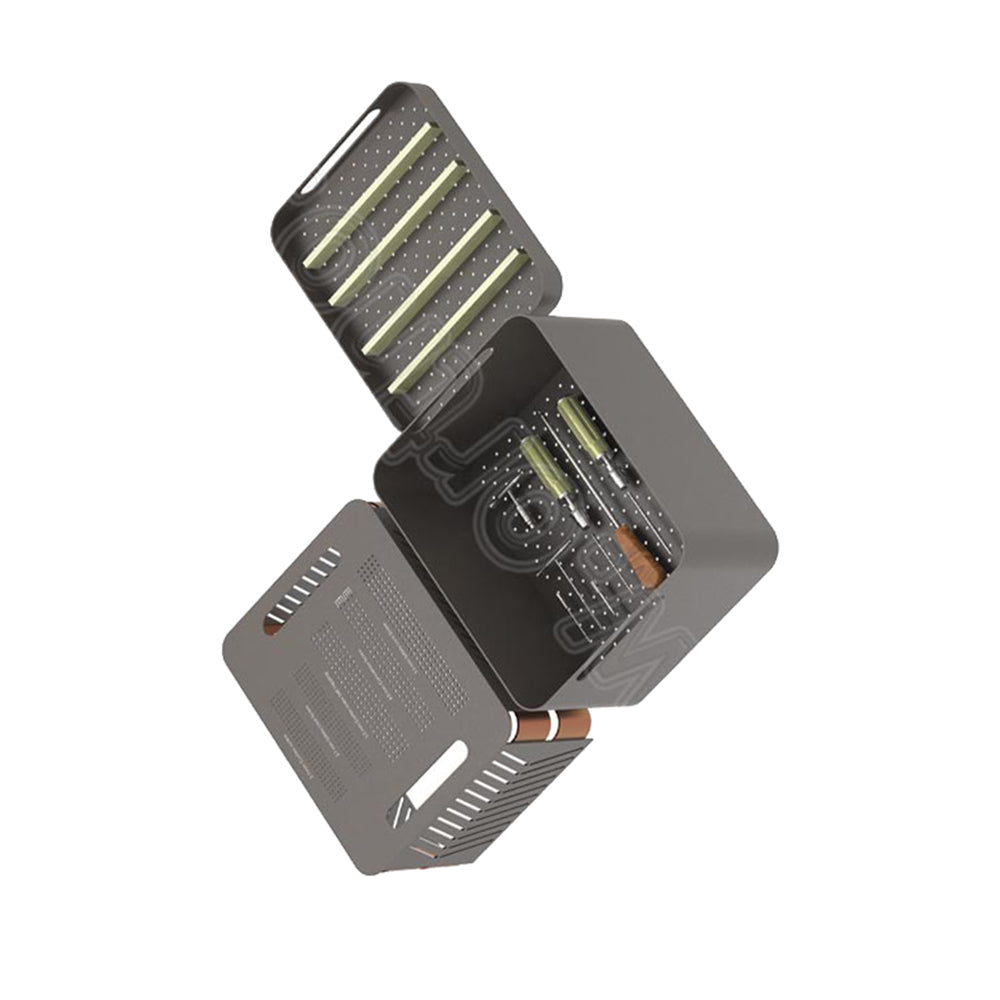

The product images show an open metal container with removable screw racks, instrument compartments and driver instruments. The organized layout is intended to keep multiple screw diameters, lengths and related instruments separated for identification and inventory management.
The listing includes an empty container under reference PS790.000, but its stated quantity, dimensions, material, sterilization compatibility and validated reprocessing method are not provided. These details should be confirmed when requesting a quotation or procurement documentation.
| Specification | Verified Information |
|---|---|
| Product Name | Small Fragment Screw Combo Set |
| Configuration | Safety-lock and standard screw combination set |
| Brand | Peak Surgicals |
| Shopify SKU | PS-OP-485 |
| Set Reference | PS790 |
| Current Listed Price | $1,034.65 USD per set |
| Screw Families | Six listed screw families |
| Screw Diameters | 2.7mm, 3.5mm and 4.0mm |
| Screw Types | Cortex, safety-lock, short-thread cancellous and full-thread cancellous screws |
| Screw Material | Stainless steel as stated in the current product inventory |
| Exact Alloy Grade | Not stated; request material documentation |
| Instrument Material | Not stated on the current product page |
| Surface Finish | Not stated on the current product page |
| Product Category | Orthopedic screw and instrument combination set |
| Professional Application | Small-fragment orthopedic plate-and-screw fixation workflows |
| Intended Users | Trained orthopedic professionals, hospitals, surgical centers and procurement departments |
| Supplied Sterility | Not stated; confirm before ordering or use |
| Reuse Status | Not stated; request item-specific instructions because screws and instruments may have different requirements |
| Compatibility | Must be confirmed with the intended plates, drivers and applicable surgical system |
| Quality Documentation | Request documentation applicable to PS-OP-485, the included components and the destination market |
| Warranty | Not stated; confirm with Peak Surgicals |
| Minimum Order Quantity | One set through the current Shopify listing |
| OEM or Custom Configuration | Not stated; confirm availability with Peak Surgicals |
| After-Sales Support | Subject to the store policy and product eligibility |
| Screw Family | Diameter | Listed Length Range | Quantity per Length | Reference Series |
|---|---|---|---|---|
| Cortex Screw, Self-Tapping | 2.7mm | 10–60mm in 2mm increments | 5 | 101.210–101.260 |
| Safety-Lock Screw, Self-Tapping | 2.7mm | 10–60mm in 2mm increments | 5 | PS-101.410–PS-101.460 |
| Cortex Screw, Self-Tapping | 3.5mm | 10–60mm in 2mm increments | 5 | 102.210–102.260 |
| Cancellous Bone Screw, Short Thread | 4.0mm | 10–60mm in 2mm increments | 2 | 104.010–104.060 |
| Cancellous Bone Screw, Full Thread | 4.0mm | 10–60mm in 2mm increments | 2 | 105.010–105.060 |
| Safety-Lock Screw, Self-Tapping | 3.5mm | 10–60mm in 2mm increments, plus 65–90mm in 5mm increments | 5 | PS-102.210–PS-102.290 |
| Reference | Included Component | Quantity |
|---|---|---|
| PS432.555 | Torque Screw Driver, Quick Coupling, 3.5mm | 1 |
| PS432.509 | Hexagonal Screw Driver Shaft, 2.5mm Tip for 3.5mm Screws | 1 |
| PS432.511 | Torx Screw Driver Shaft, Star Tip T15 | 1 |
| PS432.550 | Torque Screw Driver, Quick Coupling, 2.7mm | 1 |
| PS432.500 | Hexagonal Screw Driver Shaft, 1.5mm Tip for 2.7mm Screws | 1 |
| PS432.502 | Hexagonal Screw Driver Shaft, 2.0mm Tip for 2.7mm Screws | 1 |
| PS432.504 | Torx Screw Driver Shaft, Star Tip T8 | 1 |
| PS432.005 | 2.8mm Drill Sleeve for 3.5mm Safety-Lock Screws | 2 |
| PS432.035 | 2.0mm Drill Sleeve for 2.4mm and 2.7mm Safety-Locking Screws | 2 |
| PS432.031 | Drill Bit Ø2.0mm, 150mm Length, Two-Flute, Quick Coupling | 2 |
| PS432.001 | Drill Bit with Stopper, 2.8 × 165mm | 2 |
| 264.025 | Bone Tap 3.5mm, Cortex | 1 |
| 264.038 | Bone Tap 4.0mm, Cancellous | 1 |
| 303.010 | Small Depth Gauge | 1 |
| 260.250 | Quick-Coupling Drill Bit, 2.5 × 130mm | 2 |
| 260.350 | Quick-Coupling Drill Bit, 3.5 × 130mm | 2 |
| 307.060 | Combined Drill and Tap Sleeve, 3.5/2.5mm | 1 |
| 304.010 | Neutral and Loaded Drill Guide, Small | 1 |
| 306.010 | Quick-Coupling Handle, T-Type | 1 |
| 301.040 | Small Hexagonal Screwdriver, 2.5mm Tip | 1 |
| PS790.000 | Empty Container | Not stated |
Which screw diameters are included in the Small Fragment Screw Combo Set? The listing includes 2.7mm cortex and safety-lock screws, 3.5mm cortex and safety-lock screws, and 4.0mm short-thread and full-thread cancellous screws.
What screw lengths are supplied? Most listed families cover 10mm to 60mm in 2mm increments. The 3.5mm safety-lock family also lists 65mm, 70mm, 75mm, 80mm, 85mm and 90mm lengths.
How are safety-lock, cortex and cancellous screws selected? They are listed as separate screw families with different diameters and thread configurations. Selection must follow the compatible plate system, manufacturer instructions and the surgeon’s approved operative plan.
Does the set include insertion and preparation instruments? Yes. The listed configuration includes torque screwdrivers, driver shafts, drill sleeves, drill bits, taps, a depth gauge, drill guides, a T-type handle and a small hexagonal screwdriver.
Is this screw set compatible with every small-fragment plate system? Universal compatibility is not stated. Confirm the screw dimensions, head design, driver interfaces and plate compatibility before purchase or clinical use.
Is the set supplied sterile? The current listing does not specify supplied sterility. Request the applicable labeling, instructions for use and sterilization or reprocessing documentation before use.
Are all components reusable? Reuse status is not stated. Screws and accompanying instruments may have different usage and reprocessing requirements, so item-specific manufacturer instructions must be followed.
What quality and regulatory documents are available? Peak Surgicals states that it maintains an ISO 13485-certified quality management system and follows FDA requirements. Buyers should request certificates and regulatory documentation applicable to this product, its included components and the intended destination market.
Order the Small Fragment Screw Combo Set using Shopify SKU PS-OP-485 or reference the catalog set number PS790 when submitting a procurement inquiry. The current online price is $1,034.65 USD per set. Availability, final configuration, shipping, lead time, supplied sterility, compatibility documentation and market-specific regulatory status should be confirmed before completing the order.
Hospitals, distributors and procurement departments should request a verified packing list, component-level material documentation, applicable instructions for use and regulatory certificates for the supplied set. Product information is intended for professional procurement and does not replace the manufacturer’s approved instructions or institutional clinical protocols.
