Small Fragment Safety Lock Instruments Set

Small Fragment Safety Lock Instruments Set

PS-OP-005

$825.00 USD
$825.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Secure Checkout Protected payment flow
Quality Inspected Checked before dispatch
Worldwide Supply International buyer support
Shipping, Returns & Payments Clear buyer information before checkout.
Shipping
Free shipping on orders over $99. See shipping details
Returns
Returns and exchanges are handled according to our return policy. See return policy
Payments
American Express Apple Pay Diners Club Discover Google Pay JCB Mastercard
Return / Exchange Info
View full details

The Small Fragment Safety Lock Instruments Set by Peak Surgicals is configured for 2.4mm and 2.7mm distal radius fixation procedures. The system combines two-column volar distal radius plates, variable-angle safety-lock screws, safety-lock screws, cortex screws, and dedicated orthopedic instrumentation for drilling, measurement, screw insertion, and fixation workflows.

The set includes standard 22mm and wide 25.5mm stainless steel plate configurations for left and right applications, together with multiple screw lengths and supporting instruments.

Set Contents

Set Consisting of: Units
2.4MM Safety-Lock Variable Angle Two-Column Volar Distal Radius Plate, 6 Head Holes, Width 22MM, Standard, S.S.
PS-130.602L - Left, 2 Holes 1
PS-130.602R - Right, 2 Holes 1
PS-130.603L - Left, 3 Holes 1
PS-130.603R - Right, 3 Holes 1
PS-130.604L - Left, 4 Holes 1
PS-130.604R - Right, 4 Holes 1
2.4MM Safety-Lock Variable Angle Two-Column Volar Distal Radius Plate, 7 Head Holes, Width 25.5MM, Wide, S.S.
PS-136.702L - Left, 2 Holes 1
PS-136.702R - Right, 2 Holes 1
PS-136.703L - Left, 3 Holes 1
PS-136.703R - Right, 3 Holes 1
PS-136.704L - Left, 4 Holes 1
PS-136.704R - Right, 4 Holes 1
Safety Lock Screw Ø 2.4MM - Variable Angle (Star Like), S.S.
PS-100V.208 - Ø 2.4mm Variable Angle (Star Like), Length: 08mm 4
PS-100V.210 - Ø 2.4mm Variable Angle (Star Like), Length: 10mm 4
PS-100V.212 - Ø 2.4mm Variable Angle (Star Like), Length: 12mm 4
PS-100V.214 - Ø 2.4mm Variable Angle (Star Like), Length: 15mm 4
PS-100V.216 - Ø 2.4mm Variable Angle (Star Like), Length: 16mm 4
PS-100V.218 - Ø 2.4mm Variable Angle (Star Like), Length: 18mm 4
PS-100V.220 - Ø 2.4mm Variable Angle (Star Like), Length: 20mm 4
PS-100V.222 - Ø 2.4mm Variable Angle (Star Like), Length: 22mm 4
PS-100V.224 - Ø 2.4mm Variable Angle (Star Like), Length: 24mm 4
PS-100V.226 - Ø 2.4mm Variable Angle (Star Like), Length: 26mm 4
PS-100V.228 - Ø 2.4mm Variable Angle (Star Like), Length: 28mm 4
PS-100V.230 - Ø 2.4mm Variable Angle (Star Like), Length: 30mm 4
Safety Lock Screw Ø 2.4MM - (Star Like), S.S.
PS-100S.208 - Ø 2.4mm Safety Lock (Star Like), Length: 8mm 3
PS-100S.210 - Ø 2.4mm Safety Lock (Star Like), Length: 10mm 3
PS-100S.212 - Ø 2.4mm Safety Lock (Star Like), Length: 12mm 3
PS-100S.214 - Ø 2.4mm Safety Lock (Star Like), Length: 14mm 3
PS-100S.216 - Ø 2.4mm Safety Lock (Star Like), Length: 16mm 3
PS-100S.218 - Ø 2.4mm Safety Lock (Star Like), Length: 18mm 3
PS-100S.220 - Ø 2.4mm Safety Lock (Star Like), Length: 20mm 3
PS-100S.222 - Ø 2.4mm Safety Lock (Star Like), Length: 22mm 3
PS-100S.224 - Ø 2.4mm Safety Lock (Star Like), Length: 24mm 3
PS-100S.226 - Ø 2.4mm Safety Lock (Star Like), Length: 26mm 3
PS-100S.228 - Ø 2.4mm Safety Lock (Star Like), Length: 28mm 3
PS-100S.230 - Ø 2.4mm Safety Lock (Star Like), Length: 30mm 3
Cortex Screw Ø 2.4MM (Star Like) - Self Tapping, S.S.
100S.208 - Ø 2.4mm (Star Like), Self Tapping, Length: 08mm 3
100S.210 - Ø 2.4mm (Star Like), Self Tapping, Length: 10mm 3
100S.212 - Ø 2.4mm (Star Like), Self Tapping, Length: 12mm 3
100S.214 - Ø 2.4mm (Star Like), Self Tapping, Length: 14mm 3
100S.216 - Ø 2.4mm (Star Like), Self Tapping, Length: 16mm 3
100S.218 - Ø 2.4mm (Star Like), Self Tapping, Length: 18mm 3
100S.220 - Ø 2.4mm (Star Like), Self Tapping, Length: 20mm 3
100S.222 - Ø 2.4mm (Star Like), Self Tapping, Length: 22mm 3
100S.224 - Ø 2.4mm (Star Like), Self Tapping, Length: 24mm 3
100S.226 - Ø 2.4mm (Star Like), Self Tapping, Length: 26mm 3
100S.228 - Ø 2.4mm (Star Like), Self Tapping, Length: 28mm 3
100S.230 - Ø 2.4mm (Star Like), Self Tapping, Length: 30mm 3
Cortex Screw Ø 2.7MM (Star Like) - Self Tapping, S.S.
101S.210 - Ø 2.7mm (Star Like), Self Tapping, Length: 10mm 3
101S.212 - Ø 2.7mm (Star Like), Self Tapping, Length: 12mm 3
101S.214 - Ø 2.7mm (Star Like), Self Tapping, Length: 14mm 3
101S.216 - Ø 2.7mm (Star Like), Self Tapping, Length: 16mm 3
101S.218 - Ø 2.7mm (Star Like), Self Tapping, Length: 18mm 3
101S.220 - Ø 2.7mm (Star Like), Self Tapping, Length: 20mm 3
101S.222 - Ø 2.7mm (Star Like), Self Tapping, Length: 22mm 3
101S.224 - Ø 2.7mm (Star Like), Self Tapping, Length: 24mm 3
101S.226 - Ø 2.7mm (Star Like), Self Tapping, Length: 26mm 3
101S.228 - Ø 2.7mm (Star Like), Self Tapping, Length: 28mm 3
101S.230 - Ø 2.7mm (Star Like), Self Tapping, Length: 30mm 3
Instruments
PS.431.01 - Depth Gauge 1
PS.431.02 - Star Screwdriver Shaft - Short 1
PS.431.03 - Star Screwdriver Shaft - Long 1
PS.431.04 - Drill Bit 1.8mm 1
PS.431.05 - Drill Bit 2.0mm 1
PS.431.06 - Drill Bit 2.0mm Long 1
PS.431.07 - Univesal Variable Angle Locking Drill Guide 1
PS.431.08 - Drill Sleeve 2.4/1.8mm 1
PS.431.09 - TorPSue Limiting Device 1
PS.431.10 - Guide Wire Pin 1
PS.431.11 - Handle for TorPSue Limiting Attachment 1
PS.431.12 - Handle with PSuick Coupling 1
PS.431.13 - Holding Sleeve for Screw Driver Shaft 1
PS.431.14 - Drill Sleeve LCP Ø1.8mm 1
PS.431.15 - Drill Sleeve LCP Ø2.0mm 1
PS.440.000 - Empty Container

Key Features

  • 2.4mm and 2.7mm Fixation System: Includes compatible plates, safety-lock screws, cortex screws, and dedicated orthopedic instruments.
  • Standard and Wide Plate Configurations: Includes 22mm standard and 25.5mm wide two-column volar distal radius plate options.
  • Left and Right Configurations: Multiple plate options are provided for left and right applications.
  • Multiple Screw Lengths: Includes variable-angle safety-lock, safety-lock, and cortex screw options in multiple lengths.
  • Dedicated Drilling and Measurement Instruments: Includes drill bits, drill sleeves, variable-angle locking drill guide, and depth gauge.
  • Insertion and Handling Components: Includes screwdriver shafts, guide wire pin, holding sleeve, torque-limiting components, and quick-coupling handle.

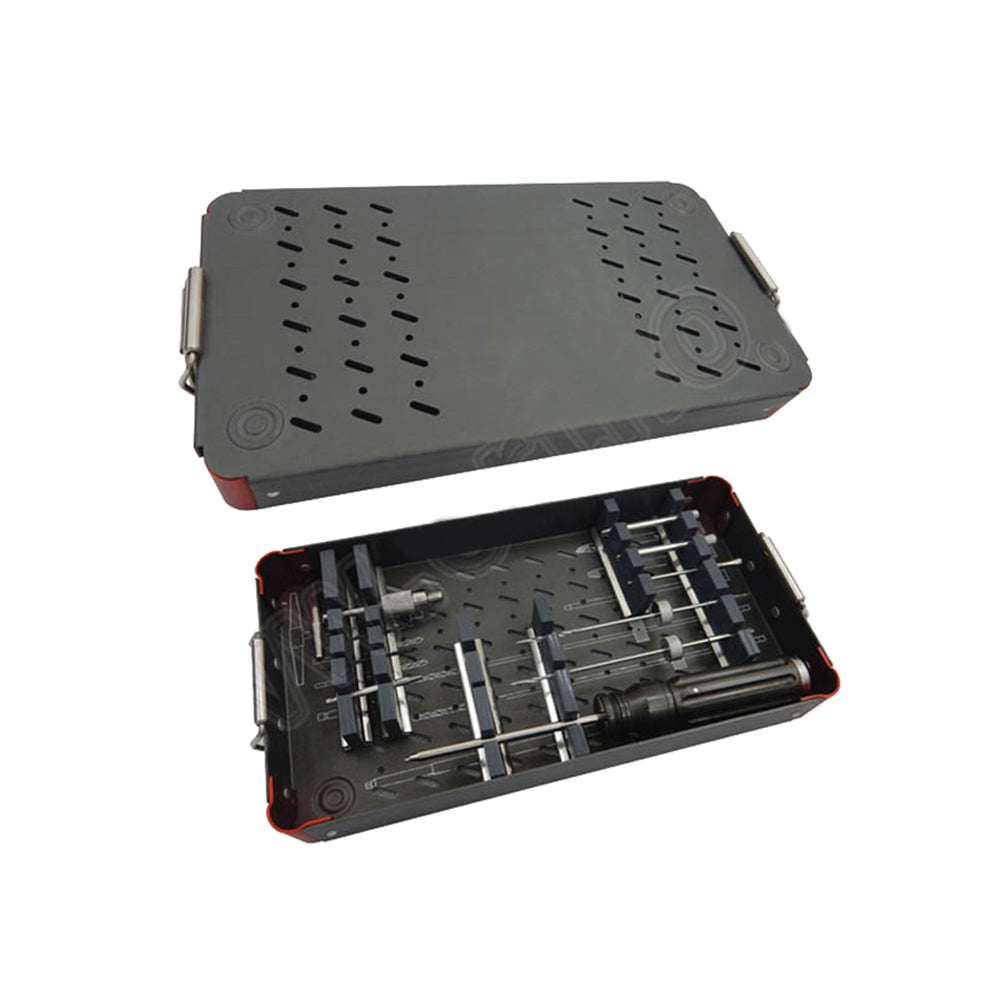

  • Organized Set Configuration: Supplied with a container for storage and organization of the set components.

Applications

The Small Fragment Safety Lock Instruments Set is configured to support orthopedic fixation workflows involving the distal radius and compatible 2.4mm and 2.7mm plate-and-screw components. The combination of plates, screws, drilling instruments, measurement tools, and insertion components provides a coordinated system for orthopedic fixation procedures.

The set is suitable for orthopedic departments, trauma centers, hospitals, surgical facilities, and medical procurement professionals sourcing a comprehensive distal radius fixation system.

Please refer to the Set Contents table above for exact plate configurations, screw sizes, catalog numbers, instruments, and supplied quantities.
