PEAK SURGICALS
SKU:PS-OP-004
Couldn't load pickup availability
The Peak Surgicals Small Fragment Instrument Set combines standard and locking instrumentation for small-fragment orthopedic plate-and-screw workflows. The set is listed under SKU PS-OP-004 with a current displayed price of $935.00 USD.
The published base configuration contains 20 standard instrument references and five locking instrument references. Based on the stated quantities, this represents 26 standard instrument units and seven locking instrument units, together with an empty organizing container. Three additional instruments for 2.4mm and 2.7mm safety-lock systems are listed separately as optional components.

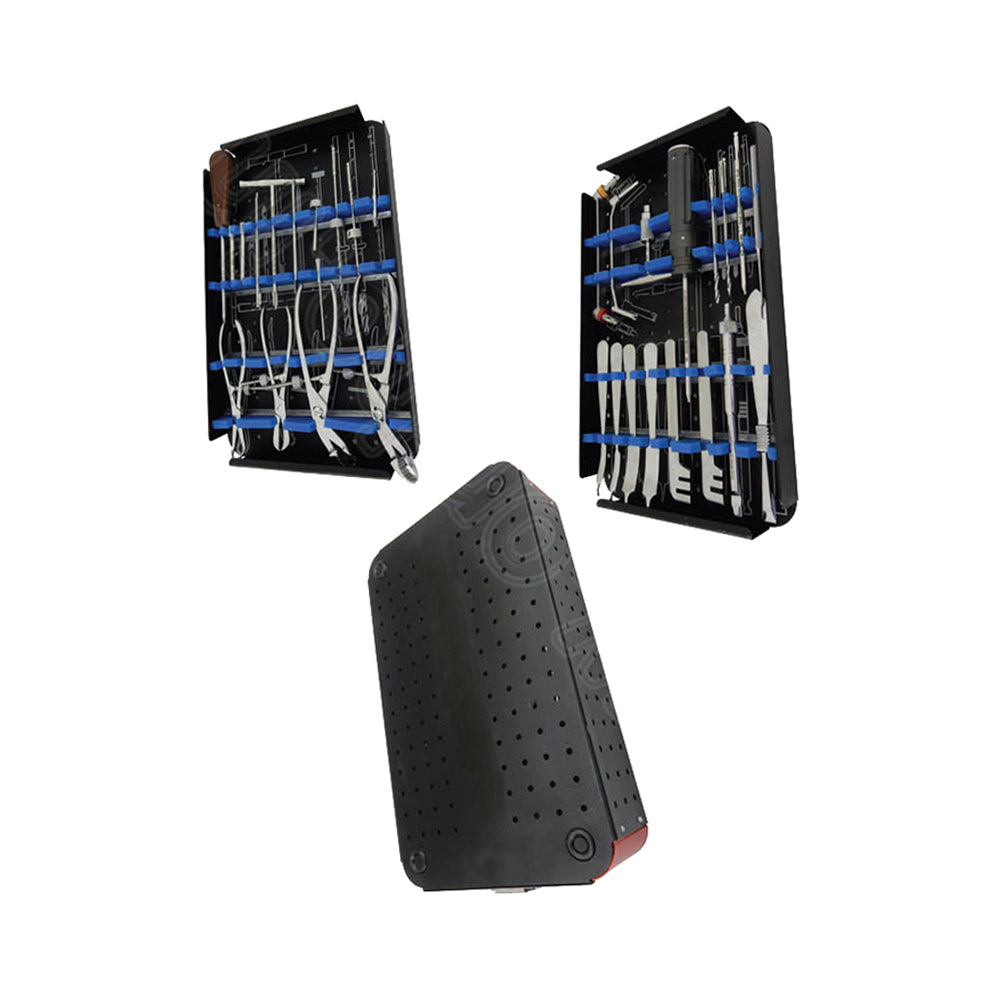

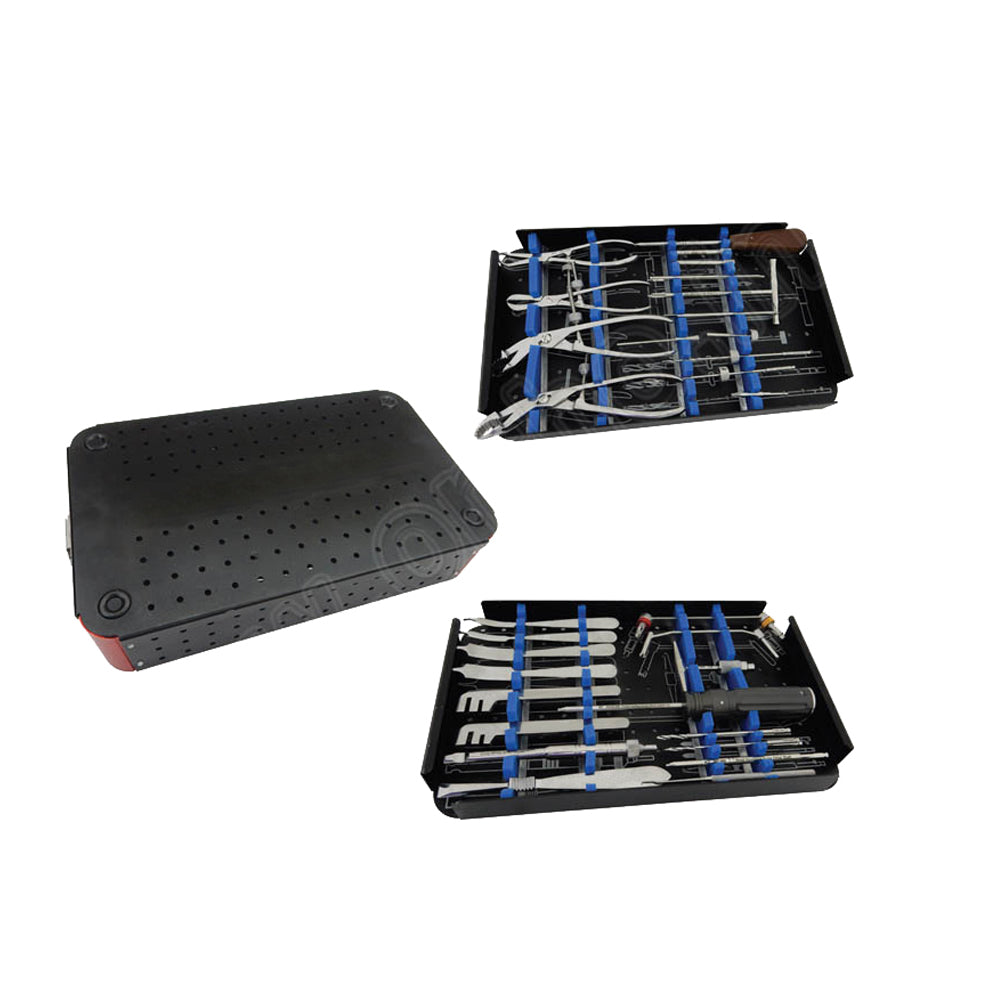

Product images show two removable black instrument trays with blue retaining supports and a perforated storage case. The trays organize drill bits, taps, sleeves, screwdrivers, forceps, retractors, plate-bending instruments and measuring components for identification and storage.
The standard instrument group includes 2.5mm and 3.5mm drill bits, a stainless steel countersink for 3.5mm and 4.0mm screws with 6.0mm heads, taps for 3.5mm cortex screws and 4.0mm cancellous screws, a T-type quick-coupling handle, combined drill and tap sleeve, insert drill sleeve, hexagonal screwdriver shaft, hexagonal screwdriver and small depth gauge.
This group also includes a small plate bender identified for 2.7mm and 3.5mm plates. Compatibility with a specific plate manufacturer, screw thread, driver interface or implant system is not stated and must be confirmed before procurement.
The set contains a 190mm self-centering bone-holding forceps, a 140mm serrated reduction forceps and a 140mm pointed reduction forceps. These instruments provide separate configurations for holding and reduction within the applicable orthopedic workflow.
Exposure instruments include two small Hohmann retractors measuring 8mm wide and 160mm long, two Hohmann retractors measuring 15mm wide and 160mm long, a 12mm straight and curved periosteal elevator and a sharp hook. A small neutral and loaded drill guide is also listed.
The locking group includes two calibrated 2.8mm drill bits measuring 165mm in length, with two-flute construction and a quick-coupling connection. Two 2.8mm drill sleeves are listed for 3.5mm safety-lock screws.
A torque-limiting screwdriver with a 2.5mm tip is included, together with a conical extraction screw featuring a left-hand thread for 3.5mm screws. The group also contains an 85mm centering sleeve for a 1.2mm Kirschner wire.
The listing does not provide the torque value of the screwdriver or identify compatible plate and screw models. Buyers must confirm the driver interface, required torque settings and implant-system compatibility before purchase or use.
Three optional components are listed separately from the base configuration. These include a torque-limiting screwdriver with a 1.5mm tip, a 2.0mm two-flute drill bit measuring 150mm in length for quick coupling and a 2.0mm drill sleeve for 2.4mm and 2.7mm safety-locking screws.
The quantities and additional cost of the optional instruments are not stated. Confirm whether these components are required and included in the final quotation before ordering.
The two-tray layout separates long instruments, forceps, retractors, drilling components and drivers within the perforated case. Blue retaining supports hold the instruments in designated positions as shown in the product images.
The current component list explicitly identifies the countersink as stainless steel but does not provide an individual material grade for the remaining instruments. Surface finish, supplied sterility, reusable status and validated cleaning or sterilization parameters are also not stated. Request item-specific instructions for use and material documentation before establishing clinical or reprocessing requirements.
| Specification | Verified Information |
|---|---|
| Product Name | Small Fragment Instrument Set |
| Configuration | Standard and locking small-fragment instruments |
| Brand | Peak Surgicals |
| SKU | PS-OP-004 |
| Current Displayed Price | $935.00 USD |
| Availability | Available through the current Shopify listing |
| Standard Instrument References | 20 |
| Standard Instrument Units | 26 based on published quantities |
| Locking Instrument References | 5 |
| Locking Instrument Units | 7 based on published quantities |
| Optional Instrument References | 3 with quantities not stated |
| Standard Screw Instrumentation | 3.5mm cortex and 4.0mm cancellous screw instruments |
| Standard Plate Instrumentation | Plate bender listed for 2.7mm and 3.5mm plates |
| Locking Instrumentation | 3.5mm safety-lock screw instruments |
| Optional Locking Sizes | 2.4mm and 2.7mm safety-lock instruments |
| Drill Bit Diameters | 2.5mm, 3.5mm and 2.8mm in the base configuration |
| Kirschner Wire Sleeve | 1.2mm diameter, 85mm length |
| Storage | Two removable instrument trays and perforated case |
| Material | Countersink identified as stainless steel; exact material grades for remaining instruments are not stated |
| Surface Finish | Not stated on the current product page |
| Compatible Implant Systems | Not stated; verification required before ordering |
| Plates and Screws Included | No plates or screws are itemized in the component list |
| Supplied Sterility | Not stated; confirm before ordering or use |
| Reusable Status | Not stated; request item-specific instructions for use |
| Cleaning and Sterilization | Validated parameters are not provided on the current page |
| Intended Users | Trained orthopedic professionals, hospitals and medical procurement departments |
| Quality Documentation | Request documentation applicable to SKU PS-OP-004 and the destination market |
| Warranty | Not stated; confirm with Peak Surgicals |
| Minimum Order Quantity | One set through the Shopify listing |
| OEM or Custom Configuration | Not stated; confirm availability with Peak Surgicals |
| Reference | Instrument | Quantity |
|---|---|---|
| 260.250 | Drill Bit, 2.5mm Diameter | 2 |
| 260.350 | Drill Bit, 3.5mm Diameter | 2 |
| 305.020 | Stainless Steel Countersink for 3.5mm and 4.0mm Screws with 6.0mm Head | 1 |
| 264.025 | Tap for 3.5mm Cortex Screw | 2 |
| 264.038 | Tap for 4.0mm Cancellous Screw | 2 |
| 306.010 | T-Type Quick-Coupling Handle | 1 |
| 307.060 | Combined Drill and Tap Sleeve, 3.5/2.5mm | 1 |
| 307.090 | Insert Drill Sleeve, 2.5/3.5mm | 1 |
| 301.060 | Small Hexagonal Screwdriver Shaft | 1 |
| 301.040 | Small Hexagonal Screwdriver | 1 |
| 303.010 | Small Depth Gauge | 1 |
| 371.000 | Sharp Hook | 1 |
| 302.010 | Small Plate Bender for 2.7mm and 3.5mm Plates | 1 |
| 340.020 | Self-Centering Bone-Holding Forceps, 190mm | 1 |
| 379.015 | Small Hohmann Retractor, 8mm Wide, 160mm | 2 |
| 381.012 | Straight and Curved Periosteal Elevator, 12mm | 1 |
| 379.020 | Hohmann Retractor, 15mm Wide, 160mm | 2 |
| 341.025 | Serrated Reduction Forceps, 140mm | 1 |
| 342.035 | Pointed Reduction Forceps, 140mm | 1 |
| 304.010 | Small Neutral and Loaded Drill Guide | 1 |
| Reference | Instrument | Quantity |
|---|---|---|
| PS-432.001 | Calibrated Two-Flute Drill Bit, 2.8mm × 165mm, Quick Coupling | 2 |
| PS-432.005 | 2.8mm Drill Sleeve for 3.5mm Safety-Lock Screws | 2 |
| PS-432.009 | Torque-Limiting Screwdriver, 2.5mm Tip | 1 |
| PS-432.021 | Conical Extraction Screw with Left-Hand Thread for 3.5mm Screws | 1 |
| PS-432.025 | Centering Sleeve for 1.2mm Kirschner Wire, 85mm Length | 1 |
| 140.000 | Empty Organizing Container | Not stated |
| Reference | Optional Instrument | Quantity |
|---|---|---|
| PS-432.030 | Torque-Limiting Screwdriver, 1.5mm Tip | Not stated |
| PS-432.031 | Two-Flute Drill Bit, 2.0mm × 150mm, Quick Coupling | Not stated |
| PS-432.035 | 2.0mm Drill Sleeve for 2.4mm and 2.7mm Safety-Locking Screws | Not stated |
What is included in the Small Fragment Instrument Set? The base configuration includes standard drilling, tapping, plate-bending, reduction, retraction, measuring and screw-driving instruments, together with a separate 3.5mm safety-lock instrument group and organizing container.
Which screw sizes are supported by the listed instruments? The standard group identifies instruments for 3.5mm cortex screws and 4.0mm cancellous screws. The locking group identifies instruments for 3.5mm safety-lock screws.
Does the set include instruments for 2.4mm and 2.7mm locking screws? A 1.5mm torque-limiting screwdriver, 2.0mm drill bit and 2.0mm drill sleeve for 2.4mm and 2.7mm safety-locking screws are listed as optional instruments. Their quantities and inclusion must be confirmed separately.
Are orthopedic plates and screws supplied with this set? No plates or screws are itemized in the current component list. This listing is for the instrument configuration unless otherwise confirmed in the final quotation.
Is the set compatible with every small-fragment plate system? Universal compatibility is not stated. Confirm the plate dimensions, screw design, driver interface, drilling specifications and locking mechanism before purchase.
Does the set include reduction and retraction instruments? Yes. The published list includes serrated and pointed reduction forceps, self-centering bone-holding forceps, two widths of Hohmann retractors, a periosteal elevator and a sharp hook.
Is the set supplied sterile? Supplied sterility is not stated. Request the applicable labeling, instructions for use and validated cleaning and sterilization information.
Are the instruments reusable? Reusable status is not stated on the current page. Follow item-specific manufacturer instructions and the healthcare facility’s validated reprocessing procedures.
Order the Small Fragment Instrument Set using SKU PS-OP-004. The current displayed storefront price is $935.00 USD. Confirm availability, included and optional components, final price, shipping schedule and system compatibility before completing the order.
Hospitals, distributors and procurement departments should request a verified packing list, material documentation, torque specifications, compatible plate-and-screw information, instructions for use and applicable market-specific regulatory documents. Product information is intended for professional procurement and does not replace the manufacturer’s approved instructions or institutional clinical protocols.
