PEAK SURGICALS
SKU:PS-OP-5888
Couldn't load pickup availability

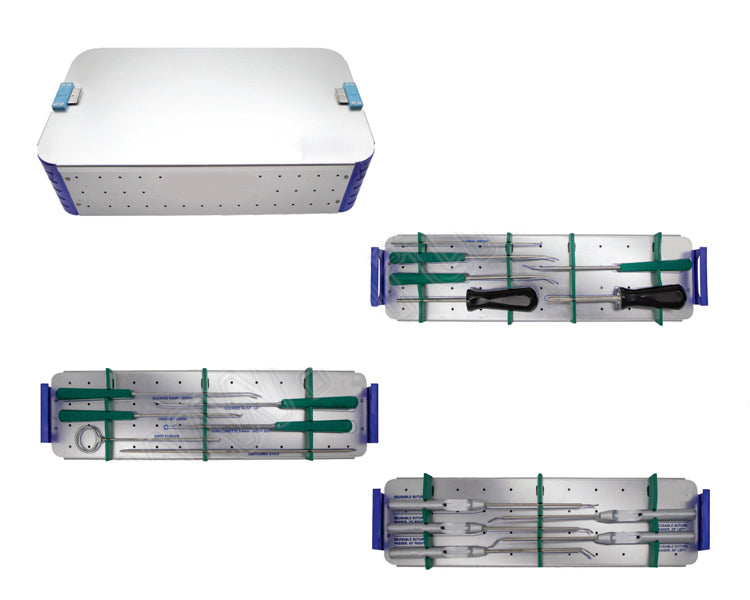

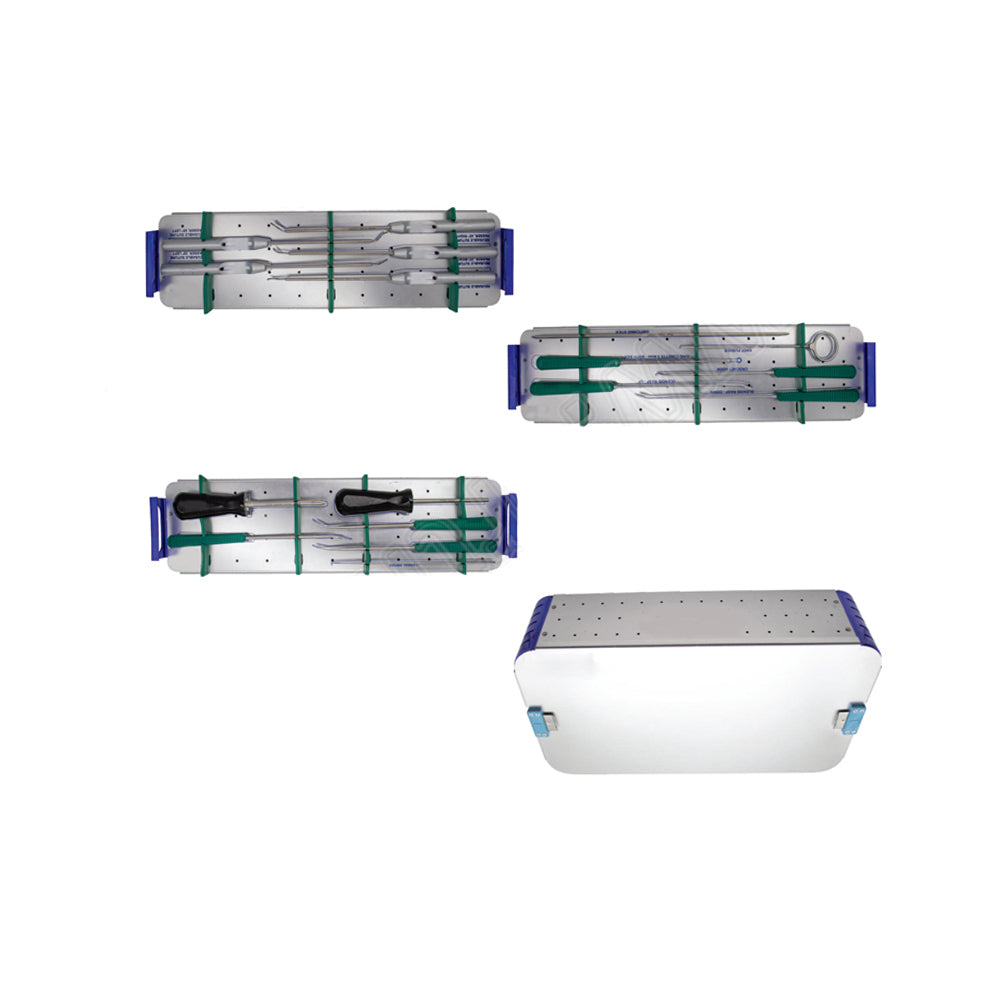

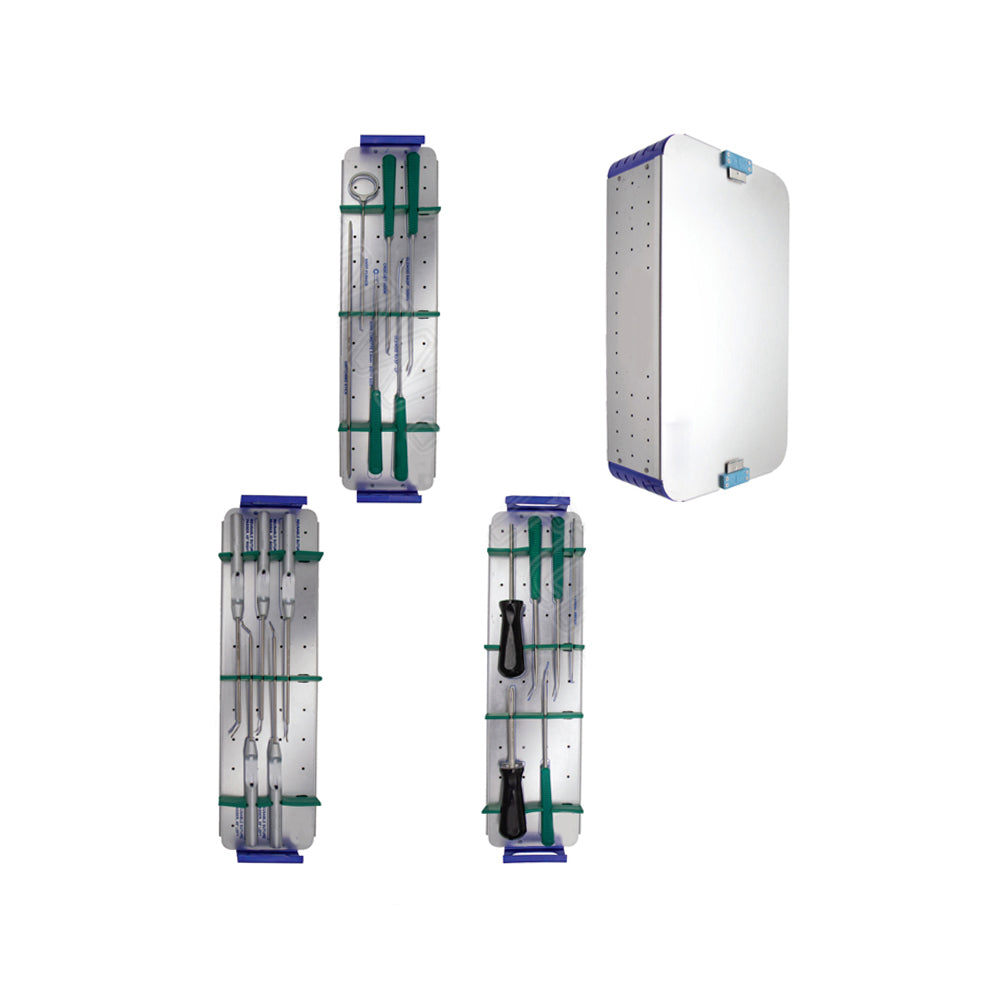

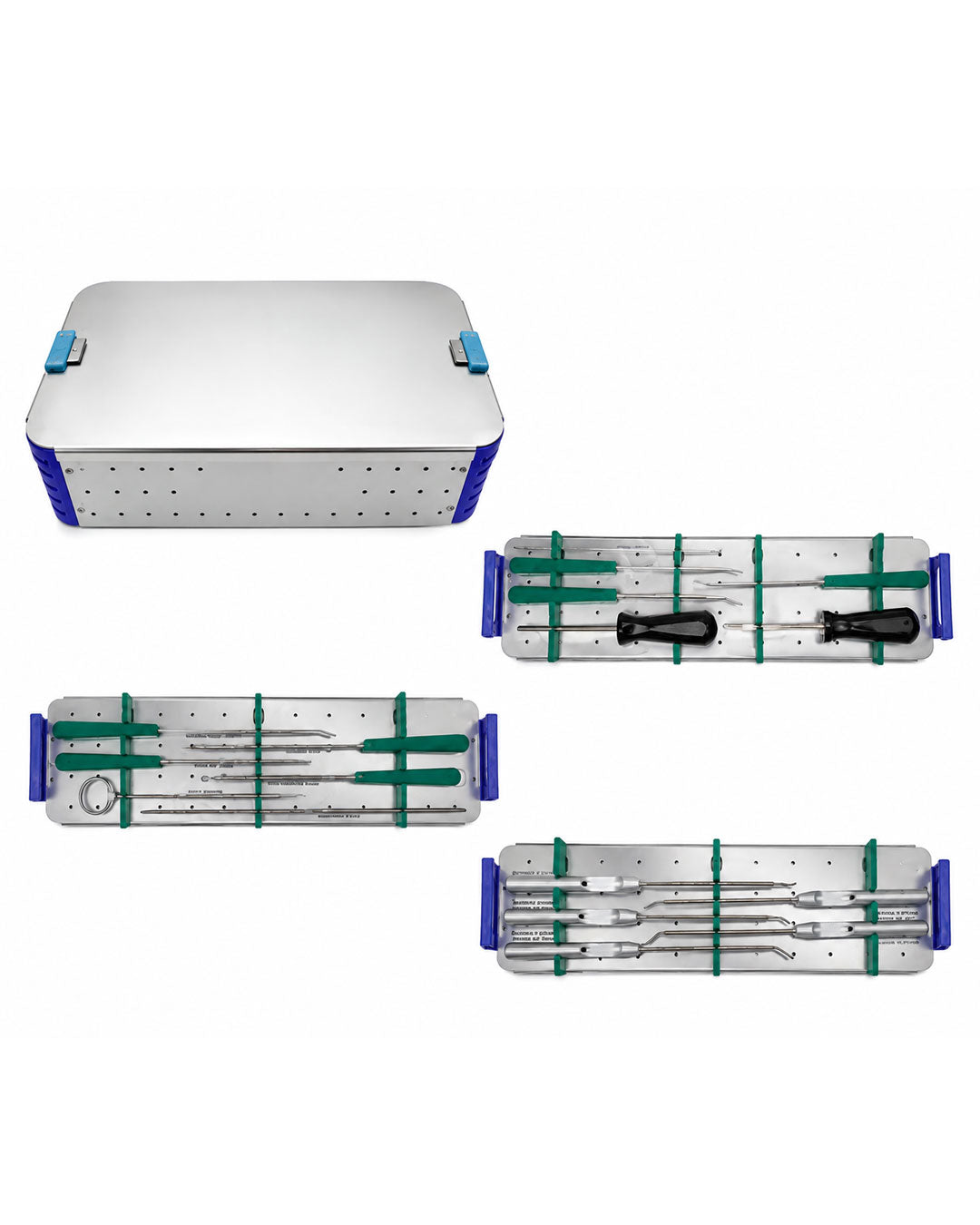

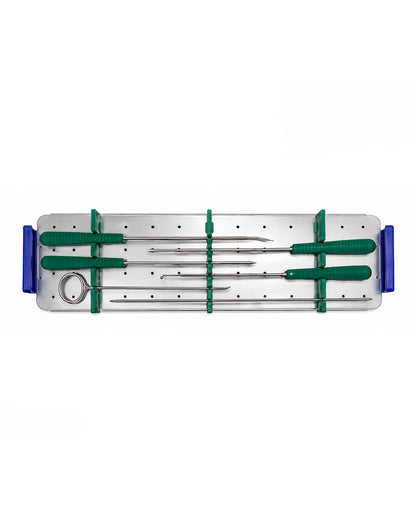

Shoulder Arthroscopy Instrument Set, SKU PS-OP-5882, is a reusable arthroscopic surgical set manufactured from German stainless steel for portal
access, tissue probing, labral preparation, suture passage, knot management, tissue retrieval, and meniscal repair workflows. The set includes reusable cannula introducers in 5.5 mm and 8 mm, a switching stick, labral probe, crochet hook, knot pusher, angled tissue elevators, glenoid rasps, 5.4 mm ring curette, reusable suture passers, nitinol wire loop, suture cutter, suture passer blade, straight and angled bird beaks, suture retriever, combination-tooth grasper, tissue grasper, fiber tape retriever, grasper hook jaw, and a dedicated Meniscal Repair Set for inside-out technique. The meniscal configuration includes double-lumen cannulas, single cannulas, posterior access cannula, 6 mm closed-end tendon stripper, cannula bender, and graphical guide. The instrumentation is suited to shoulder arthroscopy, rotator cuff repair, labral repair, Bankart stabilization, suture management, and associated arthroscopic soft-tissue procedures, with the meniscal section supporting inside-out meniscal repair workflows. The current Peak Surgicals price is $548.90 USD.

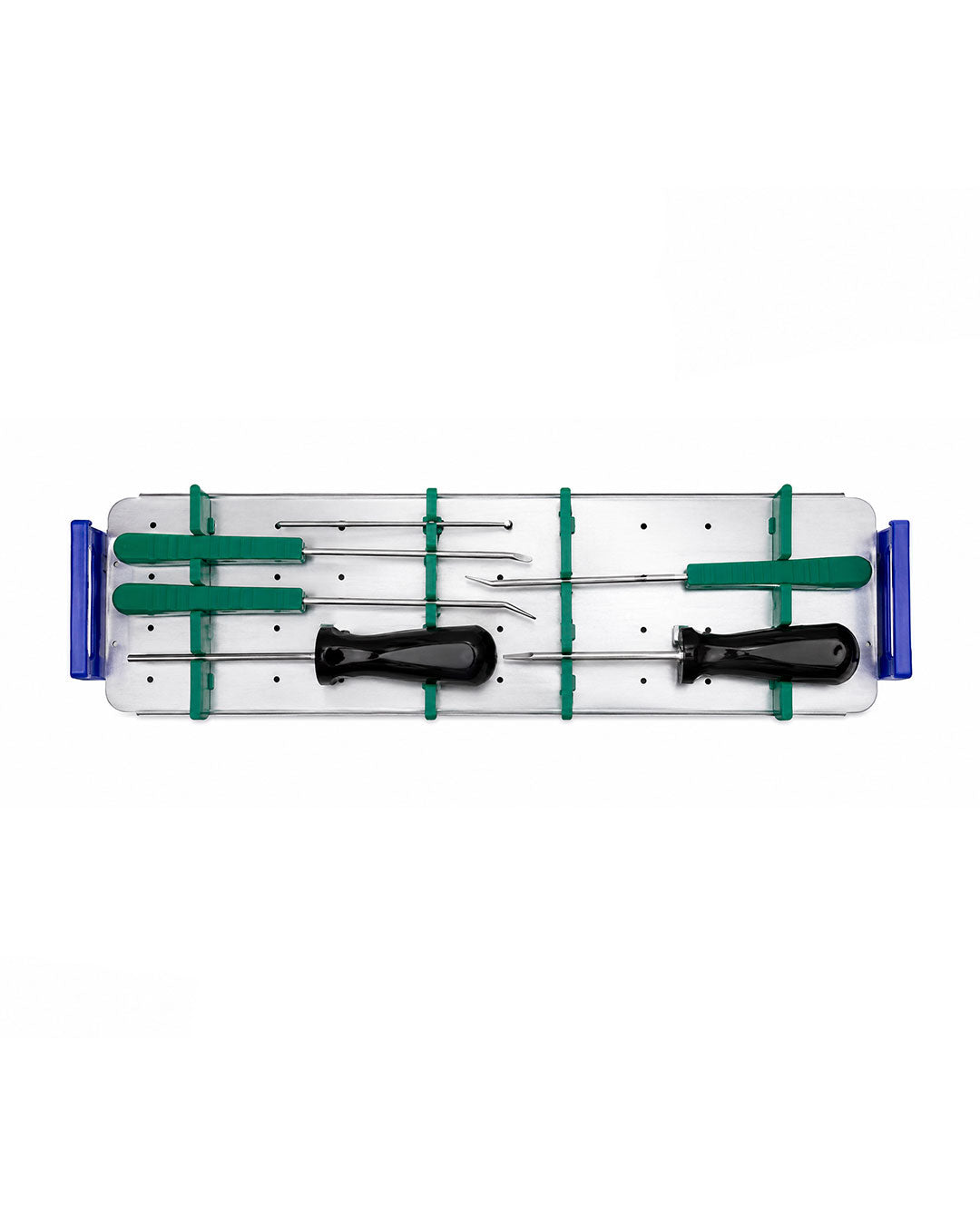

The set begins with instruments that establish and control the arthroscopic working pathway. The reusable 5.5 mm and 8 mm cannula introducers provide controlled placement of compatible cannulas through established portals, while the switching stick facilitates exchange and maintenance of the operative trajectory between portals. The labral probe provides a slender working tip for assessing labral attachment, tissue mobility, and the condition of the repair surface. The crochet hook provides pointed engagement for controlled tissue manipulation, while the knot pusher transfers and seats arthroscopic knots after suture passage. The 15-degree up, 15-degree down, and 30-degree down tissue elevators provide different approach vectors for elevating and mobilizing tissue within the glenoid and adjacent soft-tissue envelope. The upward and downward glenoid rasps prepare the glenoid surface from complementary directions, while the 5.4 mm bilateral ring curette provides circumferential curettage with working edges on both sides. Together, these instruments provide controlled portal access, inspection, mobilization, preparation, and suture-management capabilities. Their differing shaft angles and working ends allow the surgeon to select an instrument according to portal trajectory, lesion position, and the direction of force required within the arthroscopic field.

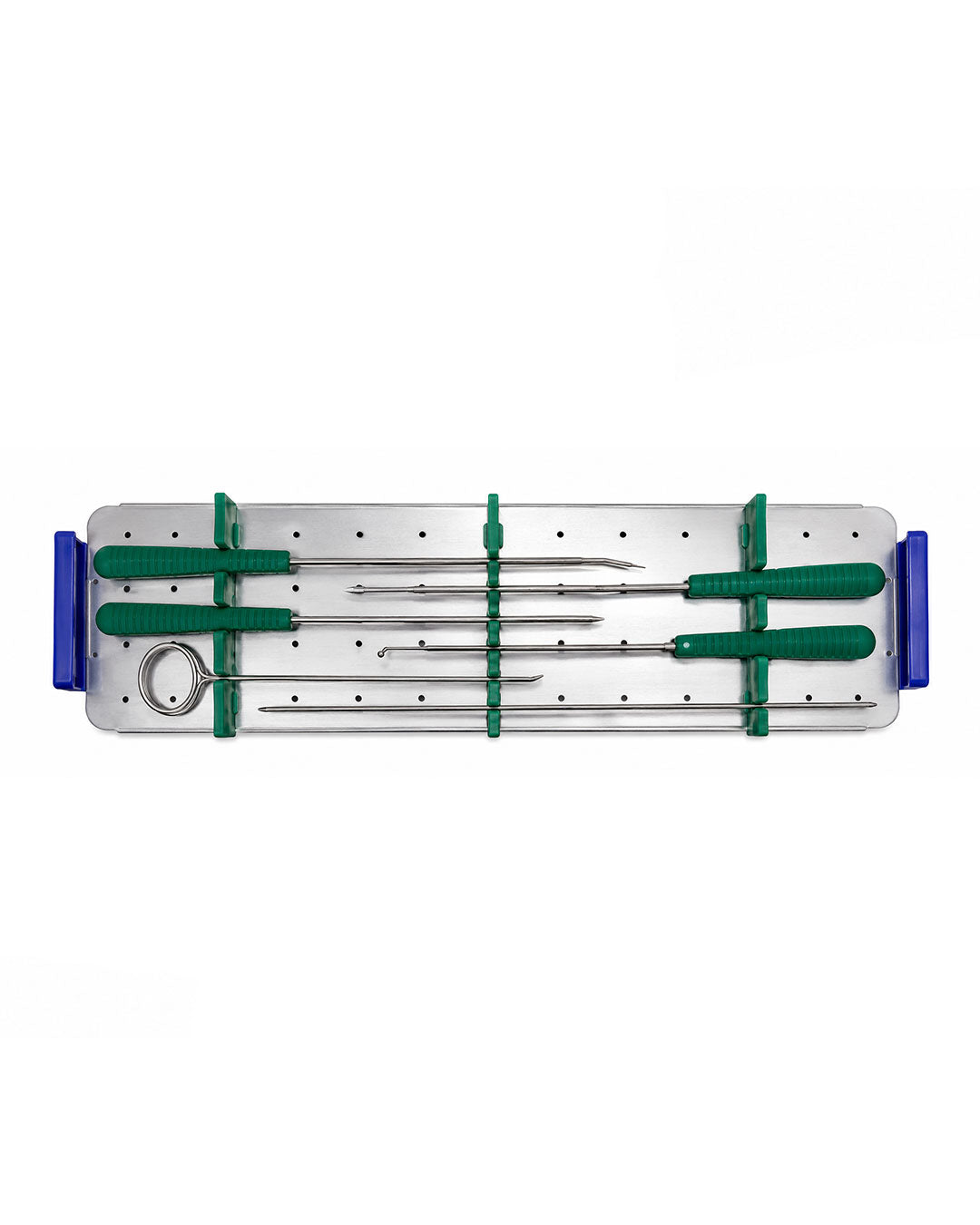

The shoulder portion of the set supports arthroscopic workflows in which visualization, tissue preparation, suture passage, and knot management occur through established portals. The labral probe can assess a detached or unstable labrum before preparation, while the tissue elevators and glenoid rasps prepare the repair bed when indicated for labral stabilization. Left- and right-oriented reusable suture passers with 25-degree and 45-degree configurations provide directional access for passing suture around or through the target soft tissue. The straight crescent suture passer provides another trajectory for controlled passage where a curved orientation is not required. The nitinol wire loop supports suture retrieval through compatible passer systems, while the suture cutter manages excess suture after fixation. Straight, left, right, and upward bird beak configurations provide alternative approaches for grasping or passing suture through tissue according to portal orientation. The suture retriever, combination-tooth grasper, tissue grasper, fiber tape retriever, and grasper hook jaw address retrieval and controlled tissue or suture manipulation. These instruments are relevant to arthroscopic labral repair, Bankart repair, rotator cuff repair, and other shoulder soft-tissue stabilization procedures requiring controlled suture handling through limited portals.

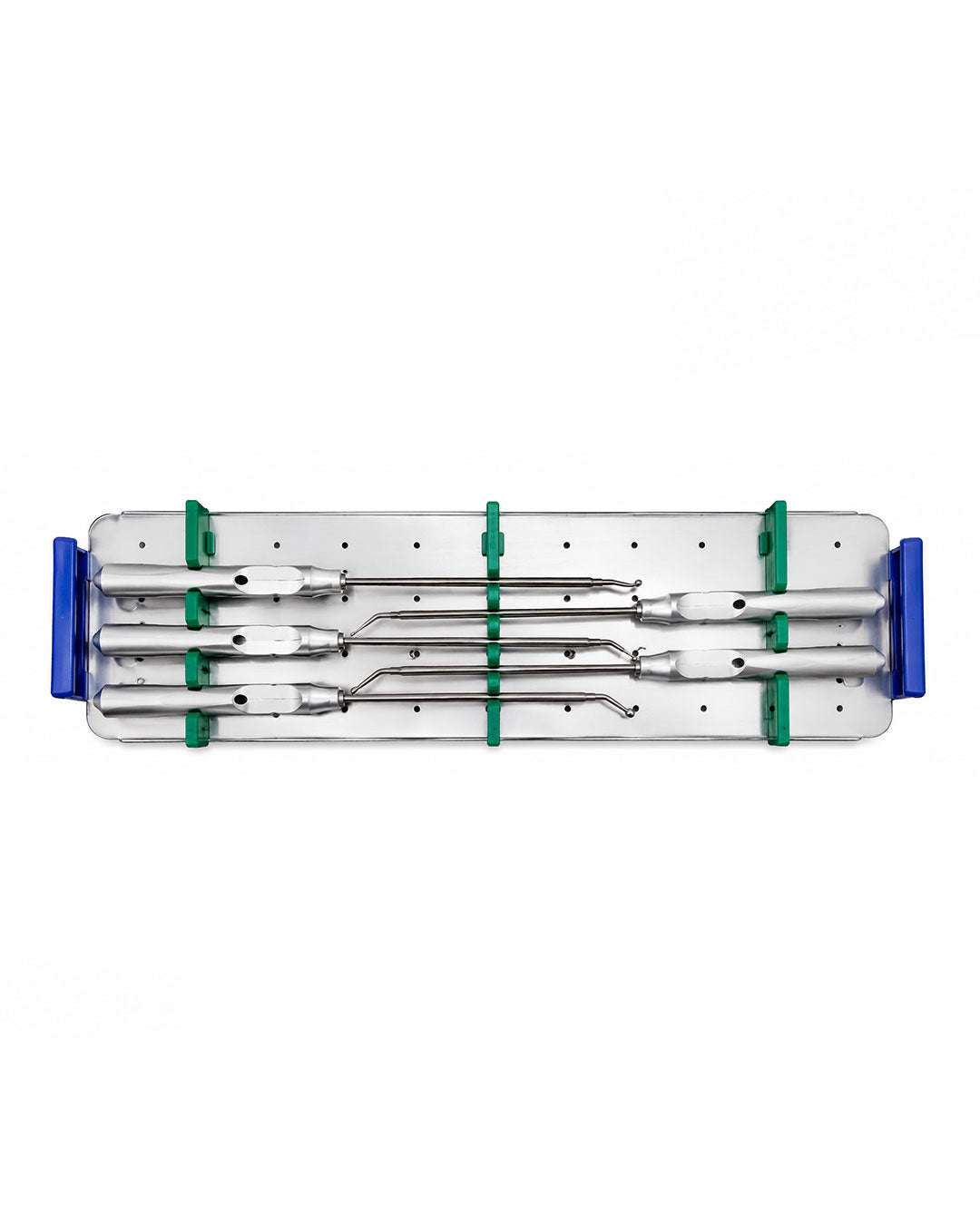

The set contains several directional suture-management instruments so the surgeon can select the working trajectory according to portal location and target tissue. PS-603.021 and PS-603.023 provide 25-degree left and right suture passer configurations, while PS-603.025 and PS-603.027 provide 45-degree left and right versions. PS-603.029 uses a straight crescent configuration, providing a different tissue-entry trajectory. PS-603.031 is a nitinol wire loop intended for compatible reusable suture-passer workflows, while PS-603.033 and PS-603.041 address suture cutting and blade replacement. The additional bird beaks and retrieval instruments provide alternative grasping and passage angles. The Meniscal Repair Set expands the system beyond shoulder arthroscopy by providing double-lumen cannulas in up-right, up-left, straight, left/right, and up/down configurations, together with two single cannulas and a posterior access cannula. The 6 mm closed-end tendon stripper provides controlled passage along the intended tissue plane, while the cannula bender permits modification of compatible cannula trajectory. The graphical guide supports the inside-out meniscal repair configuration. This combination allows the set to cover both shoulder arthroscopic suture workflows and dedicated meniscal repair instrumentation within one organized inventory.
German stainless steel is appropriate for this reusable arthroscopy set because the instruments require corrosion resistance, dimensional stability, rigid shafts, accurately formed working tips, and surfaces compatible with repeated professional reprocessing. Arthroscopic instruments contain narrow working ends, internal or cannulated pathways, articulated mechanisms, sharp edges, and fine suture-handling features that require careful inspection after each procedure. Cannula introducers and cannulas should be checked for unobstructed passages, while suture passers, graspers, bird beaks, curettes, rasps, and cutters should undergo functional inspection before packaging. After use, the complete set should follow the healthcare facility's validated cleaning, rinsing, drying, inspection, packaging, and sterilization workflow. Particular attention should be given to cannula lumens, joints, working tips, cutting edges, and suture-passing mechanisms. Peak Surgicals lists the set as medical-grade steel and reusable and provides professional procurement support for orthopedic and arthroscopy departments. The current listed price is $548.90 USD, with a 30 Days Money Back Guarantee and 24/7 customer service stated on the product page. OEM and custom-order sourcing can support institutional and distributor requirements.
| Code | Instrument / Component | Units |
|---|---|---|
| PS-603.002 | Reusable Cannula Introducer 8mm | 1 |
| PS-603.001 | Reusable Cannula Introducer 5.5mm | 1 |
| PS-603.003 | Switching Stick | 1 |
| PS-603.005 | Labral Probe | 1 |
| PS-603.007 | Crochet Hook | 1 |
| PS-603.009 | Knot Pusher | 1 |
| PS-603.011 | Tissue Elevator — 15° Up | 1 |
| PS-603.013 | Tissue Elevator — 15° Down | 1 |
| PS-603.015 | Tissue Elevator — 30° Down | 1 |
| PS-603.017 | Glenoid Rasp — Up | 1 |
| PS-603.018 | Glenoid Rasp — Down | 1 |
| PS-603.019 | Ring Curette 5.4mm — Both Sides | 1 |
| PS-603.021 | Reusable Suture Passer 25°, Left | 1 |
| PS-603.023 | Reusable Suture Passer 25°, Right | 1 |
| PS-603.025 | Reusable Suture Passer 45°, Left | 1 |
| PS-603.027 | Reusable Suture Passer 45°, Right | 1 |
| PS-603.029 | Reusable Suture Passer, Crescent Straight | 1 |
| PS-603.031 | Nitinol Wire Loop for Reusable Suture Passer | 1 |
| PS-603.033 | Suture Cutter | 1 |
| PS-603.039 | Suture Passer | 1 |
| PS-603.041 | Blade for Suture Passer | 1 |
| PS-603.043 | Bird Beak Straight | 1 |
| PS-603.055 | Bird Beak Left | 1 |
| PS-603.061 | Suture Retriever Straight | 1 |
| PS-603.069 | Combination Teeth Grasper | 1 |
| PS-603.077 | Retriever — Tissue Grasper | 1 |
| PS-603.105 | Bird Beak Right | 1 |
| PS-603.109 | Bird Beak Upward | 1 |
| PS-603.123 | Fiber Tape Retriever | 1 |
| PS-603.149 | Grasper Hook Jaw | 1 |
| Meniscal Repair Set — Inside-Out Technique | Instrument / Component | Units |
|---|---|---|
| PS-603.079 | Double Lumen Cannula, Curved Up-Right | 1 |
| PS-603.081 | Double Lumen Cannula, Curved Up-Left | 1 |
| PS-603.083 | Double Lumen Cannula, Straight | 1 |
| PS-603.085 | Double Lumen Cannula, Curved Left/Right | 1 |
| PS-603.087 | Double Lumen Cannula, Curved Up/Down | 1 |
| PS-603.089 | Single Cannula — 2 Included with Set | 2 |
| PS-603.091 | Posterior Access Cannula | 1 |
| PS-603.093 | Tendon Stripper, Closed End, 6mm | 1 |
| PS-603.095 | Cannula Bender | 1 |
| PS-603.097 | Graphical Guide for Meniscal Repair Set | 1 |
| SKU | PS-OP-5888 |
|---|---|
| Product Name | Shoulder Arthroscopy Instrument Set |
| Price | $548.90 USD |
| Size/Gauge Variants | 5.5 mm and 8 mm cannula introducers; 25° and 45° suture passer configurations; 15° and 30° tissue elevator angles; 5.4 mm ring curette; 6 mm tendon stripper |
| Instrument Category | Shoulder Arthroscopy and Meniscal Repair Instrument Set |
| Procedure | Shoulder arthroscopy, labral repair, Bankart repair, rotator cuff repair, suture management, and inside-out meniscal repair |
| Material | German stainless steel |
| Finish | Smooth surgical finish |
| Sterilization | Reusable; clean, inspect, package, and sterilize according to validated facility protocol |
| Instrument Classification | Reusable orthopedic arthroscopy surgical instrument set |
| Reusable | Yes |
| Certifications | CE, ISO 13485, FDA procurement support |
| Warranty | 30 Days Money Back Guarantee |
| MOQ | 1 set |
| OEM / Custom Orders | Available for institutional and distributor requirements |
| After-Sale Service | 24/7 Customer Service and 30 Days Money Back Guarantee |
How does the Shoulder Arthroscopy Instrument Set differ from a basic arthroscopy instrument set?
The Shoulder Arthroscopy Instrument Set is configured specifically for portal-based shoulder soft-tissue procedures and suture management. It includes directional tissue elevators, glenoid rasps, labral probing instruments, multiple suture-passer geometries, bird beaks, knot management, and fiber-tape retrieval instruments. A basic arthroscopy set may provide general probes, graspers, and cannulas without this degree of shoulder-specific suture instrumentation. The 25° and 45° left and right passers provide different approaches to tissue and suture passage. The set also includes a meniscal repair configuration for inside-out technique. Its component selection therefore covers both diagnostic preparation and advanced arthroscopic repair workflows.
Why are multiple suture passer angles and directions included?
The 25° and 45° suture passers provide different working trajectories through established arthroscopic portals. Left and right configurations allow the surgeon to approach tissue from opposite directional orientations. The straight crescent configuration provides a direct passage trajectory without the lateral curvature of the angled models. These differences are useful when portal position, lesion location, or tissue access changes the required angle of approach. The surgeon can select the passer that provides the most direct path to the target tissue. The directional options are particularly relevant during labral and rotator cuff repair. They reduce the need to force a single instrument geometry into different portal orientations.
What do CE, ISO 13485, and FDA procurement support mean for this set?
Peak Surgicals provides CE, ISO 13485, and FDA procurement support for its professional medical-device product range. ISO 13485 relates to the quality-management system applicable to medical-device manufacturing. CE marking supports procurement within applicable European regulatory frameworks. FDA-related documentation supports purchasing requirements for applicable United States healthcare markets. Hospitals can use these records during supplier qualification and instrument-set procurement. Distributors can maintain the documentation within regulated orthopedic and arthroscopy product files. Individual healthcare organizations remain responsible for applying their applicable regulatory and purchasing requirements.
How do the cannula introducers, switching stick, and suture passers function during arthroscopy?
The 5.5 mm and 8 mm reusable cannula introducers facilitate controlled placement of compatible cannulas through established arthroscopic portals. The switching stick supports exchange of compatible cannulas and maintains access through the established portal pathway. Suture passers then provide controlled tissue penetration and suture delivery through the selected portal trajectory. The 25° and 45° left and right configurations change the working angle at the distal end. The straight crescent passer provides another approach for controlled suture passage. The knot pusher advances and seats arthroscopic knots after suture passage. These instruments work sequentially, with access established first and suture manipulation performed after the target tissue has been visualized and prepared.
How should hospitals reprocess and maintain the Shoulder Arthroscopy Instrument Set?

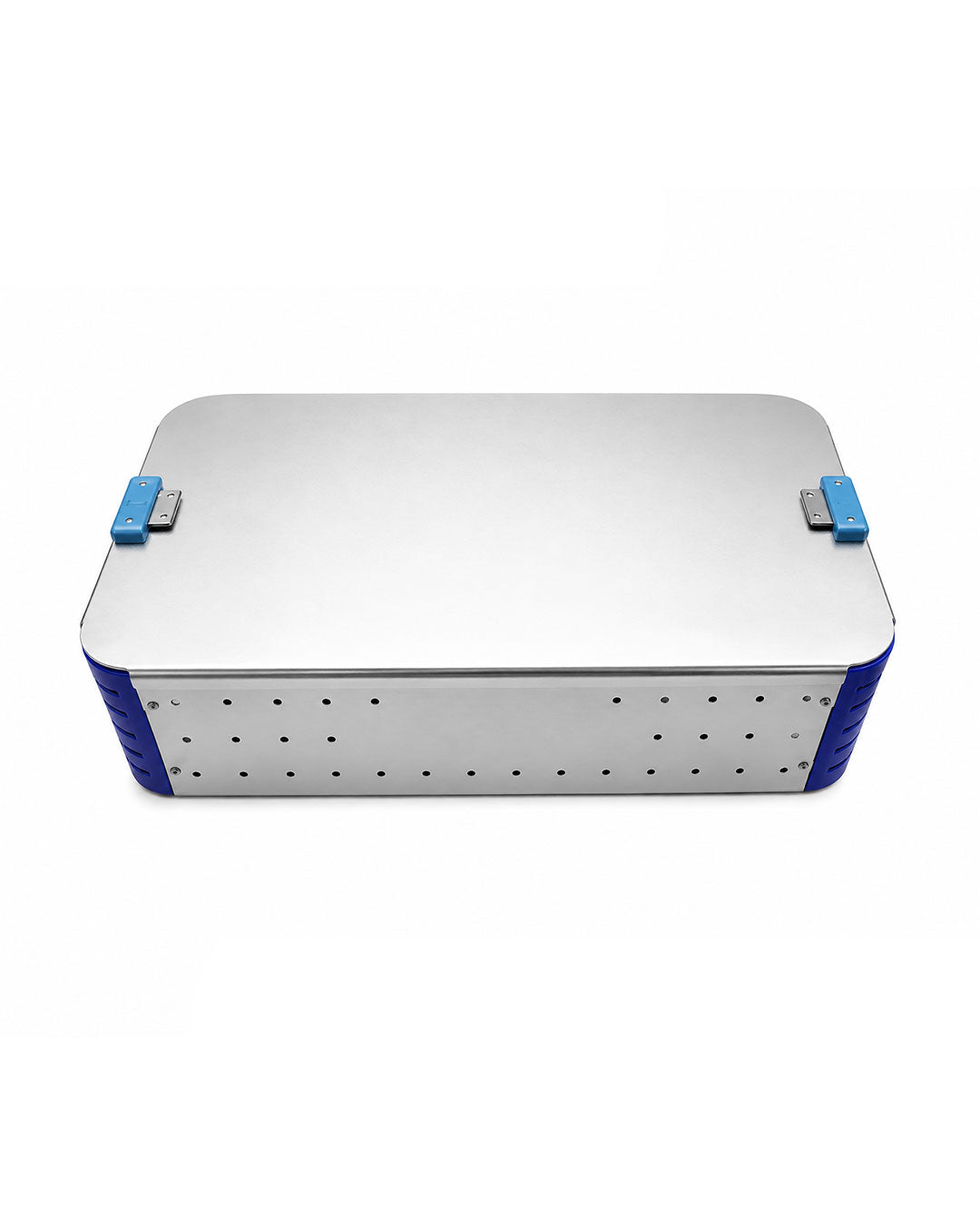

The Shoulder Arthroscopy Instrument Set is listed as reusable medical-grade steel instrumentation. After each procedure, instruments should be separated and processed through the facility's validated reusable-device workflow. Cannulas and other lumen-containing components require thorough cleaning of their internal passages before inspection. Suture passers, bird beaks, graspers, curettes, rasps, cutters, and elevators should be checked for functional integrity and damage. Instruments should then be dried, packaged, and sterilized according to the healthcare facility's validated protocol. The set should be stored in an organized manner to protect fine working tips and articulated mechanisms. Peak Surgicals lists a 30 Days Money Back Guarantee and 24/7 customer service for professional procurement support.
