Safety Lock Screw Ø3.5mm Self Tapping

Safety Lock Screw Ø3.5mm Self Tapping

The Safety Lock Screw Ø3.5mm Self Tapping is an orthopedic fixation screw available in a broad range of lengths for use with compatible locking plate and fixation systems. Its 3.5 mm diameter and self-tapping configuration provide a defined screw option for orthopedic implant inventories requiring multiple length selections.

The current Peak Surgicals English storefront identifies this product as SKU PS-OP-010778. Both stainless steel (S.S) and titanium material selections are shown on the product page, with lengths ranging from 10 mm to 80 mm.

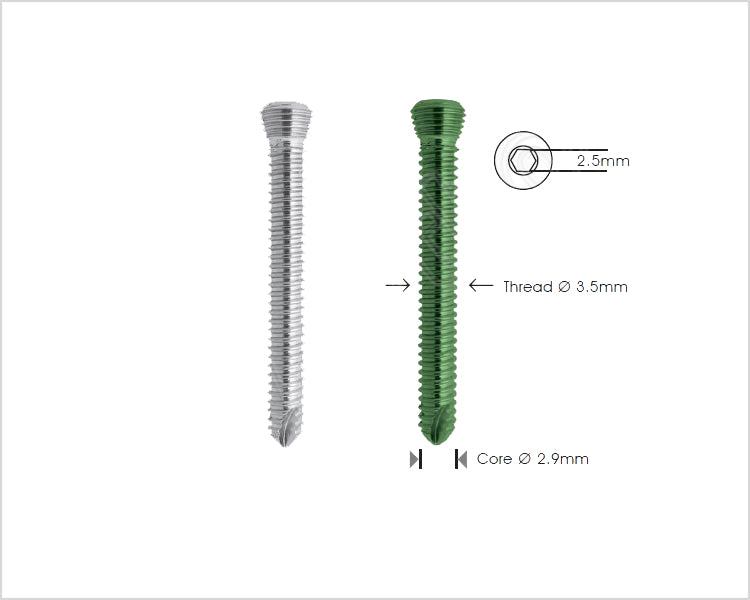

Ø3.5mm Self-Tapping Locking Screw

The product is specifically identified as a Safety Lock Screw Ø3.5mm Self Tapping. The 3.5 mm diameter designation is part of the confirmed product specification and should be matched with the compatible orthopedic fixation system selected for the procedure.

The current product page does not provide thread pitch, core diameter, head diameter, drive type, exact locking-head geometry, or drilling specifications. These details should therefore be confirmed when system-level compatibility is required.

Self-Tapping Screw Design

The current product title confirms a self-tapping configuration. Self-tapping orthopedic screws are designed with a thread form intended to advance into an appropriately prepared bone pathway without requiring a separate manual tapping step where the compatible system and surgical technique allow.

Drill size, pilot-hole preparation, insertion technique, and torque requirements are not specified on the current Peak Surgicals page and should not be assumed from another manufacturer's 3.5 mm locking screw system.

Stainless Steel and Titanium Options

The live Peak Surgicals description lists both S.S and Titanium material columns. This allows buyers to select the required material according to the compatible orthopedic implant system and purchasing specification.

The exact stainless-steel and titanium alloy grades are not stated on the current product page. Procurement teams requiring a particular implant alloy or material certificate should verify those details before ordering.

31 Available Lengths from 10mm to 80mm

The current Peak Surgicals table provides 31 separate length options. The range begins at 10 mm and extends to 80 mm, providing short, intermediate, and longer configurations within the same Ø3.5 mm screw family.

Lengths are primarily provided in 2 mm increments through 60 mm, with an additional 35 mm option and longer 65, 70, 75, and 80 mm configurations.

Orthopedic Locking Plate System Context

Peak Surgicals lists the Safety Lock Screw Ø3.5mm within its Small Fragment Locking Plates range. This positions the screw within an orthopedic locking plate and fracture-fixation system rather than as a general-purpose surgical screw.

The exact plate models, anatomical indications, and screw-hole compatibility for every configuration should be confirmed before use because the individual product page does not provide a complete compatibility matrix.

Length and Catalog Code Selection

Each listed screw length has a corresponding PS-102.xxx catalog code. Correct purchasing therefore requires confirmation of the required material and exact screw length before an order is placed.

The current live table assigns the same catalog code to both stainless-steel and titanium columns for every listed length. Buyers and Peak Surgicals administrators should verify whether these materials intentionally share codes or whether separate material-specific codes are required.

Product Specifications and Available Lengths

Product Name	Safety Lock Screw Ø3.5mm Self Tapping
Current English Storefront SKU	PS-OP-010778
Screw Diameter	Ø3.5 mm
Thread Configuration	Self Tapping
Material Options	Stainless Steel / Titanium
Length Range	10–80 mm
Number of Listed Lengths	31
Length	S.S Code	Titanium Code
10 mm	PS-102.210	PS-102.210
12 mm	PS-102.212	PS-102.212
14 mm	PS-102.214	PS-102.214
16 mm	PS-102.216	PS-102.216
18 mm	PS-102.218	PS-102.218
20 mm	PS-102.220	PS-102.220
22 mm	PS-102.222	PS-102.222
24 mm	PS-102.224	PS-102.224
26 mm	PS-102.226	PS-102.226
28 mm	PS-102.228	PS-102.228
30 mm	PS-102.230	PS-102.230
32 mm	PS-102.232	PS-102.232
34 mm	PS-102.234	PS-102.234
35 mm	PS-102.235	PS-102.235
36 mm	PS-102.236	PS-102.236
38 mm	PS-102.238	PS-102.238
40 mm	PS-102.240	PS-102.240
42 mm	PS-102.242	PS-102.242
44 mm	PS-102.244	PS-102.244
46 mm	PS-102.246	PS-102.246
48 mm	PS-102.248	PS-102.248
50 mm	PS-102.250	PS-102.250
52 mm	PS-102.252	PS-102.252
54 mm	PS-102.254	PS-102.254
56 mm	PS-102.256	PS-102.256
58 mm	PS-102.258	PS-102.258
60 mm	PS-102.260	PS-102.260
65 mm	PS-102.265	PS-102.265
70 mm	PS-102.270	PS-102.270
75 mm	PS-102.275	PS-102.275
80 mm	PS-102.280	PS-102.280

For Orthopedic Hospitals and Implant Procurement

The Safety Lock Screw Ø3.5mm Self Tapping is relevant for orthopedic and trauma departments, hospitals, implant distributors, and procurement teams sourcing components for compatible small-fragment locking plate systems.

For accurate ordering, buyers should specify the Ø3.5 mm screw, required material, exact length, and corresponding catalog code. Buyers requiring alloy grade, thread pitch, drive recess, head geometry, drill-bit compatibility, insertion torque, or plate compatibility should confirm those technical specifications before ordering because they are not provided on the current product page.

Frequently Asked Questions

What diameter is the Safety Lock Screw?

The current Peak Surgicals product is identified as a Ø3.5 mm Safety Lock Screw.

Is the screw self-tapping?

Yes. The current product title specifically identifies this model as self tapping.

Which materials are available?

The current product table lists both stainless steel (S.S) and titanium.

Which screw lengths are available?

The current listing provides 31 lengths from 10 mm through 80 mm.

What is the catalog code for the 40mm screw?

The current Peak Surgicals table lists PS-102.240 for the 40 mm configuration in both S.S and Titanium columns.

What is the main SKU for this product?

The current English storefront displays PS-OP-010778. Some localized Peak Surgicals pages currently display a different product-level SKU, so this identifier should be verified in Shopify before final catalog cleanup.
