Rib Plate Instruments Set

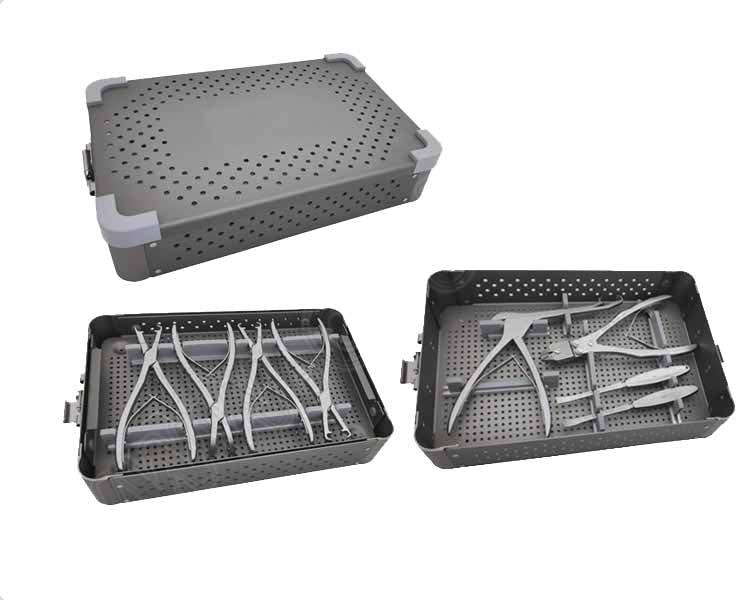

Rib Plate Instruments Set, SKU PS-OP-010001, is a reusable thoracic orthopedic instrument set manufactured from German stainless steel for surgical reduction, rib plate positioning, plate trimming, and periosteal preparation during operative fixation of rib fractures. The Q-SERIES configuration comprises Q.303.01 Reduction Forcep Double Large, Q.303.02 Reduction Forcep Curved, Q.303.03 Reduction Forcep Double Small, Q.303.04 Reduction Forcep Single, Q.303.05 Plate Insert Forcep, Q.303.06 Rib Plate Cutter, Q.303.07 Periosteal Elevator 9mm, Q.303.08 Periosteal Elevator 12mm, and Q.303.000 Empty Container, with one unit of each instrument and one storage container. The set is intended for thoracic trauma procedures involving displaced, comminuted, multiple, or segmental rib fractures requiring open reduction and internal fixation, including operative stabilization of flail chest and selected post-traumatic chest-wall reconstruction. Thoracic surgeons, trauma surgeons, cardiothoracic surgical teams, and orthopedic trauma specialists can use the coordinated instrumentation in hospital operating rooms, trauma centers, and specialist thoracic surgery units. The current Peak Surgicals price is $438.90 USD.

Reduction Mechanics and Rib Plate Handling

The set is organized around the mechanical sequence of exposing the rib, reducing the fracture, positioning the plate, modifying plate length when required, and completing fixation. The Reduction Forcep Double Large uses opposing jaws to grasp and control larger rib segments from two points, helping maintain reduction while the fixation construct is prepared. The Reduction Forcep Double Small provides the same bilateral control in a more compact configuration for smaller rib segments and restricted operative spaces. The Reduction Forcep Curved uses an offset trajectory to reach rib segments where a straight instrument would create an unfavorable approach angle. The Reduction Forcep Single provides localized control when one accessible fracture segment requires manipulation without the footprint of a double-ended reduction forceps. The Plate Insert Forcep is designed to grasp and position the rib plate before definitive screw fixation. The Rib Plate Cutter uses opposed cutting edges to shorten compatible plate material when the selected plate requires contour-length adjustment. The periosteal elevators provide controlled subperiosteal exposure along the rib surface, with 9 mm and 12 mm widths offering different working profiles. Together, the instruments correspond to distinct mechanical stages of rib plating.

Thoracic Trauma Workflow for Rib Fixation

During open reduction and internal fixation of rib fractures, the operative workflow begins with exposure of the injured rib and preparation of the fracture site. The 9 mm Periosteal Elevator provides a narrower working surface for controlled elevation along the rib, while the 12 mm version provides broader contact when greater exposure is required. Once the fracture is visualized, the surgeon selects the appropriate reduction forceps according to fragment size, accessibility, and the direction of the required reduction. The Double Large is suited to larger fragments, the Double Small to smaller rib segments, the Curved configuration to difficult approach angles, and the Single configuration to localized fragment control. After anatomic alignment is established, the Plate Insert Forcep holds the rib plate against the prepared rib surface while fixation points are established. If the plate requires shortening, the Rib Plate Cutter modifies the compatible plate before final placement. These instruments support fixation of displaced and comminuted rib fractures, multiple rib injuries, segmental fractures associated with flail chest, and selected reconstructive procedures following thoracic trauma. The Empty Container maintains organized storage of the complete Q-SERIES instrumentation between procedures and during sterile-processing workflows.

German Stainless Steel, Sterilization, and Procurement

German stainless steel is suited to this reusable thoracic instrumentation because the instruments require mechanical rigidity, corrosion resistance, dimensional stability, and a surface compatible with repeated professional cleaning and sterilization. The forceps depend on accurately opposed jaws and reliable pivot movement, while the cutter requires maintained cutting-edge geometry; the elevators require rigid working blades capable of controlled subperiosteal elevation. After use, each instrument should undergo the healthcare facility's validated decontamination sequence, including cleaning, rinsing, drying, inspection, functional assessment, packaging, and sterilization before subsequent clinical use. The aluminum container supports organized storage of the complete Q-SERIES configuration and helps maintain instrument separation during handling and transport. Peak Surgicals lists the set as medical-grade steel and reusable and displays CE, FDA, and ISO certification indicators. The procurement profile is appropriate for thoracic surgery departments, trauma centers, hospitals, specialist clinics, and medical-device distributors. The current unit price is $438.90 USD, with a 30 Days Money Back Guarantee and 100% Quality Satisfaction stated on the product page. OEM and custom-order support can also be used for institutional and distributor sourcing requirements.

Q-SERIES Components and Instrument Selection

Each Q-SERIES component addresses a defined operative task. Q.303.01 Reduction Forcep Double Large provides two-point control for larger rib fragments and is selected when greater jaw span and grasping reach are required. Q.303.02 Reduction Forcep Curved changes the working trajectory to facilitate manipulation around the rib contour and within restricted thoracic exposure. Q.303.03 Reduction Forcep Double Small provides bilateral control for smaller fragments where a more compact jaw configuration is advantageous. Q.303.04 Reduction Forcep Single provides focused control of an individual rib segment or fracture edge. Q.303.05 Plate Insert Forcep maintains the selected rib plate in position during preparation for definitive fixation. Q.303.06 Rib Plate Cutter provides controlled plate trimming where compatible plate length requires modification. Q.303.07 Periosteal Elevator 9mm offers a narrower subperiosteal working surface, while Q.303.08 Periosteal Elevator 12mm provides a wider elevator profile for broader exposure. Q.303.000 Empty Container houses the complete set and supports organized transport and sterile-storage management. The combination creates a procedural sequence from exposure through reduction and plate positioning without requiring unrelated general-purpose instruments.

How does the Rib Plate Instruments Set differ from a general orthopedic reduction set?
The Rib Plate Instruments Set is configured specifically around rib fracture reduction and plate fixation. Its components include rib-specific reduction forceps, a plate insert forcep, a rib plate cutter, and two periosteal elevator widths. A general orthopedic reduction set may contain broader bone-holding instruments without the same thoracic plate-management configuration. The curved reduction forcep provides a trajectory suited to rib contours and restricted thoracic exposure. The plate insert forcep addresses plate positioning before definitive fixation. The rib plate cutter provides dedicated modification of compatible rib plates. The complete configuration therefore follows the workflow of exposure, reduction, plate positioning, and fixation in thoracic trauma.

When should the 9mm and 12mm periosteal elevators be selected?
The 9mm Periosteal Elevator provides a narrower working blade for controlled subperiosteal elevation along the rib. It is useful when the operative exposure is limited or when a smaller contact profile is preferred. The 12mm Periosteal Elevator provides a wider blade and broader tissue-bone interface during exposure. It can be selected when greater surface coverage is useful along a larger exposed rib segment. Both instruments are used during preparation before plate positioning. Selection is therefore based on the required exposure width and local operative access. The surgeon chooses the elevator that provides appropriate control without unnecessary tissue elevation.

What do CE, ISO 13485, and FDA procurement support mean for this set?
Peak Surgicals displays CE, FDA, and ISO certification indicators for the Rib Plate Instruments Set. ISO 13485 relates to the quality-management system used for medical-device manufacturing. CE marking supports procurement within applicable European regulatory frameworks. FDA-related documentation supports procurement requirements for applicable United States medical-device markets. Hospitals can incorporate these records into supplier qualification and purchasing documentation. Distributors can maintain the compliance information within their regulated product files. Healthcare organizations remain responsible for applying their own market-specific regulatory and procurement requirements.

How do the forceps and cutter mechanisms function during rib plating?
The reduction forceps use articulated handles and opposing jaws to generate controlled grasping force around rib fragments. The Double Large and Double Small configurations provide bilateral control, while the Single configuration provides localized grasping. The Curved model changes the jaw trajectory to improve access around the rib contour. The Plate Insert Forcep uses its jaws to hold the plate during positioning before definitive fixation. The Rib Plate Cutter uses opposing cutting edges and handle leverage to shorten compatible plate material. None of these instruments uses a ratchet as its primary clinical mechanism. Their control comes from hand-applied force transmitted through the handle, pivot, and working jaws or cutting edges.

How should hospitals process and maintain the Rib Plate Instruments Set?
The Rib Plate Instruments Set is listed as reusable medical-grade steel instrumentation. After each procedure, the individual instruments should be separated from the container and processed through the facility's validated decontamination workflow. Cleaning should address the jaws, pivots, cutting edges, elevator blades, and other surfaces before inspection and packaging. Functional inspection should verify jaw alignment, pivot movement, and cutter performance before sterilization. The instruments should then be sterilized according to the healthcare facility's validated protocol for reusable surgical instruments. The Empty Container supports organized storage and transport of the Q-SERIES components. Hospitals, trauma centers, and distributors can replenish the complete set through professional procurement, with the current listed price of $438.90 USD.
