Pediatric DHS/DCS Plates Instrument Set – Hip and Distal Femoral Fixation

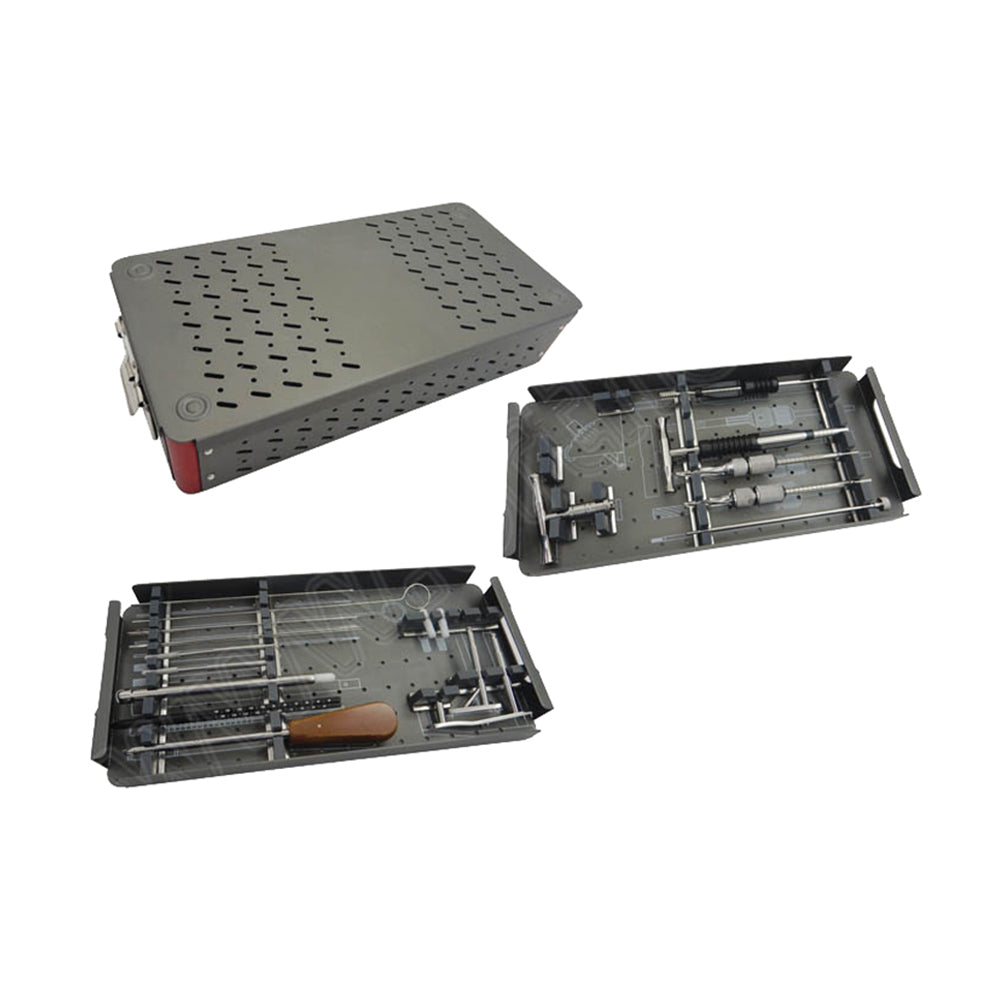

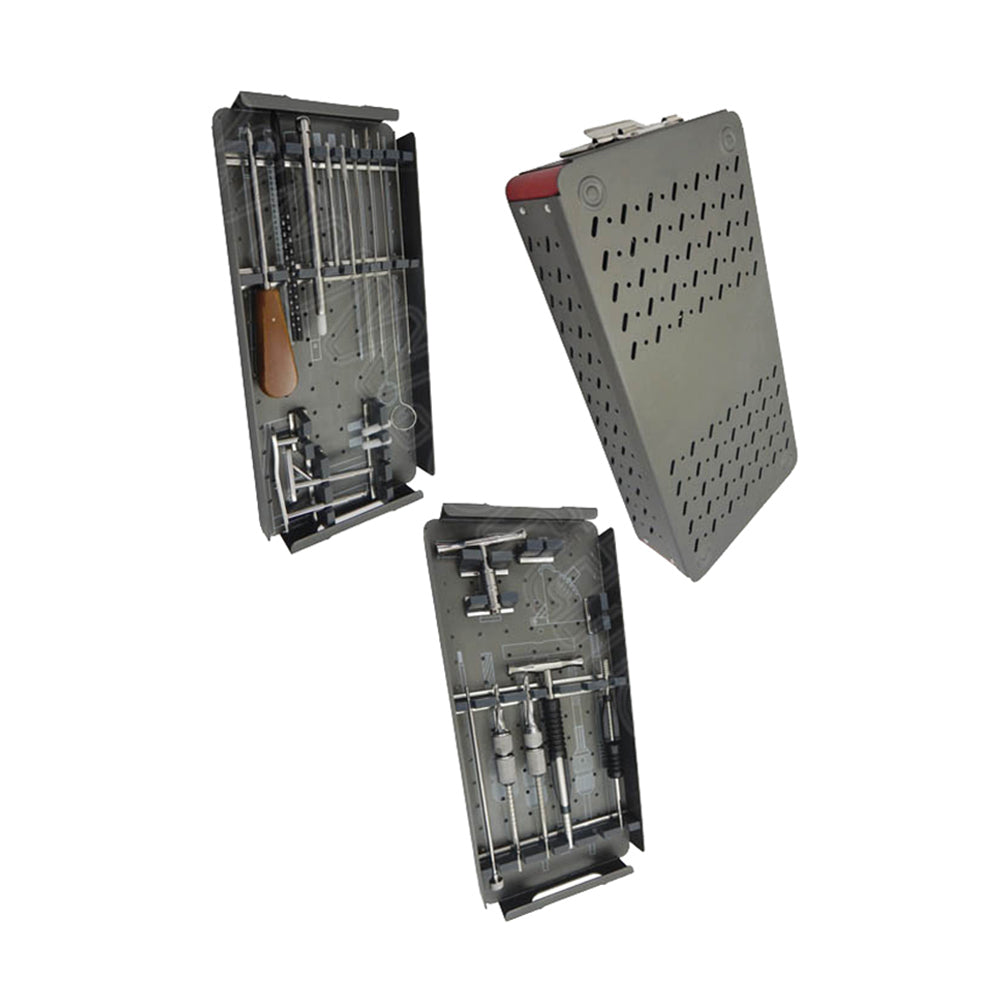

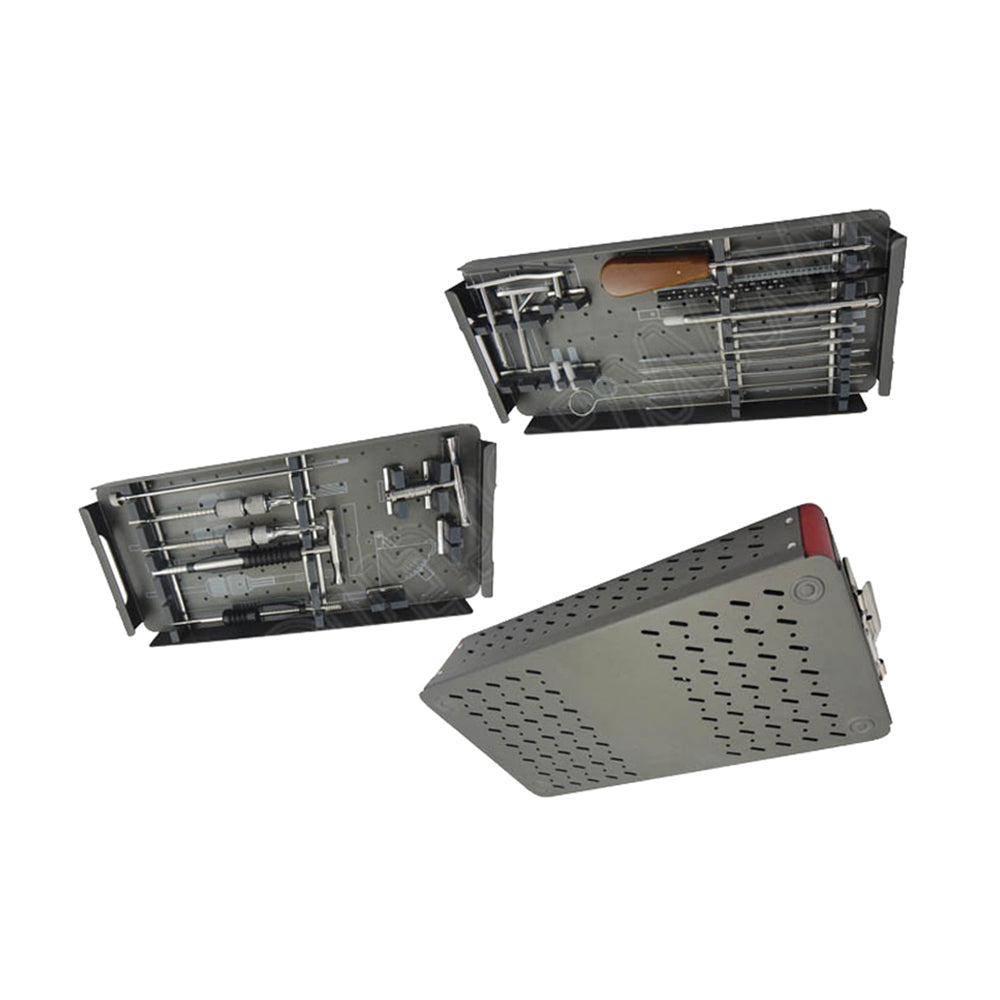

Pediatric DHS/DCS Plates Instrument Set, SKU PS-OP-7311, is a 27-instrument German-forged stainless steel orthopedic system supplied with a container for dynamic hip screw and dynamic condylar screw plate fixation. Its composition includes six threaded-tip guide wires, quick-coupling T-handle, direct measuring device, DHS triple reamer, DCS triple reamer, T-wrench, centering sleeve for the DHS tap, centering sleeve for the DHS wrench, DHS impactor, two coupling screws for DHS screw insertion, two coupling-screw guide shafts, long coupling screw for DHS screw removal, DHS tap, stylet, 2.5 mm hexagonal screwdriver, 3.5 mm hexagonal screwdriver, DCS angle guide, DHS angle guide, and two spare Teflon tips for the impactor. Pediatric orthopedic and trauma surgeons use these instruments during selected proximal femoral fractures, femoral neck reconstruction, intertrochanteric fixation, proximal femoral corrective osteotomy, distal femoral or supracondylar fracture stabilization, and distal femoral osteotomy when the compatible DHS or DCS plate system is planned. The set supports fluoroscopic trajectory control, guide-wire placement, direct depth measurement, coaxial reaming, thread preparation, lag-screw insertion, plate/barrel seating, supplementary screw fixation, construct assembly, and later hardware removal in pediatric trauma centers, orthopedic hospitals, and specialist operating rooms.

Guided Trajectory, Coaxial Reaming, and Screw Control

The DHS and DCS angle guides establish the planned guide-wire trajectory relative to the proximal or distal femoral construct. A threaded tip anchors each wire in bone during fluoroscopic assessment, limiting migration while position and depth are evaluated. The direct measuring device reads the working length from the placed wire so lag-screw selection corresponds to the prepared path. DHS and DCS triple reamers advance concentrically over the guide wire and prepare the stepped channel required by their respective screw-and-barrel geometry. The quick-coupling T-handle provides manual axial and rotational control for compatible reaming or tapping instruments, while the separate T-wrench supplies leverage during lag-screw insertion. The DHS tap cuts a controlled thread path in dense bone; its centering sleeve keeps the tap coaxial and shields the surrounding approach. A second sleeve aligns the DHS wrench and insertion assembly. Coupling screws connect the lag screw to the driving construct, and the paired guide shafts stabilize that connection while torque is transferred. The impactor seats the plate or barrel assembly with an exchangeable Teflon contact face that limits direct metal-on-metal marking. The stylet clears instrument cannulations, and the 2.5 and 3.5 mm hexagonal drivers engage their matching supplementary screw recesses during plate fixation.

Pediatric Hip and Distal Femoral Operative Workflow

For selected pediatric proximal femoral fractures or corrective osteotomies, reduction and implant position are planned under fluoroscopy with attention to the capital physis, femoral-neck axis, and intended plate alignment. The DHS angle guide directs a threaded wire into the femoral neck and head along the chosen trajectory. After position is accepted, the measuring device determines length, the DHS triple reamer prepares the stepped channel, and the tap is introduced through its centering sleeve when thread preparation is required. The lag screw is coupled to the guide shaft and inserted with controlled T-wrench rotation. The side plate and barrel are advanced over the screw; the impactor seats the assembly before supplementary plate screws are driven with the matching 2.5 or 3.5 mm hexagonal interface. For distal femoral or supracondylar fixation and osteotomy, the DCS angle guide establishes the condylar path and the DCS triple reamer prepares the corresponding channel. Fluoroscopy monitors coronal and sagittal alignment, screw depth, physeal clearance, and plate position throughout. If later removal is indicated after healing, the long coupling screw re-establishes connection with the DHS lag screw for controlled reverse extraction. This staged sequence maintains alignment between the guide wire, prepared bone channel, lag screw, barrel, and plate.

DHS, DCS, Driver, and Coupling Component Selection

The DHS angle guide, triple reamer, tap, centering sleeves, impactor, coupling screws, guide shafts, and removal screw form the proximal femoral pathway. The DCS angle guide and DCS triple reamer serve the distal femoral condylar trajectory and corresponding plate barrel. Six threaded guide wires provide working, replacement, and repeat-positioning capacity during image-guided placement. Their anchored tips help maintain the chosen line while length is measured and the stepped reamer advances. Two coupling screws and two guide shafts preserve a matched insertion assembly and provide immediate replacement if a connection becomes damaged. The long coupling screw has additional reach for engaging a retained DHS lag screw during explantation. The 2.5 mm hexagonal screwdriver addresses compatible smaller screw recesses, while the 3.5 mm pattern transfers torque to the larger matching interface; selection follows the screw head rather than anatomical site alone. The quick-coupling T-handle supports interchangeable preparation tools, and the T-wrench provides greater rotational leverage during screw advancement. Two spare Teflon tips maintain a nonmetallic impactor contact surface when the installed end becomes worn. The stylet is passed through compatible cannulations to clear bone debris or retained material before cleaning, guide-wire passage, or instrument reuse. The container maintains code-based separation for setup and count reconciliation.

Reusable Construction, Reprocessing, and Procurement

German-forged stainless steel provides the hardness required at reamer flutes, tap threads, guide surfaces, driver tips, and coupling interfaces while maintaining toughness under manual torsional and impact loads. Corrosion resistance supports repeated point-of-use cleaning, rinsing, drying, inspection, packaging, and steam sterilization under a validated reusable-instrument process. The satin finish reduces reflected operating-light glare and helps processing staff identify residue, corrosion, damaged cutting geometry, rounded driver corners, bent wires, or distorted sleeves. Cannulated triple reamers, taps, coupling parts, measuring instruments, and guide channels require flushing until visibly clean; the stylet is used only where its diameter and the instrument lumen are compatible. Reamer edges, tap profiles, threaded guide-wire tips, quick couplings, and the impactor face receive direct functional inspection before each case. Used or deformed Teflon tips are exchanged before the impactor returns to service. The set is supplied non-sterile and is reprocessed before initial and subsequent use under the healthcare facility’s validated protocol. CE documentation supports applicable European conformity assessment, while ISO 13485 identifies manufacture within a medical-device quality management system. United States procurement teams separately assess FDA classification, registration, listing, labeling, and importer records because CE marking and ISO certification are not FDA approval.

Products Specification

How does this set differ from a cannulated screw instrument set?
The Pediatric DHS/DCS Plates Instrument Set prepares and inserts a sliding lag screw connected to a side plate and barrel. A cannulated screw instrument set usually places independent screws over guide wires without a DHS or DCS barrel-plate assembly. The DHS/DCS workflow therefore requires angle guides, stepped triple reamers, coupling screws, guide shafts, an impactor, and dedicated lag-screw insertion controls. Cannulated screw fixation instead emphasizes parallel wire placement, individual depth measurement, cannulated drilling, and separate screw insertion. The plate-based construct also uses supplementary cortical or compatible plate screws engaged by the 2.5 or 3.5 mm drivers. These systems differ in implant geometry, load-transfer mechanism, bone preparation, assembly sequence, and removal instrumentation.

When are DHS and DCS instruments selected within the pediatric set?
DHS instruments are used when the compatible construct follows the proximal femoral neck and head trajectory for selected fractures or corrective osteotomies. The DHS angle guide establishes that path, while its triple reamer and tap prepare the lag-screw channel. DCS instrumentation addresses a compatible distal femoral condylar path during selected supracondylar fixation or osteotomy. Its angle guide and triple reamer create the trajectory and stepped channel required by the DCS construct. The 2.5 and 3.5 mm hexagonal drivers are selected by the recess of the supplementary plate screw. The Pediatric DHS/DCS Plates Instrument Set keeps both workflows available while implant choice remains linked to skeletal maturity, fracture or osteotomy geometry, physeal position, and preoperative planning.

What do CE, ISO 13485, and FDA requirements mean for procurement?
CE documentation addresses applicable European conformity requirements for the Pediatric DHS/DCS Plates Instrument Set. ISO 13485 identifies a quality management system governing medical-device manufacture, traceability, controlled records, and corrective action. Neither designation constitutes United States FDA approval. US hospitals and distributors evaluate the applicable device classification, establishment registration, listing, labeling, importer, and shipment documentation. Procurement files retain the quotation, SKU, supplied instructions, lot or batch identification, and applicable conformity records. This separation supports accurate review for US, European, Pakistani, Vietnamese, and other international purchasing pathways.

How do the quick coupling, sleeves, and coupling screws control insertion?
The quick-coupling T-handle locks a compatible reamer or tap while permitting controlled exchange between preparation steps. The angle guide controls the initial guide-wire direction, and the threaded tip maintains purchase during measurement and reaming. A centering sleeve constrains the DHS tap or wrench around the established axis and protects the surrounding approach. The coupling screw connects the DHS lag screw to its guide shaft so rotational force can be transmitted without losing coaxial alignment. The T-wrench then advances the screw under fluoroscopic and tactile control. Within the Pediatric DHS/DCS Plates Instrument Set, these linked mechanisms maintain continuity from guide-wire placement through channel preparation, screw insertion, barrel alignment, and plate seating.

How should hospitals reprocess and reconcile the complete set?
The Pediatric DHS/DCS Plates Instrument Set is supplied non-sterile and requires reprocessing before first use and after every operation. Cannulated reamers, taps, coupling parts, sleeves, measuring devices, and guide channels are flushed and brushed until visibly clean. Guide wires, driver tips, cutting flutes, threaded interfaces, and the Teflon impactor face are inspected for deformation, wear, retained debris, and secure engagement. The count includes 27 instruments plus one container, with six guide wires, two insertion coupling screws, two guide shafts, and two spare Teflon tips. Following rinsing and complete drying, the organized case is packaged and steam sterilized under the facility’s validated reusable-instrument cycle. Individual PS701, PS301, and PS903 codes support replacement orders, operating-room reconciliation, distributor records, and warranty service.
