Open Up Kerrison for 8–12in Spinal Decompression and 1–10mm Bone Punch

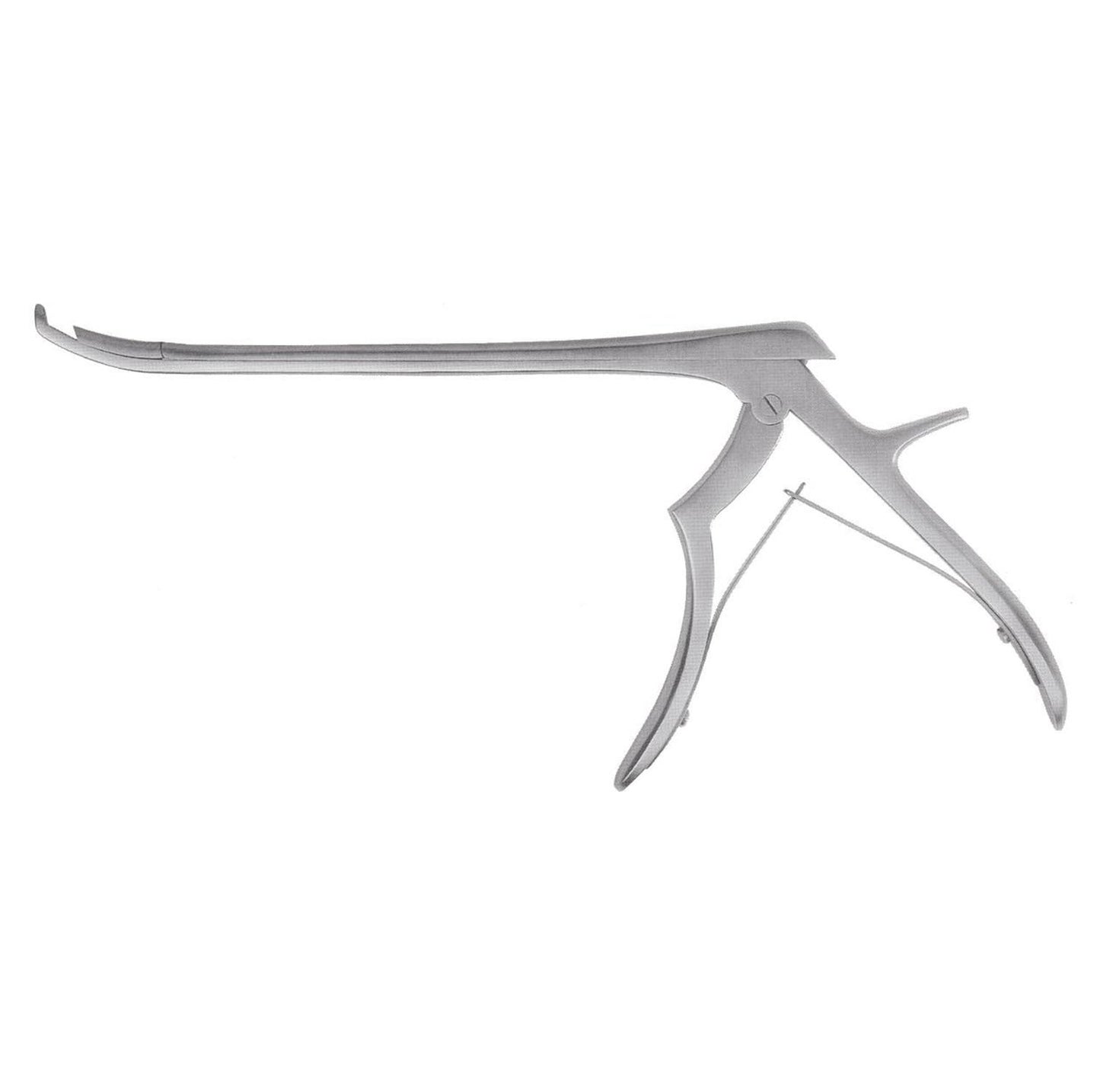

Open Up Kerrison, SKU PS-9329-1, Model PS-9329, is a spinal and orthopedic punch rongeur manufactured from German stainless steel for controlled lamina removal, ligamentum flavum resection, foraminal enlargement, and posterior decompression work in confined operative corridors. The available variants are PS-9329 Shaft Length 8" (20.3cm) 1mm to 10mm, PS-9330 Shaft Length 9" (22.9cm) 1mm to 10mm, PS-9331 Shaft Length 10" (25.4cm) 1mm to 10mm, and PS-9332 Shaft Length 12" (30.5cm) 1mm to 10mm. The instrument has a long shaft, distal footplate, sliding punch jaw, angled working tip, pivoted trigger-handle mechanism, spring return, and open-up access architecture for inspection and reprocessing of the shaft channel. It is used in laminectomy, laminotomy, foraminotomy, posterior spinal decompression, microdiscectomy exposure, interlaminar window enlargement, and controlled trimming of laminar or facet margins. This rongeur supports neurosurgeons, spine surgeons, orthopedic surgeons, hospital operating rooms, ambulatory surgical centers, and procurement teams maintaining reusable spinal decompression trays.

Footplate Punch Geometry and Open-Up Shaft Control

The instrument works through a sliding punch mechanism that advances the cutting jaw against a fixed distal footplate when the trigger handle is compressed. The footplate is placed beneath the laminar edge, foraminal border, ligamentum flavum margin, or interlaminar window selected for removal, while the punch jaw closes from above. This configuration allows controlled tissue removal from a narrow spinal corridor without requiring opposing open-field jaws. The long shaft keeps the surgeon’s hand outside the deep wound and preserves access for retractors, suction, microscope use, bipolar control, and nerve root protection. The angled distal tip supports approach to posterior elements while maintaining a stable external hand position. The pivoted handle transfers compression into shaft movement, and the spring return reopens the working end after each bite. The open-up construction supports direct access to the shaft channel during inspection and cleaning. The 1mm to 10mm jaw range allows fine decompression near protected neural tissue and broader removal when the operative window permits.

Spinal Decompression Procedure Workflow

In operative workflow, Open Up Kerrison is introduced after exposure, soft tissue retraction, hemostasis, and identification of the laminar, interlaminar, or foraminal margin requiring decompression. During laminectomy, the footplate is advanced beneath an exposed lamina edge and the punch removes bone in sequential passes until the planned window is expanded. In laminotomy, narrower jaw selections support controlled enlargement while preserving adjacent posterior elements. During foraminotomy, the instrument removes hypertrophic bone around the neural foramen after root protection and direct visualization are established. In microdiscectomy exposure, the rongeur can enlarge the laminotomy window before disc fragment retrieval with pituitary forceps or intervertebral disc rongeurs. For ligamentum flavum resection, the footplate is positioned beneath the ligament margin and the punch removes tissue along a controlled decompression line. The instrument is used with Penfield dissectors, nerve root retractors, curettes, pituitary forceps, suction, irrigation, bipolar forceps, hemostats, and spine exposure instruments.

PS-9329 PS-9330 PS-9331 and PS-9332 Selection

PS-9329 Shaft Length 8" (20.3cm) is selected when the surgeon needs shorter working distance for lumbar laminotomy, limited posterior exposure, and direct access with close handle control. PS-9330 Shaft Length 9" (22.9cm) provides additional reach while keeping the handle close enough for routine decompression work. PS-9331 Shaft Length 10" (25.4cm) is selected for deeper operative fields, larger patients, and spinal levels where retractors or microscope positioning require more distance from the wound. PS-9332 Shaft Length 12" (30.5cm) supports extended access during deep exposure where hand clearance is required away from the operative corridor. Across all shaft lengths, the 1mm jaw width supports fine bone or ligament bites, while the 10mm end of the range supports broader removal when anatomy permits. The shaft preserves access, the footplate defines the bite plane, the sliding jaw performs the punch action, and the spring handle returns the working end to an open position for repeated decompression cycles.

Reusable German Steel and Procurement Documentation

German stainless steel provides the rigidity required for repeated punch closure, shaft alignment, footplate engagement, and operating room reprocessing. The reusable construction supports surgical workflows involving manual cleaning, ultrasonic cleaning where used, drying, inspection, packaging, and steam autoclave sterilization between procedures. Satin, dull, and mirror finish options support operating room and sterile processing preferences; reduced-glare surfaces assist visibility under surgical lighting, while mirror surfaces support visual inspection after cleaning. Reprocessing focuses on the footplate, sliding punch jaw, open-up shaft channel, distal tip, pivot recesses, spring mechanism, and trigger surfaces because bone dust, ligament fragments, blood, saline, and surgical debris can collect around these areas. The Class I classification reflects a reusable manual surgical instrument with mechanical cutting action. CE marking and ISO 13485 documentation support regulated purchasing records for hospitals, surgical centers, and distributors. FDA compliance information supports medical device procurement files for regulated healthcare markets. The one-year warranty, MOQ of one piece, OEM availability, carton box packing, rust-free listing, and return or replacement support fit spine tray replenishment workflows.

How does Open Up Kerrison differ from a standard Kerrison rongeur?
Open Up Kerrison uses the same fixed footplate and sliding punch principle used in standard Kerrison rongeurs for spinal decompression. The open-up construction provides access to the shaft channel for inspection and cleaning after use. A standard closed-channel Kerrison performs the same punch function but gives less direct access to internal sliding surfaces during reprocessing. Open Up Kerrison is selected when a spine tray requires punch action with improved cleaning access around the slide mechanism. The distal footplate still defines the bite plane under the laminar or foraminal margin. Both patterns are used for laminectomy, laminotomy, foraminotomy, and ligamentum flavum resection.

How are the 8", 9", 10", and 12" shaft variants selected?
The 8" shaft is selected for shorter working distance, limited posterior exposure, and direct lumbar access. The 9" shaft supports routine decompression where moderate reach and close trigger control are required. The 10" shaft is selected for deeper operative fields, larger patients, and microscope-assisted cases requiring additional working distance. The 12" shaft supports extended access when retractors, suction, or adjacent instrumentation require greater hand clearance. Open Up Kerrison is also selected by jaw width from 1mm to 10mm according to bite volume and proximity to neural structures. Smaller jaw widths favor precise removal, while broader jaws support faster enlargement when exposure allows.

How do CE, ISO 13485, and FDA documentation support procurement?
CE marking supports product conformity documentation for hospital purchasing and distributor review. ISO 13485 indicates that the manufacturing system follows medical device quality management and traceability requirements. FDA compliance information supports procurement records for regulated healthcare supply channels. Hospitals, surgical centers, and spine instrument distributors use these records during vendor approval, tender documentation, and tray standardization. Open Up Kerrison can be entered into purchasing systems with recognized compliance references. This documentation supports international healthcare buyers comparing reusable spinal rongeurs across multiple suppliers.

How is the footplate, trigger handle, and open-up mechanism used intraoperatively?
The footplate is advanced beneath the laminar edge, ligament margin, foraminal border, or interlaminar window selected for removal. After the footplate is positioned, the surgeon compresses the trigger handle to advance the sliding punch jaw over the target. The punch removes a controlled section of bone or ligament while the footplate defines the bite plane. The spring handle reopens the mechanism after each compression, allowing repositioning for the next bite. The open-up feature is used after the procedure during inspection and cleaning of the shaft channel. Open Up Kerrison depends on the footplate, sliding jaw, pivot, spring system, and open-up access for controlled spinal bone removal and reprocessing workflow.

What should operating room teams know about sterilization and ordering?
This instrument is reusable and suitable for standard surgical instrument reprocessing workflows. Cleaning focuses on the footplate, sliding punch jaw, shaft channel, distal tip, pivot recesses, spring mechanism, and trigger surfaces before sterilization. The open-up construction supports inspection of internal channel surfaces before packaging. Steam autoclave processing follows the facility’s approved cycle for reusable stainless steel surgical instruments. Clinics and hospitals can order one piece because the MOQ is one piece. Open Up Kerrison is supplied with OEM availability, one-year warranty coverage, and return or replacement after-sale support.
