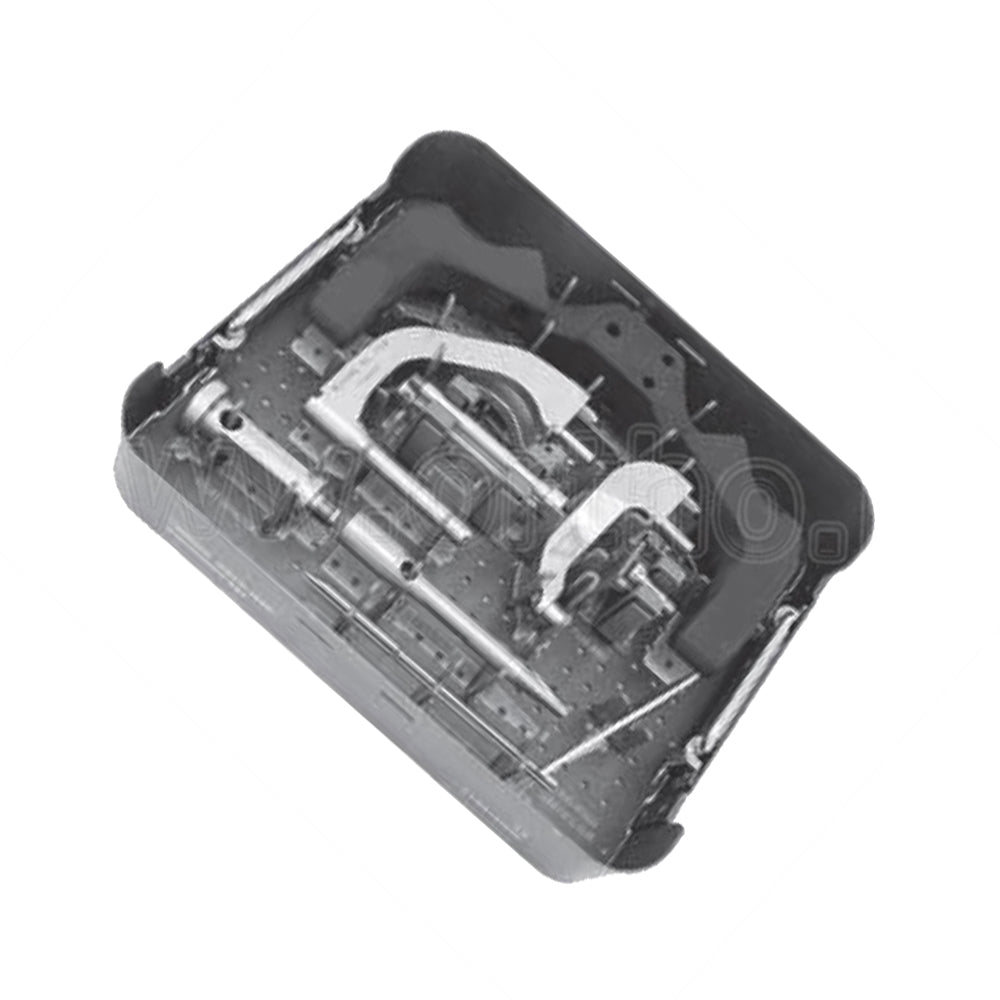

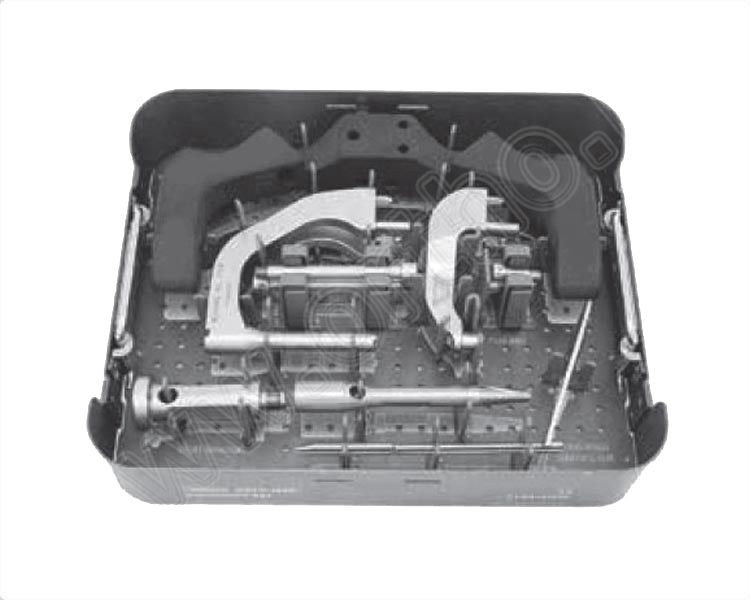

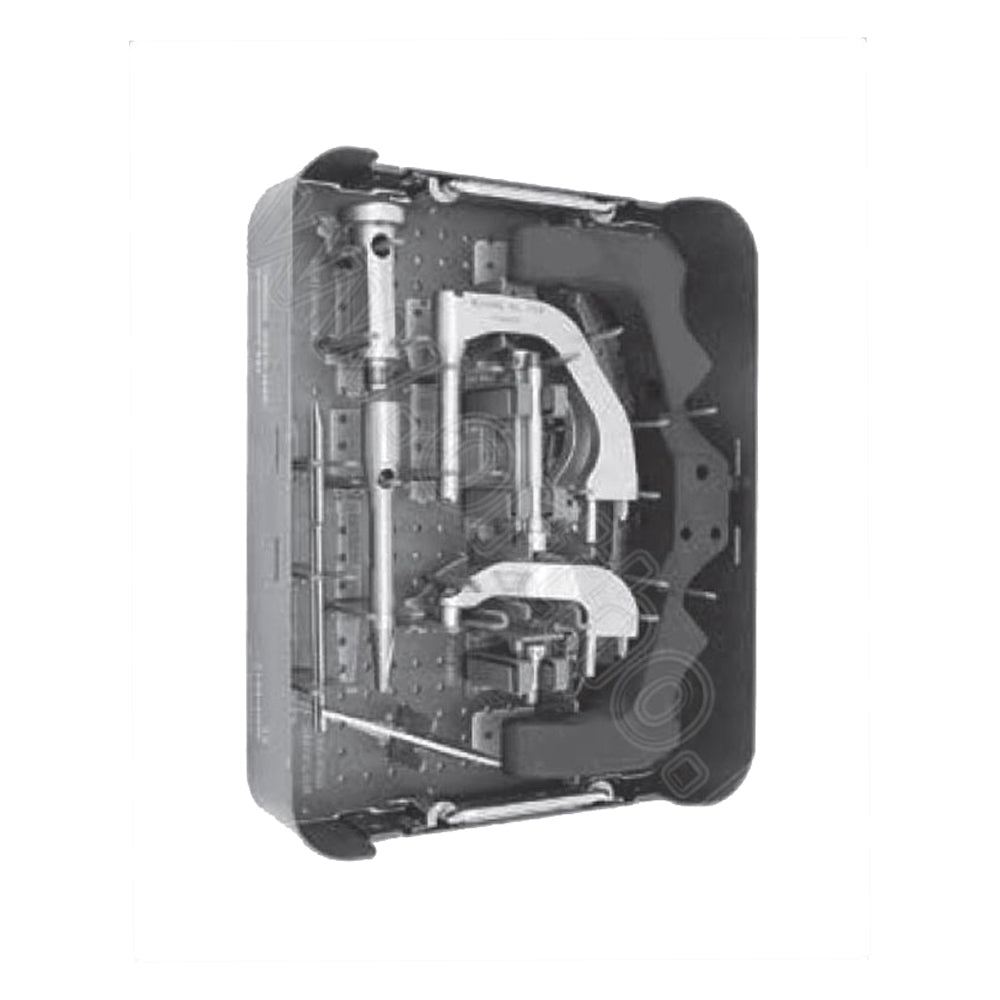

Nexgen Tibia Nail Instrument Set – Proximal & Distal Targeting System

Nexgen Tibia Nail Instrument Set, SKU PS-OP-3363, is a reusable orthopedic intramedullary nailing system manufactured in German stainless steel for tibial nail insertion, medullary canal preparation, fracture alignment, proximal and distal interlocking, compression and nail extraction. The set is configured around the NEXGEN Tibia Nail system and includes the Tibia Nail Insertion Handle, cannulated Connecting Screw, Compression Screw, 6.5mm T-Handle, Multiaxial T-Handle, Connector and Connecting Part, Hammer Guide Rod, Distal Jig Guide, Distal Alignment Device, Positioning Block, Distal Aiming Arm, Proximal Aiming Arm, calibrated 3.2mm and 4mm drills, 5.2mm distal-alignment drill, protection and drill sleeves, Depth Gauge, 3.5mm hexagonal screwdrivers, Soft Tissue Separators, 2.5 x 3.9 x 1000mm Ball-Tip Reaming Rods, T-Type Fracture Alignment Device, L Keys, Skin Protector, locking bolts, Pin Holder, Hexagonal Screw Holder, quick-coupling T-Handle, wrenches, Sliding Hammer, Nail Extractor, Flexible Reamer Shafts and interchangeable reamer heads. The system is intended for orthopedic trauma surgeons performing tibial intramedullary nail fixation for tibial shaft and selected proximal or distal tibial fractures in trauma hospitals, orthopedic operating rooms and fracture-fixation centers.

Tibial Entry, Canal Reaming and Nail Insertion

The NEXGEN instrumentation follows the mechanical sequence from tibial entry preparation through controlled canal reaming and nail advancement. The Skin Protector and Soft Tissue Separator establish a defined working corridor around the entry site, while the insertion assembly secures the compatible tibial nail. The cannulated Connecting Screw mechanically couples the implant to the Insertion Handle, and the Compression Screw provides controlled compression where supported by the compatible nail configuration. The 6.5mm T-Handle and Multiaxial T-Handle provide manual access for assembly and tightening, while the Connector and Connecting Part establish the required relationship between insertion and targeting components. The Hammer Guide Rod transfers impact from the Sliding Hammer during controlled advancement of the nail. The 2.5 x 3.9 x 1000mm Ball-Tip Reaming Rod maintains the intramedullary pathway while the Flexible Reamer Shafts carry interchangeable reamer heads. The reaming sequence permits progressive canal enlargement according to the selected NEXGEN tibial nail dimensions and operative technique. The Distal and Proximal targeting assemblies remain mechanically related to the nail through the insertion framework, allowing the surgeon to transition from canal preparation and nail insertion to interlocking without changing the fundamental implant-targeting relationship.

Proximal and Distal Interlocking Workflow

After the tibial nail has been advanced to the planned position, the proximal and distal targeting assemblies establish controlled trajectories for interlocking screw preparation. The Proximal Aiming Arm provides the proximal targeting relationship, while the Distal Jig Guide, T-Type Distal Alignment Device, Positioning Block and Distal Aiming Arm establish the distal locking assembly. The 6mm and 8mm Flower-Type Locking Bolts secure the proximal and distal jigs during targeting. Calibrated 3.2mm drill bits prepare compatible locking holes, with the 3.2mm Drill Bit Stopper controlling drilling depth where required. The 4mm drill bits provide an additional calibrated drilling configuration, while the T-Type 5.2mm drill and 5.2 x 250mm drill support the distal alignment assembly. Protection sleeves, drill sleeves and the 3.2mm Drill Sleeve with Trocar Pin establish controlled access through the soft-tissue corridor. The Depth Gauge determines locking-screw length after drilling. The 3.5mm Hexagonal Screwdriver Shaft and Hexagonal Screwdriver provide the insertion interface for compatible locking hardware, while the 3.5mm Hexagonal Screw Holder manages screw handling during insertion. The Pin Holder supports positioning-pin management throughout targeting. This sequence provides a dedicated mechanical pathway for proximal and distal locking of the compatible NEXGEN tibial nail.

Reamer Heads, Targeting Components and Instrument Selection

The reaming assembly uses interchangeable heads carried by dedicated Flexible Reamer Shafts, allowing canal preparation to progress through selected diameters according to the compatible NEXGEN tibial nail system. The Ball-Tip Reaming Rod maintains guide-wire control through the medullary canal while the reamer shaft transfers rotational force to the selected head. The T-Type Fracture Alignment Device assists maintenance of fracture alignment during nail insertion. The Distal Alignment Device, Positioning Block and Distal Aiming Arm establish the distal locking relationship, while the Proximal Aiming Arm controls the proximal targeting geometry. The 3mm and 5mm L Keys allow adjustment of compatible assemblies, while the 11mm Combination Wrench and Pin Wrench support tightening and setup. The T-Handle Quick Coupling provides manual control of compatible instruments. The 14 x 12mm Protection Sleeve, 12mm Cannulated Cutter and 12mm Cannulated Awl support proximal entry preparation, while the 12mm Cannulated Drill Bit provides controlled enlargement of the entry pathway. The 3.2mm and 4mm calibrated drills are selected according to the compatible locking-hole dimensions, while the 5.2mm drill assembly supports the distal alignment configuration. The Medullary Tube assists controlled handling of the reaming assembly and guide system. Each component therefore corresponds to a defined stage of entry, reaming, insertion, targeting, locking or extraction.

German Stainless Steel, Reprocessing and Procurement

The Nexgen Tibia Nail Instrument Set is manufactured in German stainless steel for reusable orthopedic instrumentation subjected to repeated mechanical handling, cleaning, inspection and sterilization. Stainless steel provides the structural material required for cannulated cutters, awls, drills, guide sleeves, aiming arms, screwdrivers, reamer shafts, handles, wrenches and extraction instruments used during tibial intramedullary fixation. Reprocessing should follow the healthcare facility's validated workflow, including point-of-use cleaning, decontamination, inspection, drying, packaging and sterilization according to applicable manufacturer instructions. Steam autoclave sterilization is appropriate for compatible reusable stainless steel components when processed using a validated cycle. The Empty Container organizes the NEXGEN instrumentation for storage, transport and sterile-processing preparation. Peak Surgicals supports medical-device procurement with CE marking, ISO 13485 quality-management certification and FDA-compliant procurement support for applicable healthcare markets. The set is listed at $1,245.75 USD and is intended for professional orthopedic trauma environments, including hospitals, trauma centers, orthopedic clinics and medical distributors. Its dedicated insertion, reaming, proximal targeting, distal targeting, locking and extraction components provide a complete instrumentation configuration for the compatible NEXGEN tibial nail workflow.

Nexgen Tibia Nail Instrument Set

Details of Nexgen Tibia Nail Instrument Set is Given Below.

How does the Nexgen Tibia Nail Instrument Set differ from the Nexgen Tibia Nail Semi Extended Set?
The Nexgen Tibia Nail Instrument Set is the broader instrumentation configuration for the NEXGEN tibial nail workflow. It includes the main insertion, canal-preparation, proximal-targeting, distal-targeting and extraction components. The Semi Extended Set is focused on the dedicated semi-extended entry and proximal targeting configuration. The full set includes cannulated entry preparation, guide-wire, reaming and distal-locking instrumentation. The Semi Extended configuration concentrates on its specialized drill guide, honeycomb and entry tube. The appropriate configuration depends on the compatible nail system and surgical approach.

How are the drilling components selected during NEXGEN tibial nail fixation?
The 3.2mm calibrated drill bits support compatible locking-hole preparation and are used with the corresponding sleeves. The 4mm calibrated drills provide an additional drilling diameter for compatible fixation components. The 5.2mm drill configuration is associated with the distal alignment assembly. The Ø12mm cannulated cutter, awl and drill prepare the proximal entry pathway. Drill stoppers provide controlled depth limits where specified. Final drill selection follows the locking-hole dimensions and operative technique of the compatible NEXGEN tibial nail system.

What do CE, ISO 13485 and FDA procurement support mean for the Nexgen Tibia Nail Instrument Set?
The Nexgen Tibia Nail Instrument Set is supplied within Peak Surgicals' medical-device quality and procurement framework. CE marking addresses applicable European conformity requirements. ISO 13485 relates to the manufacturer's medical-device quality-management system. FDA-compliant procurement support is relevant to applicable US healthcare purchasing workflows. Hospitals and distributors can use the associated regulatory documentation during supplier qualification and purchasing review. Product and regulatory records should be retained according to the requirements of the purchasing institution and destination market.

How do the insertion handle, aiming arms and locking bolts function during surgery?
The NEXGEN Tibia Nail Insertion Handle mechanically connects the compatible nail to the targeting assembly. The Proximal Aiming Arm establishes the proximal locking trajectory. The Distal Jig Guide, Distal Alignment Device, Positioning Block and Distal Aiming Arm establish the distal targeting relationship. The 6mm and 8mm Flower-Type Locking Bolts secure the corresponding targeting jigs during drilling. Protection sleeves and drill sleeves maintain the controlled access pathway to the bone. This assembly preserves the relationship between the nail and targeting instruments during interlocking preparation.

Is the Nexgen Tibia Nail Instrument Set suitable for hospital sterilization and procurement?
The Nexgen Tibia Nail Instrument Set is configured as reusable orthopedic instrumentation for professional trauma surgery. Components should undergo cleaning, inspection, drying, packaging and validated sterilization according to the healthcare facility's reprocessing protocol and applicable manufacturer instructions. Steam autoclaving is used for compatible reusable stainless steel components under a validated cycle. The Empty Container provides organized storage for the complete instrumentation configuration. The set has an MOQ of one set and supports hospital, trauma-center, orthopedic-clinic and distributor procurement. Its comprehensive configuration covers insertion, reaming, targeting, locking and extraction stages of the compatible NEXGEN tibial nail workflow.
