Small Fragment 3.5-4.0mm Instrument Set

Small Fragment 3.5-4.0mm Instrument Set

PS-LS-001

$768.90 USD
$768.90 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Secure Checkout Protected payment flow
Quality Inspected Checked before dispatch
Worldwide Supply International buyer support
Shipping, Returns & Payments Clear buyer information before checkout.
Shipping
Free shipping on orders over $99. See shipping details
Returns
Returns and exchanges are handled according to our return policy. See return policy
Payments
American Express Apple Pay Diners Club Discover Google Pay JCB Mastercard
Return / Exchange Info
View full details

The Small Fragment 3.5-4.0mm Instrument Set by Peak Surgicals is an orthopedic instrumentation set configured for small-fragment fixation workflows using 3.5mm and 4.0mm screw systems. It combines drilling, tapping, depth measurement, screw insertion, guiding, and supporting instruments in one organized set.

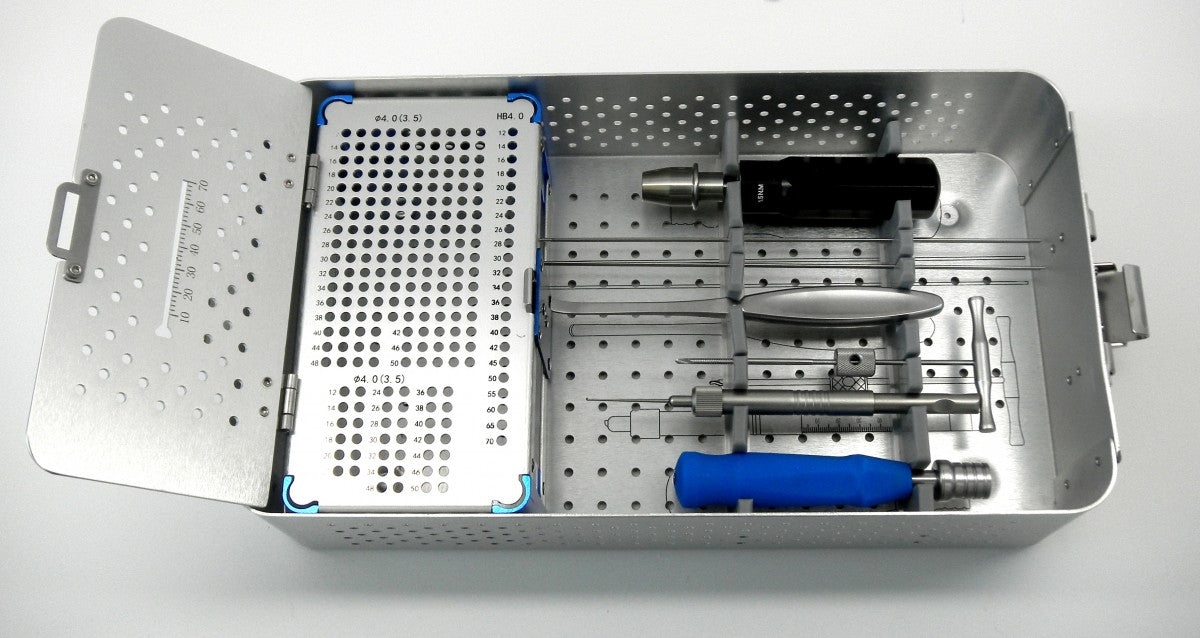

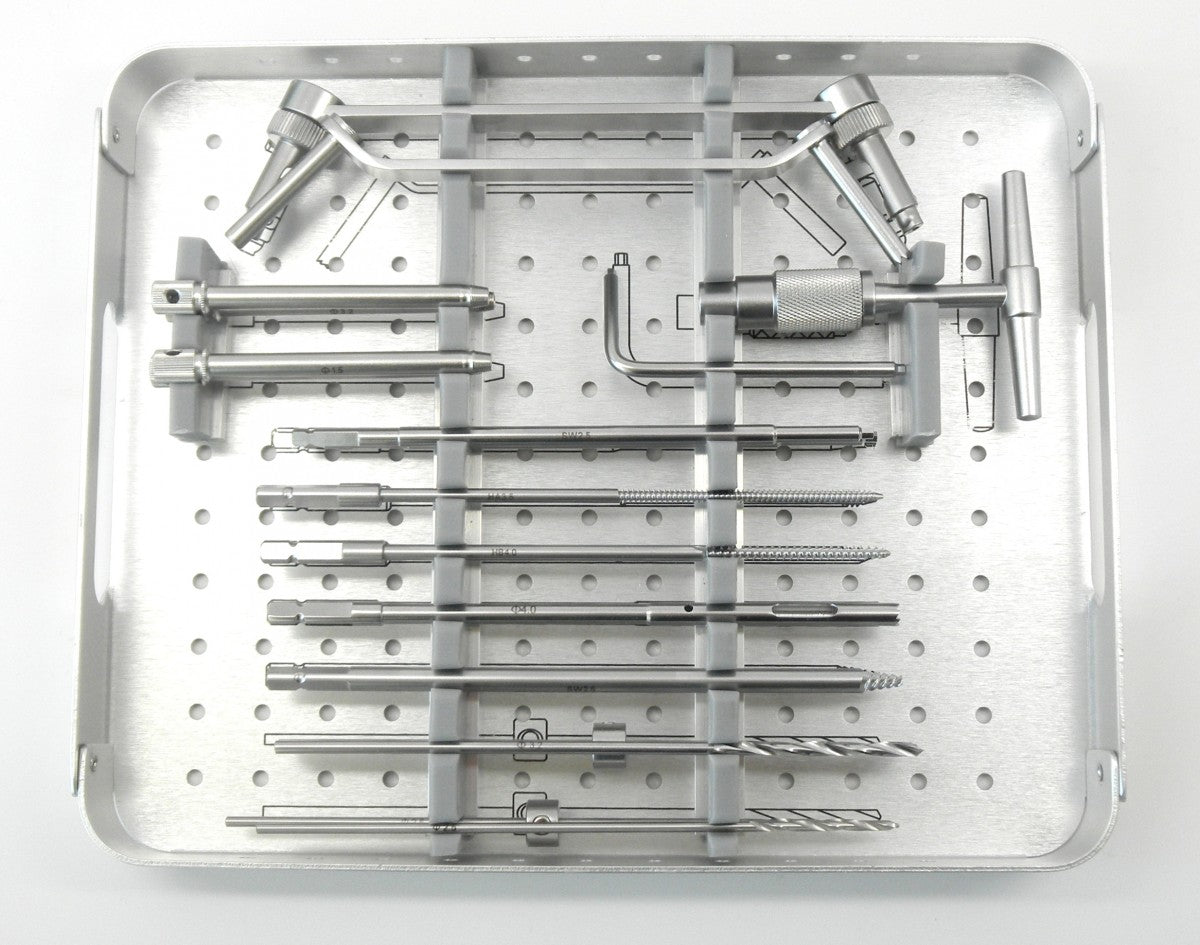

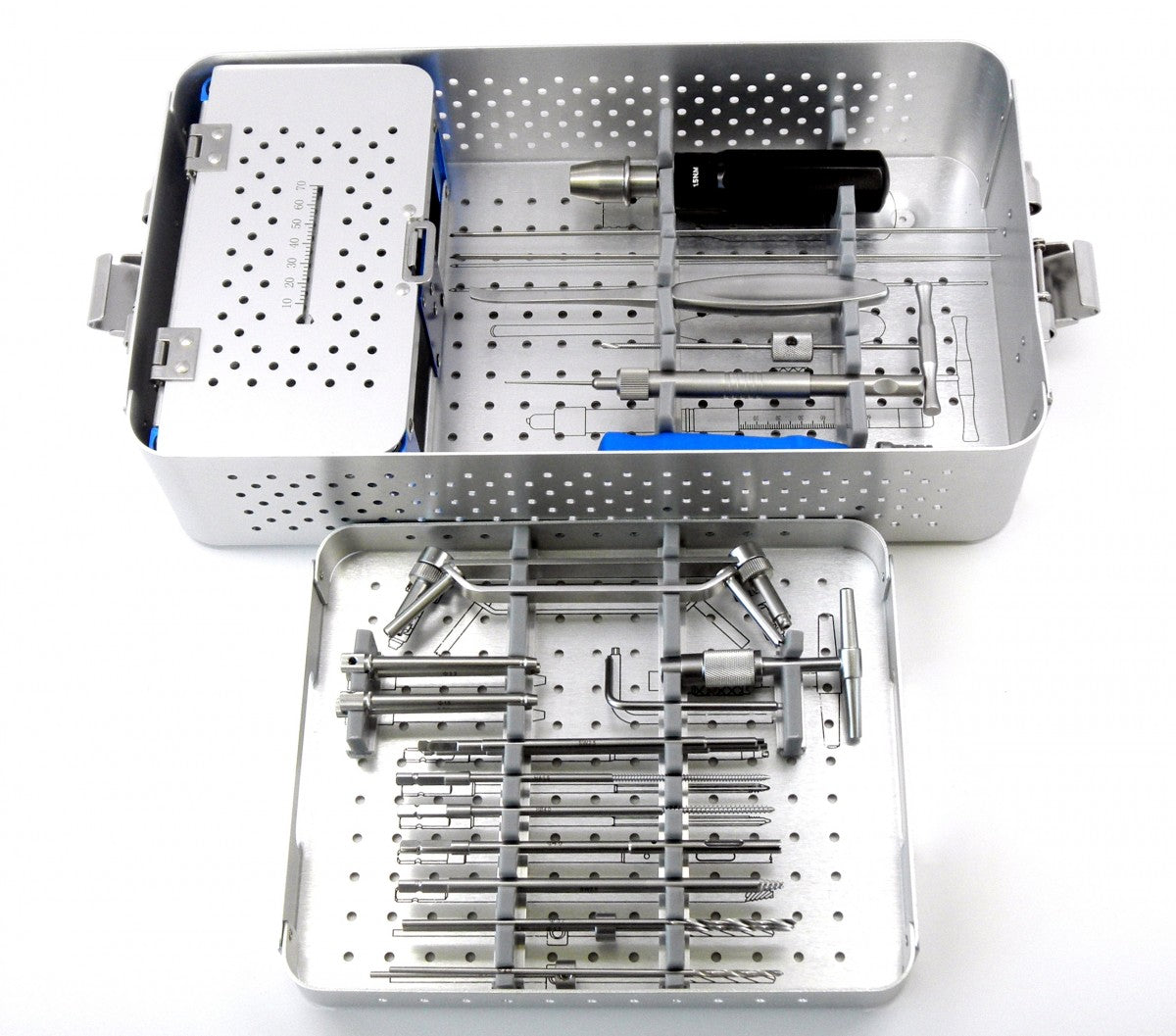

The set includes 2.5mm and 3.2mm drill bits with stoppers, locking plate drill sleeves, quick-lock and quick taps, drill guides, a 60mm depth gauge, a 1.5Nm torque handle, screwdriver components, a periosteal stripper, screw rack, and sterilization case.

Set Contents

Instrument Units
Drill Bit, 3.2mm 1
Drill Bit, 2.5mm 1
Drill Bit Stopper, 3.2mm 1
Drill Bit Stopper, 2.5mm 1
Quick Slip Extractor, 2.5mm 1
Trephine, 4.0mm 1
Lockplate Screw Drill Sleeve, 3.2mm 2
Lockplate Screw Drill Sleeve, 1.5mm 2
Quick Lock Tap, 4.0mm 1
Quick Tap, 3.5 1
Quick Hexagon Screwdriver Shaft 1
DCP Guide, 2.5mm 1
Drill Guide, 3.0-4.0mm 1
T-Handle 1
Hexagon Wrench, 2.5mm 1
Torque Handle, 1.5nm 1
Thread Guide Needle, 1.5mm 2
Periosteal Stripper, 6mm 1
Lockplate Pull Drill, 3.2mm 1
Depth Gauge, 60mm 1
Straight Handle 1
Screw Rack 1

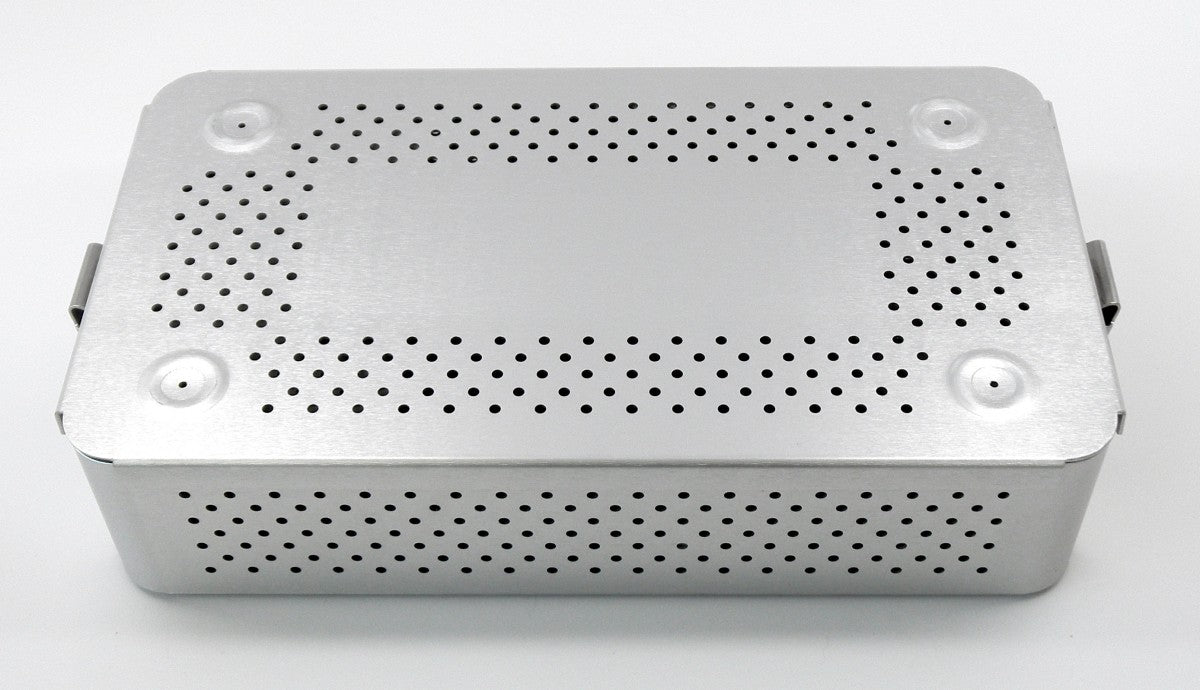

Sterilization Case 1

Overall Dimensions: 16.25in L x 8.25in W x 3.5in H

Key Features

  • 3.5mm and 4.0mm Instrumentation: Configured with dedicated instruments for small-fragment orthopedic fixation workflows.
  • Drilling Components: Includes 2.5mm and 3.2mm drill bits, matching drill bit stoppers, locking plate drill sleeves, and drill guides.
  • Tapping & Screw Preparation: Includes a 4.0mm quick-lock tap, 3.5 quick tap, DCP guide, and related instrumentation.
  • Depth Measurement: Includes a 60mm depth gauge for screw-length measurement during compatible fixation workflows.
  • Screw Insertion & Handling: Includes a quick hexagon screwdriver shaft, 2.5mm hexagon wrench, straight handle, T-handle, and 1.5Nm torque handle.
  • Supporting Instruments: Includes thread guide needles, periosteal stripper, trephine, quick slip extractor, and lockplate pull drill.
  • Organized Storage: Supplied with a screw rack and sterilization case for systematic organization of the set components.

Applications

The Small Fragment 3.5-4.0mm Instrument Set is configured for orthopedic small-fragment fixation procedures requiring drilling, tapping, guiding, depth measurement, screw insertion, and associated instrumentation.

It is suitable for orthopedic departments, trauma centers, hospitals, surgical facilities, and medical procurement professionals sourcing a coordinated 3.5mm/4.0mm small-fragment instrument system.

Refer to the Set Contents table above for exact instrument sizes, supplied quantities, and overall case dimensions.
