PEAK SURGICALS
SKU:PS-OP-5787
Couldn't load pickup availability

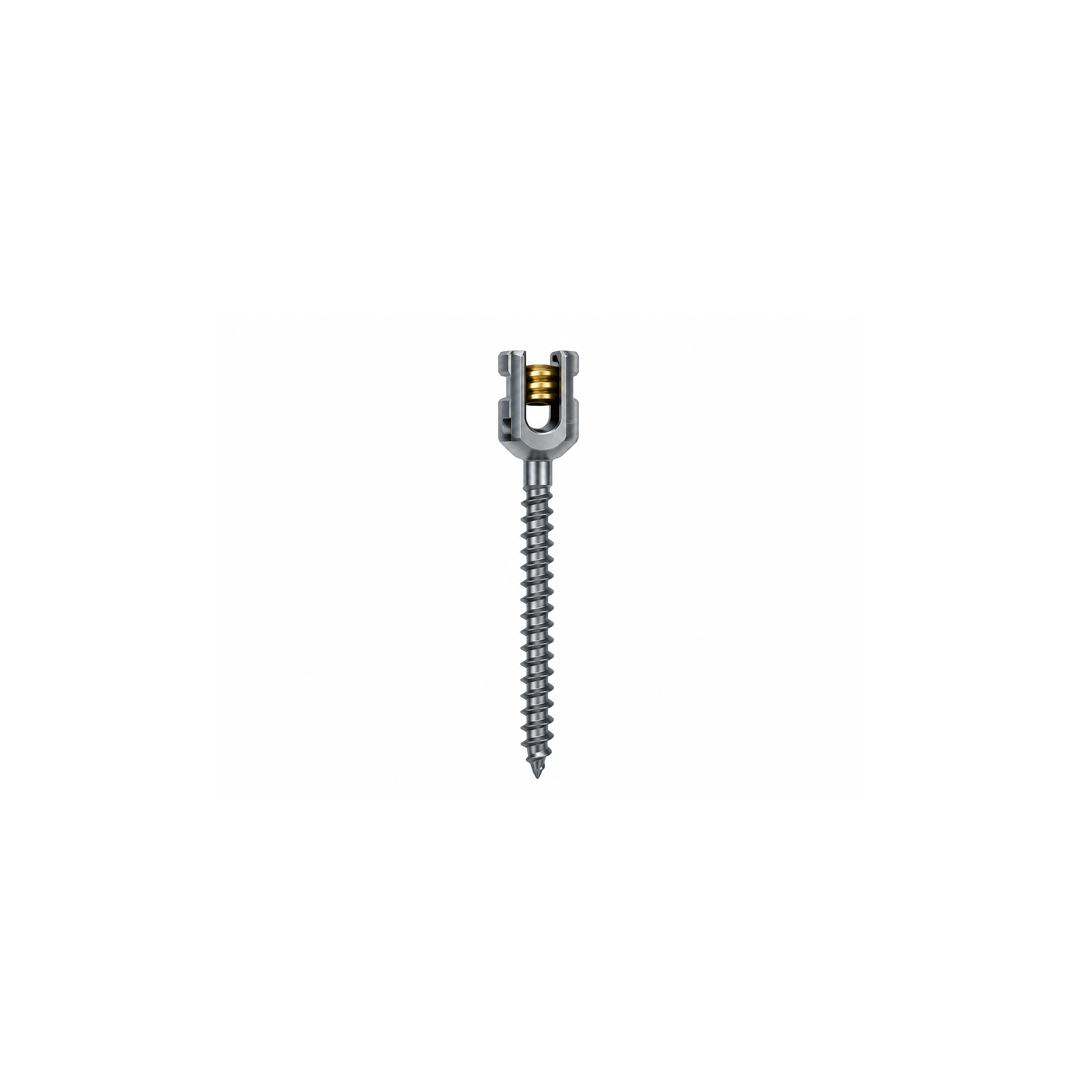

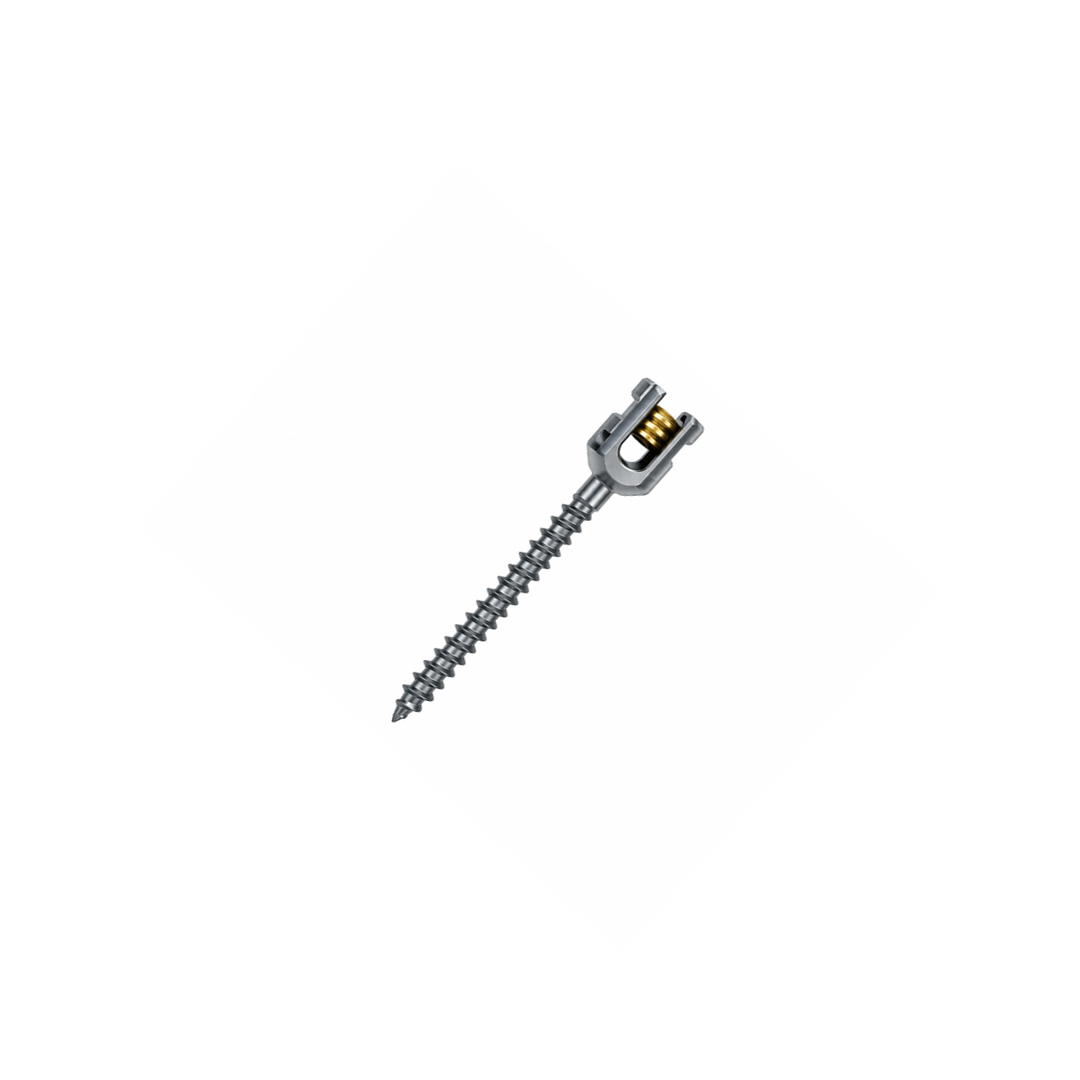

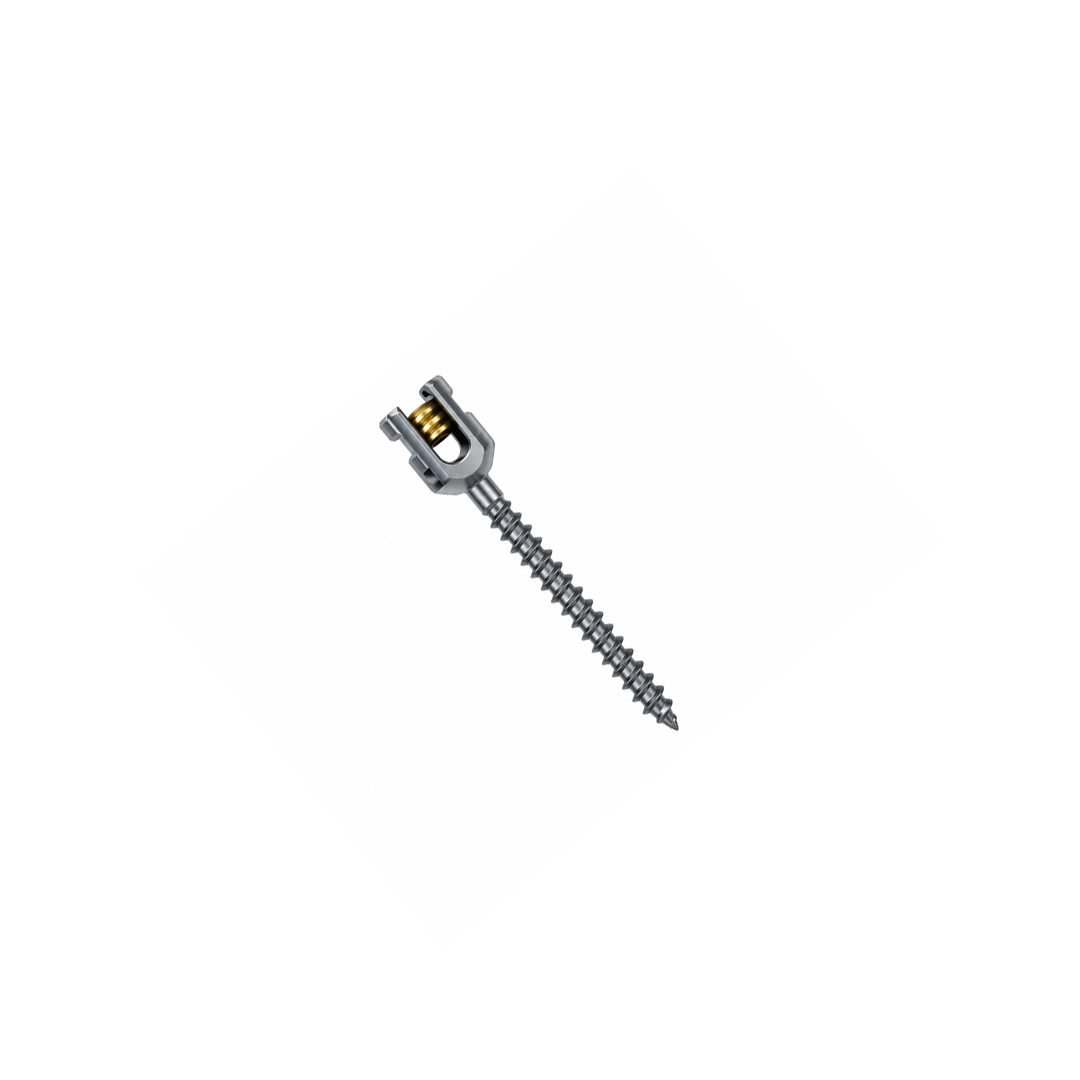

The Monoaxial Pedicle Screw Titanium is an orthopedic spinal implant available in a comprehensive range of diameter and length combinations. The current Peak Surgicals configuration provides four screw diameters and six lengths, allowing surgeons and procurement teams to identify the required implant size through an individual catalog code.
The main Peak Surgicals product is identified as SKU PS-OP-5787. Available diameters are 4.5 mm, 5.5 mm, 6.5 mm, and 7.5 mm, with lengths from 25 mm to 50 mm in 5 mm increments.
The product is specifically identified as a monoaxial pedicle screw. A monoaxial configuration uses a fixed relationship between the screw body and its head rather than the multi-directional head movement associated with a polyaxial pedicle screw.
Exact head geometry, locking mechanism, rod interface, thread pitch, and driver connection for this Peak Surgicals model are not stated on the current product page. These specifications should therefore be confirmed before ordering when compatibility with an existing spinal fixation system is required.
The current product is explicitly identified as a titanium monoaxial pedicle screw. Titanium construction is therefore a defining product characteristic for the PS-OP-5787 range.
The exact titanium alloy or grade is not provided on the current Peak Surgicals page. Buyers requiring a specific titanium designation, material certificate, or applicable material standard should confirm that information before purchasing.
Pedicle screw systems are used within orthopedic spinal fixation systems to provide stabilization of spinal segments. Monoaxial pedicle screws form one component of screw-and-rod fixation constructs used according to the selected spinal system and surgical plan.
The current Peak Surgicals page does not provide device-specific indications, spinal levels, rod dimensions, fusion indications, or compatible system components for PS-OP-5787. These should be confirmed from the relevant product documentation before clinical selection.
The Monoaxial Pedicle Screw Titanium range is available in 4.5 mm, 5.5 mm, 6.5 mm, and 7.5 mm diameters. Each diameter is offered across the same six listed lengths.
This structured diameter range allows the required screw dimensions to be identified using the corresponding Peak Surgicals catalog number rather than relying only on the general product SKU.
The current product table lists screw lengths of 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, and 50 mm. Combining these six lengths with four diameters creates a total of 24 cataloged configurations.
The appropriate diameter and length should be selected according to the planned spinal fixation system, anatomy, surgical technique, and surgeon requirements.
The 4.5 mm diameter range is available in all six listed lengths from 25 mm through 50 mm. Its catalog numbers follow the PS-8500.45 series.
The 5.5 mm diameter range is available from 25 mm through 50 mm and uses the PS-8500.55 catalog series.
The 6.5 mm diameter configuration is available in the same six lengths and uses the PS-8500.65 catalog series.
The largest listed diameter is 7.5 mm. It is available in 25, 30, 35, 40, 45, and 50 mm lengths under the PS-8500.75 series.
| Specification | Details |
|---|---|
| Product Name | Monoaxial Pedicle Screw Titanium |
| Main SKU | PS-OP-5787 |
| Product Type | Monoaxial Pedicle Screw |
| Material | Titanium |
| Available Diameters | 4.5 mm, 5.5 mm, 6.5 mm, 7.5 mm |
| Available Lengths | 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm |
| Total Listed Configurations | 24 |
| 4.5 × 25 mm | PS-8500.45.25 |
| 4.5 × 30 mm | PS-8500.45.30 |
| 4.5 × 35 mm | PS-8500.45.35 |
| 4.5 × 40 mm | PS-8500.45.40 |
| 4.5 × 45 mm | PS-8500.45.45 |
| 4.5 × 50 mm | PS-8500.45.50 |
| 5.5 × 25 mm | PS-8500.55.25 |
| 5.5 × 30 mm | PS-8500.55.30 |
| 5.5 × 35 mm | PS-8500.55.35 |
| 5.5 × 40 mm | PS-8500.55.40 |
| 5.5 × 45 mm | PS-8500.55.45 |
| 5.5 × 50 mm | PS-8500.55.50 |
| 6.5 × 25 mm | PS-8500.65.25 |
| 6.5 × 30 mm | PS-8500.65.30 |
| 6.5 × 35 mm | PS-8500.65.35 |
| 6.5 × 40 mm | PS-8500.65.40 |
| 6.5 × 45 mm | PS-8500.65.45 |
| 6.5 × 50 mm | PS-8500.65.50 |
| 7.5 × 25 mm | PS-8500.75.25 |
| 7.5 × 30 mm | PS-8500.75.30 |
| 7.5 × 35 mm | PS-8500.75.35 |
| 7.5 × 40 mm | PS-8500.75.40 |
| 7.5 × 45 mm | PS-8500.75.45 |
| 7.5 × 50 mm | PS-8500.75.50 |
| Titanium Grade | Not Specified on Current Product Page |
| Sterility Status | Not Specified on Current Product Page |
| Rod Compatibility | Not Specified on Current Product Page |
| Cannulated / Solid Design | Not Specified on Current Product Page |
The Monoaxial Pedicle Screw Titanium range is relevant for spine surgery departments, orthopedic hospitals, implant distributors, surgical centers, and procurement teams sourcing pedicle screws in defined diameter and length combinations.
For accurate purchasing, buyers should reference main SKU PS-OP-5787 together with the required diameter, length, and individual PS-8500 catalog code. Exact titanium grade, rod diameter compatibility, locking components, driver interface, thread design, sterility status, and associated spinal-system compatibility should be confirmed before ordering because these details are not stated on the current Peak Surgicals page.
The current Peak Surgicals listing provides 4.5 mm, 5.5 mm, 6.5 mm, and 7.5 mm diameter options.
Each diameter is available in 25, 30, 35, 40, 45, and 50 mm lengths.
The four diameters and six lengths create 24 listed diameter-and-length combinations.
The product is identified by Peak Surgicals as titanium. The exact titanium alloy or grade is not specified.
The current Peak Surgicals main product SKU is PS-OP-5787. Each diameter and length combination also has its own PS-8500 catalog code.
No. Rod dimensions, locking compatibility, cannulated versus solid construction, thread specifications, and sterility status are not stated on the current product page and should be confirmed before ordering.
