The Veterinary Micro Kit 1.5 / 2.0 / 2.7mm is a comprehensive plate-and-screw instrumentation set configured around three micro fixation sizes. It combines drilling, tapping, screw insertion, plate handling, reduction, depth measurement, plate bending, and fixation components in one organized veterinary surgical kit.
The current Peak Surgicals model is identified as SKU PS-VMK-00158. The set includes instruments and implant components for 1.5 mm, 2.0 mm, and 2.7 mm systems, together with dedicated bone plate boxes and a 15" × 9" × 3" case with lid.
The kit is organized around three fixation sizes: 1.5 mm, 2.0 mm, and 2.7 mm. Separate taps, screwdrivers, screw-holding components, guides, bone plate boxes, screws, and plates are supplied across these sizes.
This defined multi-size configuration allows veterinary surgical teams and procurement departments to identify the kit as a combined micro plate-and-screw system rather than a single-size instrument set.
The kit includes 15 bone drill bits across three listed dimensions. Five pieces each are supplied in 1.1 × 80 mm, 1.5 × 80 mm, and 2.0 × 80 mm sizes.
The exact drill-system compatibility and connection specification beyond the listed dimensions are not stated on the current product page.
Separate taps are included for the 1.5 mm, 2.0 mm, and 2.7 mm systems. The kit also includes a combined 1.5 / 2.0 mm screwdriver, a dedicated 2.7 mm screwdriver, and a 2.6 mm screwdriver with handle.
Dedicated screw-holding sleeves are listed for the 1.5 mm and 2.7 mm systems.
Three guide configurations are supplied: 1.1 / 1.5 mm, 1.5 / 2.0 mm, and 2.0 / 2.7 mm. A 4.0 mm counter drill is also included.
These dimensions are taken directly from the current Peak Surgicals kit list; additional guide geometry or drill-stop specifications are not provided.
The Micro Kit includes both a 4.5 mm straight quick-coupling handle and a 4.5 mm T-shape quick-coupling handle. This provides two listed handle configurations within the same set.
The current page does not identify a named external power-system standard or cross-brand compatibility for these quick-coupling components.
A 40 mm depth detector is supplied for depth assessment within the kit. Two periosteal dissectors are also listed, in 3 mm and 5 mm sizes.
Additional components include two hooks, one de-coupling instrument, a screw holder, and an elevator listed as 3 × 1.
The kit contains multiple instruments for plate manipulation and fracture-reduction workflows, including a plate forcep, plate bender 2 × 1 set, bent reduction forcep, sharp reduction forcep, plate nipper, and multi-functional forcep.
The current page does not provide exact jaw dimensions, bending capacities, or working lengths for these individual instruments.
Three separate bone plate boxes are included: one for 1.5 mm, one for 2.0 mm, and one for 2.7 mm components.
This provides dedicated organization for the three fixation-system sizes included in the kit.
The kit includes a total of 155 self-tapping bone screws across the three systems:
1.5 mm: 40 screws in listed lengths from 6–30 mm.
2.0 mm: 55 screws in listed lengths from 6–30 mm.
2.7 mm: 60 screws in listed lengths from 8–30 mm.
The current product page does not provide the quantity supplied at each individual screw length, screw-head design, thread pitch, or implant material.
The current kit list provides three bone plates for each fixation size: three 1.5 mm plates, three 2.0 mm plates, and three 2.7 mm plates, for a total of nine listed bone plates.
The exact plate shapes, hole counts, lengths, material, and individual catalog codes are not stated on this product page.

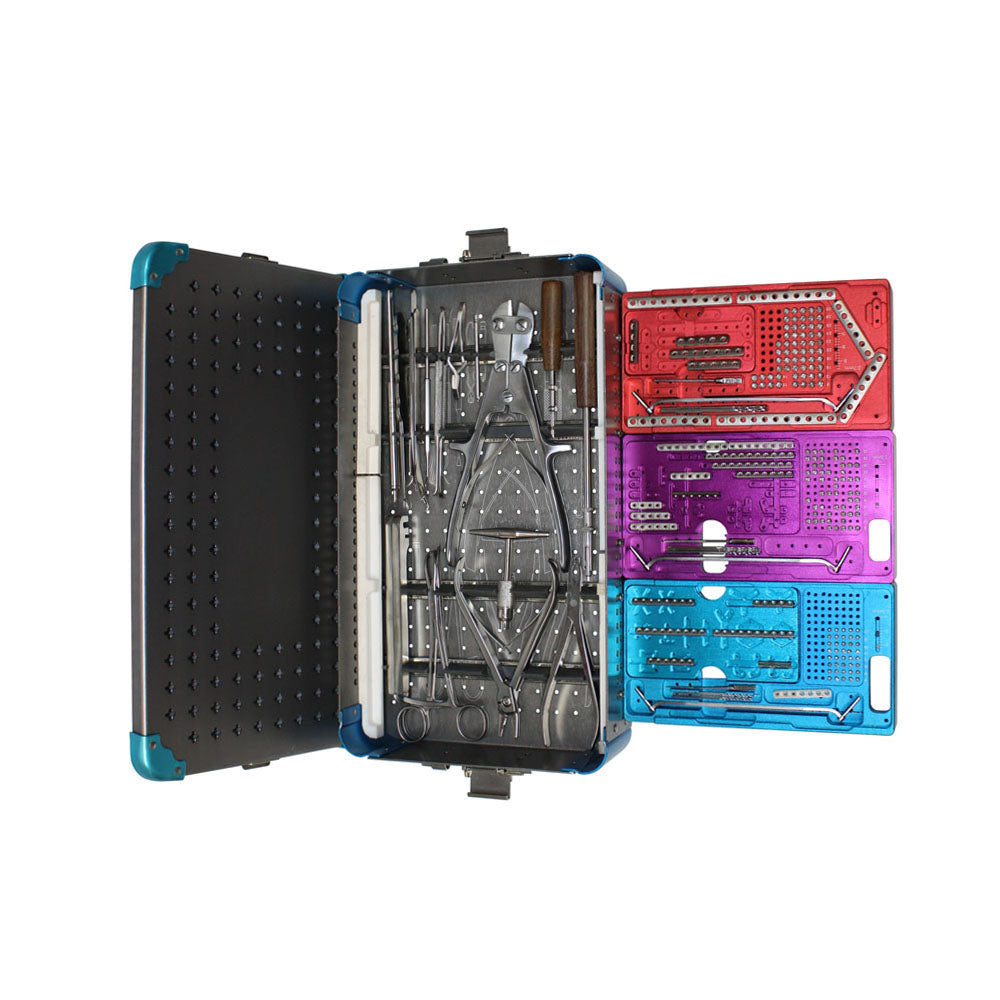

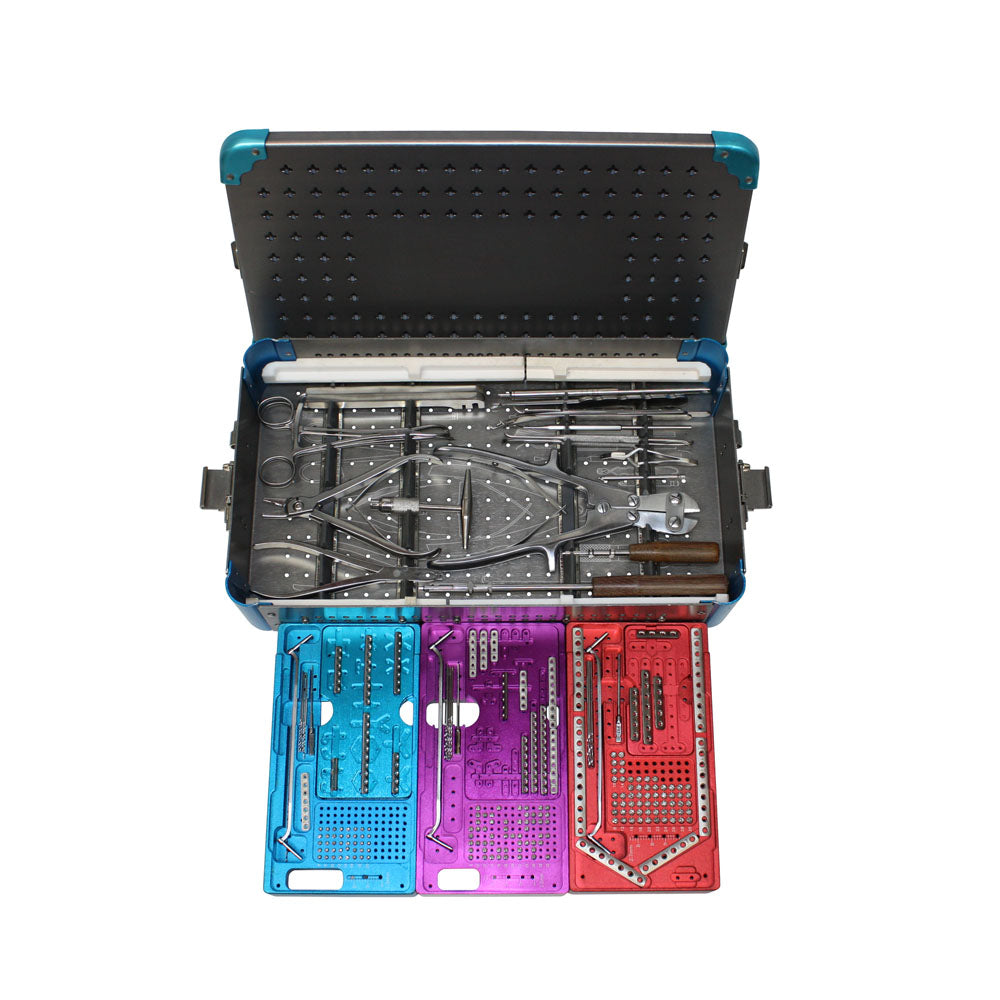

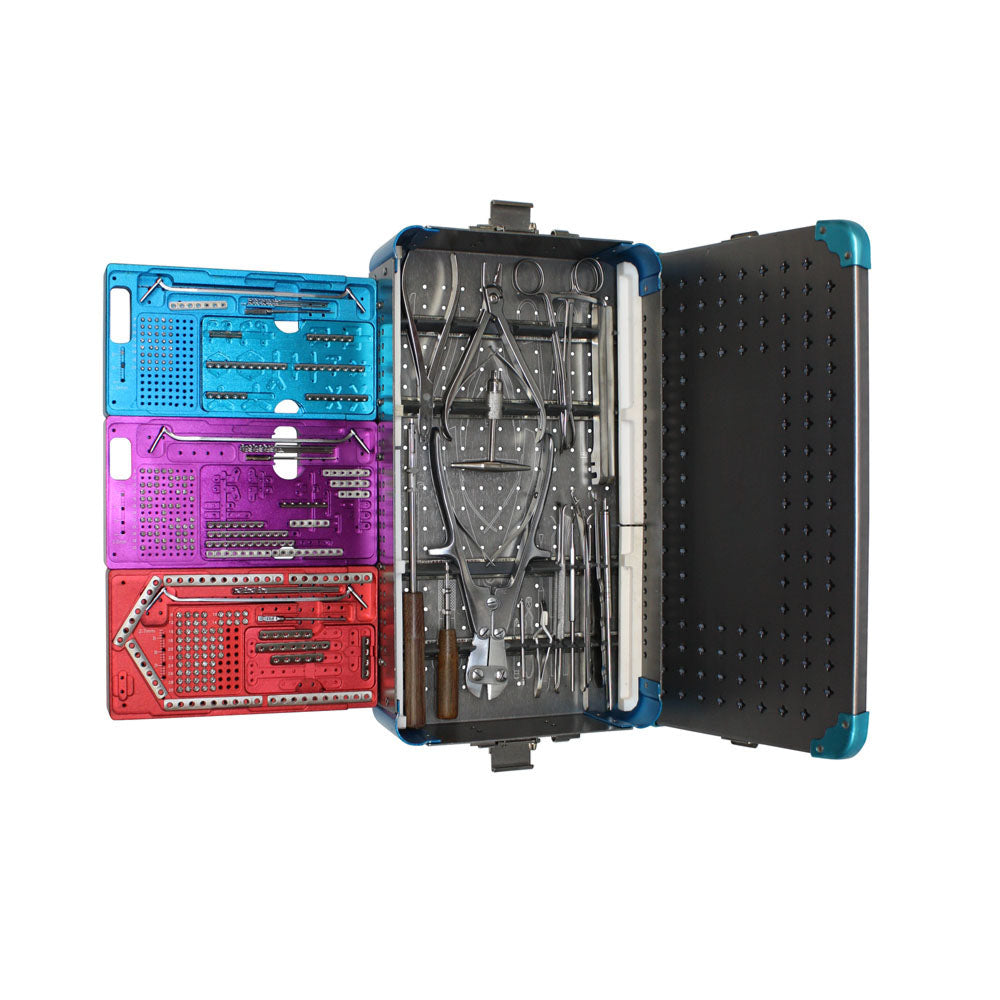

The complete system is supplied with a case with lid measuring 15" × 9" × 3". This provides a defined container for organizing the listed instruments, plate boxes, and fixation-system components.
The product page does not specify the case material or detailed internal tray arrangement.
| Product Name | Veterinary Micro Kit 1.5 / 2.0 / 2.7mm |
| SKU | PS-VMK-00158 |
| Product Type | Veterinary Instruments Kit |
| System Sizes | 1.5 mm / 2.0 mm / 2.7 mm |
| Bone Drill Bit 1.1 × 80mm | 5 pcs |
| Bone Drill Bit 1.5 × 80mm | 5 pcs |
| Bone Drill Bit 2.0 × 80mm | 5 pcs |
| Tap 1.5mm | 1 pc |
| Tap 2.0mm | 1 pc |
| Tap 2.7mm | 1 pc |
| Screwdriver 1.5/2.0mm | 1 pc |
| Screw Holding Sleeve 1.5mm | 1 pc |
| Screwdriver 2.7mm | 1 pc |
| Screw Holding Sleeve 2.7mm | 1 pc |
| Guider 1.1/1.5mm | 1 pc |
| Guider 1.5/2.0mm | 1 pc |
| Guider 2.0/2.7mm | 1 pc |
| Counter Drill 4.0mm | 1 pc |
| Straight Quick-Coupling Handle 4.5mm | 1 pc |
| T-Shape Quick-Coupling Handle 4.5mm | 1 pc |
| Screwdriver with Handle 2.6mm | 1 pc |
| Depth Detector 40mm | 1 pc |
| Hook | 2 pcs |
| De-Coupling | 1 pc |
| Periosteal Dissector 3mm | 1 pc |
| Periosteal Dissector 5mm | 1 pc |
| Screw Holder | 1 pc |
| Plate Forcep | 1 pc |
| Plate Bender 2 × 1 | 1 set |
| Elevator 3 × 1 | 1 pc |
| Bent Reduction Forcep | 1 pc |
| Sharp Reduction Forcep | 1 pc |
| Plate Nipper | 1 pc |
| Multi-Functional Forcep | 1 pc |
| Bone Plate Box 1.5mm | 1 set |
| Bone Plate Box 2.0mm | 1 set |
| Bone Plate Box 2.7mm | 1 set |
| Case with Lid | 15" × 9" × 3" |
| 1.5mm Self-Tapping Screws | 40 screws, 6–30mm |
| 2.0mm Self-Tapping Screws | 55 screws, 6–30mm |
| 2.7mm Self-Tapping Screws | 60 screws, 8–30mm |
| Bone Plate 1.5mm | 3 pcs |
| Bone Plate 2.0mm | 3 pcs |
| Bone Plate 2.7mm | 3 pcs |
The Veterinary Micro Kit 1.5 / 2.0 / 2.7mm is relevant for veterinary hospitals, veterinary orthopedic services, surgical centers, distributors, and procurement teams sourcing a multi-size plate-and-screw instrumentation system.
For accurate purchasing and inventory identification, buyers can reference SKU PS-VMK-00158 together with the three fixation sizes and the complete component list. Buyers requiring exact implant materials, individual plate designs, screw thread specifications, drill connection standards, or instrument material grades should confirm those details before ordering because they are not stated on the current product page.
The current Peak Surgicals listing includes 1.5 mm, 2.0 mm, and 2.7 mm systems.
The kit contains 155 screws in total: 40 in 1.5 mm, 55 in 2.0 mm, and 60 in 2.7 mm.
Yes. The current listing includes three bone plates each in 1.5 mm, 2.0 mm, and 2.7 mm sizes.
Yes. Fifteen bone drill bits are listed: five each in 1.1 × 80 mm, 1.5 × 80 mm, and 2.0 × 80 mm.
Yes. A case with lid measuring 15" × 9" × 3" is included.
The current Peak Surgicals SKU is PS-VMK-00158.
