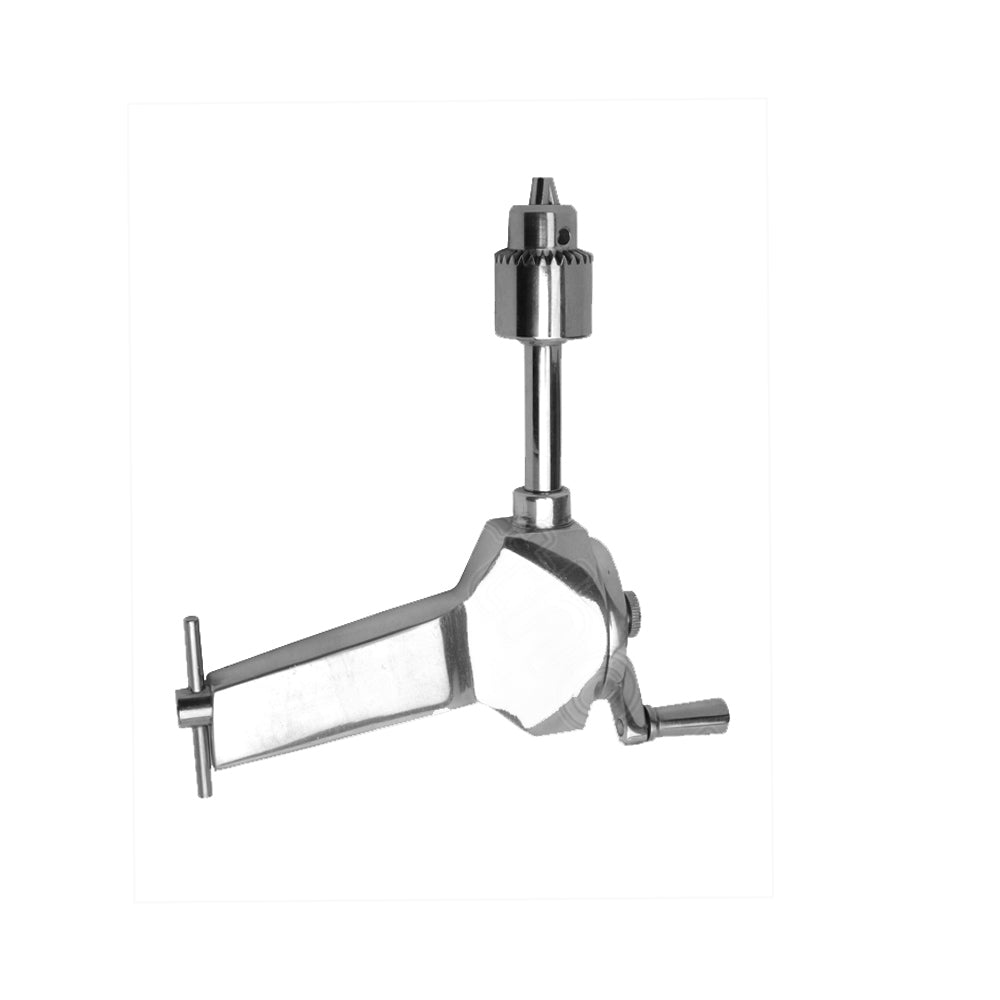

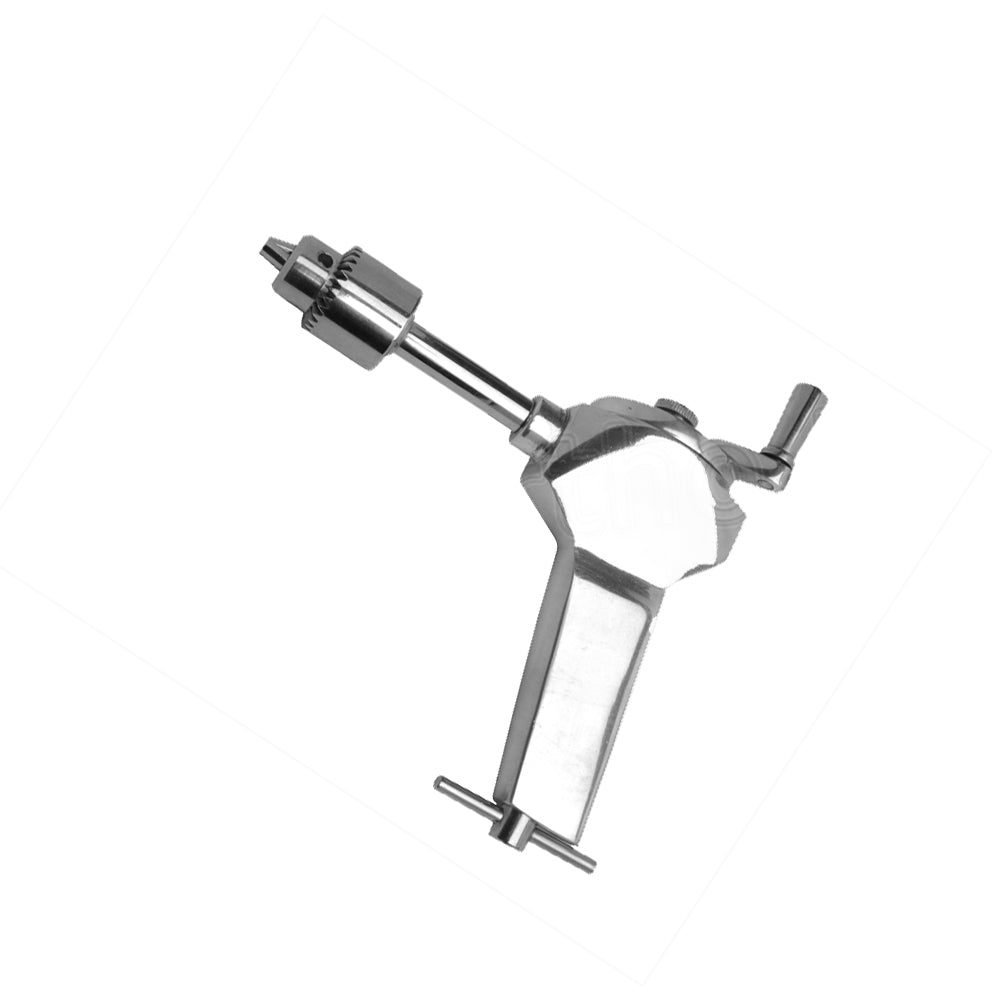

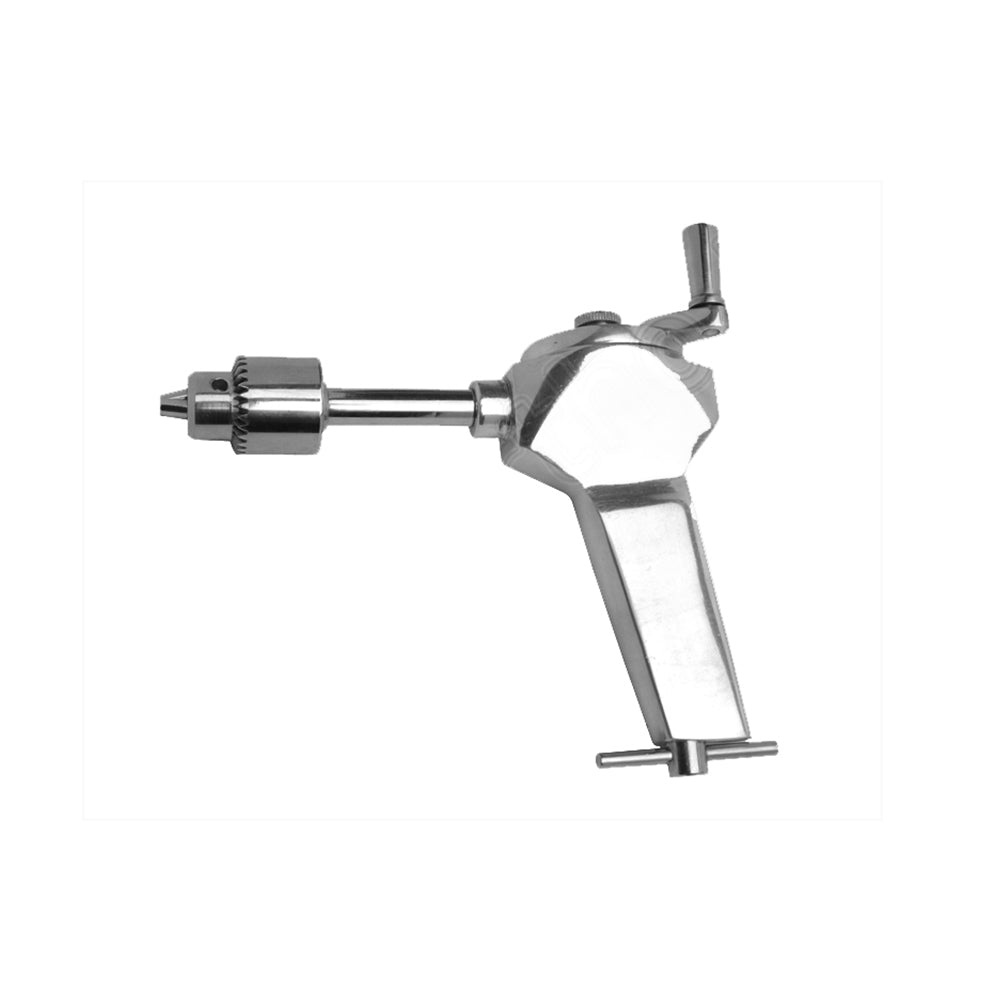

Micro Hand Drill with Closed Stainless-Steel Gears for Small-Bone Fixation

Micro Hand Drill with S.S. Closed Gears, SKU PS-OP-5827 and catalog model PS-320.020, is a compact manually operated orthopedic bone drill manufactured from German stainless steel with an enclosed stainless-steel transmission. Turning the crank transfers rotational movement through the closed gear assembly to the distal spindle, supporting controlled pilot-hole preparation without an electric, battery-powered, or pneumatic drive system. Its micro-pattern configuration is used during plate-and-screw fixation of selected phalangeal, metacarpal, carpal, metatarsal, and comparable small-bone fractures. The instrument also supports guided drilling during corrective osteotomy stabilization and suitable veterinary orthopedic procedures. The supporting hand maintains alignment with the plate hole or drill guide, while the driving hand controls crank speed and axial advancement. Enclosing the transmission distinguishes this model from the Micro Open Hand Drill, which leaves its gear teeth visible. The instrument is relevant to orthopedic trauma surgeons, hand surgeons, foot and ankle surgeons, veterinary orthopedic specialists, hospitals, ambulatory operating rooms, trauma units, and specialty clinics. This listing contains one catalog configuration and three product images. Drill bits, guides, sleeves, depth gauges, taps, plates, screws, chuck keys, adapters, and storage trays are separate unless expressly included in the purchase order.

Closed Stainless-Steel Transmission and Manual Drive

The Micro Hand Drill converts hand-generated crank movement into spindle rotation through a stainless-steel gear train contained within a surrounding housing. The driving gear receives rotational input from the crank and transfers it to the spindle connected to the selected orthopedic drill bit. Enclosing the transmission creates an integrated mechanical body and distinguishes the instrument from an open-gear pattern. The compact geometry limits the space occupied around short bone segments, mini-fragment plates, retractors, and temporary fixation components. One hand stabilizes the support grip and maintains the planned trajectory, while the opposite hand operates the crank. This separation of guidance and rotation allows deliberate advancement through a plate hole or matching drill guide. The distal bit-retention mechanism must hold the shaft concentrically so rotational force reaches the cutting flutes without eccentric movement. A correctly matched guide defines the entry point, supports axial orientation, and separates the rotating shaft from tendons, neurovascular structures, and adjacent tissue. Manual operation provides tactile information as drilling resistance changes across cortical and cancellous regions. Before use, personnel must inspect the crank, gear housing, spindle, bit holder, and handle junctions for smooth movement and structural integrity. Binding, slippage, corrosion, misalignment, or excessive mechanical play requires removal from clinical service.

Guided Drilling During Small-Bone Osteosynthesis

The Micro Hand Drill with S.S. Closed Gears is used during internal fixation when a controlled pilot channel is required in a surgically exposed small bone. In phalangeal or metacarpal fracture fixation, the fragments are reduced and temporarily stabilized before the selected plate is contoured and positioned. The surgeon seats a system-specific guide within the planned plate hole and secures the corresponding drill bit in the handpiece. The bit passes through the guide, contacts the cortex, and advances under controlled crank rotation. The operator maintains axial alignment and monitors changes in resistance as the cutting flutes cross the near cortex and enter cancellous bone. For bicortical fixation, drilling continues toward the far cortex with restricted penetration beyond it. The prepared channel is measured with a compatible depth gauge, tapped when required by the screw design, and completed with the chosen implant. The same workflow can support suitable metatarsal, small-foot, wrist, and veterinary osseous repairs. The hand drill supplies rotational drive but does not establish the appropriate channel diameter, screw length, or drilling depth. Those selections follow fracture morphology, plate geometry, screw core diameter, available bone stock, adjacent anatomy, and the operative technique supplied with the fixation system.

Catalog Configuration and Drill-Component Selection

Catalog model PS-320.020 identifies the Micro Hand Drill with S.S. Closed Gears, while PS-OP-5827 is the Shopify inventory SKU displayed on the live page. The listing presents one handpiece configuration without separate dimensional variants. Clinical selection therefore depends on the drill bit, guide, sleeve, plate, screw, depth gauge, and connection required by the fixation system. Mini-fragment constructs for phalangeal or metacarpal repair use smaller pilot channels than standard small-fragment systems used in broader cortical bone. A threaded pilot hole corresponds to the screw core diameter, whereas a gliding hole used for interfragmentary compression follows a separate dimension specified by the implant technique. The guide bore must match the bit and seat securely within the plate hole or directly against the exposed cortex. The bit must engage concentrically within the Micro Hand Drill retention mechanism without slippage or lateral movement. Channel depth is measured after drilling with the appropriate gauge rather than estimated from the visible bit length. Unicortical preparation terminates within the planned cortex; bicortical drilling crosses the far cortex under controlled advancement. Bits, guides, taps, implants, keys, adapters, and storage equipment are included only when identified in the quotation or order documentation.

German Stainless Steel, Closed-Gear Reprocessing, and Compliance

The Micro Hand Drill with S.S. Closed Gears is manufactured from German stainless steel for repeated use in orthopedic drilling workflows. Its construction provides the rigidity required to transfer rotational and axial forces while supporting inspection and validated reprocessing. The enclosed transmission requires careful attention to the accessible crank junction, spindle, bit holder, handle interfaces, housing seams, and recessed surfaces. After use, the instrument must be cleaned, rinsed, dried, inspected, function-tested, packaged, and sterilized according to the manufacturer’s instructions and the healthcare facility’s validated process. The gear housing should not be dismantled during routine cleaning unless the supplied reprocessing guidance expressly authorizes disassembly. Before packaging, personnel must confirm smooth crank movement, secure bit retention, concentric spindle rotation, and stable handle engagement. Peak Surgicals supports CE and ISO 13485 documentation for hospital, clinic, and distributor procurement assessment. FDA establishment registration, device listing, clearance, and approval represent different regulatory concepts; FDA-related language must correspond to the records applicable to this product and destination market. Purchasing teams should retain the SKU, catalog model, invoice, batch information, declarations, reprocessing guidance, and service documentation within their institutional quality-management system.

How does this Micro Hand Drill differ from the Micro Open Hand Drill?
This Micro Hand Drill contains its stainless-steel gears within a closed housing. The Micro Open Hand Drill leaves the transmission visibly exposed. Both patterns transfer manual crank rotation to the spindle and attached orthopedic drill bit. The enclosed version presents an integrated casing, whereas the open pattern permits direct visual access to the gear teeth. Their prices and catalog models are also different. Selection depends on surgeon preference, fixation-system compatibility, instrument standardization, and the facility’s approved reprocessing workflow.

How should drill-bit size be selected for small-bone fixation?
The required bit corresponds to the screw and plate system selected for the procedure. Phalangeal, metacarpal, carpal, and metatarsal constructs can use different pilot-hole dimensions. A threaded pilot channel follows the screw core diameter, while a gliding hole follows the fixation system’s compression technique. The guide bore must match the selected bit and seat securely within the plate hole or against the cortex. The bit must remain concentric in the Micro Hand Drill without slipping during crank rotation. Final implant length is determined after the channel is measured with a compatible depth gauge.

What do CE, ISO 13485, and FDA references mean for procurement?
CE documentation supports assessment against applicable European medical-device requirements. ISO 13485 relates to the manufacturer’s medical-device quality-management system rather than serving as individual product approval. FDA establishment registration, device listing, clearance, and approval carry separate regulatory meanings. The Micro Hand Drill with S.S. Closed Gears should not be described as FDA approved without a supporting product-specific approval record. United States procurement teams should evaluate the documents relevant to the device classification and supply route. Peak Surgicals can provide available commercial and regulatory records for institutional review before purchase.

How is the closed-gear crank mechanism controlled during surgery?
The surgeon stabilizes the Micro Hand Drill through its support handle and operates the crank with the opposite hand. Crank rotation activates the enclosed gear train, which transfers motion to the spindle and retained bit. The supporting hand maintains alignment with the drill guide and planned screw trajectory. Axial pressure is applied through the guide instead of laterally against the rotating shaft. The surgeon monitors tactile resistance as the bit crosses cortical and cancellous bone. Before use, the crank, housing, spindle, bit holder, and handle must function without binding, slippage, damage, or excessive play.

What should a hospital assess before purchasing and sterilizing the instrument?
The procurement team should confirm SKU PS-OP-5827, catalog model PS-320.020, quantity, and compatibility with the intended fixation platform. The facility must obtain the applicable cleaning and sterilization instructions before clinical use. Reprocessing personnel should inspect the spindle, bit-retention area, crank junction, housing seams, handle interfaces, and accessible recesses. The Micro Hand Drill with S.S. Closed Gears requires functional testing before packaging for the validated sterilization cycle. Drill bits, guides, depth gauges, taps, plates, screws, and cases should be ordered separately unless documented in the quotation. Product, invoice, batch, regulatory, maintenance, and service records should remain within the institution’s quality system.
