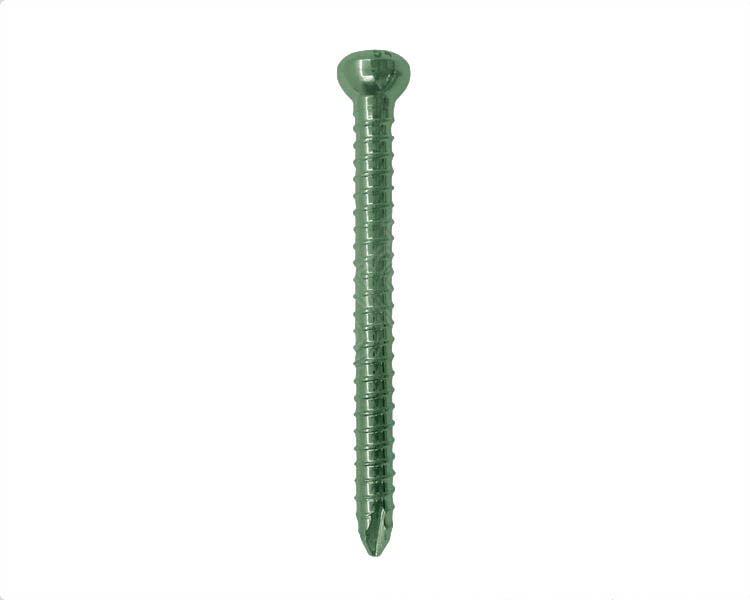

Locking Screws Ø4.8mm for Tibial & Femoral Nails

Locking Screws Ø4.8mm for Tibial & Femoral Nails

The Locking Screws Ø4.8mm for Tibial & Femoral Nails are orthopedic fixation components available in stainless steel and titanium configurations for use with compatible tibial and femoral intramedullary nail systems. The current Peak Surgicals range provides multiple screw lengths so orthopedic teams and procurement departments can select the required configuration according to the planned fixation system.

The main Peak Surgicals product is identified as SKU PS-OP-3720. The screws have a listed diameter of Ø4.8 mm and are available in 29 lengths from 26 mm to 85 mm, with separate catalog codes for stainless-steel and titanium versions.

Ø4.8mm Locking Screw Configuration

The defining dimensional specification of this range is the Ø4.8 mm screw diameter. This diameter forms part of the product designation and should be confirmed together with the required screw length and material before ordering.

The current product page does not provide thread pitch, thread length, head dimensions, drive recess, core diameter, or other detailed screw geometry. These specifications should therefore be confirmed when required for compatibility with a particular intramedullary nail system.

For Tibial and Femoral Nail Systems

Peak Surgicals specifically identifies these locking screws for tibial and femoral nails. They are supplied as orthopedic locking components for compatible intramedullary fixation systems requiring a 4.8 mm screw configuration.

The exact nail model, locking-hole geometry, instrumentation, and system compatibility should be confirmed before implantation. A shared nominal screw diameter alone should not be treated as proof of compatibility with every tibial or femoral nail system.

Stainless Steel Locking Screw Options

The current Peak Surgicals table lists a complete stainless steel screw series from 26 mm through 85 mm. Stainless-steel catalog numbers use the PS-5- prefix followed by the corresponding screw length.

The exact stainless-steel alloy grade is not stated on the current product page. Hospitals, distributors, and procurement teams requiring a particular alloy designation or supporting material documentation should confirm that specification before ordering.

Titanium Locking Screw Options

A corresponding titanium series is also listed for every available length. These variants use the PS-S-5- catalog prefix followed by the screw length.

The current Peak Surgicals page does not specify the exact titanium alloy or grade. Buyers requiring a specific implant-material designation or certificate should therefore verify that information before purchase.

29 Length Options from 26mm to 85mm

The product range begins at 26 mm and continues in 2 mm increments through 80 mm, followed by an additional 85 mm configuration. This creates a total of 29 listed length options for both material groups.

Length selection should be based on the required orthopedic fixation plan, nail system, anatomy, and surgeon assessment rather than choosing a screw solely by diameter.

Orthopedic Intramedullary Fixation Context

Locking screws are used as part of compatible intramedullary nail systems to secure the nail relative to the bone according to the selected fixation technique. This Peak Surgicals range is specifically positioned for tibial and femoral nail applications.

The current page does not state whether individual screws are intended for proximal or distal locking positions, nor does it provide procedure-specific placement instructions. Those requirements should be determined from the associated nail system and operative plan.

Material and Length Selection

The live storefront provides separate Material and Size selectors. Buyers should confirm the required material and screw length together with the corresponding catalog code when preparing a purchase order.

Stainless steel and titanium versions use different catalog-number sequences, making the material selection especially important for inventory identification.

Product Specifications and Catalog Codes

Product Name	Locking Screws Ø4.8mm for Tibial & Femoral Nails	Main SKU	PS-OP-3720
Diameter	Ø4.8 mm	Material Options	Stainless Steel / Titanium
Length	Stainless Steel Code	Titanium Code	Application
26 mm	PS-5-26	PS-S-5-26	Tibial / Femoral Nail Locking
28 mm	PS-5-28	PS-S-5-28	Tibial / Femoral Nail Locking
30 mm	PS-5-30	PS-S-5-30	Tibial / Femoral Nail Locking
32 mm	PS-5-32	PS-S-5-32	Tibial / Femoral Nail Locking
34 mm	PS-5-34	PS-S-5-34	Tibial / Femoral Nail Locking
36 mm	PS-5-36	PS-S-5-36	Tibial / Femoral Nail Locking
38 mm	PS-5-38	PS-S-5-38	Tibial / Femoral Nail Locking
40 mm	PS-5-40	PS-S-5-40	Tibial / Femoral Nail Locking
42 mm	PS-5-42	PS-S-5-42	Tibial / Femoral Nail Locking
44 mm	PS-5-44	PS-S-5-44	Tibial / Femoral Nail Locking
46 mm	PS-5-46	PS-S-5-46	Tibial / Femoral Nail Locking
48 mm	PS-5-48	PS-S-5-48	Tibial / Femoral Nail Locking
50 mm	PS-5-50	PS-S-5-50	Tibial / Femoral Nail Locking
52 mm	PS-5-52	PS-S-5-52	Tibial / Femoral Nail Locking
54 mm	PS-5-54	PS-S-5-54	Tibial / Femoral Nail Locking
56 mm	PS-5-56	PS-S-5-56	Tibial / Femoral Nail Locking
58 mm	PS-5-58	PS-S-5-58	Tibial / Femoral Nail Locking
60 mm	PS-5-60	PS-S-5-60	Tibial / Femoral Nail Locking
62 mm	PS-5-62	PS-S-5-62	Tibial / Femoral Nail Locking
64 mm	PS-5-64	PS-S-5-64	Tibial / Femoral Nail Locking
66 mm	PS-5-66	PS-S-5-66	Tibial / Femoral Nail Locking
68 mm	PS-5-68	PS-S-5-68	Tibial / Femoral Nail Locking
70 mm	PS-5-70	PS-S-5-70	Tibial / Femoral Nail Locking
72 mm	PS-5-72	PS-S-5-72	Tibial / Femoral Nail Locking
74 mm	PS-5-74	PS-S-5-74	Tibial / Femoral Nail Locking
76 mm	PS-5-76	PS-S-5-76	Tibial / Femoral Nail Locking
78 mm	PS-5-78	PS-S-5-78	Tibial / Femoral Nail Locking
80 mm	PS-5-80	PS-S-5-80	Tibial / Femoral Nail Locking
85 mm	PS-5-85	PS-S-5-85	Tibial / Femoral Nail Locking

For Orthopedic Hospitals and Implant Procurement

The Ø4.8mm Locking Screw range is relevant for orthopedic trauma departments, hospitals, intramedullary fixation services, implant distributors, and procurement teams sourcing screws for compatible tibial and femoral nail systems.

For accurate purchasing, buyers should reference main SKU PS-OP-3720 together with the required material, screw length, and corresponding catalog code. Buyers requiring exact thread geometry, screw-head dimensions, driver compatibility, titanium or stainless-steel alloy grade, sterility status, or compatibility with a specific nail model should confirm those specifications before ordering because they are not provided on the current Peak Surgicals page.

Frequently Asked Questions

What diameter are these locking screws?

The current Peak Surgicals product is identified as Ø4.8 mm.

Which lengths are available?

The range contains 29 listed lengths from 26 mm to 85 mm. Sizes increase in 2 mm increments from 26 mm through 80 mm, with an additional 85 mm option.

Which materials are available?

The current product table lists both stainless steel and titanium configurations.

What are these screws designed for?

Peak Surgicals identifies them as locking screws for compatible tibial and femoral nails.

What is the main product SKU?

The current Peak Surgicals storefront SKU is PS-OP-3720.

Does the page specify thread pitch or exact nail compatibility?

No. The current product page does not provide thread pitch, head dimensions, driver interface, sterility status, or a named compatible tibial/femoral nail system. These details should be confirmed before ordering when system compatibility is required.
