PEAK SURGICALS
SKU:PS-OP-3852
CE Certified
FDA Certified
ISO Certified

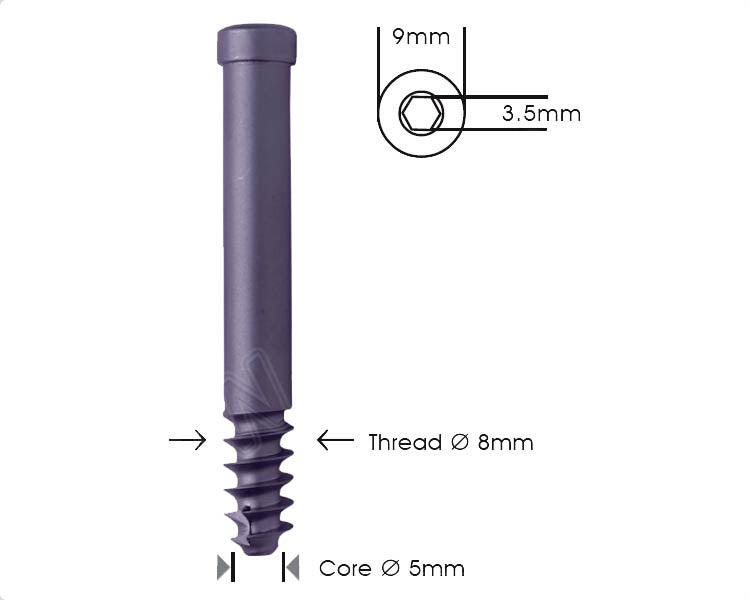

The Locking Bolt Ø8mm Cannulated Self-Tapping for PFN & Recon Nails is an orthopedic fixation component available in a defined range of lengths for use with compatible PFN and reconstruction nail systems. Its product designation confirms an 8 mm diameter, cannulated design, and self-tapping configuration, with stainless steel and titanium options listed across the complete size range.
The current Peak Surgicals product is identified by main SKU PS-OP-3852. Available lengths run from 50 mm to 120 mm in 5 mm increments, providing fifteen listed size options. Each length has a separate stainless-steel and titanium catalog code for accurate implant selection and procurement.
The product is specifically identified as an Ø8mm locking bolt. This diameter forms part of the defined product configuration and should be matched with the intended orthopedic nail system before selection.
The current product page does not provide thread pitch, core diameter, head dimensions, driver interface, or exact cannulation bore. These technical specifications should therefore be confirmed when compatibility with a specific nail or instrumentation system must be established.
The product title confirms a cannulated configuration. A cannulated locking bolt incorporates a central passage through the implant, distinguishing it from a solid locking bolt configuration.
The exact internal cannulation diameter and compatible guide-wire specification are not stated on the current Peak Surgicals page. Buyers requiring those measurements should confirm them before ordering.
The current product is also specifically identified as self-tapping. This describes the threaded implant configuration supplied by Peak Surgicals and forms an important distinction when comparing locking bolts within orthopedic fixation systems.
The live page does not state thread pitch, cutting-flute geometry, insertion torque specifications, or recommended drilling parameters. These details should be obtained from the applicable implant-system documentation when required.
Peak Surgicals identifies this locking bolt specifically for PFN and Recon Nails. It is therefore positioned as a fixation component for compatible proximal femoral and reconstruction nail systems.
Compatibility should be confirmed against the exact nail system before use. The current product page does not identify a particular nail model, manufacturer interface, or system-specific instrumentation requirement.
The product table provides two material columns: S.S. and Titanium. Both material options are listed throughout the complete 50–120 mm length range.
The exact stainless-steel grade and titanium alloy grade are not stated on the current product page. Hospitals, distributors, and procurement teams requiring a particular implant material specification or supporting documentation should confirm those details before ordering.
The current Peak Surgicals table provides 15 locking-bolt lengths, beginning at 50 mm and increasing in 5 mm increments through 120 mm. This range allows the required length to be selected according to the compatible implant system and surgical plan.
The exact bolt length should be selected by the orthopedic surgical team according to the nail configuration, anatomy, and fixation requirements.
Every listed length has a dedicated code for both material options. Stainless-steel codes use the 048- series, while titanium codes use the PS-048- series on the current product page.
Buyers should reference both the required length and material-specific catalog code when ordering to reduce the risk of selecting the wrong implant configuration.
Selection of the correct locking bolt depends on several factors, including the intended nail system, required bolt length, material preference, and procedure-specific implant plan.
The current Peak Surgicals page confirms diameter, cannulated/self-tapping designation, material options, lengths, and catalog codes, but it does not specify nail-system dimensions, screw-head geometry, driver type, thread pitch, guide-wire diameter, or sterilization status. These should be confirmed separately when required.
| Product Name | Locking Bolt Ø8mm Cannulated Self-Tapping for PFN & Recon Nails |
| Main SKU | PS-OP-3852 |
| Product Type | Orthopedic Locking Bolt |
| Diameter | Ø8 mm |
| Design | Cannulated, Self-Tapping |
| Application | PFN & Reconstruction Nail Systems |
| Material Options | Stainless Steel / Titanium |
| 50 mm | S.S. 048-50 / Titanium PS-048-50 |
| 55 mm | S.S. 048-55 / Titanium PS-048-55 |
| 60 mm | S.S. 048-60 / Titanium PS-048-60 |
| 65 mm | S.S. 048-65 / Titanium PS-048-65 |
| 70 mm | S.S. 048-70 / Titanium PS-048-70 |
| 75 mm | S.S. 048-75 / Titanium PS-048-75 |
| 80 mm | S.S. 048-80 / Titanium PS-048-80 |
| 85 mm | S.S. 048-85 / Titanium PS-048-85 |
| 90 mm | S.S. 048-90 / Titanium PS-048-90 |
| 95 mm | S.S. 048-95 / Titanium PS-048-95 |
| 100 mm | S.S. 048-100 / Titanium PS-048-100 |
| 105 mm | S.S. 048-105 / Titanium PS-048-105 |
| 110 mm | S.S. 048-110 / Titanium PS-048-110 |
| 115 mm | S.S. 048-115 / Titanium PS-048-115 |
| 120 mm | S.S. 048-120 / Titanium PS-048-120 |
The Locking Bolt Ø8mm Cannulated Self-Tapping range is relevant for orthopedic departments, trauma centers, hospitals, implant distributors, and procurement teams sourcing components for compatible PFN and reconstruction nail systems.
For accurate purchasing, buyers should reference main SKU PS-OP-3852 together with the required material, length, and corresponding catalog code. Buyers requiring thread pitch, cannulation diameter, guide-wire compatibility, driver interface, material alloy grade, sterilization status, or compatibility with a particular PFN or reconstruction nail should confirm those specifications before ordering because they are not stated on the current product page.
The current product title specifies a diameter of Ø8 mm.
The current Peak Surgicals range includes 50 mm through 120 mm in 5 mm increments.
The live product table provides both stainless steel and titanium options for every listed length.
Yes. The current product designation specifically identifies the bolt as cannulated. The exact cannulation diameter is not stated.
Yes. Self-Tapping is part of the current Peak Surgicals product designation.
The current Peak Surgicals main SKU is PS-OP-3852. Individual stainless-steel and titanium length variants use separate catalog codes.
