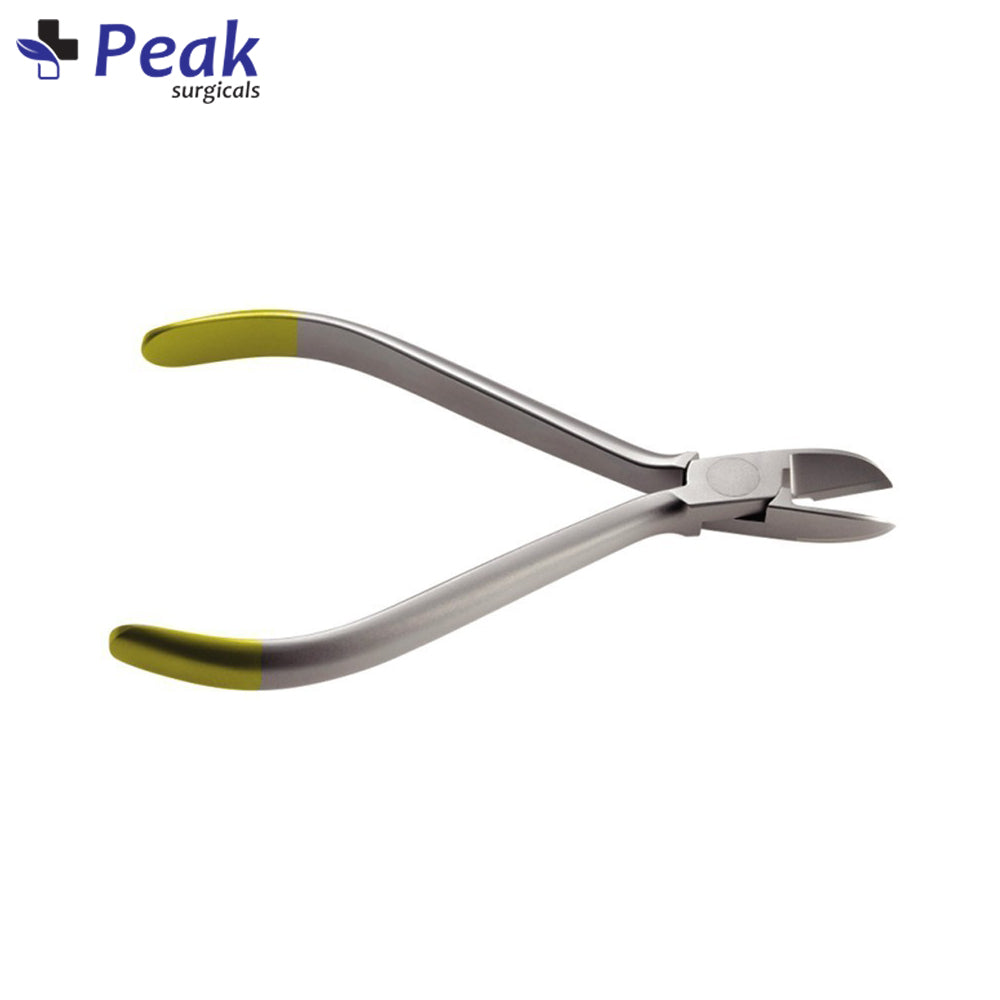

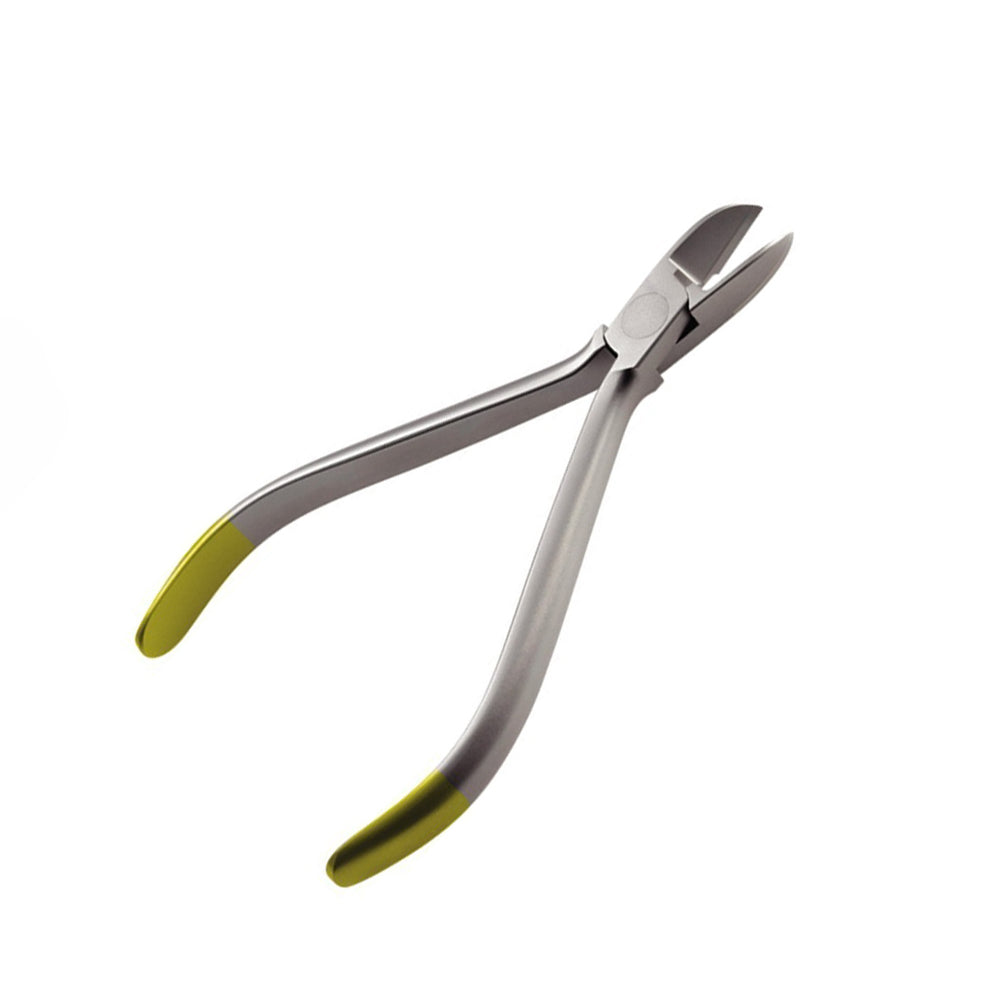

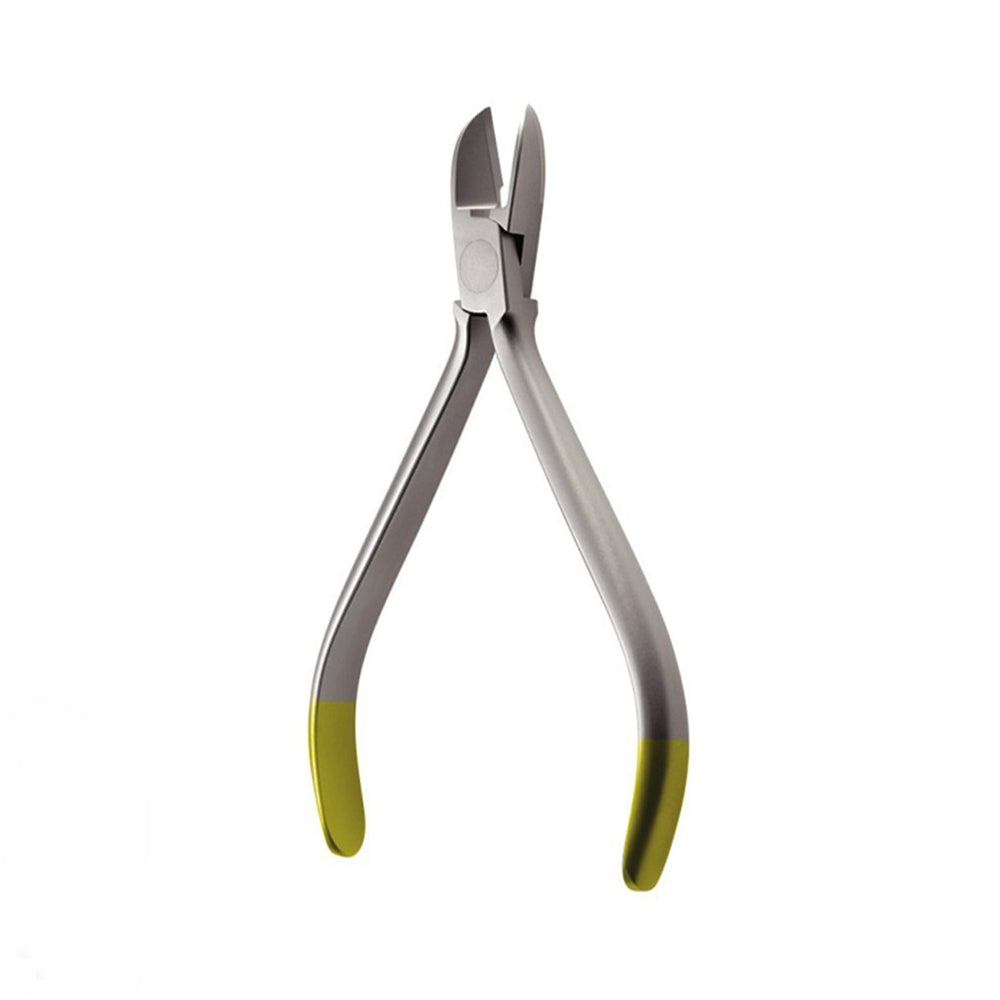

Ligature Cutter – Fine Tip Orthodontic Wire Ligature and Elastic Cutter

The Ligature Cutter from Peak Surgicals is a reusable orthodontic cutting instrument manufactured from surgical-grade stainless steel, featuring fine-tipped cutting jaws rated to cut pins, wire ligatures, and elastics up to 0.015" (0.38mm), designed for precise intraoral ligature removal and wire trimming in confined areas during fixed orthodontic treatment. Certified to CE, ISO 13485, and FDA standards, this instrument is used by orthodontists and dental clinicians in orthodontic practices, dental hospitals, and specialist orthodontic departments.

Fine-Tipped Jaw Design for Access into Confined Intraoral Areas

The Ligature Cutter features finer, more tapered cutting tips compared to standard wire cutters, allowing the instrument to access the narrow spaces between brackets, under archwires, and at interproximal sites where larger jaw instruments cannot reach without disturbing adjacent bracket bondings. The fine tip geometry directs the cutting action precisely to the target ligature or wire segment, reducing the risk of inadvertent contact with bracket wings, archwire, or adjacent soft tissue during ligature removal. This access geometry makes the Ligature Cutter the preferred instrument for removing wire ligatures and elastic modules in the posterior arch segments where visibility and working space are limited.

Wire Ligature and Elastic Cutting in Fixed Orthodontic Treatment

The Ligature Cutter is used at each archwire change appointment to cut and remove wire ligatures securing the archwire to individual brackets, and to cut elastic o-ties, power chains, and elastic thread modules where removal by hand or applicator is not possible. It is also used to cut pins and protruding wire ends in confined intraoral spaces. The instrument is a standard component of archwire change and debonding trays in orthodontic practices, dental schools, and hospital orthodontic departments worldwide.

Rated to 0.015" (0.38mm) for Ligature Wire and Elastic Module Removal

This Ligature Cutter is rated to cut wire and elastic materials up to 0.015" (0.38mm) in diameter. This capacity covers standard stainless steel wire ligature gauges and the diameter range of elastic o-ties, power chains, and elastic thread used across pre-adjusted edgewise bracket systems. The cutting edges are hardened to cleanly shear wire at this gauge without deforming the cut end, which is important for preventing sharp wire fragments that could traumatise oral soft tissue during or after the cutting procedure.

Surgical-Grade Stainless Steel Construction for Repeated Clinical Use

Each instrument is manufactured from surgical-grade stainless steel, providing corrosion resistance, surface hardness, and dimensional stability across repeated clinical use and sterilization cycles. The fine-tipped cutting jaws are precision-ground to maintain their cutting geometry and tip alignment across the instrument's service life in high-turnover orthodontic clinical environments. The instrument is rust-free and withstands the decontamination and sterilization cycles used in licensed dental facilities.

CE Mark, ISO 13485, and FDA Certification for Orthodontic Instrument Procurement

The Ligature Cutter is classified as a Class I medical device manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and production consistency for dental and orthodontic instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US-based orthodontic practices, dental schools, and hospital orthodontic departments requiring verified regulatory documentation.

Product Specifications

SKU	PS-D-161 (confirm on Shopify)
Product Name	Ligature Cutter
Price	$17.60 USD
Size / Capacity	0.015" (0.38mm) — cuts pins, wire ligatures, and elastics
Tip Type	Fine Tips for Confined Area Access
Instrument Type	Orthodontic Ligature Cutter
Material	Surgical-Grade Stainless Steel
Instrument Classification	Class I Medical Device
Certifications	CE Mark, ISO 13485, FDA
Reusability	Reusable
Rust Resistance	Yes
Warranty	1 Year
MOQ	1 Piece
OEM / Custom Orders	Available
Packing	Carton Box
Primary Use	Cutting and removing wire ligatures, elastic o-ties, power chains, and pins during fixed orthodontic archwire changes
After-Sale Service	Return and Replacement

Frequently Asked Questions

What does a Ligature Cutter do in orthodontics?
A Ligature Cutter is used to cut and remove wire ligatures, elastic o-ties, power chains, elastic thread, and small pins during fixed orthodontic treatment — primarily at archwire change and debonding appointments. Unlike standard wire cutters which have heavier jaws suited to archwire sections, the Ligature Cutter has finer, more tapered tips that allow it to access the tight spaces between brackets and under archwires to cut ligature materials without disturbing adjacent bracket bondings or archwire seating. The instrument is a standard component of archwire change trays in orthodontic practices globally.

What wire and elastic sizes can this cutter handle?
The Ligature Cutter from Peak Surgicals is rated to cut pins, wire ligatures, and elastics up to 0.015" (0.38mm) in diameter. This covers standard stainless steel wire ligature gauges as well as the full range of elastic o-ties, power chains, and elastic thread modules used across conventional pre-adjusted edgewise bracket systems. The cutting edges are hardened to shear these materials cleanly without deforming the cut end.

How is a Ligature Cutter different from a standard orthodontic wire cutter?
A standard orthodontic wire cutter has heavier, wider jaws designed to cut larger archwire sections — including rectangular wires up to 0.022" x 0.028" or larger. A Ligature Cutter has finer, more tapered cutting tips that allow intraoral access into the narrow interproximal and sub-archwire spaces where ligature removal is required. The finer tips reduce the risk of inadvertently contacting bracket wings or adjacent structures during the cutting action. Both instruments are used in the same appointment but serve different cutting tasks — archwire trimming versus ligature and elastic removal.

Is this instrument compatible with autoclave sterilization?
The Ligature Cutter is a reusable instrument manufactured from surgical-grade stainless steel, fully compatible with standard autoclave and steam sterilization protocols used in licensed dental and orthodontic facilities. Each instrument withstands repeated thermal sterilization cycles without deformation of the fine tips or degradation of the cutting edges. Facilities should follow their own validated sterilization cycle parameters and reprocessing protocols for Class I reusable dental instruments.

What certifications does this instrument carry?
The Ligature Cutter is classified as a Class I medical device manufactured under CE Mark, ISO 13485, and FDA compliant standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and manufacturing consistency for dental and orthodontic instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US orthodontic practices, dental schools, and hospital orthodontic departments requiring verified regulatory documentation.

Can this instrument be ordered in bulk or custom configurations?
OEM manufacturing and custom orders are available from Peak Surgicals for orthodontic distributors, dental procurement departments, and institutional buyers requiring specific tip configurations, custom engraving, or packaging formats. The standard minimum order quantity is 1 piece, making the instrument accessible for individual practice restocking as well as high-volume institutional purchasing. Contact Peak Surgicals directly for volume pricing, OEM specifications, or distributor arrangements.
