Large Fragment Instrument Set Combo

Large Fragment Instrument Set Combo

PS-OP-1653

$768.90 USD
$768.90 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Secure Checkout Protected payment flow
Quality Inspected Checked before dispatch
Worldwide Supply International buyer support
Shipping, Returns & Payments Clear buyer information before checkout.
Shipping
Free shipping on orders over $99. See shipping details
Returns
Returns and exchanges are handled according to our return policy. See return policy
Payments
American Express Apple Pay Diners Club Discover Google Pay JCB Mastercard
Return / Exchange Info
View full details

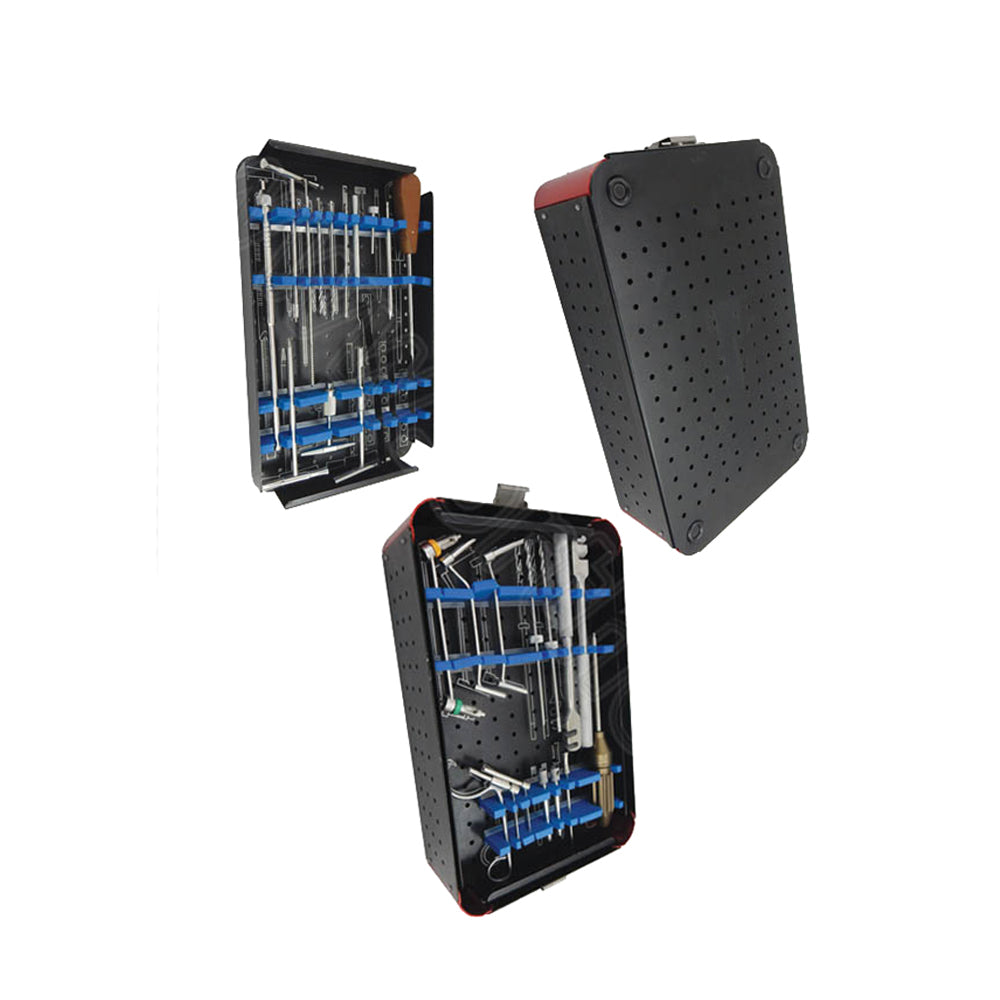

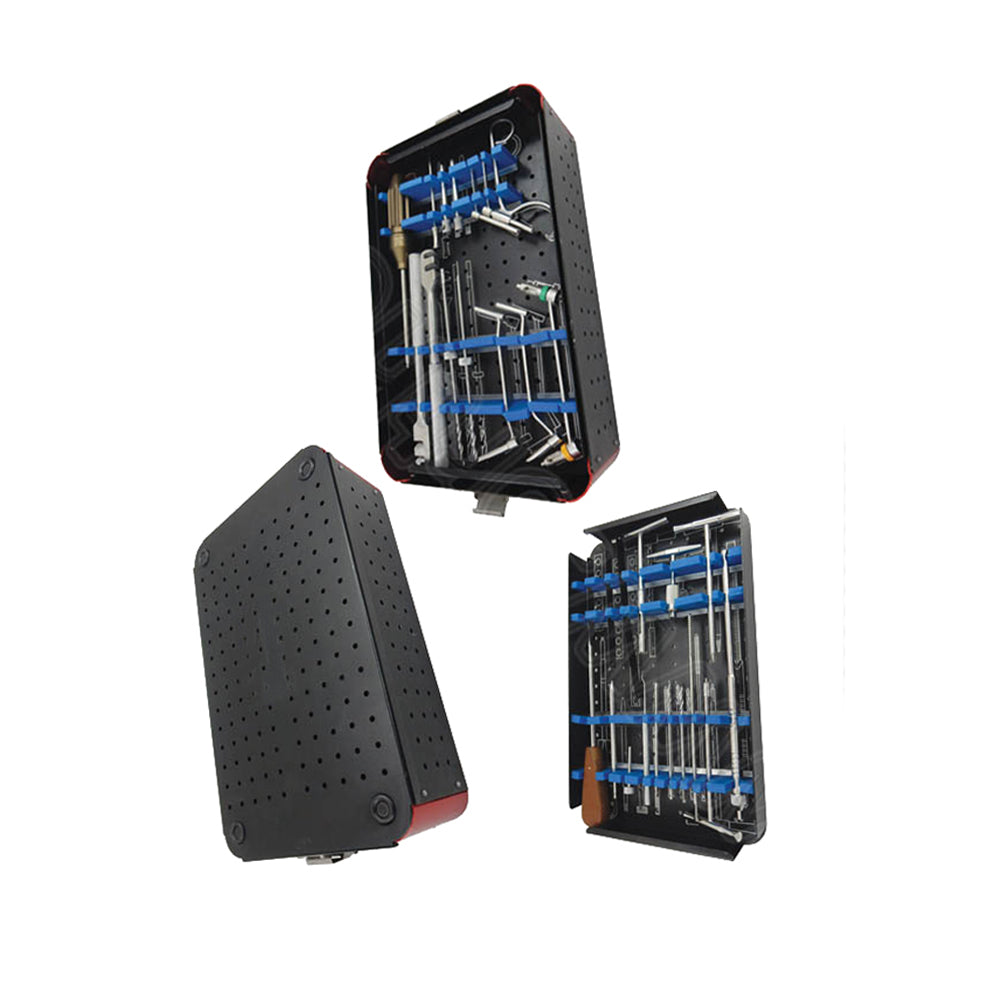

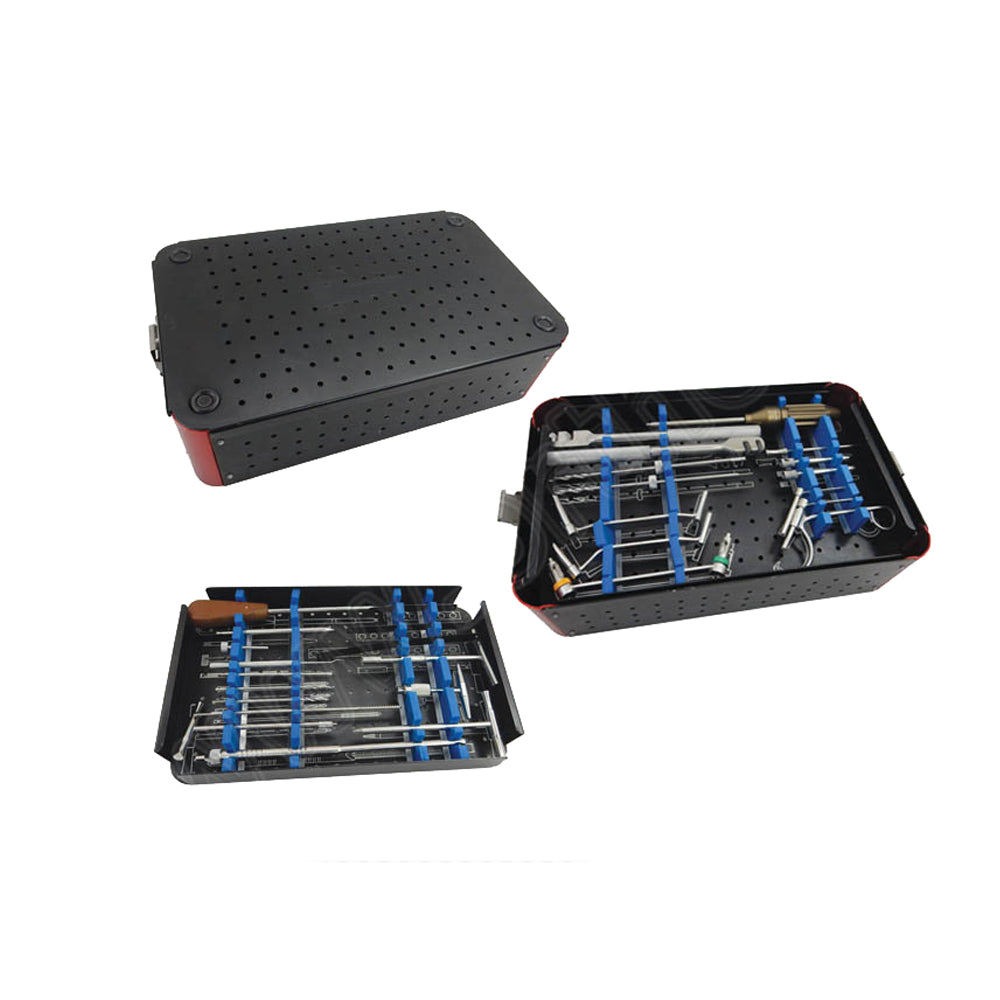

The Large Fragment Instrument Set Combo by Peak Surgicals combines standard large-fragment instrumentation with dedicated locking instruments for orthopedic plate-and-screw fixation workflows. The set includes drilling, tapping, screw insertion, depth measurement, plate bending, guiding, and locking instrumentation in one organized configuration.

Standard components support instrumentation for 4.5mm cortex screws and 6.5mm cancellous screws, while the locking section includes dedicated instrumentation for 5.0mm Safety Lock screws. The combination is suitable for orthopedic departments and surgical facilities requiring both conventional and locking large-fragment instrumentation within a single set.

Set Contents

``` ```
Set Consisting of : Units
Standard Instruments
260.320 - Drill Bit (Quick Coupling), 3.2mm x 130mm 1
260.450 - Drill Bit (Quick Coupling), 4.5mm x 130mm 1
305.030 - Counter Sink for 4.5 & 6.5mm Screws (8.0mm Head) 1
306.010 - Quick Coupling Handle (T-Type) 1
264.040 - Bone Tap with Quick Coupling for 4.5mm Cortex Screws, L:130mm 1
264.050 - Bone Tap with Quick Coupling for 6.5mm Cancellous Screws 1
307.095 - Insert Drill Sleeve 4.5/3.2mm 1
307.070 - Drill & Tap Sleeve combined 3.2/4.5mm 1
307.080 - Drill & Tap Sleeve combined 3.2/6.5mm 1
301.070 - Large Hexagonal Screw Driver Shaft 1
301.050 - Large Hexagonal Screw Driver 1
303.020 - Depth Gauge for 4.5mm & 6.5mm Screws 1
371.000 - Sharp Hook 1
303.020 - Depth Gauge for 4.5mm & 6.5mm Screws 1
371.000 - Sharp Hook 1
304.020 - Large Neutral & Loaded Drill Guide 1
308.000 - Pointed Drill Guide 1
302.020 - Large Plate Bender (pair) 1
Locking Instruments
PS435.002 - Drill Bit Ø 4.3mm, Length 221mm, Calibrated, 2-flute, for Quick Coupling 2
PS435.006 - 4.3mm Drill Sleeve for 5.0mm Safety Lock Screws 2
PS435.010 - Torque limiting Screw Driver, 3.5mm Tip 1
PS435.022 - Extraction Screw (Left Hand Thread), Conical, for Screws Ø 4.5mm to 6.5mm 1
PS435.026 - Centering Sleeve for Kirschner Wire Ø 2.0mm, Length 110mm 1
PS145.000 - Empty Container

Key Features

  • Standard and Locking Instrument Combination: Integrates conventional large-fragment instruments and dedicated locking instrumentation in one set.
  • Large Fragment Screw Instrumentation: Includes components for 4.5mm cortex and 6.5mm cancellous screw workflows.
  • Safety Lock Instrumentation: Includes a 4.3mm calibrated drill bit and drill sleeves designed for 5.0mm Safety Lock screws.
  • Drilling and Tapping Components: Includes quick-coupling drill bits, bone taps, drill sleeves, drill guides, and combined drill-and-tap sleeves.
  • Screw Measurement and Insertion: Includes depth gauge, large hexagonal screwdriver, screwdriver shaft, torque-limiting screwdriver, and related handling components.
  • Plate Preparation: Includes a pair of large plate benders for plate handling during orthopedic fixation workflows.
  • Extraction and Guide-Wire Components: Includes a conical extraction screw and centering sleeve for a 2.0mm Kirschner wire.

Applications

The Large Fragment Instrument Set Combo is configured for orthopedic large-fragment fixation workflows requiring standard and locking instrumentation. It provides the instruments needed for drilling, tapping, screw measurement, screw insertion, plate preparation, and compatible locking-system procedures.

Suitable for orthopedic departments, trauma centers, hospitals, surgical facilities, and medical procurement professionals sourcing a comprehensive large-fragment orthopedic instrument set.

Refer to the Set Contents table above for exact instrument references, dimensions, compatibility information, and supplied quantities.
