SKU:PS-OP-6002
CE Certified
FDA Certified
ISO Certified

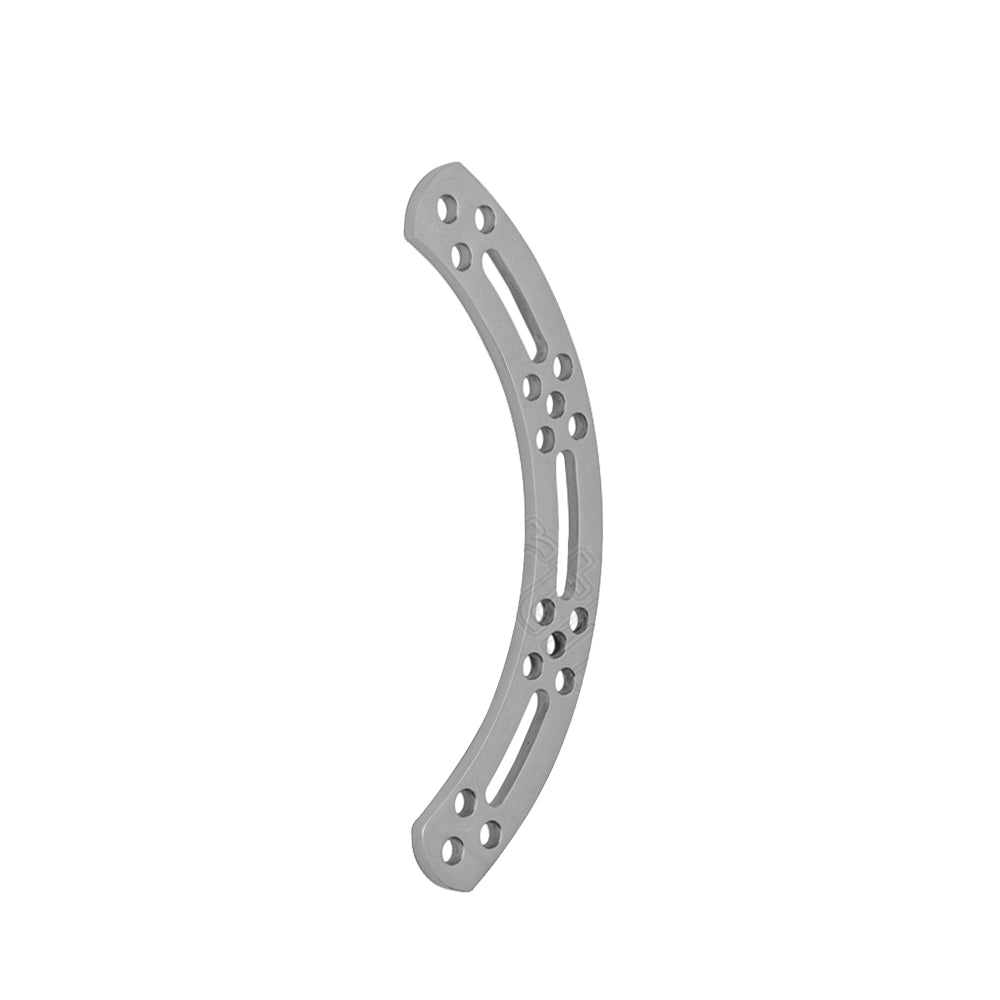

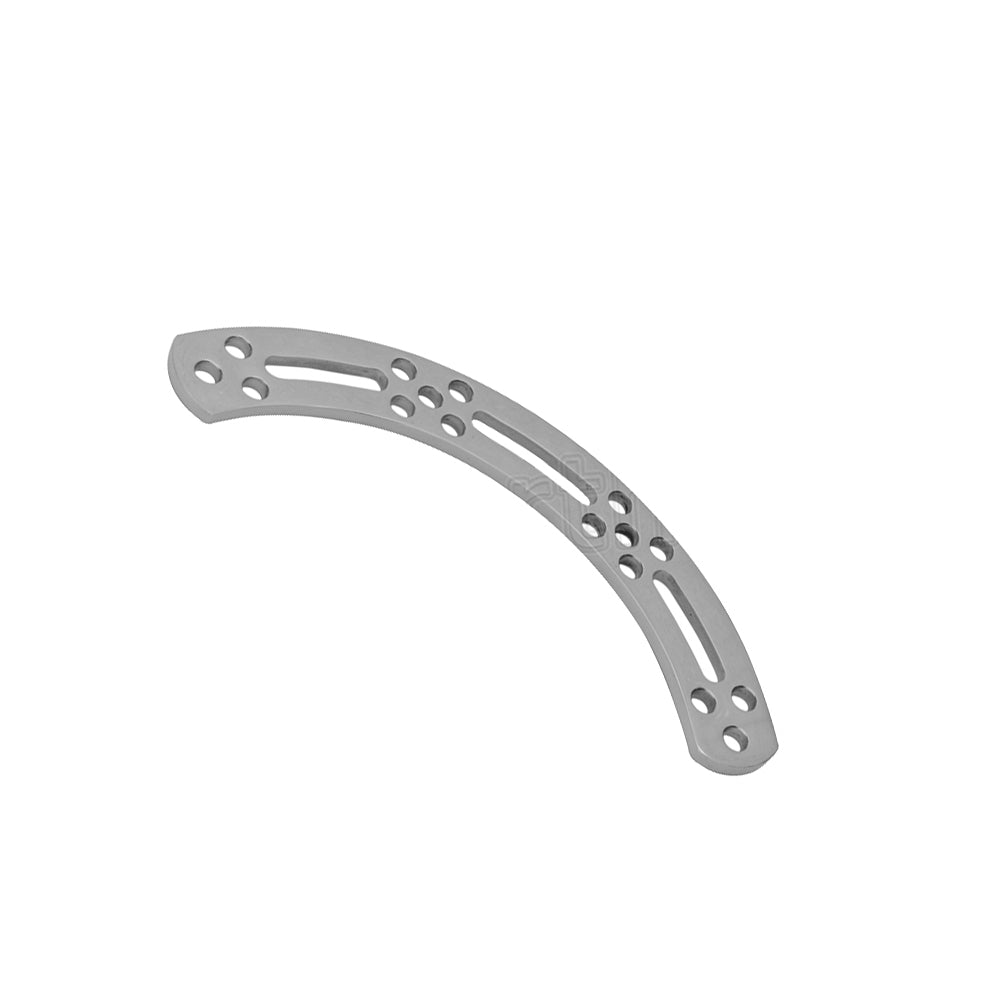

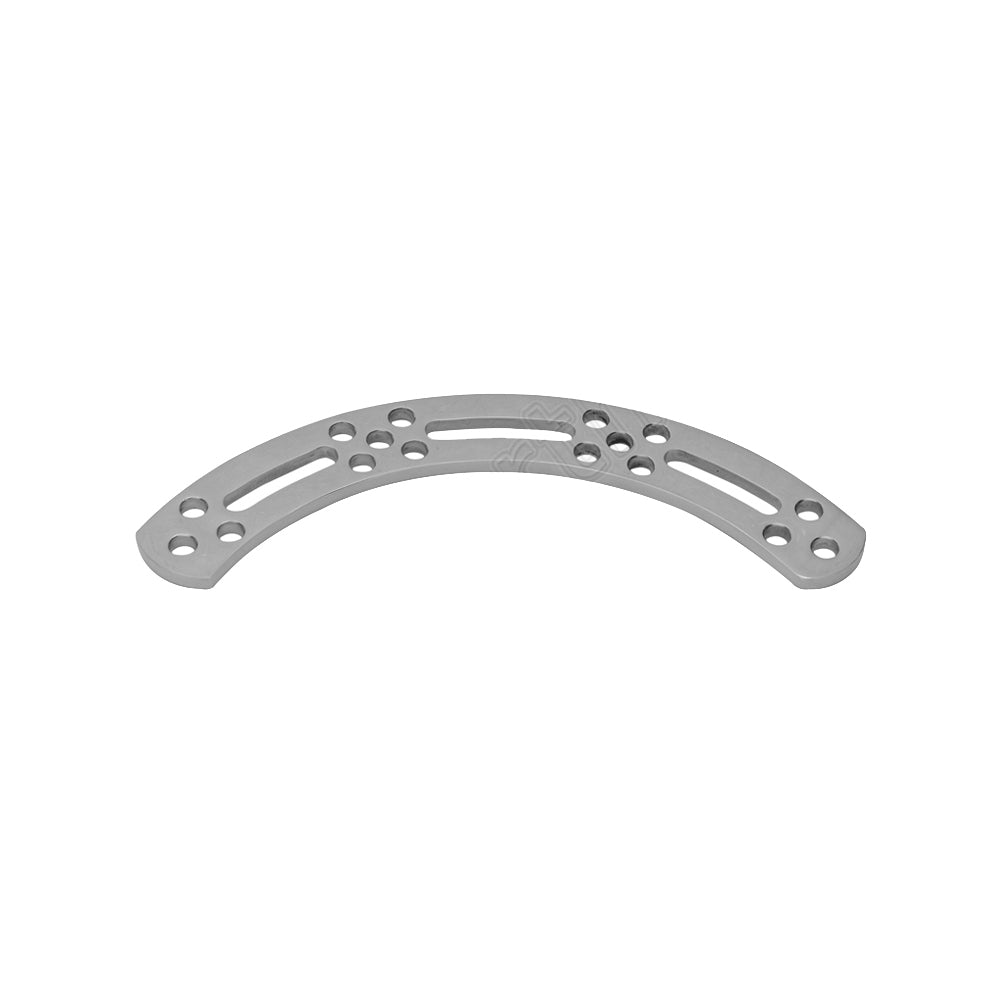

The Italian Femoral Arch 120° Stainless Steel is an orthopedic external-fixation component designed for incorporation into ring-based fixation frames around the femoral region. Its open 120-degree arch configuration provides an alternative to a complete circular ring where additional anatomical clearance is required while maintaining connection points for frame construction.
This Peak Surgicals model is identified as SKU PS-OP-6002 and is manufactured in stainless steel. The current range includes sizes from 100 mm to 260 mm, allowing orthopedic teams to select an arch according to the dimensions and configuration required for the planned external-fixation construct.
The defining feature of this component is its 120° open-arch geometry. Unlike a complete circular fixation ring, the femoral arch leaves an open section of the frame while providing a rigid curved structure for connection with other external-fixator components.
This geometry is used in ring external-fixation systems where frame configuration must accommodate the anatomy of the thigh and femoral region. Final frame design should be determined by the treating orthopedic surgeon according to the clinical indication and fixation technique.
Italian femoral arches are components used within ring external-fixator systems. They can be incorporated with compatible rods, posts, fixation bolts, hinges, wires, and other frame elements to construct an external fixation assembly around the femur.
The exact components required depend on the selected external-fixation system and surgical plan. Compatibility of connection hardware, holes, rods, bolts, and other accessories should therefore be confirmed before ordering.
Industry references for Italian femoral arches identify their use in femoral fixation, limb reconstruction, and deformity-correction procedures performed with ring external fixation systems. Their open architecture helps provide additional space around the proximal limb compared with a complete ring.
The specific frame configuration, fixation points, wire or pin placement, and correction strategy should be determined by an appropriately trained orthopedic surgeon based on the patient's anatomy and treatment requirements.
The current Peak Surgicals product listing identifies this model as a stainless-steel Italian Femoral Arch. Stainless steel provides the structural rigidity required for external-fixator frame components and allows the arch to form part of a mechanically connected orthopedic fixation construct.
The exact stainless-steel alloy grade is not stated in the current product details. Hospitals, distributors, and procurement departments requiring a particular alloy specification or material documentation should confirm that information before ordering.
The Italian Femoral Arch 120° is offered in multiple sizes ranging from 100 mm to 260 mm. Available listed sizes are 100, 120, 140, 160, 180, 200, 220, 240, and 260 mm.
Providing multiple diameters allows the orthopedic team to select an arch appropriate for the patient's anatomy and planned frame configuration. Size selection should be made as part of preoperative planning and according to the external-fixation system being assembled.
Each listed size has its own Peak Surgicals catalog code, allowing hospitals, orthopedic departments, and distributors to identify the required component accurately when ordering replacement or additional external-fixator parts.
The available codes range from PS-233.010 for the 100 mm arch through PS-233.026 for the 260 mm version.
| Product Name | Italian Femoral Arch 120° Stainless Steel |
| Storefront SKU | PS-OP-6002 |
| Product Type | External Fixator Femoral Arch |
| Configuration | 120° Open Arch |
| Specialty | Orthopedic Surgery / External Fixation |
| Material | Stainless Steel |
| Clinical System | Ring External Fixation |
| Referenced Applications | Femoral Fixation, Limb Reconstruction and Deformity-Correction Frames |
| Available Size Range | 100–260 mm |
| 100 mm | PS-233.010 |
| 120 mm | PS-233.012 |
| 140 mm | PS-233.014 |
| 160 mm | PS-233.016 |
| 180 mm | PS-233.018 |
| 200 mm | PS-233.020 |
| 220 mm | PS-233.022 |
| 240 mm | PS-233.024 |
| 260 mm | PS-233.026 |
The Italian Femoral Arch 120° Stainless Steel is relevant for orthopedic hospitals, trauma departments, limb-reconstruction services, external-fixation specialists, medical distributors, and procurement teams sourcing components for ring external-fixator systems.
For purchasing accuracy, buyers should reference SKU PS-OP-6002 together with the required size and corresponding catalog code. Compatibility with fixation bolts, rods, posts, wires, hinges, and other frame components should be verified before ordering when the arch is being incorporated into an existing external-fixation system.
It is an orthopedic frame component used within ring external-fixation systems, particularly when constructing fixation assemblies around the femoral region.
This Peak Surgicals model has a 120° open-arch configuration.
The current product listing provides sizes of 100, 120, 140, 160, 180, 200, 220, 240, and 260 mm.
The current Peak Surgicals listing identifies this model as stainless steel. The exact stainless-steel alloy grade is not specified on the product page.
Yes. Italian femoral arches are used as components of ring external-fixation systems for femoral fixation and may form part of limb-reconstruction and deformity-correction frame configurations.
The current Peak Surgicals storefront SKU is PS-OP-6002. Individual sizes also have separate catalog codes ranging from PS-233.010 to PS-233.026.
