PEAK SURGICALS
SKU:PS-OP-33140
Couldn't load pickup availability

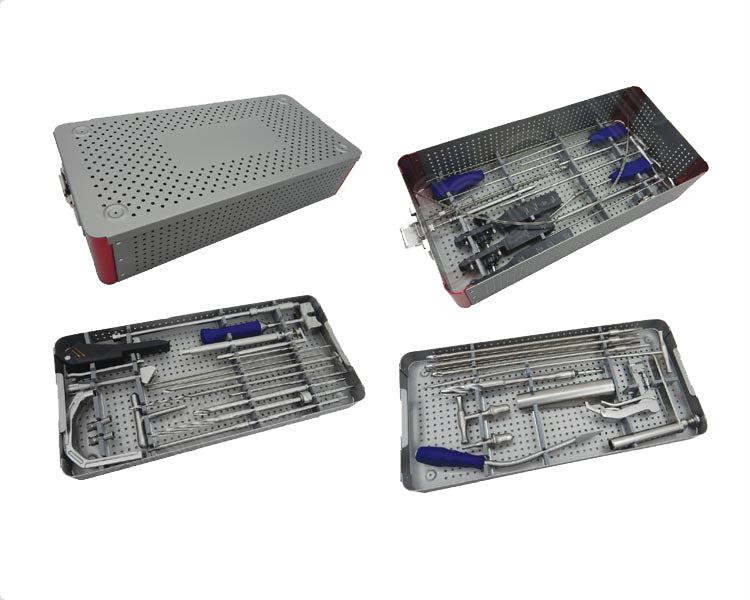

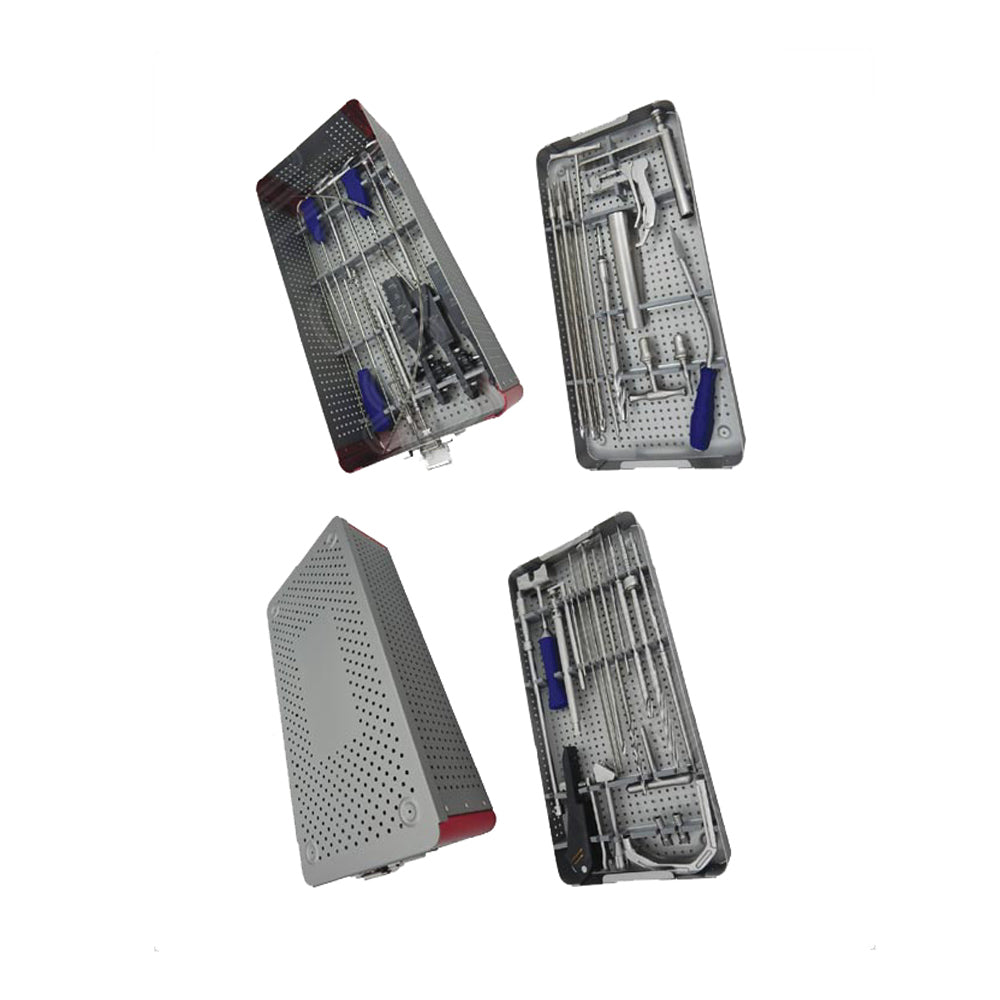

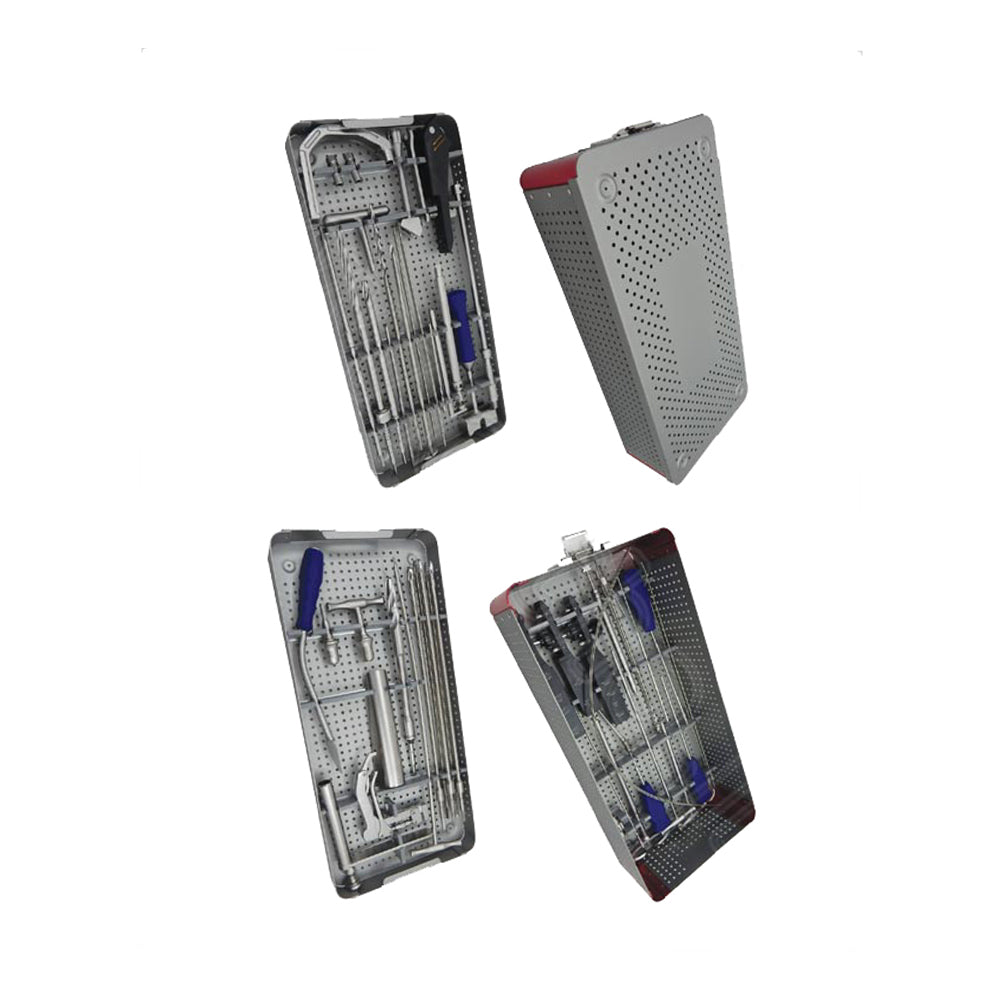

Instruments Set For NET TAN Intertrochanteric, SKU PS-OP-3602, is a reusable orthopedic intramedullary nailing instrumentation system manufactured in German stainless steel for NET TAN intertrochanteric nail insertion, proximal fracture reduction, guide-wire placement, canal preparation, proximal and distal locking, and implant extraction. The configuration includes the NET TAN Nail Insertion Handle, Connecting Screw, T-Handle for Connecting Screw, Multiaxial T-Handle, Connectors, Connecting Part, Hammer Guide Rod, Distal Jig Guide, Distal Alignment Device, Positioning Block, Distal Aiming Arm, Proximal Aiming Arm, Proximal Jig Guide, calibrated drill bits, protection sleeves, drill sleeves, Depth Gauge, 3.5mm hexagonal screwdriver, Soft Tissue Separator, Ball-Tip Reaming Rods, T-Type Fracture Alignment Device, L Keys, Skin Protector, Flower-Type Locking Bolts, Pin Holder, Hexagonal Screw Holder, Quick-Coupling T-Handle, wrenches, Sliding Hammer, Nail Extractor, Flexible Reamer Shafts, interchangeable reamer heads and Medullary Tube. The system is intended for orthopedic trauma surgeons performing intramedullary fixation of intertrochanteric and related proximal femoral fractures using compatible NET TAN nails. It is suited to trauma hospitals, orthopedic operating rooms and fracture-fixation centers requiring dedicated insertion, targeting, reaming, locking and extraction instrumentation.
The NET TAN instrumentation is arranged around the mechanical sequence of proximal femoral entry, nail attachment, canal preparation and controlled implant advancement. The Skin Protector establishes the initial operative corridor, while the Insertion Handle provides the mechanical interface between the compatible nail and targeting assembly. The cannulated Connecting Screw secures the nail to the handle, with the T-Handle and Multiaxial T-Handle providing controlled manual access during assembly and tightening. The Connector and Connecting Part establish the required relationship between the insertion handle and targeting components. The Hammer Guide Rod transfers axial impact from the Sliding Hammer during controlled nail advancement. The Ball-Tip Reaming Rod maintains the intramedullary guide path while the Flexible Reamer Shafts carry the selected reamer heads. The Cannulated entry components establish the proximal access pathway before the nail is introduced. The T-Type Fracture Alignment Device assists maintenance of fracture position during nail passage. The Medullary Tube supports controlled management of the reaming assembly and guide system. This configuration allows the surgeon to progress from entry preparation to guide-wire control, canal enlargement, nail insertion and targeting while maintaining a dedicated mechanical relationship between the implant and instrumentation.
The system is configured for intramedullary fixation of intertrochanteric and selected proximal femoral fractures where a compatible NET TAN nail is used. After fracture reduction and proximal femoral entry, the insertion handle secures the nail and permits controlled advancement through the prepared canal. The Proximal Aiming Arm and Proximal Jig Guide establish the targeting relationship for proximal fixation, while the Distal Jig Guide, Distal Alignment Device, Positioning Block and Distal Aiming Arm provide the distal locking assembly. The Flower-Type Locking Bolts secure the corresponding jigs during setup. Calibrated drill bits and dedicated drill sleeves prepare the proximal and distal locking pathways according to the compatible nail configuration. Protection sleeves maintain a defined soft-tissue corridor during drilling, while the Depth Gauge determines locking-screw length after preparation. The 3.5mm Hexagonal Screwdriver Shaft and Hexagonal Screwdriver provide the interface for compatible locking hardware. The Pin Holder and Hexagonal Screw Holder assist controlled management of guide pins and screws during the fixation sequence. For fracture alignment, the T-Type Fracture Alignment Device assists manipulation during nail passage. The Extractor and Sliding Hammer provide controlled implant removal capability when extraction is required.
The reaming assembly provides interchangeable heads for progressive preparation of the femoral medullary canal according to the compatible NET TAN nail dimensions and operative technique. Flexible Reamer Shafts carry the selected heads, while the 2.5 x 3.9 x 1000mm Ball-Tip Reaming Rod maintains the intramedullary guide path during canal preparation. The proximal entry instrumentation includes the 12mm Cannulated Cutter, 12mm Cannulated Awl and 12mm Cannulated Drill Bit, providing sequential preparation of the nail entry portal. The 14 x 12mm Protection Sleeve controls access around the cannulated entry reamer. The Proximal Aiming Arm and Proximal Jig Guide establish the proximal targeting geometry, while the T-Type Distal Alignment Device, Positioning Block and Distal Aiming Arm establish the distal locking relationship. The calibrated 3.2mm and 4mm drill configurations support compatible locking-hole preparation, while the T-Type 5.2mm drill assembly supports distal alignment instrumentation. The 3.2mm and 4mm drill stoppers control drilling depth where specified. The 3mm and 5mm L Keys, Pin Wrench and 11mm Combination Wrench provide adjustment and tightening of compatible assemblies. The T-Handle Quick Coupling provides manual control for compatible instruments, and the Medullary Tube supports organized handling of the reaming system. Each component corresponds to a defined preparation, insertion, targeting, locking or extraction stage.
The Instruments Set For NET TAN Intertrochanteric is configured as reusable orthopedic instrumentation manufactured in German stainless steel for repeated clinical handling, cleaning, inspection and sterilization. Stainless steel provides the mechanical substrate required for insertion handles, guide assemblies, cannulated instruments, drill bits, reamer shafts, aiming arms, screwdrivers, wrenches and extraction components subjected to controlled mechanical loading during proximal femoral fixation. Reprocessing should follow the healthcare facility's validated workflow, including point-of-use cleaning, decontamination, inspection, drying, packaging and sterilization according to applicable manufacturer instructions. Steam autoclave sterilization is appropriate for compatible reusable stainless steel components when performed using a validated cycle. The Empty Container organizes the instrumentation for storage, transport and sterile-processing preparation. Peak Surgicals supports medical-device procurement with CE marking, ISO 13485 quality-management certification and FDA-compliant procurement support for applicable healthcare markets. The set is listed at $1,185.75 USD and is intended for professional orthopedic trauma environments, including hospitals, trauma centers, orthopedic clinics and medical distributors. The dedicated configuration integrates nail insertion, femoral canal reaming, fracture alignment, proximal targeting, distal interlocking and extraction instrumentation for the compatible NET TAN intertrochanteric nail system.
| SKU | PS-OP-3602 |
|---|---|
| Product Name | Instruments Set For NET TAN Intertrochanteric |
| Price | $1,185.75 USD |
| Size/Gauge Variants | 12mm cannulated entry instrumentation; 3.2mm, 4mm and 5.2mm drilling configurations; interchangeable reamer heads for femoral canal preparation |
| Instrument Category | Orthopedic Intertrochanteric Intramedullary Nail Instrument Set |
| Procedure | NET TAN intertrochanteric nail insertion, femoral canal preparation, fracture alignment, proximal and distal interlocking, and nail extraction |
| Material | German Stainless Steel |
| Finish | Satin / Dull / Mirror |
| Sterilization | Reusable; steam autoclave sterilization following validated hospital reprocessing procedures |
| Instrument Classification | Class I |
| Reusable | Yes |
| Certifications | CE Mark, ISO 13485, FDA-compliant procurement support |
| Warranty | 1 Year |
| MOQ | 1 Set |
| OEM / Custom Orders | Available |
| After-Sale Service | Return and Replacement |
|
PS-077 Instruments Set For Net-Tan Intertrochanteric Antegrade Nail |
|
|
Set Consisting of: |
Units |
|
PS-077.01 - Protection Sleeve |
1 |
|
PS-077.02 - Guide Pin Sleeve Ø17.5 / Ø3.2 |
1 |
|
PS-077.03 - Proximal Cannulated Drill Bit Ø17.5 / Ø3.2 |
1 |
|
PS-077.04 - Quick Coupling Handle Ø8.0 |
1 |
|
PS-077.05 - Adapter |
1 |
|
PS-077.06 - Soft Tissue Protective Plate |
1 |
|
PS-077.07 - Awl |
1 |
|
PS-077.08 - Fracture Allignment Device (T-Type) |
1 |
|
PS-077.09 - Ball Head Guide Pin Ø2.5/Ø4.0, Length 680mm |
2 |
|
PS-077.10 - Guide Pin Handle |
1 |
|
PS-077-9.0 - Flexible Reamer shaft with fixed Reamer Ø9.0mm |
1 |
|
PS-077-10.0 - Flexible Reamer shaft with fixed Reamer Ø10.0mm |
1 |
|
PS-077-11.0 - Flexible Reamer shaft with fixed Reamer Ø11.0mm |
1 |
|
PS-077-12.0 - Flexible Reamer shaft with fixed Reamer Ø12.0mm |
1 |
|
PS-077-13.0 - Flexible Reamer shaft with fixed Reamer Ø13.0mm |
1 |
|
PS-077.16 - Handle |
1 |
|
PS-077.17 - Connect Screw Nut 7/16" -20 SWS |
2 |
|
PS-077.18 - Connect Screw Wrench SWS-0 |
1 |
|
PS-077.19 - Impactor connector with Rod 7/16" -20 |
1 |
|
PS-077.21 - Open Wrench SW11 |
1 |
|
PS-077.22 - Nail Removal Rod 7/16" -20 |
1 |
|
PS-077.23 - Hammer |
1 |
|
PS-077.24 - Proximal Guide Rod |
1 |
|
PS-077.25 - Lock Wheel for Guide Rod m8x1 |
1 |
|
PS-077.26 - Proximal Drill Sleeve Ø18/Ø11.2/Ø8.2 x 190 |
1 |
|
PS-077.27 - Guide Pin Sleeve Ø11.2/Ø3.2 |
1 |
|
PS-077.28 - Threaded Guide Pin Ø3.2 x 343 |
5 |
|
PS-077.29 - Depth Gauge Ø3.2 (343-190) |
1 |
|
PS-077.30 - Proximal Cortical Drill Bit Ø7.0/Ø8.2mm |
1 |
|
PS-077.31 - Proximal Drill Bit Ø7.0 /Ø8.2mm |
1 |
|
PS-077.32 - Proximal Position Rod Ø8.2/ Ø7.0mm |
1 |
|
PS-077.33 - Proximal Cortical Cannulated Drill Bit Ø3.2/ Ø11.0/ Ø11.2mm |
1 |
|
PS-077.34 - Proximal Cortical Cannulated Drill Bit Ø3.2/ Ø11.0/ Ø11.2mm with Limitation |
1 |
|
PS-077.35 - Limitation |
1 |
|
PS-077.36 - Proximal Locking Screw Cannulated Tap Ø3.2/ Ø11.0mm |
1 |
|
PS-077.37 - Proximal Screw Wrench (2.55/3.05) |
1 |
|
PS-077.38 - Proximal Screw Holder (M4.5/SW3.0) |
1 |
|
PS-077.39 - Limitation Wrench SW3.0 |
1 |
|
PS-077.40 - Proximal Screw Compression Nut |
1 |
|
PS-077.41 - Anti-Rotation Screw Wrench SW4.5 |
1 |
|
PS-077.42 - Screw Driver for Locked Nut SW4.5 |
1 |
|
PS-077.43 - Distal Guide Rod 180mm/ 240mm |
1 |
|
PS-077.44 - Distal Guide Rod 200mm |
1 |
|
PS-077.45 - Distal Guide Rod State 90° 180/200/240 |
1 |
|
PS-077.46 - Guide Lock Wheel M8x1 |
3 |
|
PS-077.47 - Distal Lock Screw Sleeve Ø11/ Ø8.2mm |
1 |
|
PS-077.48 - Distal Lock Screw Drill Sleeve Ø8.2/ Ø4.3mm |
1 |
|
PS-077.49 - Sleeve Pin Ø4.3mm |
1 |
|
PS-077.50 - Drill Bit Ø4.3mm |
3 |
|
PS-077.51 - Limitation Ø4.3/ SW3.0 |
1 |
|
PS-077.52 - Depth Gauge Ø3.2 (343-190) |
1 |
|
PS-077.53 - Screw Driver SW4.0 for Distal Locking Screw |
1 |
|
PS-077.54 - Screw Driver SW8.0 for connect screw |
1 |
|
PS-077.55 - Screw Driver SW4.5 for End Cap |
1 |
|
PS-077.56 - Guide Pin with Hook Ø2.8mm |
1 |
|
PS-077.57 - Clean Guide Pin Ø3.0mm |
1 |
|
PS-077.000 - Empty Container |
1 |
How does the NET TAN Intertrochanteric Instrument Set differ from a standard femoral nail instrument set?
The NET TAN Intertrochanteric Instrument Set is configured specifically for the compatible NET TAN proximal femoral nail workflow. It includes dedicated proximal aiming and jig components for intertrochanteric fixation. The set also includes a T-Type Fracture Alignment Device and dedicated proximal entry instrumentation. Its interchangeable reamer heads provide progressive femoral canal preparation. A general femoral nail set may use different targeting geometry and nail-interface components. The PS-073A configuration therefore maintains dedicated mechanical interfaces for the NET TAN intertrochanteric system.
How are the Ø7.5–13mm reamer heads selected during femoral canal preparation?
The set provides reamer heads from Ø7.5mm through Ø13mm in 0.5mm increments. Smaller diameters support the initial stages of controlled femoral canal enlargement. Larger diameters are selected progressively according to the compatible NET TAN nail diameter and operative technique. The Flexible Reamer Shafts carry the interchangeable heads while the Ball-Tip Reaming Rod maintains the intramedullary guide path. The 12mm cannulated entry instruments are used separately for proximal portal preparation. Final reaming diameter follows the compatible implant system's surgical technique.
What do CE, ISO 13485 and FDA procurement support mean for this set?
The Instruments Set For NET TAN Intertrochanteric is supplied within Peak Surgicals' medical-device quality and procurement framework. CE marking addresses applicable European conformity requirements. ISO 13485 relates to the manufacturer's medical-device quality-management system. FDA-compliant procurement support is relevant to applicable US healthcare purchasing workflows. Hospitals and distributors can use the associated documentation during supplier qualification and purchasing review. Product and regulatory records should be retained according to the requirements of the purchasing institution and destination market.
How do the proximal aiming arm, distal jig and locking bolts function during fixation?
The Proximal Aiming Arm establishes the targeting relationship for compatible proximal locking instrumentation. The Proximal Jig Guide maintains the proximal targeting geometry during drilling. The Distal Jig Guide, Distal Alignment Device, Positioning Block and Distal Aiming Arm establish the distal locking pathway. The 6mm and 8mm Flower-Type Locking Bolts secure the respective targeting assemblies during preparation. Protection sleeves and drill sleeves guide the drills through the controlled soft-tissue corridor. The Depth Gauge then determines compatible locking-screw length before screw insertion.
Is the NET TAN Intertrochanteric Instrument Set suitable for hospital sterilization and procurement?
The Instruments Set For NET TAN Intertrochanteric is configured as reusable orthopedic instrumentation for professional trauma surgery. Components should undergo cleaning, inspection, drying, packaging and validated sterilization according to the healthcare facility's reprocessing protocol and applicable manufacturer instructions. Steam autoclaving is used for compatible reusable stainless steel components under a validated cycle. The Empty Container provides organized storage for the complete PS-073A configuration. The set has an MOQ of one set and is suitable for hospital, trauma-center, orthopedic-clinic and distributor procurement. Its configuration covers entry preparation, reaming, nail insertion, fracture alignment, proximal and distal targeting, locking and extraction for the compatible NET TAN system.
