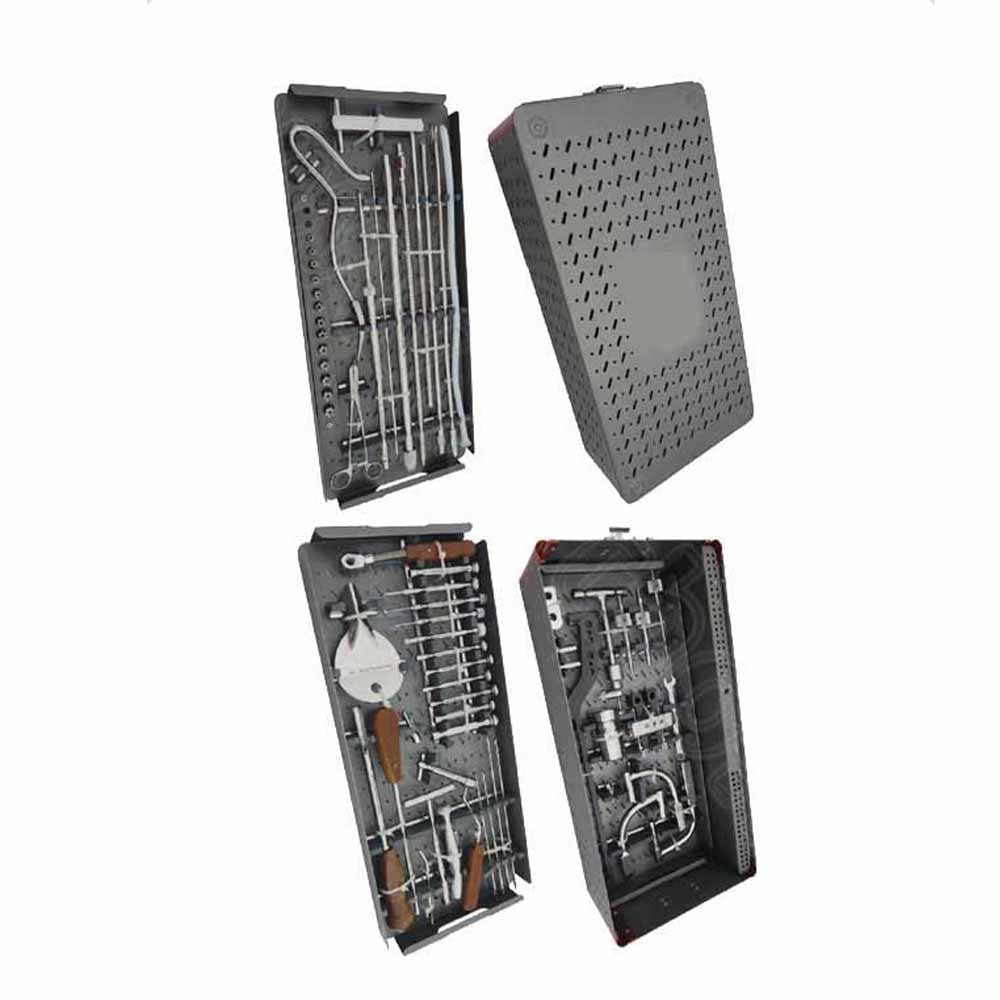

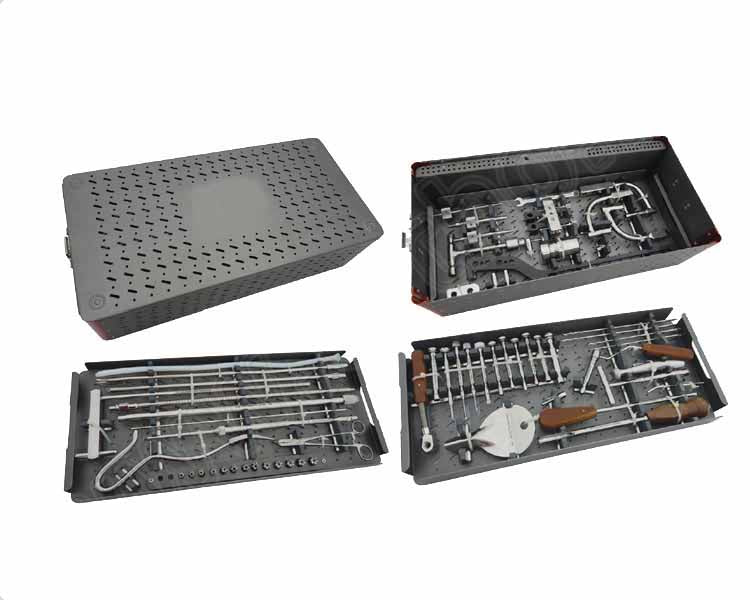

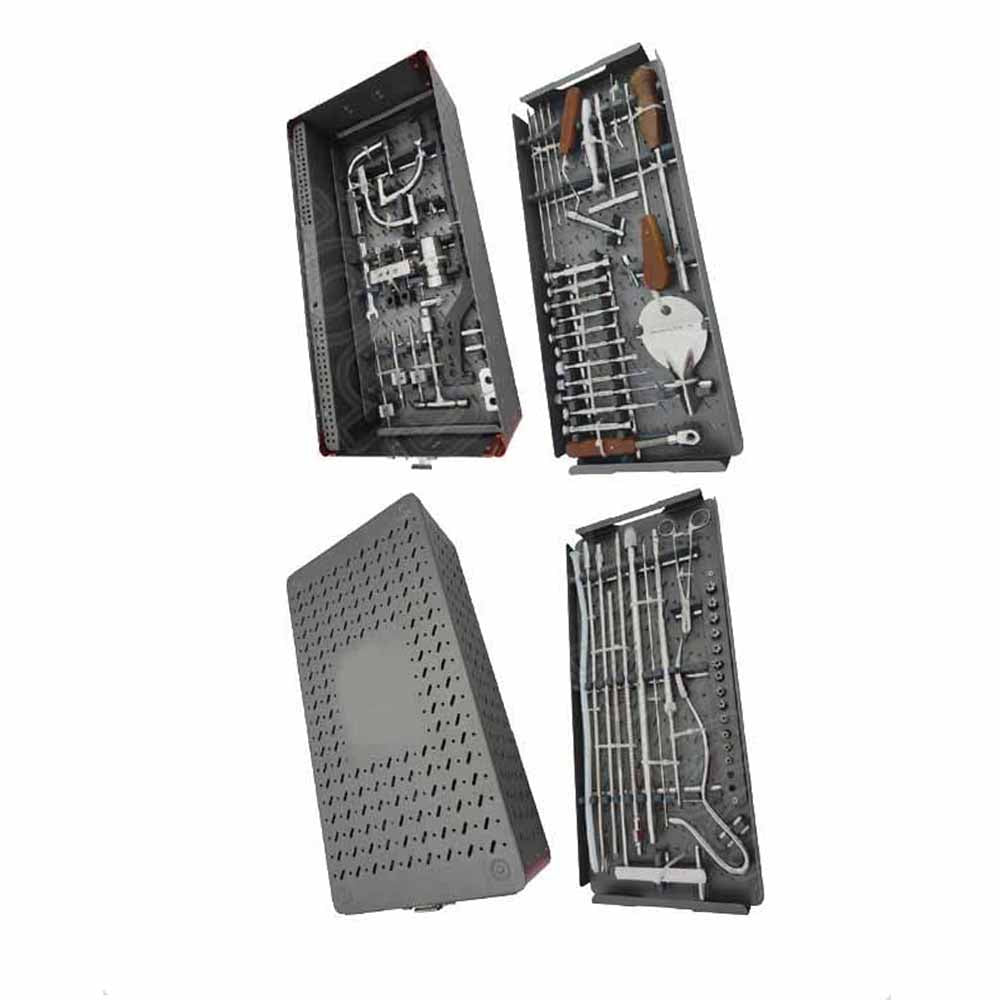

Instruments Set for Easy Universal Nails

502.01 - Diamond Pointed Bone Awl for Femur

1

502.02 - Tissue Protector

1

502.03 - Guide Rod 2.5mm Dia

1

502.04 - Reaming Rod 2.5mm Dia

1

502.05 - Medullary Tube

1

502.06 - T-Wrench 11mm

1

502.07 - Cannulated Guide Rod

1

502.08 - Ram

1

502.09 - Flexible Grip for Cannulated Guide Rod

1

502.10 - Proximal Jig for Femoral Nails (Ø9mm to Ø12mm)

1

502.11 - Proximal Jig for Femoral Nails (Ø13mm to Ø16mm)

1

502.12 - Proximal Jig for Tibial Nails (Ø8mm to Ø12mm)

1

502.13 - Locking Nut for Threaded Conical Bolt for Ø9mm to Ø12mm Femur Nail

1

502.14 - Locking Nut for Threaded Conical Bolt for Ø13mm to Ø16mm Femur Nail

1

502.15 - Locking Nut for Threaded Conical Bolt for Ø8mm to Ø12mm Tibia Nail

1

502.16 - Threaded Conical Bolt for Ø9mm to Ø12mm Femur Nail

1

502.17 - Threaded Conical Bolt for Ø13mm to Ø16mm Femur Nail

1

502.18 - Threaded Conical Bolt for Ø8mm to Ø12mm Tibia Nail

1

502.19 - Pin Wrench

1

502.20 - T-Handle with Chuck & Key

1

507.038 - Flexible Reaming Shaft with Fixed Reamer, SS, Dia. 8mm

1

507.03 - Flexible Reamer Shaft, SS (for Reamer Head 9 to 13mm)

1

507.23 - Flexible Reamer Shaft, SS (for Reamer Head 13.5 to 15mm)

1

510.9 to
510.13 - Medullary Reamer (Reamer Head), SS, Set of 9pcs Sz. 9,9.5,10,10.5,11,11.5,12,12.5 & 13

1 Set

510.135 to
510.15 - Medullary Reamer (Reamer Head), SS, Set of 4pcs 13.5,14,14.5 & 15mm

1 Set

502.21 - Hexagonal Screw Driver 3.5mm Tip (Extra Large)

1

502.22 - Holding Forceps for Reaming Rod

1

502.23 - Depth Gauge, Extra Large

1

502.24 - Spanner 11mm

1

502.25 - Trocar Pin

1

260.325 - Drill Bit SS Quick Coupling End, Ø3.2mm, L 200mm

1

260.501 - Drill Bit 4.0 x 4.5mm Ø Quick Coupling L250mm

1

502.26 - Curved Driving Piece with Head

1

502.27 - Protection Sleeve Ø8.0mm(ID) x Ø11mm(OD)

1

502.28 - Drill Sleeve Ø3.2mm(ID) x Ø8.0mm(OD)

1

502.29 - Drill Sleeve Ø4.5mm(ID) x Ø8.0mm(OD)

1

502.30 - Trocar

1

502.31 - Distal Aiming Device

1

502.32 - Aiming Trocar Sleeve

1

502.33 - Direction Finder

1

502.34 - Fixation Bolt 130mm for Tibial Nail

1

502.35 - Fixation Bolt 150mm for Femoral Nail

1

OPTIONAL INSTRUMENTS FOR UNIVERSAL NAILS (To be Ordered Separately)

502.161 - Distal Jig Bar for Universal Femoral Nail

502.164 - Universal Femoral Nail Handle for Distal Jig

502.167 - Universal Femoral Distal Jig Holding Bolt

502.173 - Distal Jig Bar for Universal Tibial Nail

502.176 - Universal Tibial Nail Handle for Distal Jig

502.179 - Universal Tibial Nail Holding Bolt A

502.182 - Universal Tibial Nail Holding Bolt B

502.185 - Universal Tibial Distal Jig Holding Bolt

502.38 - Cannulated Cutter for Universal Nails

187.40-40 - Steinmann Pin

502.39 - Protection Sleeve for Cannulated Cutter, Length 106mm

UNIVERSAL NAILS DISTAL JIG ASSEMBLY (To be Ordered Separately)

Distal Jig Assembly for Femoral Nail

Distal Jig Assembly for Tibial Nail
