PEAK SURGICAL

Instrument System Kit 3.5mm 4.0mm

Instrument System Kit 3.5mm 4.0mm

PS-VISK-00155

$658.90 USD
$658.90 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Secure Checkout Protected payment flow
Quality Inspected Checked before dispatch
Worldwide Supply International buyer support
Shipping, Returns & Payments Clear buyer information before checkout.
Shipping
Free shipping on orders over $99. See shipping details
Returns
Returns and exchanges are handled according to our return policy. See return policy
Payments
American Express Apple Pay Diners Club Discover Google Pay JCB Mastercard
Return / Exchange Info
View full details

The Instrument System Kit 3.5mm 4.0mm by Peak Surgicals is a veterinary orthopedic instrument system configured for 3.5mm and 4.0mm bone fixation workflows. The kit combines drilling, tapping, depth measurement, plate preparation, fracture reduction, screw handling, and bone exposure instruments in one organized surgical case.

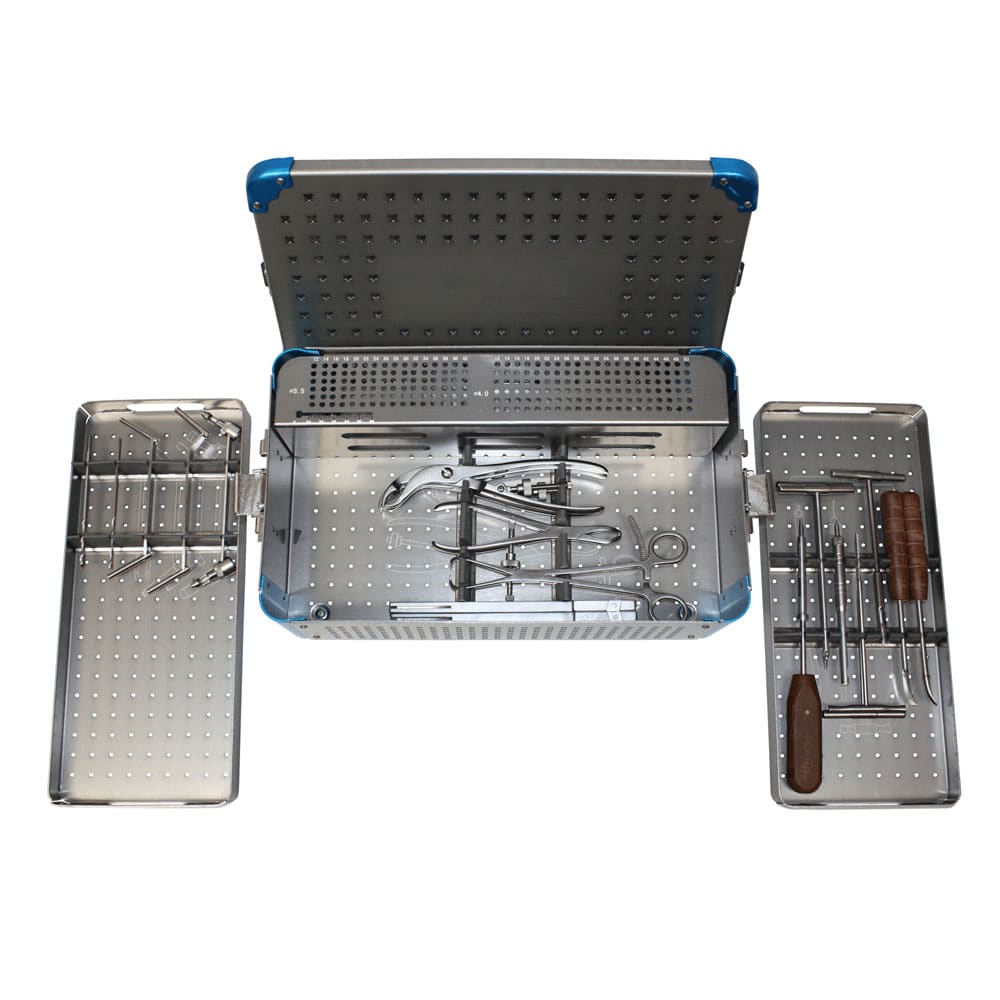

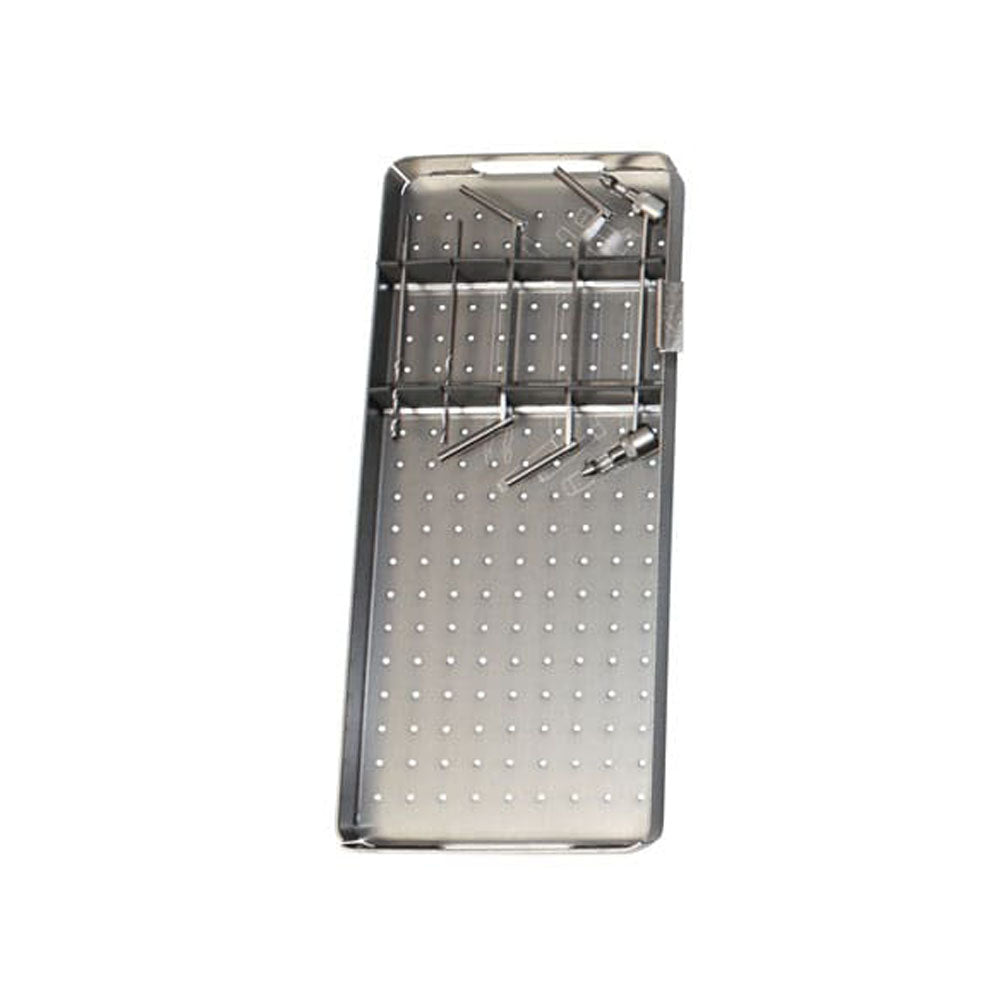

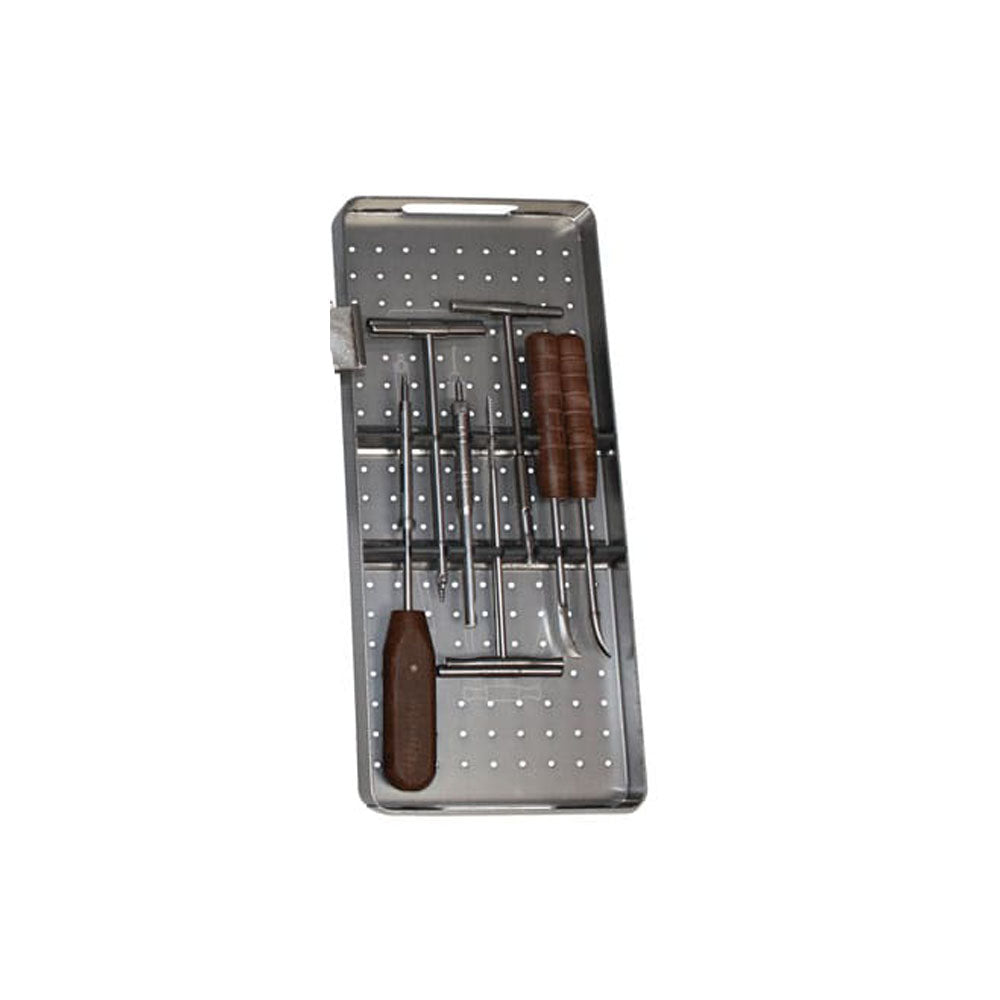

The case measures 15.5" x 9.5" x 4" (L x W x H) and features 3 levels for organized storage of the instruments. The set includes dedicated 2.5mm and 3.2mm drilling components, HA3.5 and HB4.0 taps, drill guides, reduction forceps, periosteal elevators, plate benders, and related fixation instruments.

Instrument System Kit Contents

Instrument Quantity
Drill bit 3.2 2
Drill bit 2.5 2
Neutral Loaded Drill Guide 2.5 HA3.5 1
HA3.5 Tap Sleeve 2.5 Drill Guide 1
HB4.0 Tap Sleeve 3.0 Drill Guide 1
HA3.5 Tap 1
HB4.0 Tap 1
Depth Gauge 1
Hex Head Screw Driver SW2.5 1
Screw Holding Sleeve 1
Plate Benders 1
Periosteal Elevator (Round Head) 1
Periosteal Elevator (Flat Head) 1
Pry Bar 1
Reduction Forceps with point 1
Reduction Forceps 1
Self-centering forceps 2
Countersink Drill 1
Case (screw rack) 3.5/4.0mm 1

Key Features

  • 3.5mm & 4.0mm Veterinary Fixation System: Configured with dedicated instruments for compatible veterinary orthopedic plate-and-screw fixation workflows.
  • Drilling & Guiding Components: Includes 2.5mm and 3.2mm drill bits, a neutral loaded drill guide, and dedicated tap sleeve/drill guide combinations.
  • HA3.5 & HB4.0 Tapping Instruments: Includes dedicated taps and supporting guides for compatible screw preparation.
  • Fracture Reduction: Includes pointed reduction forceps, standard reduction forceps, and two self-centering forceps.
  • Plate & Bone Preparation: Includes plate benders, round-head and flat-head periosteal elevators, pry bar, and countersink drill.
  • Measurement & Screw Handling: Includes a depth gauge, SW2.5 hex-head screwdriver, and screw holding sleeve.
  • Three-Level Storage Case: Supplied in a 15.5" x 9.5" x 4" case with three storage levels and a 3.5/4.0mm screw rack.

Applications

The Instrument System Kit 3.5mm 4.0mm is configured for veterinary orthopedic fixation workflows requiring drilling, tapping, fracture reduction, plate preparation, depth measurement, and screw handling instrumentation.

It is suitable for veterinary hospitals, animal orthopedic practices, surgical clinics, and veterinary procurement professionals sourcing a coordinated 3.5mm/4.0mm orthopedic instrument system.
