Hoffmann External Fixation Small Fragment Set – 79-Piece Carbon Fiber External Fixator System

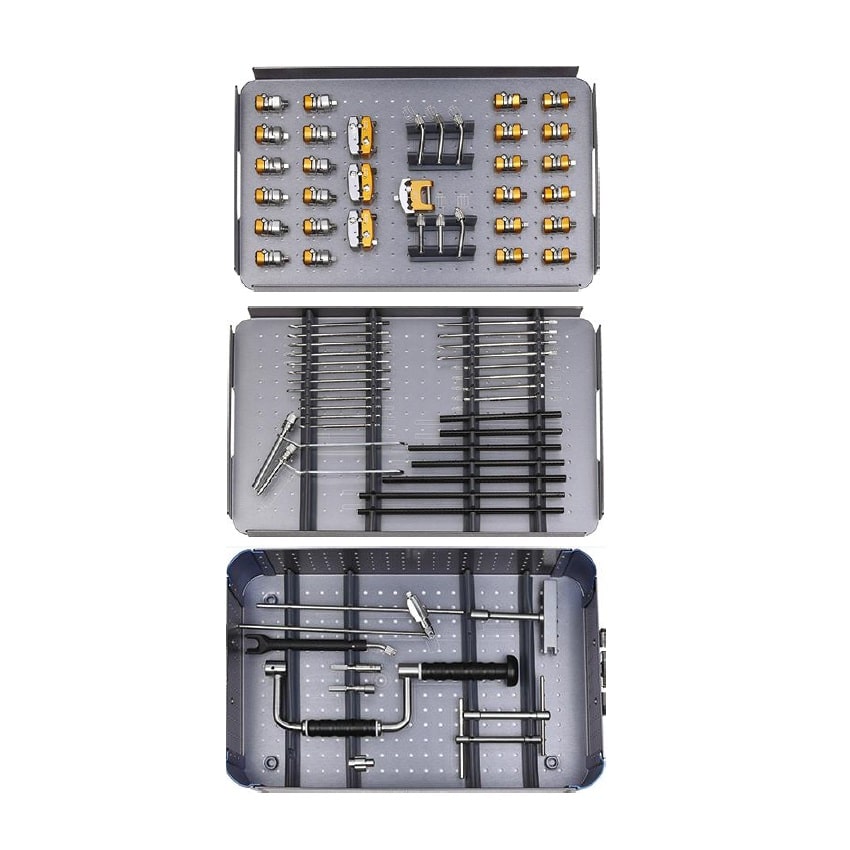

The Hoffmann External Fixation Small Fragment Set from Peak Surgicals is a 79-piece external fixation system in stainless steel components and carbon fiber connecting rods, designed for the construction of unilateral and bilateral external fixator frames for small fragment fractures of the hand, wrist, forearm, ankle, foot, and other small bones requiring external fixation. The set includes 20 Apex self-drilling pins in five diameter-and-length combinations (3mm and 4mm, 80–120mm), 14 carbon fiber connecting rods in four lengths (120–200mm), 12 rod-rod couplings and 12 rod-pin couplings for the 5mm rod architecture, pin clamps including three 4-hole and one single, straight and 30-degree angled posts, and all assembly wrenches, pin chucks, drill sleeves, arc drilling stand, and adjust wheel, supplied in an aluminium box. It is used by orthopedic surgeons, hand surgeons, and trauma surgeons in hospital operating theatres and emergency departments applying external fixation for small fragment open fractures, periarticular fractures, wrist fractures requiring ligamentotaxis, infected fractures, non-unions, and limb length correction in the hand and distal extremities.

Hoffmann External Fixation Principles: Frame Construction and Small Fragment Indications

The Hoffmann external fixation system is a modular unilateral or bilateral external fixator in which half-pins are inserted into the bone segments above and below the fracture zone, and connected via a series of rod-pin couplings, rods, and rod-rod couplings assembled into a stable frame outside the soft tissue envelope. The frame maintains fracture alignment and stability without internal implants passing through the fracture site, making it particularly suited for open fractures with soft tissue contamination, fractures with severe soft tissue injury where internal implant insertion would compromise healing, infected fractures requiring wound access, and periarticular fractures requiring distraction across a joint. The small fragment configuration of this set — with 3mm and 4mm pin diameters matched to the thinner cortical bone of the radius, ulna, metacarpals, metatarsals, fibula, and tibia — makes it the appropriate system for fractures in the distal extremities and hand. The carbon fiber connecting rods are radiolucent, allowing plain radiographic and fluoroscopic assessment of fracture alignment through the frame without metallic rod artefact.

Apex Self-Drilling Pins: Five Configurations from 3×80mm to 4×120mm

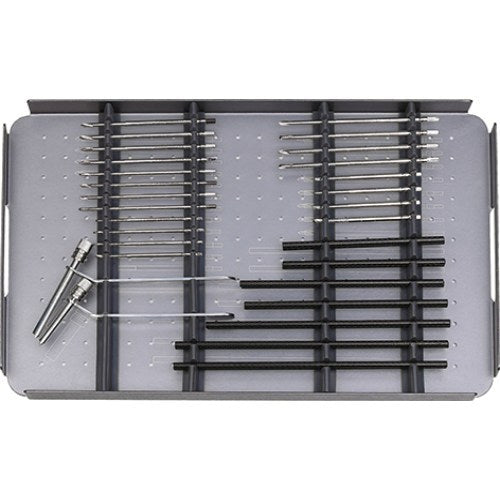

The 20 Apex self-drilling pins in the set cover the full range of pin diameter and insertion depth required for small fragment external fixation. The 3mm diameter pins (3×80mm and 3×100mm, 4 each) are sized for the cortical dimensions of the small bones of the hand — metacarpals, phalanges — and the distal radius in patients where narrow cortices limit the 4mm pin diameter. The 4mm diameter pins (4×80mm, 4×100mm, 4×120mm, 4 each) are suited for the radius, ulna, fibula, metatarsals, calcaneus, and tibia in the distal extremity, where the larger pin diameter provides greater cortical purchase and pullout resistance for the forces transmitted through the external fixator frame. Self-drilling Apex pins do not require a separate pre-drilled pilot hole — the cutting tip engages the cortex and advances through the bone with controlled rotational force from the T-shaped Pin Wrench or Apex Pin Chuck — minimising operative time and reducing thermal necrosis risk at the pin-bone interface compared to self-tapping pins inserted into pre-drilled holes. The Drill Sleeves 3mm and 4mm protect soft tissue during pin insertion when the chuck is used with a power drill rather than manual insertion.

Connecting Rods and Coupling System: 5mm Carbon Fiber Rods in Four Lengths

The 14 carbon fiber connecting rods provide the longitudinal structural elements of the external fixator frame. Rod lengths — 120mm (×4), 150mm (×4), 180mm (×2), and 200mm (×4) — cover the range of pin-to-pin distances encountered in small fragment external fixation from single-level finger or metacarpal fixation (requiring shorter rods) to wrist-spanning or forearm fixation (requiring 150–200mm rods). Carbon fiber provides a stiffness and strength profile suited to small fragment fixation while remaining radiolucent for postoperative radiographic assessment of pin position and fracture alignment. The 12 Rod-Pin Couplings connect the 5mm rod to each 3mm or 4mm pin using a sliding clamp that locks at any position along both the rod and the pin, allowing three-dimensional adjustment of pin position relative to the rod without relocating the pin in the bone. The 12 Rod-Rod Couplings connect two 5mm rods to each other, enabling double-bar or crossbar frame configurations that increase construct stiffness or allow bilateral fixation when required. The Elbow Joint (5mm) provides an angular connection between two rod segments where a straight rod cannot maintain the required frame geometry.

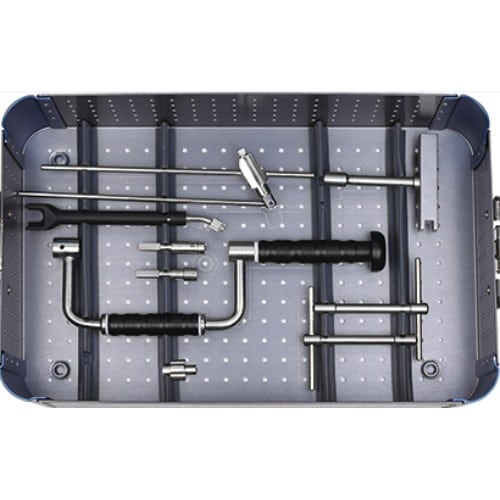

Frame Assembly Instruments: Clamps, Posts, Wrenches, and Arc Drilling Stand

The 4-Hole Pin Clamps (×3) allow four pins to be connected to a single rod position, enabling clustered pin configurations for enhanced fixation in soft cancellous bone. The single Pin Clamp provides single-pin-to-rod attachment at any frame position. The Straight Posts (×2) and 30-Degree Angled Posts (×4) extend the rod assembly away from the skin surface to accommodate swollen soft tissue envelopes in acute injury cases and to maintain the required frame offset above the wound. The T-shaped Clamp Wrench 5# tightens the rod-rod and rod-pin coupling mechanisms to the required locking torque. The Reduction Wrench applies controlled reduction force to the frame before coupling lock-down, allowing fracture reduction through the external fixator after pin insertion. The Apex Pin Chucks 3mm and 4mm engage the Apex pin hex drive for manual or power-assisted pin insertion. The T-shaped Pin Wrenches 3mm and 4mm provide the manual insertion torque for pin placement without a power drill. The Arc Drilling Stand provides a guided angle template for pin insertion at defined angles to the bone axis when consistent bilateral or convergent pin configurations are required. The Adjust Wheel provides fine rotational adjustment of coupling positions during frame assembly.

CE Mark, ISO 13485, and FDA Certification for External Fixation Procurement

The Hoffmann External Fixation Small Fragment Set is manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and production consistency for orthopedic implants and surgical instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US-based hospitals, trauma centers, and orthopedic departments requiring verified regulatory documentation for external fixation system purchases.

Product Specifications

Frequently Asked Questions

What fractures and clinical scenarios is the Hoffmann small fragment external fixation set used for?
The Hoffmann External Fixation Small Fragment Set is used for fractures and clinical scenarios where external fixation of the small bones of the hand, wrist, and distal extremity is indicated. Primary indications include open fractures of the radius and ulna with contaminated wounds where internal fixation would be unsafe; periarticular distal radius fractures requiring distraction across the radiocarpal joint (ligamentotaxis) to maintain articular reduction; metacarpal and phalangeal fractures with severe soft tissue injury; infected non-unions requiring stability without internal implant in the infected zone; and selected cases of wrist or finger joint fusion where external fixation provides the required immobilisation. The 3mm and 4mm pin sizes in this set match the cortical dimensions of the metacarpals, phalanges, radius, ulna, and fibula — distinguishing this small fragment set from larger-fragment external fixation systems that use 5–6mm pins for the femur and tibia.

What is the advantage of carbon fiber connecting rods over stainless steel rods in external fixation?
Carbon fiber connecting rods are radiolucent — they do not appear on plain radiographs or fluoroscopy images — while stainless steel rods produce a dense metallic artefact that can obscure the fracture site, pin-bone interfaces, and callus formation beneath the rod on postoperative imaging. Using carbon fiber rods in the Hoffmann frame allows the surgeon and radiologist to assess pin position, fracture alignment, and healing progress on all postoperative radiographs through the frame without removing or repositioning the external fixator. This is particularly important in small fragment external fixation of the wrist and hand, where the fracture anatomy is small, the pin-to-rod clearance above the bone surface is limited, and postoperative radiographic monitoring of fracture reduction and healing is essential throughout the fixation period.

What is the difference between 3mm and 4mm Apex pins and when is each used?
The 3mm Apex self-drilling pins are designed for the thinner cortex of the small bones of the hand — metacarpals, proximal and middle phalanges — and the narrow radius and ulna in smaller patients, where the 4mm pin diameter would occupy an excessive proportion of the medullary canal and risk cortical splitting. The 4mm Apex pins are used in the radius, ulna, fibula, metatarsals, and calcaneus in standard adult anatomy, where the larger pin diameter provides greater bicortical engagement and pullout resistance. Both 3mm and 4mm pins in the set are self-drilling — the cutting tip is designed to penetrate the cortex without a separate pilot hole — but the drill sleeves (3mm and 4mm) should be used to protect the soft tissue during pin insertion regardless of insertion technique.

How are the rod-pin and rod-rod couplings adjusted intraoperatively?
The rod-pin couplings (×12) are sliding clamps that are placed onto the rod before it is connected to the pin, allowing the position of the coupling along the rod to be adjusted after the pins are in the bone — the coupling slides to the correct rod position to align with the pin without requiring any repositioning of the pins in the bone. The coupling is then tightened with the T-shaped Clamp Wrench 5#. The rod-rod couplings (×12) similarly allow two rods to be connected at any relative angle and any position along each rod before locking. This modular coupling architecture allows the surgeon to assemble the frame after all pins are inserted, adjusting rod position and frame geometry to match the fracture anatomy and soft tissue configuration, rather than requiring a predefined frame geometry before pin insertion.

What certifications does this set carry?
The Hoffmann External Fixation Small Fragment Set is manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and manufacturing consistency for orthopedic implants and instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US hospitals, trauma centers, and orthopedic departments requiring verified regulatory documentation for external fixation system purchases.

Can individual components be ordered as replacements?
Individual components — Apex pins by size (3×80, 3×100, 4×80, 4×100, 4×120mm), carbon fiber connecting rods by length, rod-pin couplings, rod-rod couplings, and pin clamps — are available from Peak Surgicals as replacement items. OEM manufacturing and custom set configurations are available for hospital procurement departments and orthopedic distributors requiring modified pin size ranges, extended rod length options, or custom packaging formats. Contact Peak Surgicals directly for replacement component pricing, OEM specifications, or institutional procurement arrangements.
