Hoffmann External Fixation Set – 72-Piece Large Fragment 8mm Carbon Fiber External Fixator

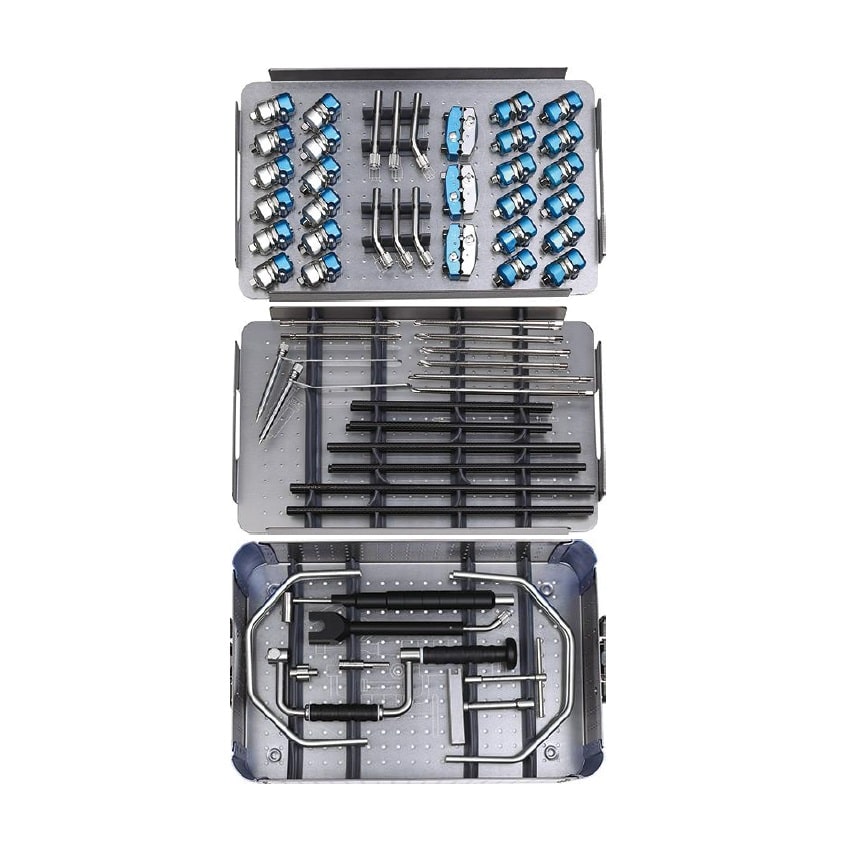

The Hoffmann External Fixation Set from Peak Surgicals (SKU: PS-HEFLFS-00134) is a 72-piece Hoffmann-type large fragment external fixation system with 8mm carbon fiber connecting rods, designed for the construction of unilateral and bilateral external fixator frames for tibial shaft fractures, humeral shaft fractures, and other medium-to-large bone fixation requiring the intermediate stiffness of the 8mm rod architecture. The set includes 16 Apex self-drilling pins in three lengths (5×120mm, 5×150mm, 5×180mm), 12 carbon fiber connecting rods in 8mm diameter across three straight lengths (200mm, 250mm, 300mm) plus two Semi-Circular Rods (8×180mm and 8×200mm) for curved-frame configurations, 12 Rod-Pin Couplings (5/6mm pin, 8mm rod), 12 Rod-Rod Couplings (8mm rod), three 5-Hole Pin Clamps, four Straight Posts and two 30-Degree Angled Posts, and all assembly instruments including a Reduction Wrench, Wrench with Extension Bar, Adjust Wheel, Apex Pin Chuck, Arc Drilling Stand, T-shaped Clamp Wrench 7#, T-shaped Pin Wrench 5mm, and two Drill Sleeves, all in an aluminium box. It is used by orthopedic and trauma surgeons in hospital operating theatres and emergency departments applying external fixation for tibial shaft fractures, humeral fractures, and periarticular fractures of the ankle, knee, and elbow requiring 8mm rod stiffness with 5mm or 6mm self-drilling pin fixation.

8mm Rod Architecture and Large Fragment Clinical Indications

The Hoffmann External Fixation Set uses an 8mm carbon fiber rod — the intermediate rod diameter in the Peak Surgicals external fixation range, between the 5mm rods of the small fragment Hoffmann Small Fragment Set and the 11mm rods of the ExFix Set-II. The 8mm rod is the standard choice for tibial shaft external fixation in adult patients, where the tibial cortex generates moderate bending loads on the fixator frame that are adequately resisted by the 8mm diameter without the additional bulk and weight of an 11mm system. Compared to the small fragment 5mm rod system, the 8mm rods provide significantly greater bending stiffness for diaphyseal fractures of the tibia, humerus, and fibula where the deforming muscle forces exceed the 5mm rod's resistance. The 5mm Apex self-drilling pins in this set are matched to the 8mm rod coupling geometry and provide the intermediate pin diameter suited to tibial and humeral diaphyseal fixation where 3–4mm pins (used in small fragment fixation) are too small for adequate cortical purchase, and 6mm pins (used in large fragment femoral fixation) are unnecessary for the smaller tibial cortex.

Apex Self-Drilling Pins: Three Lengths from 5×120mm to 5×180mm

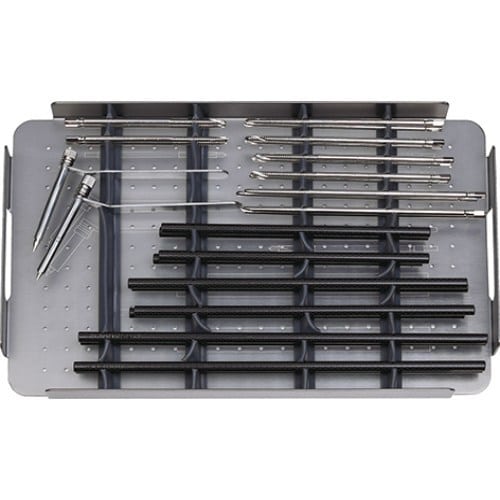

The 16 Apex self-drilling pins in three length configurations address the range of tibial and humeral cortex depths encountered in adult external fixation. The 5×120mm pins (×4) are suited for the distal tibia, distal humerus, and smaller adult tibial shaft cortex where the bicortical passage depth is shorter. The 5×150mm pins (×8, the largest quantity in the set) are the standard-length pins for mid-tibial and mid-humeral diaphyseal fixation in the majority of adult patients — this 8-pin inventory supports two proximal pin clusters and two distal pin clusters in bilateral constructs or complex multi-pin unilateral frames. The 5×180mm pins (×4) address larger limb segments where greater depth of pin penetration is required, such as the proximal tibial metaphysis in large adults or the tibial diaphysis in patients where additional pin depth provides greater pull-out resistance for anticipated high-load use. All Apex pins are self-drilling — the cutting tip penetrates the cortex without a separate pre-drilled pilot hole using the T-shaped Pin Wrench 5mm or Apex Pin Chuck with power drill, eliminating the thermal necrosis risk of high-speed power drilling without pre-cooling.

Coupling System: 12 Rod-Pin and 12 Rod-Rod Couplings for 8mm Frames

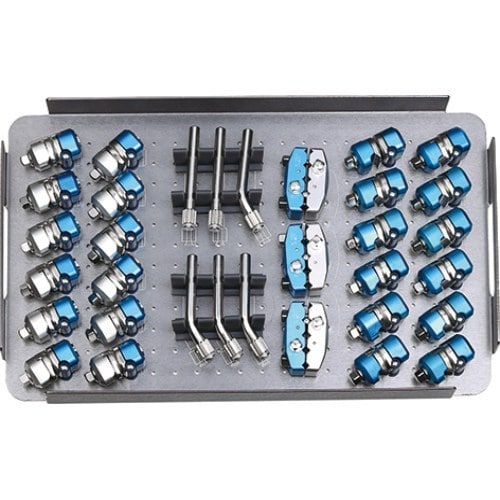

The coupling inventory supports both standard unilateral and complex bilateral frame configurations. The 12 Rod-Pin Couplings (5/6mm pin, 8mm rod) accept either 5mm or 6mm diameter pins into the 8mm rod at any position along the rod and any rotational angle, allowing the frame geometry to be optimised after all pins are in the bone. The 12 Rod-Rod Couplings (8mm rod) connect two 8mm rods at any relative angle and position along each rod — the 12-coupling count (three times the quantity in the Hoffmann Small Fragment Set) supports complex multi-rod configurations including double-bar tibial frames for maximum stiffness, bilateral tibial fixation with a transverse connecting rod, and ankle-spanning or knee-spanning frames where additional rod segments are required to bridge the joint. The three 5-Hole Pin Clamps (5/6mm pin) allow five pins to be attached to a single rod position — more pin attachment points per clamp than the standard single or 4-hole clamps, suited to dense pin clustering in the metaphysis where multiple short pins provide better purchase in cancellous bone than fewer long pins.

Semi-Circular Rods, Posts, and Assembly Instruments

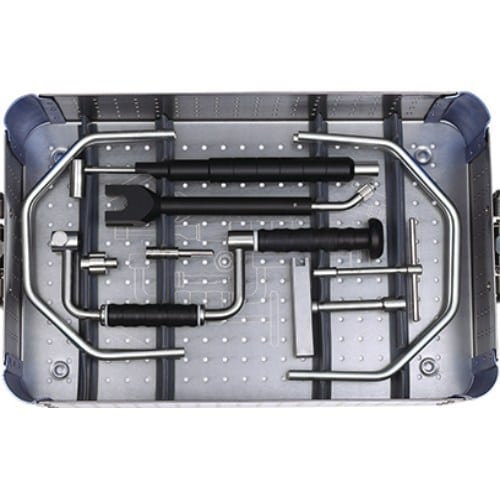

The two Semi-Circular Rods — 8×180mm and 8×200mm — are a unique feature of this set absent from the linear ExFix sets in the Peak Surgicals range. Semi-circular rods create curved frame arches over the dorsum of the foot, the elbow, or the knee, allowing the external fixator frame to bridge the soft tissue over bony prominences or joint regions without the rod pressing directly against skin. In ankle-spanning tibial fixation, a semi-circular rod arched over the dorsal foot connects the tibial frame rods to metatarsal or calcaneal pins with clearance over the skin and tendons of the dorsal foot. In elbow-spanning humeral fixation, a semi-circular rod over the olecranon connects the humeral and forearm frame components without skin pressure over the elbow. The four Straight Posts and two 30-Degree Angled Posts provide frame offset from the skin surface and angular connection between rod segments. The Reduction Wrench applies controlled reduction force to the frame before coupling lock-down. The Wrench with Extension Bar accesses coupling locking nuts in deep or awkward frame positions. The Arc Drilling Stand provides guided pin insertion angle control for consistent bilateral or convergent pin configurations. The Adjust Wheel provides fine position adjustment of coupling nodes during frame assembly.

CE Mark, ISO 13485, and FDA Certification for External Fixation Procurement

The Hoffmann External Fixation Set is manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and production consistency for orthopedic implants and surgical instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US-based hospitals, trauma centers, and orthopedic departments requiring verified regulatory documentation for large fragment external fixation system purchases.

Product Specifications

Frequently Asked Questions

What fractures and clinical scenarios is the Hoffmann External Fixation Set used for?
The Hoffmann External Fixation Set (large fragment, 8mm rod) is used for external fixation of medium-to-large bone fractures where 8mm rod stiffness and 5mm self-drilling pins are appropriate. Primary indications include open tibial shaft fractures (Gustilo type I, II, and selected IIIA) where the soft tissue injury requires external fixation before definitive intramedullary nailing; tibial shaft fractures in damage control situations before the patient is stable for definitive fixation; humeral shaft fractures where external fixation is preferred over intramedullary nailing or plating due to open wounds or nerve involvement; ankle-spanning fixation for pilon fractures and open distal tibial fractures where the semi-circular rod configuration allows joint-bridging with skin clearance; and periarticular fractures of the knee or elbow requiring temporary spanning fixation. The 8mm rod is the standard for tibial external fixation in most adult trauma centres.

How does this set differ from the Hoffmann External Fixation Small Fragment Set also available from Peak Surgicals?
Both are Hoffmann-type external fixation systems with carbon fiber rods and Apex self-drilling pins, but they are configured for different bone sizes and load levels. The Hoffmann External Fixation Small Fragment Set (79 pieces, $1,650.00) uses 3mm and 4mm Apex pins and a 5mm rod architecture for the small bones of the hand, wrist, and distal extremity. This Hoffmann External Fixation Set (72 pieces, $1,759.99, SKU PS-HEFLFS-00134) uses 5mm Apex pins in three lengths (120–180mm) and an 8mm rod architecture for the tibia, humerus, and medium large bone fractures. The 8mm rods provide greater bending stiffness than the 5mm small fragment rods, and the 5mm pins provide greater cortical purchase than the 3–4mm small fragment pins. Additionally, this large fragment set includes Semi-Circular Rods (8×180mm and 8×200mm) for joint-bridging configurations, which are not present in the small fragment set.

What are the Semi-Circular Rods used for?
The two Semi-Circular Rods (8×180mm and 8×200mm) create curved frame arches that bridge over joints or bony prominences within the external fixator construct without the rod pressing against the overlying skin. The primary application is ankle-spanning tibial fixation — in distal tibial pilon fractures, calcaneal fractures, and open distal tibial injuries, the semi-circular rod arches over the dorsal surface of the foot, connecting the tibial frame rods to metatarsal or calcaneal pins while maintaining skin clearance above the dorsal tendons and skin. The two rod lengths (180mm and 200mm) accommodate different arch radii required for smaller and larger foot dimensions. A second application is elbow-spanning fixation, where the semi-circular rod arches over the posterior elbow, connecting humeral and forearm frame components while clearing the olecranon and triceps tendon.

What is the 5-Hole Pin Clamp and when is it used?
The 5-Hole Pin Clamp (×3 in this set) is a coupling element that attaches up to five pins to a single rod position, rather than a single pin per rod-pin coupling. In external fixation of metaphyseal fracture zones — the distal tibia in pilon fractures, the proximal tibia in tibial plateau fractures, or the distal humeral metaphysis — the available pin insertion zone is often short and the bone is predominantly cancellous. Using multiple shorter pins in a cluster provides greater total bone purchase than a single longer pin in soft cancellous bone, as the sum of multiple pin-cortex interfaces resists pullout more effectively than a single interface. The 5-hole geometry allows up to five pins from the proximal or distal pin cluster to be secured to a single rod attachment point, maintaining a compact frame profile at the metaphyseal level.

What certifications does this set carry?
The Hoffmann External Fixation Set is manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and manufacturing consistency for orthopedic implants and instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US hospitals, trauma centers, and orthopedic departments requiring verified regulatory documentation for external fixation system purchases.
