PEAK SURGICAL
SKU:PS-PSI-00127
Couldn't load pickup availability
The Femoral Reconstruction Intramedullary Nail Instrument Set from Peak Surgicals (SKU: PS-PSI-00127) is a 54-piece orthopedic instrumentation system arranged for femoral reconstruction nailing workflows. The set combines instruments for guide-pin management, canal preparation, proximal and distal targeting, drilling, depth measurement, locking, nail connection, positioning, and removal support. It is supplied in an aluminum box with organized instrument trays to assist surgical departments with preparation, inventory control, and post-procedure instrument checks. The listed configuration contains instrumentation only; the intramedullary nail, locking screws, and other implants are not identified as included and should be confirmed separately before purchase.
The system includes dedicated locking pipes, drills, depth gauges, guide pins, spanners, positioning components, connecting instruments, and extraction-support tools. These components are organized to support the principal instrumentation stages associated with a compatible femoral reconstruction intramedullary nail system.
Instruments for proximal and femoral-neck preparation include Ø6.4 mm drills, Ø2.5 × 320 mm guide pins, a femoral-neck guide drill set, an awl, handles, and proximal enlargement components. The locking group includes Ø4.3 mm drills, a locking-hole depth gauge, limiting devices, and corresponding spanners.
The configuration also contains flexible reamer components in diameters from Ø8.5 mm to Ø13 mm, proximal and distal guide rods, a distal positioning frame, positioning drills, connecting screws, locking wheels, and a main nail-pulling connecting rod. Each listed component has a quantity of one.
The proximal guide components support alignment and preparation around the proximal femur and femoral-neck region. The distal guide rod, positioning frame, positioning pipe, drill components, and locking accessories form the distal targeting group. Compatibility between these instruments and the intended intramedullary nail system must be confirmed before purchase and clinical use.
The reamer shaft and graduated reamer heads provide a defined diameter range for canal-preparation workflow. Guide-pin instruments support instrument alignment, while depth gauges and limiting devices provide measurement and depth-control functions according to the compatible system’s operative technique.
The included connecting screw, handle wheel, spanners, pulling device, and main nail-pulling connecting rod support instrument assembly, connection, adjustment, and extraction-related workflow. Selection and use of each component must follow the operative technique and instructions supplied with the compatible nail system.

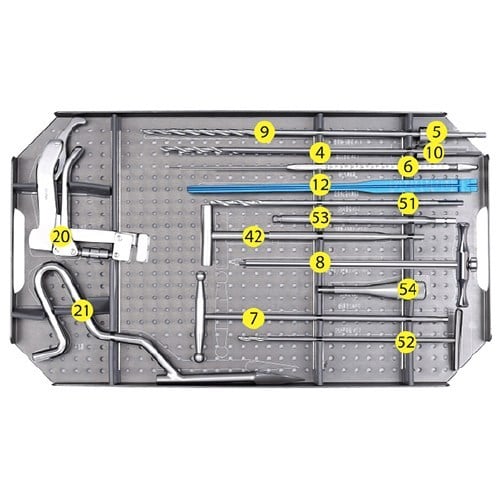

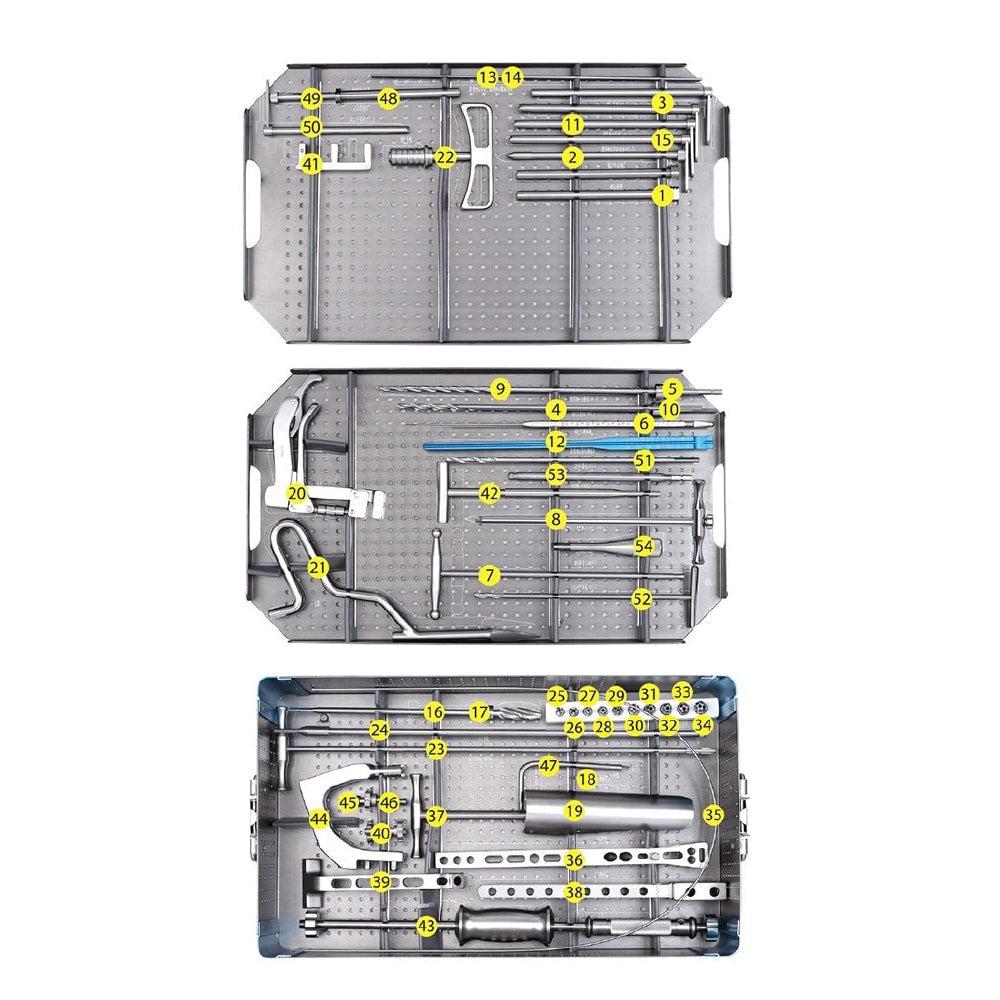

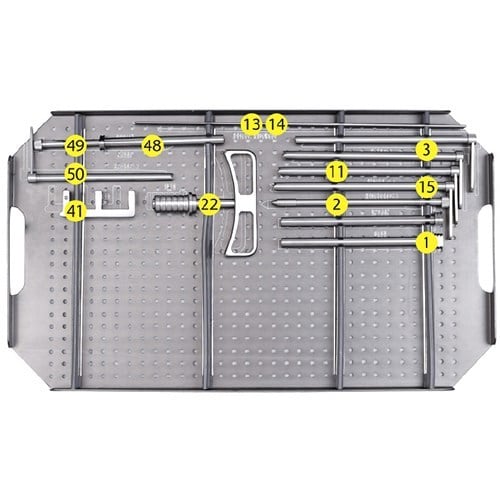

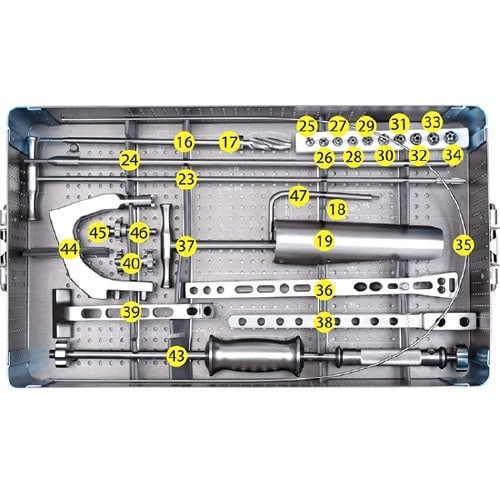

The instruments are displayed across organized trays with numbered locations corresponding to the component list. This layout helps operating-room and central sterile services personnel identify missing components during preparation, return, and inventory inspection.
The aluminum box provides consolidated storage for the complete configuration. Buyers should confirm the supplied box and tray arrangement, instrument markings, component count, and any required sterilization-container specifications before placing a purchase order.
The set is manufactured primarily from German-forged stainless steel, with an aluminum storage box and organized trays. Stainless steel provides the strength and corrosion resistance expected from reusable orthopedic instrumentation when the instruments are correctly handled, cleaned, inspected, and processed.
After use, all working ends, cannulated areas, joints, drill surfaces, guide components, connecting interfaces, and reamer parts should be inspected and processed according to the applicable product instructions and the facility’s validated reprocessing protocol. No specific sterilization cycle should be assumed without the relevant instructions for use.
Before ordering, hospitals, orthopedic departments, distributors, and procurement teams should confirm implant-system compatibility, component references, supplied quantities, sterility status, reprocessing documentation, and regulatory documents applicable to the destination market.
| Specification | Details |
|---|---|
| SKU | PS-PSI-00127 |
| Product Name | Femoral Reconstruction Intramedullary Nail Instrument Set |
| Current Price | $2,088.90 USD |
| Set Configuration | 54 instruments, one of each listed component |
| Instrument Category | Orthopedic Intramedullary Nail Instrument Set |
| Primary Application | Instrumentation for compatible femoral reconstruction intramedullary nailing systems |
| Instrument Groups | Guide pins, drills, depth gauges, reamers, positioning tools, locking instruments, connecting tools, and removal-support components |
| Material | Primarily German-forged stainless steel instruments with aluminum storage box |
| Storage | Organized aluminum box with instrument trays |
| Implants Included | Intramedullary nail and locking implants are not listed as included |
| Compatibility | Must be confirmed against the intended femoral reconstruction nail system |
| Sterility | Supply condition is not specified and must be confirmed before use |
| Intended User | Trained orthopedic surgeons and authorized surgical personnel |
| Quality Documentation | ISO 13485, CE, and applicable FDA compliance documentation available for procurement review |
| Item | Instrument | Quantity |
|---|---|---|
| 1 | Locking Pipe | 1 |
| 2 | Long Soft Tissue Separating Device | 1 |
| 3 | Locking Drill, Ø4.3 mm | 1 |
| 4 | Locking Nail Bone Drill, Ø4.3 mm | 1 |
| 5 | Limit Device, Ø4.3 mm | 1 |
| 6 | Locking-Hole Depth Gauge | 1 |
| 7 | Locking Spanner, SW4.0 | 1 |
| 8 | Femoral Neck Nail and Tail Spanner, SW5/M3.5 | 1 |
| 9 | Femoral Neck Nail Drill, Ø6.4 mm | 1 |
| 10 | Limit Device, Ø6.4 mm | 1 |
| 11 | Femoral Neck Nail Drill, Ø6.4 mm | 1 |
| 12 | Femoral Neck Guide Depth Gauge, Ø2.5 × 320 mm | 1 |
| 13 | Femoral Neck Screw Guide Pin, Ø2.5 × 320 mm | 1 |
| 14 | Femoral Neck Guide Pin, Ø2.5 × 320 mm | 1 |
| 15 | Femoral Neck Guide Drill Set, Ø2.5 mm | 1 |
| 16 | Proximal Enlargement Instrument | 1 |
| 17 | Proximal Hard Enlargement Limit Device | 1 |
| 18 | Limit Spanner, SW3 | 1 |
| 19 | Skin Protection Board | 1 |
| 20 | Guide Pin Device | 1 |
| 21 | Awl | 1 |
| 22 | Handle | 1 |
| 23 | Reduction Rod with Guide Pin | 1 |
| 24 | Flexible Reamer Shaft, Ø2.5/Ø8 mm | 1 |
| 25 | Flexible Reamer Head, Ø8.5 mm | 1 |
| 26 | Flexible Reamer Head, Ø9 mm | 1 |
| 27 | Flexible Reamer Head, Ø9.5 mm | 1 |
| 28 | Flexible Reamer Head, Ø10 mm | 1 |
| 29 | Flexible Reamer Head, Ø10.5 mm | 1 |
| 30 | Flexible Reamer Head, Ø11 mm | 1 |
| 31 | Flexible Reamer Head, Ø11.5 mm | 1 |
| 32 | Flexible Reamer Head, Ø12 mm | 1 |
| 33 | Flexible Reamer Head, Ø12.5 mm | 1 |
| 34 | Flexible Reamer Head, Ø13 mm | 1 |
| 35 | Ball-Head Guide Pin, Ø2.5/Ø4 mm | 1 |
| 36 | Proximal Guide Rod | 1 |
| 37 | Connecting Screw Spanner, SW6.5 | 1 |
| 38 | Distal Guide Rod | 1 |
| 39 | Distal Positioning Frame | 1 |
| 40 | Connecting Guide Pin Locking Wheel | 1 |
| 41 | Positioning Card | 1 |
| 42 | Positioning Rod | 1 |
| 43 | Pulling Device | 1 |
| 44 | Handle | 1 |
| 45 | Connecting Screw | 1 |
| 46 | Connecting Handle Wheel | 1 |
| 47 | Locking-Wheel Spanner, SW5 | 1 |
| 48 | Positioning Pipe | 1 |
| 49 | Short Soft Tissue Separating Device | 1 |
| 50 | Positioning Drill Set, Ø5.2 mm | 1 |
| 51 | Positioning Bone Drill, Ø5.2 mm | 1 |
| 52 | Positioning Flat Drill, Ø5.2 mm | 1 |
| 53 | Universal Connecting Screw Spanner, SW6.5 | 1 |
| 54 | Main Nail-Pulling Connecting Rod | 1 |
It provides specialized instrumentation for preparation, targeting, drilling, locking, connection, and removal-support functions associated with a compatible femoral reconstruction intramedullary nail system. It is intended for trained orthopedic professionals.
The current product configuration lists instruments but does not identify an intramedullary nail, locking screws, or other implants as included. Required implants should be selected and ordered separately after system compatibility is confirmed.
The listed configuration includes reamer heads from Ø8.5 mm to Ø13 mm in 0.5 mm increments, together with a corresponding flexible reamer shaft. Buyers should verify the couplings and dimensions against the intended system.
Procurement teams should confirm the compatible nail system, instrument interfaces, drill and guide-pin dimensions, complete 54-piece configuration, tray arrangement, sterility status, reprocessing instructions, regulatory documentation, and replacement-component availability.
The instruments should be cleaned, inspected, packaged, and sterilized according to the supplied instructions for use and the facility’s validated protocol. Cannulated instruments, joints, cutting surfaces, reamers, drills, and connecting interfaces require particular inspection. Sterilization parameters should not be assumed without the applicable documentation.
Procurement note: Request the latest configuration sheet, compatibility confirmation, reprocessing instructions, and market-specific regulatory documents from Peak Surgicals before placing an institutional or distributor order.
