Echlin Rongeur Forceps for 2mm and 3mm Bone Cutting

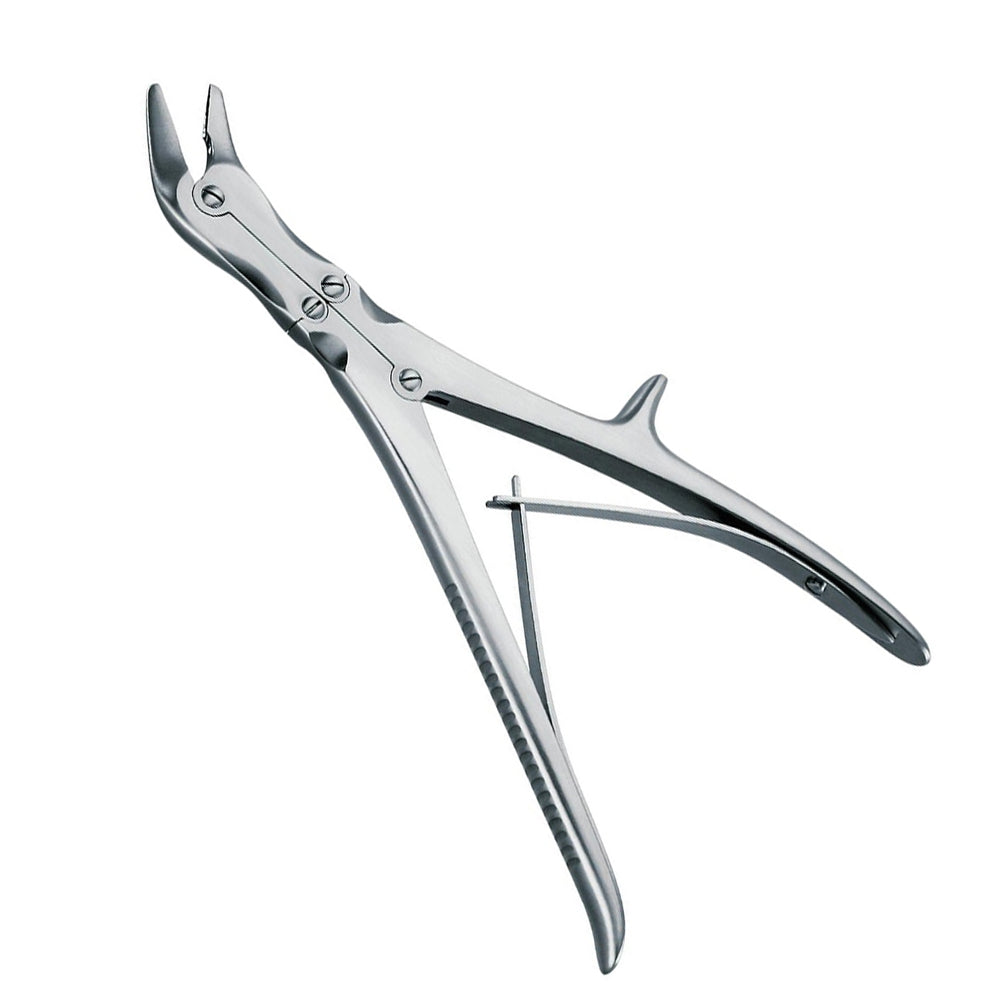

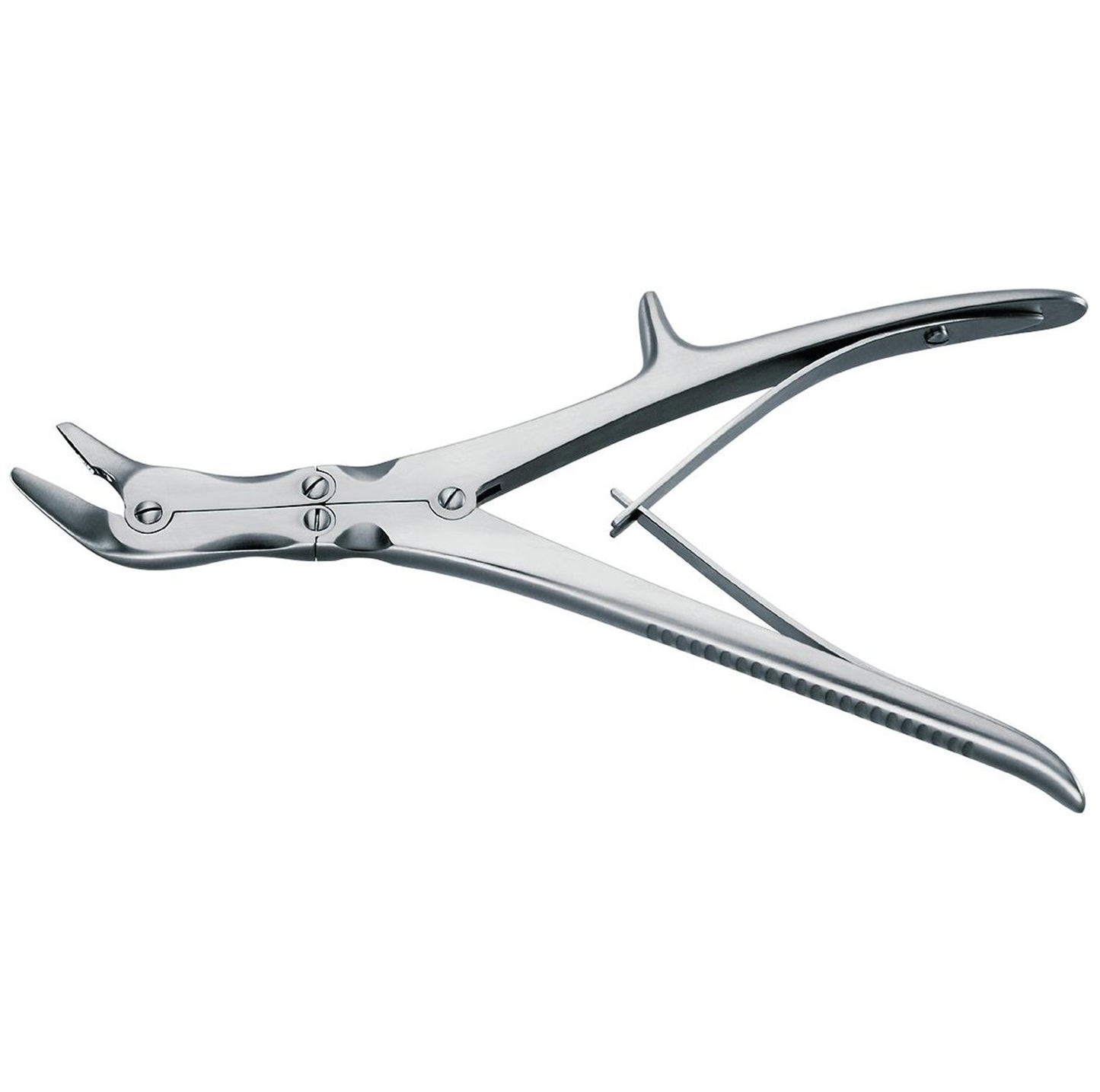

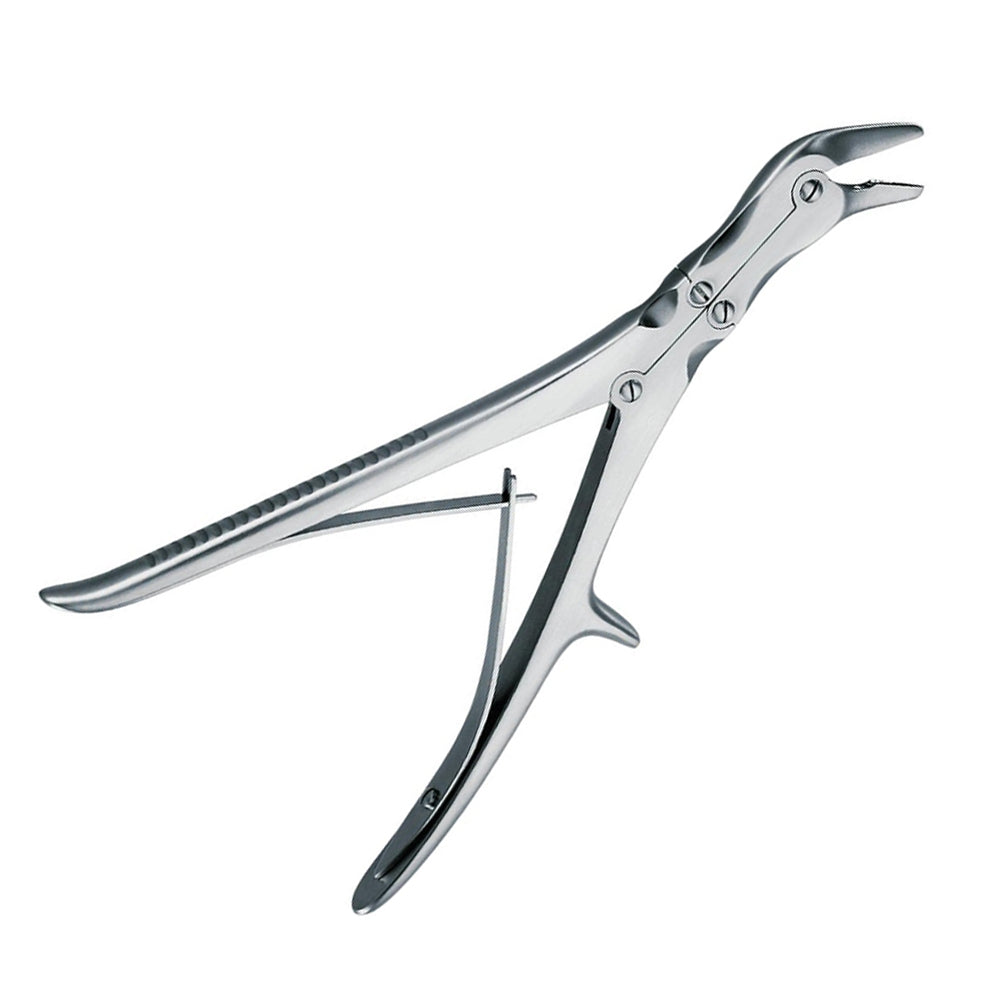

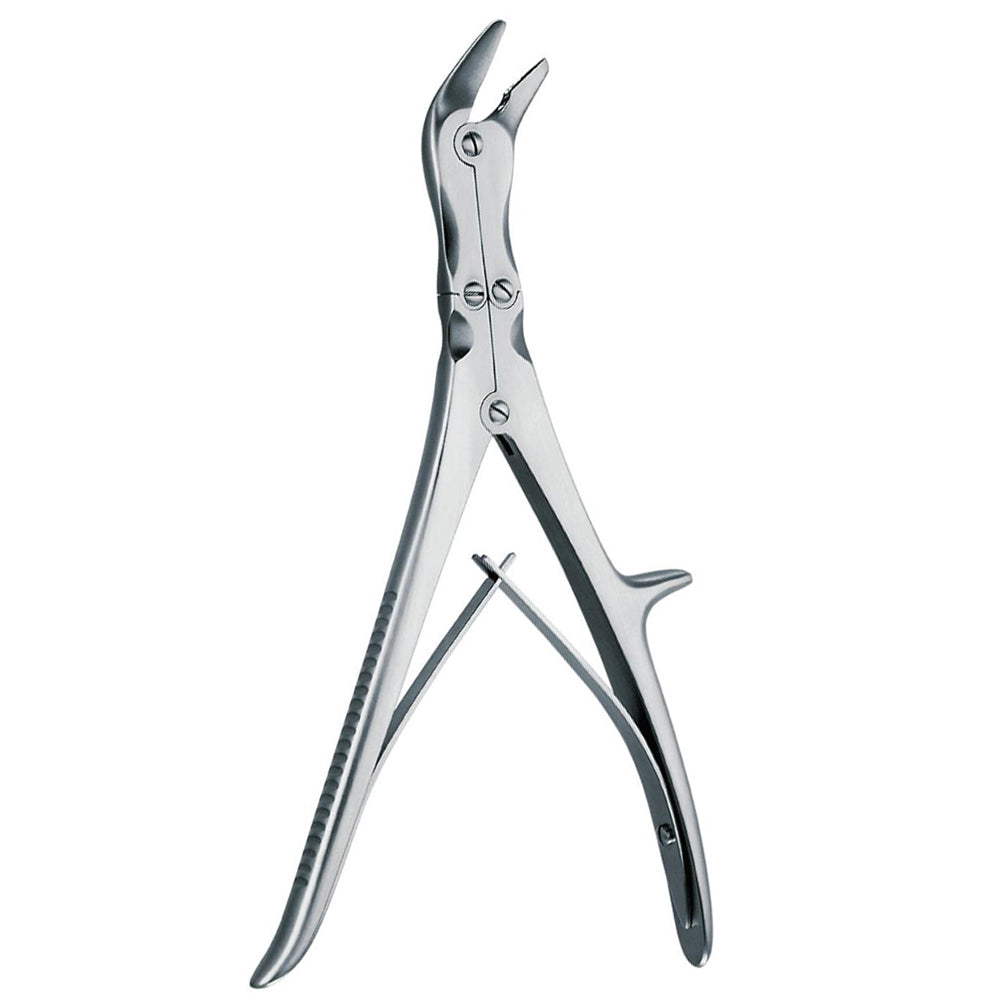

Echlin Rongeur Forceps, SKU PS-OT-0494, Model PS-9445, is an orthopedic bone rongeur manufactured from German stainless steel for controlled bone nibbling, cortical trimming, and removal of small osseous fragments during open surgical procedures. The available variants are PS-9445 Jaws 2mm x 10mm and PS-9446 Jaws 3mm x 10mm, giving surgeons a narrow bite option for fine bony margins and a slightly wider option for accessible cortical edges. The instrument has opposing cupped jaws, a compound pivot assembly, screw-secured linkage, curved spring handles, and a return spring that reopens the handles after each compression cycle. It is used in laminectomy exposure, posterior spinal decompression, osteophyte reduction, exostectomy, fracture edge trimming, cancellous bone contouring, hand and foot surgery, podiatric bone procedures, and maxillofacial bone work where incremental removal is required. This rongeur supports orthopedic surgeons, spine surgeons, neurosurgeons, maxillofacial surgeons, podiatric surgeons, hospital operating rooms, surgical centers, and procurement teams maintaining reusable bone instrument trays.

Compound Pivot Bite and Spring Handle Return

The Echlin pattern works through a compound pivot mechanism that multiplies handle compression and transfers it to the distal cupped jaws. The opposing jaws capture a defined segment of cortical or cancellous bone, then cut through the selected margin as the surgeon closes the handles. The compound linkage provides mechanical advantage during controlled trimming of dense exposed bone edges, osteophytes, and small fragments. Screw-secured joints maintain alignment across repeated bite cycles and keep the jaw path consistent during progressive removal. The return spring reopens the handles after each compression, allowing the surgeon to reposition the working end without manually separating the arms. Curved handle geometry distributes pressure across the palm and fingers during serial nibbling. The cupped jaw form contains the fragment during removal and supports localized contouring rather than broad cutting. This mechanism is suited to open-field osseous edge refinement where tactile feedback, jaw placement, and controlled bite size are required.

Orthopedic and Spine Bone Removal Workflow

In operative workflow, Echlin Rongeur Forceps is introduced after exposure, retraction, soft tissue protection, and identification of the bony margin requiring controlled reduction. In posterior spinal decompression, the rongeur can remove accessible laminar edges, spinous process fragments, or small posterior element margins after the field is prepared. During laminectomy exposure, it supports staged bone removal before finer instruments complete the decompression corridor. In osteophyte reduction, the cupped jaws are placed over the projecting margin and closed in repeated increments until the prominence is reduced. During fracture exposure, the instrument can trim sharp cortical edges and remove small loose fragments after reduction planning. In exostectomy and orthopedic contouring, it supports bite-by-bite removal before final smoothing with a rasp or bone file. In hand, foot, podiatric, and maxillofacial procedures, the jaw profile assists controlled cutting where a broad shear would reduce placement accuracy. The rongeur is used with periosteal elevators, retractors, osteotomes, curettes, suction, irrigation, and hemostatic instruments.

PS-9445 and PS-9446 Jaw Selection

PS-9445 Jaws 2mm x 10mm is selected when the surgeon requires a narrow bite for confined bone margins, small osteophytes, laminar edges, foot and hand procedures, or fine contouring around exposed osseous structures. The 2mm jaw width allows smaller incremental cuts where visibility and controlled placement are more important than tissue volume per bite. PS-9446 Jaws 3mm x 10mm is selected for slightly broader accessible bone margins, cancellous fragments, exostotic projections, and open orthopedic exposure where a wider bite improves workflow while maintaining controlled removal. Both variants share the same mechanical principles: cupped jaws capture the target, the compound pivot transfers force, screw joints stabilize alignment, and the spring handles reopen after each compression. The 10mm jaw length provides a defined working surface for engagement of exposed bone edges. In tray planning, Echlin Rongeur Forceps occupies the bone-nibbling role beside Leksell, Liston, Kerrison, Stille-Luer, Dawson-Yuhl, and Cicherelli rongeurs according to access depth, bite width, and operative geometry.

Reusable German Steel and Procurement Documentation

German stainless steel provides the rigidity required for repeated jaw closure, bone contact, compound joint movement, and surgical reprocessing. The reusable construction supports operating room workflows involving manual cleaning, ultrasonic cleaning where used, drying, inspection, packaging, and steam autoclave sterilization between procedures. Satin, dull, and mirror finish options support different surgical and sterile processing preferences; reduced-glare surfaces assist visibility under operating lights, while mirror finish supports visual inspection after cleaning. Reprocessing focuses on the cupped jaws, cutting margins, screw-secured pivots, linkage recesses, spring mechanism, handle grooves, and return-control surfaces because bone dust, tissue, blood, and irrigation fluid can collect in these areas. The Class I classification reflects a reusable manual surgical instrument with mechanical cutting action. CE marking and ISO 13485 documentation support regulated purchasing records for hospitals, surgical centers, and distributors. FDA compliance information supports medical device procurement files for regulated healthcare markets. The one-year warranty, MOQ of one piece, OEM availability, carton box packing, rust-free listing, and return or replacement support fit operating room replenishment and distributor inventory workflows.

How does Echlin Rongeur Forceps differ from a Kerrison rongeur?
Echlin Rongeur Forceps uses opposing cupped jaws and a forceps-style compression mechanism for open-field bone nibbling. A Kerrison rongeur uses a footplate and sliding punch action for lamina, ligamentum flavum, and bony window enlargement during spinal decompression. The Echlin pattern is placed directly over an exposed bone edge, spur, or fragment. The Kerrison pattern advances under a firm margin and removes tissue through a punch bite. This rongeur uses a return spring for repeated reopening after each cut. Echlin Rongeur Forceps is selected for accessible bone contouring, exostectomy, osteophyte reduction, and orthopedic trimming where opposing jaw purchase is required.

How are the 2mm x 10mm and 3mm x 10mm jaws selected?
The PS-9445 2mm x 10mm jaw variant is selected for narrow bony margins, small osteophytes, laminar edges, hand surgery, foot surgery, and confined exposure. The PS-9446 3mm x 10mm jaw variant is selected for broader accessible bone edges, cancellous fragments, and moderate exostotic projections. The 2mm jaw gives finer bite control where the surgeon needs smaller incremental removal. The 3mm jaw increases contact width when the operative field allows a larger bite. Echlin Rongeur Forceps is selected according to bite width, bone density, exposure size, and planned osseous reduction. Both variants use the same compound pivot and spring handle mechanism.

How do CE, ISO 13485, and FDA documentation support procurement?
CE marking supports product conformity documentation for clinical purchasing and distributor review. ISO 13485 indicates that the manufacturing system follows medical device quality management and traceability requirements. FDA compliance information supports procurement records for regulated healthcare supply channels. Hospitals, surgical centers, and orthopedic instrument distributors use these documents during vendor approval, tender documentation, and tray standardization. Echlin Rongeur Forceps can be entered into purchasing systems with recognized compliance references. This documentation supports international healthcare buyers comparing reusable orthopedic rongeurs across multiple suppliers.

How is the compound pivot and spring handle used intraoperatively?
The compound pivot transfers handle compression into controlled jaw closure at the cutting end. During use, the surgeon places the cupped jaws over an exposed bony edge, spur, or fragment. As the handles close, the jaws bite and remove a small section of bone. The spring handle reopens the rongeur after each compression, allowing the surgeon to reposition for the next cut. Screw-secured pivot points maintain alignment through repeated cutting cycles. Echlin Rongeur Forceps depends on this pivot and spring action for controlled serial bone nibbling.

What should operating room teams know about sterilization and ordering?
This product is reusable and suitable for standard surgical instrument reprocessing workflows. Cleaning focuses on the cupped jaws, cutting margins, screw pivots, linkage recesses, spring mechanism, and handle surfaces before sterilization. The jaws are opened, brushed, rinsed, dried, and inspected for alignment before packaging. Steam autoclave processing follows the facility’s approved cycle for reusable stainless steel surgical instruments. Clinics and hospitals can order one piece because the MOQ is one piece. Echlin Rongeur Forceps is supplied with OEM availability, one-year warranty coverage, and return or replacement after-sale support.
