Veterinary Orthopedic Depth Gauge

Veterinary Orthopedic Depth Gauge

The Veterinary Orthopedic Depth Gauge is a surgical measuring instrument used during bone fixation procedures to determine the depth of a drilled hole before selecting an appropriate orthopedic screw length. It provides a dedicated measurement step between drilling and screw insertion during applicable veterinary orthopedic procedures.

The current Peak Surgicals listing identifies this product as a Depth Gauge and positions it as a stainless steel veterinary surgical instrument. A Size selector is available on the storefront; however, the exact available sizes, measurement range, graduations, and product SKU are not currently stated on the live product page.

Depth Measurement for Orthopedic Screw Selection

A depth gauge is used after drilling to measure the depth of the prepared bone hole so that an appropriately sized fixation screw can be selected. In veterinary orthopedic fixation techniques, depth measurement is an important part of selecting screw length before insertion.

The exact screw length ultimately selected should depend on the fixation system, drilled hole, cortical engagement requirements, and the surgeon's operative technique.

Veterinary Orthopedic Application

The current Peak Surgicals page positions this Depth Gauge within Veterinary Surgical Instruments. Depth gauges are commonly used in veterinary orthopedic workflows involving plates and screws where bone-hole depth needs to be measured before final screw selection.

The live product page does not identify a specific animal species, fracture type, implant system, or orthopedic plate system for this model. Compatibility should therefore be confirmed before ordering for a particular surgical set.

Use During Bone Fixation Procedures

During a typical screw-fixation workflow, the bone is drilled according to the requirements of the selected fixation technique. The Depth Gauge is then used to assess the drilled depth before the corresponding screw is chosen.

The instrument should be used according to the fixation system and surgical technique selected by the veterinary surgeon. The Peak Surgicals page does not provide a specific screw-diameter range or compatibility chart for this product.

Stainless Steel Instrument Construction

The current Peak Surgicals browser title identifies the product as a stainless steel Depth Gauge. This provides the material positioning currently associated with the product listing.

The exact stainless-steel alloy or grade is not stated on the product page. Veterinary hospitals, distributors, and procurement teams requiring a particular material designation or certificate should confirm that specification before ordering.

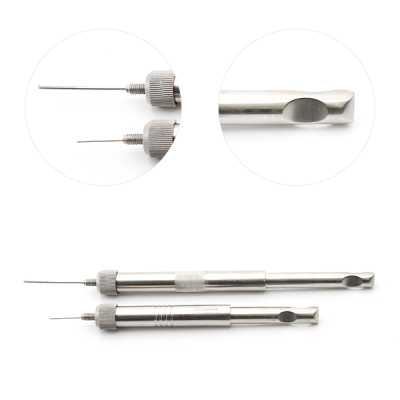

Selectable Size Options

The live Peak Surgicals storefront includes a Size selector, indicating that selectable configurations are available for the Depth Gauge.

The exact size values are not exposed in the current product information. Buyers requiring a specific measuring range, overall length, hook configuration, or compatibility with a particular screw system should confirm the selected configuration before purchase.

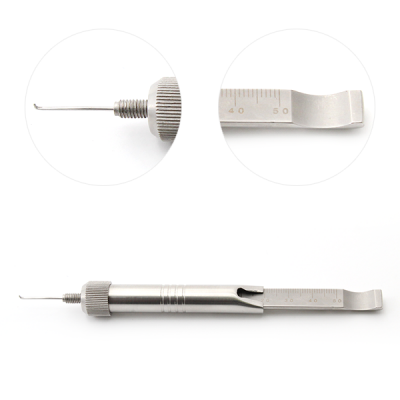

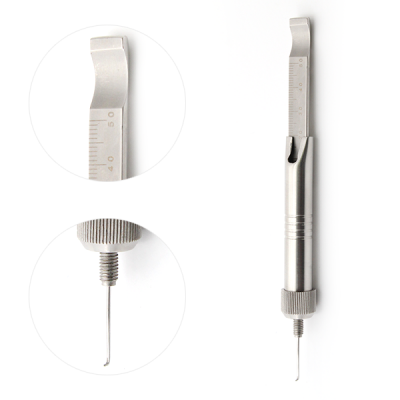

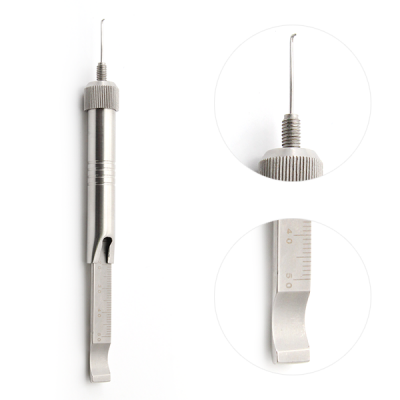

Measuring Hook and Scale Requirements

Orthopedic depth gauges commonly use a distal measuring feature to engage the far side of a drilled hole while a scale or sliding measurement system provides the corresponding depth reading.

However, the current Peak Surgicals page does not specify the exact hook design, scale increments, measurement units, or maximum measuring range for this model. These details should therefore be verified rather than inferred from another manufacturer's depth gauge.

For Veterinary Orthopedic Instrument Sets

The Depth Gauge is relevant for veterinary orthopedic instrument inventories used for fracture fixation, plate-and-screw procedures, and related operations where drilled bone depth must be measured before screw selection.

Because orthopedic systems can use different screw diameters and measuring instruments, buyers should confirm that the selected Peak Surgicals Depth Gauge matches the intended fixation system and required measurement range.

Instrument Inspection Before Use

Before clinical use, the measuring end, shaft, scale or measuring mechanism, and any moving components present on the supplied configuration should be inspected for deformation, restricted movement, or damage that could interfere with accurate mechanical measurement.

The current product page does not provide detailed calibration, cleaning, sterilization, or maintenance instructions. Facilities should follow the applicable manufacturer documentation and their established instrument-processing procedures.

Product Specifications

For Veterinary Hospitals and Orthopedic Procurement

The Veterinary Orthopedic Depth Gauge is relevant for veterinary hospitals, animal orthopedic surgery centers, surgical instrument distributors, and procurement teams sourcing instruments for bone fixation procedures.

Before ordering, buyers should confirm the required measurement range, exact Size option, screw-system compatibility, scale graduations, overall dimensions, and stainless-steel grade. These specifications are not currently provided on the Peak Surgicals product page.

Frequently Asked Questions

What is an orthopedic Depth Gauge used for?

It is used to measure the depth of a drilled bone hole so that an appropriate orthopedic screw length can be selected before insertion.

Is this Depth Gauge intended for veterinary surgery?

The current Peak Surgicals page title positions the product within its veterinary surgical instrument range.

What material is the Depth Gauge made from?

The current page title identifies the instrument as stainless steel. The exact stainless-steel grade is not specified.

What measurement range does it have?

The current Peak Surgicals page does not state an exact minimum or maximum measurement range.

Which screw sizes is the Depth Gauge compatible with?

The current product page does not provide a screw-diameter or fixation-system compatibility chart. Compatibility should be confirmed before ordering.

What is the SKU for this Depth Gauge?

No SKU is currently visible in the accessible Peak Surgicals product information.
