Collinear Reduction Clamp Instrument Set - Comprehensive Overview

The Collinear Reduction Clamp Instrument Set is an orthopedic surgical instrument set designed to support bone alignment and fracture reduction procedures. The set includes a handpiece, interchangeable arms, protective sleeves, cleaning accessories, K-wires, and an aluminum box.

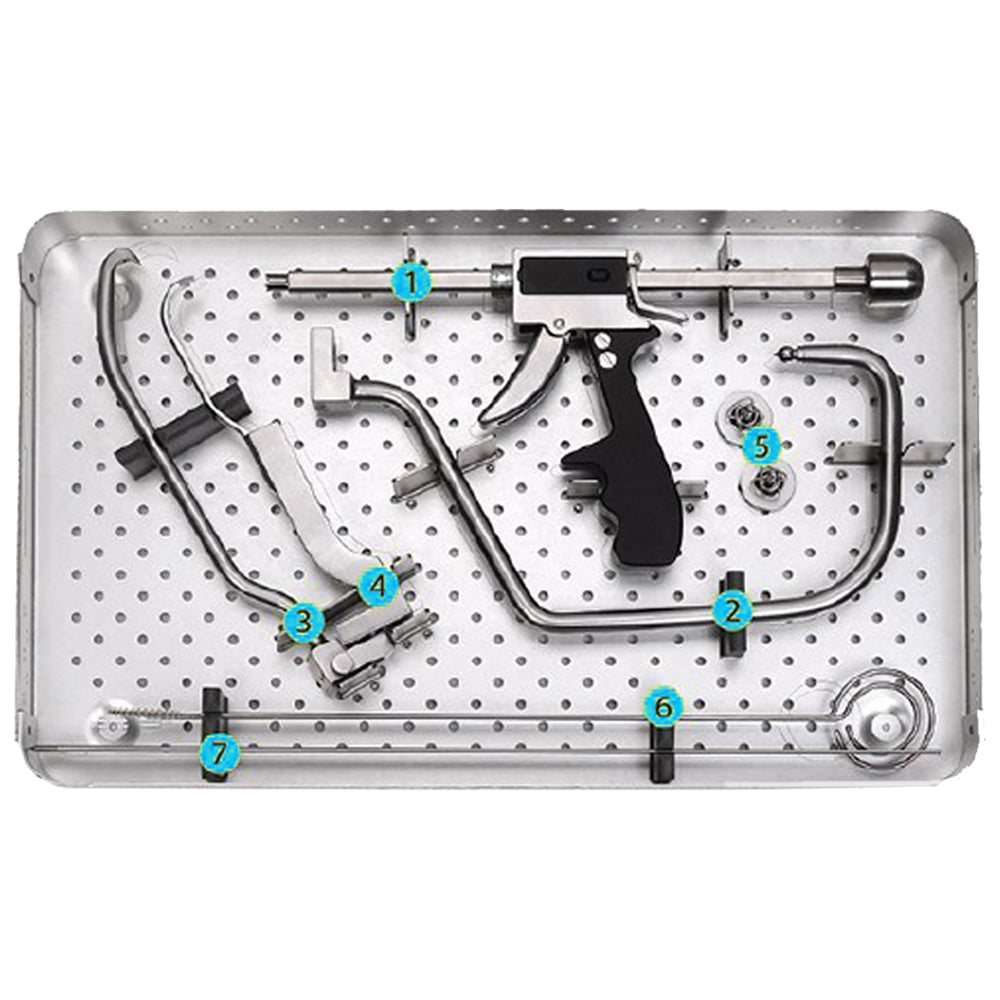

Key Components of the Collinear Reduction Clamp Instrument Set

1. Handpiece (REF: PS-H-001)

   • The handpiece provides the primary operating component of the reduction clamp system and is designed to support controlled handling during orthopedic reduction procedures.

2. Percutaneous Arm 255mm (REF: PS-PA-002)

   • The 255mm percutaneous arm provides extended reach for accessing and manipulating bone fragments during fracture reduction procedures.

3. Pelvic Arm 225mm (REF: PS-PA-003)

   • The 225mm pelvic arm is designed for use during orthopedic procedures involving pelvic fracture reduction and alignment.

4. Hohmann-Style Arm 183mm (REF: PS-HAS-004)

   • The 183mm Hohmann-style arm provides an additional configuration for bone manipulation and reduction where a shorter working arm is required.

5. Protect Sleeves (REF: PS-PS-005)

   • The set includes two protective sleeves for use with threaded pins, K-wires, or related components during orthopedic procedures.

6. Clean Pins (REF: PS-CP-006)

   • Two cleaning pins are included for clearing accessible instrument channels or openings as part of instrument care and maintenance.

7. Clean Brushes (REF: PS-CB-007)

   • Two cleaning brushes are included to support cleaning of applicable instrument components.

8. Threaded K-Wire (REF: PS-TK-008)

   • A threaded K-wire is included as part of the instrument set for use during orthopedic fracture reduction and fixation procedures as clinically appropriate.

9. K-Wire (REF: PS-K-009)

   • A K-wire is included for orthopedic applications involving temporary fixation or alignment of bone fragments as determined by the treating surgeon.

10. Aluminum Box (REF: PS-AB-010)

    • The set is supplied with an aluminum box for organized storage and transportation of the components.

Applications of the Collinear Reduction Clamp Instrument Set

The Collinear Reduction Clamp Instrument Set is intended for professional orthopedic procedures requiring controlled fracture reduction and bone alignment. Applications identified for the set include:

• Reduction and alignment of long-bone fractures.
• Pelvic fracture reduction and stabilization.
• Fracture reduction involving areas such as the acetabulum and femur.
• Percutaneous fracture reduction and fixation procedures.

Professional Orthopedic Use

The different arm configurations allow the surgical team to select the appropriate component according to the anatomical location and requirements of the fracture reduction procedure. Selection and use of the handpiece, reduction arms, sleeves, K-wires, and other components should be determined by a qualified orthopedic professional according to the surgical plan and applicable product instructions.
