PEAK SURGICALS
SKU:PS-OP-5992
CE Certified
FDA Certified
ISO Certified

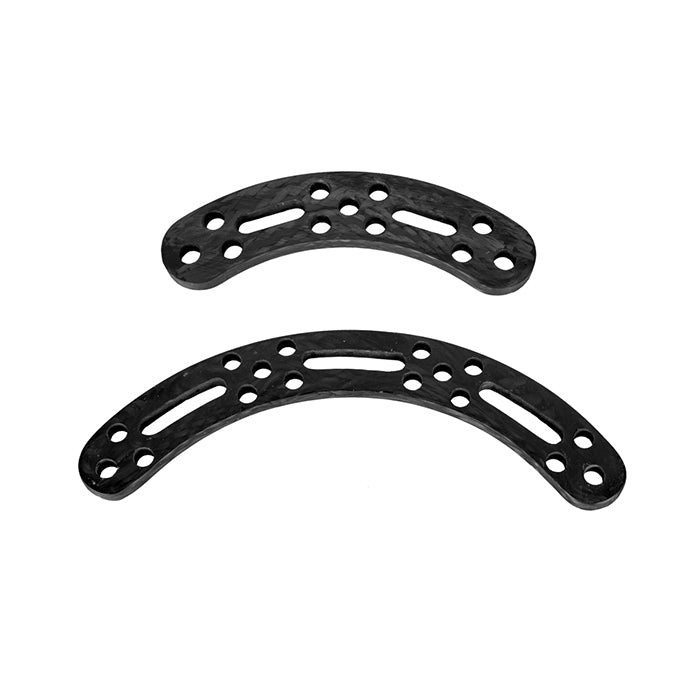

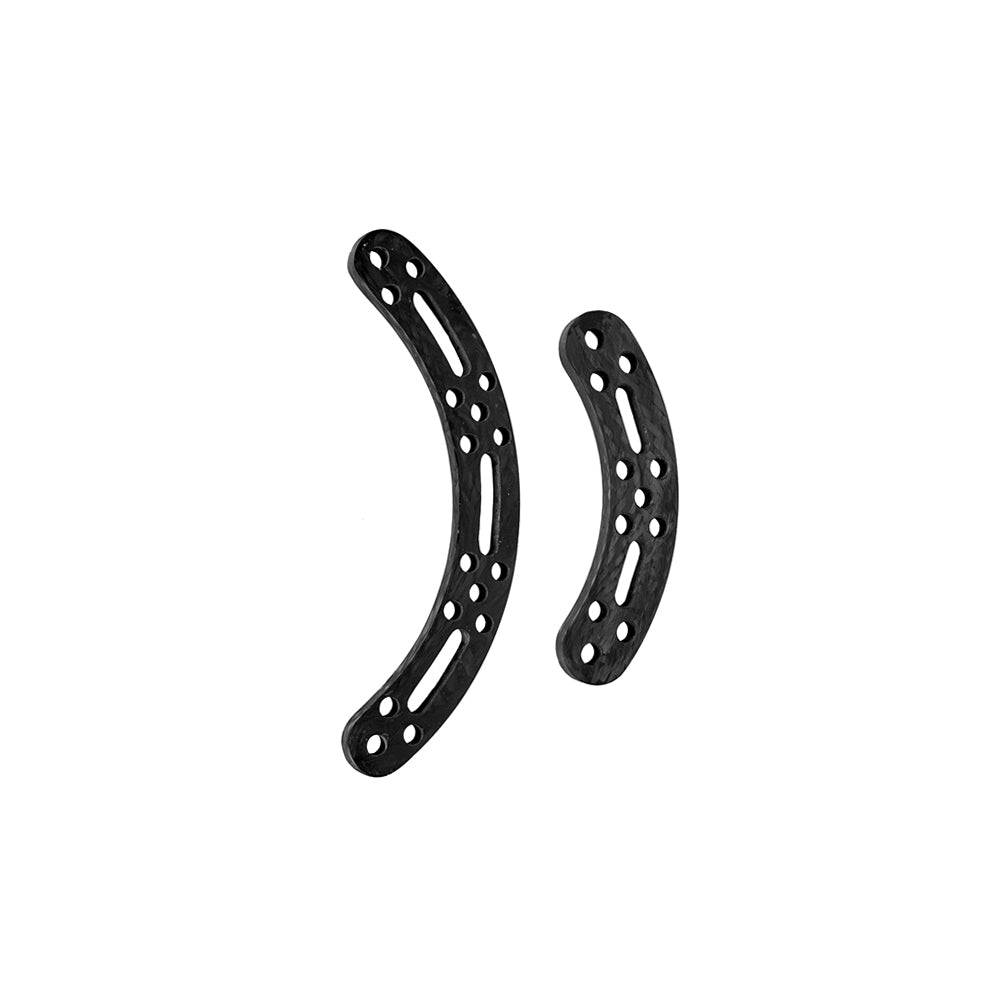

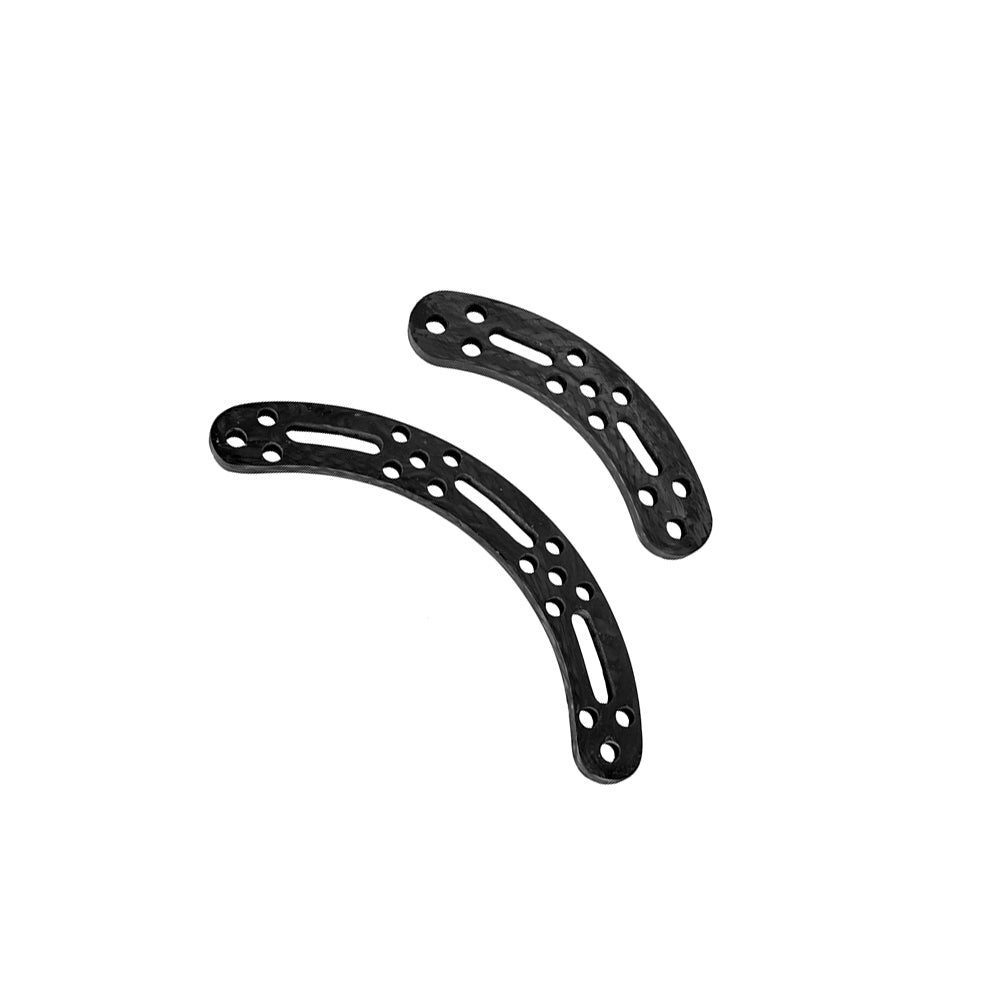

The Carbon Fibre Italian Femoral Arch 90° is an orthopedic external-fixation component designed for incorporation into ring-based fixation systems around the femoral region. Its open 90-degree arch configuration provides a curved structural element for frame construction while maintaining an open section around the limb where a complete circular ring may not be required.
The Peak Surgicals model is identified as SKU PS-OP-5992 and is manufactured in carbon fibre. Five dimensional options are currently listed, with internal diameters from 120 mm to 200 mm and corresponding external diameters from 170 mm to 250 mm.
The defining feature of this component is its 90° open-arch design. Rather than forming a complete circular ring, the femoral arch provides a partial curved frame section that can be incorporated into an external-fixation construct according to the anatomical and mechanical requirements of the planned frame.
The final arrangement of the arch and other frame components should be determined by the treating orthopedic surgeon according to the fixation technique, patient anatomy, and clinical indication.
Italian femoral arches form part of ring external-fixation systems used in orthopedic trauma and reconstructive surgery. They may be connected with compatible rods, posts, fixation bolts, hinges, wires, and other external-fixator components to create a stable frame around the affected limb.
Compatibility with the intended external-fixator system should be confirmed before purchase, particularly when the arch is being added to an existing set from a specific system or manufacturer.
Italian femoral arch components are used to facilitate femoral fixation within circular or ring-based external-fixator systems. Industry external-fixator references also identify this component category with limb reconstruction and deformity-correction frame configurations.
The specific indication, fixation points, wire or pin placement, frame orientation, and correction strategy should be planned by an appropriately trained orthopedic surgeon according to the individual clinical case.
This model is specifically identified as a carbon fibre Italian Femoral Arch. Carbon-fibre construction distinguishes it from stainless-steel and aluminium versions of similar external-fixator components and provides another material option when assembling a ring fixation system.
The current Peak Surgicals product page does not state the exact carbon-fibre composition, laminate specification, mechanical properties, or manufacturing standard. Buyers requiring detailed material documentation should confirm these specifications before ordering.
The Carbon Fibre Italian Femoral Arch 90° is currently available in five dimensional configurations. Internal diameter options are 120, 140, 160, 180, and 200 mm, with corresponding external diameters of 170, 190, 210, 230, and 250 mm.
Providing multiple dimensions allows orthopedic teams to select an arch appropriate for the limb size and planned external-fixator frame. The required size should be established during frame planning rather than selected from internal diameter alone.
Each dimensional option has a dedicated Peak Surgicals catalog code. These codes allow hospitals, distributors, and orthopedic procurement teams to distinguish between the available arch sizes when ordering components for external-fixation sets.
For purchasing accuracy, the required internal diameter, external diameter, and corresponding catalog code should all be checked before an order is finalized.
| Product Name | Carbon Fibre Italian Femoral Arch 90° |
| Storefront SKU | PS-OP-5992 |
| Product Type | External Fixator Femoral Arch |
| Configuration | 90° Open Arch |
| Material | Carbon Fibre |
| Specialty | Orthopedic Surgery / External Fixation |
| System Type | Ring External Fixation |
| Referenced Applications | Femoral Fixation, Limb Reconstruction and External-Fixator Frame Construction |
| Code | ID / OD |
| PS-90.120-25 | 120 mm ID / 170 mm OD |
| PS-90.140-25 | 140 mm ID / 190 mm OD |
| PS-90.160-25 | 160 mm ID / 210 mm OD |
| PS-90.180-25 | 180 mm ID / 230 mm OD |
| PS-90.200-25 | 200 mm ID / 250 mm OD |
The Carbon Fibre Italian Femoral Arch 90° is relevant for orthopedic hospitals, trauma departments, limb-reconstruction services, external-fixation specialists, medical distributors, and procurement teams sourcing components for ring external-fixation systems.
For accurate ordering, buyers should reference SKU PS-OP-5992 together with the required ID, OD, and corresponding catalog code. Compatibility with fixation bolts, rods, posts, wires, hinges, and other frame components should be verified before purchase because those compatibility specifications are not provided on the current
