PEAK SURGICALS
SKU:PS-OP-5955
Couldn't load pickup availability

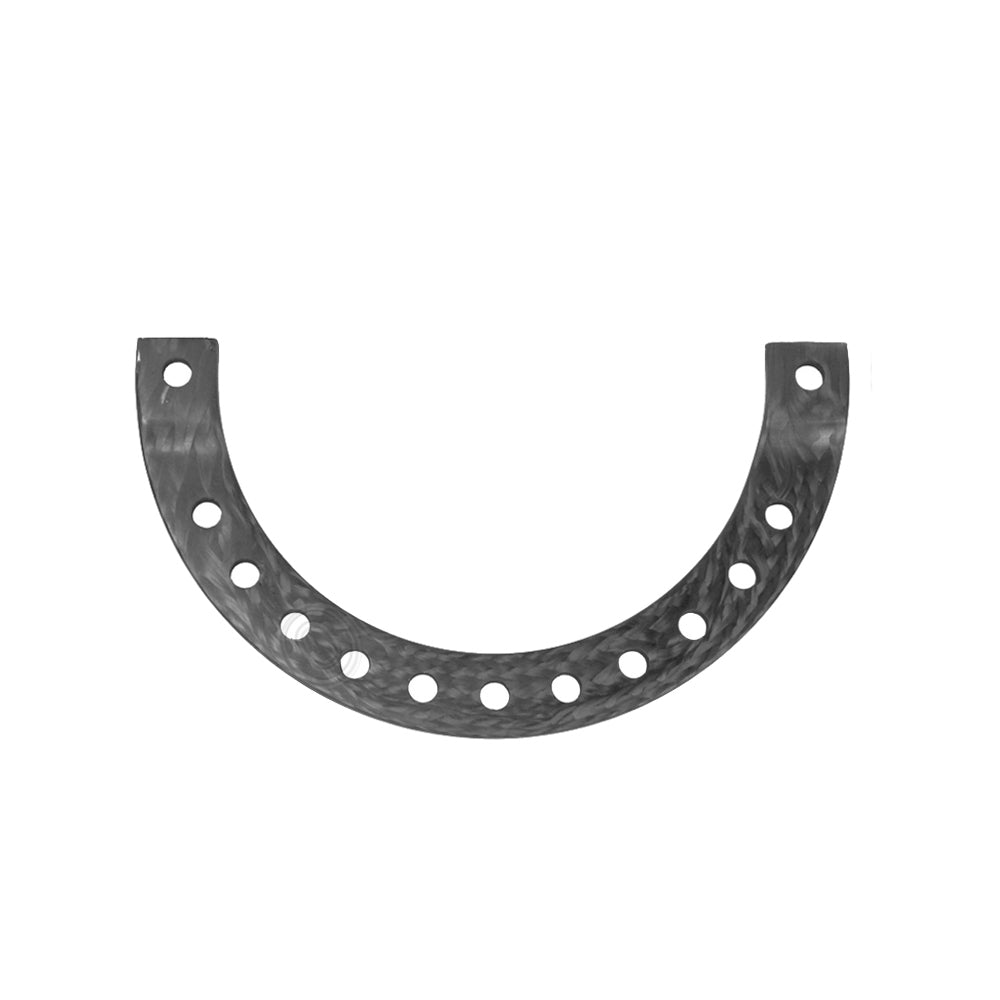

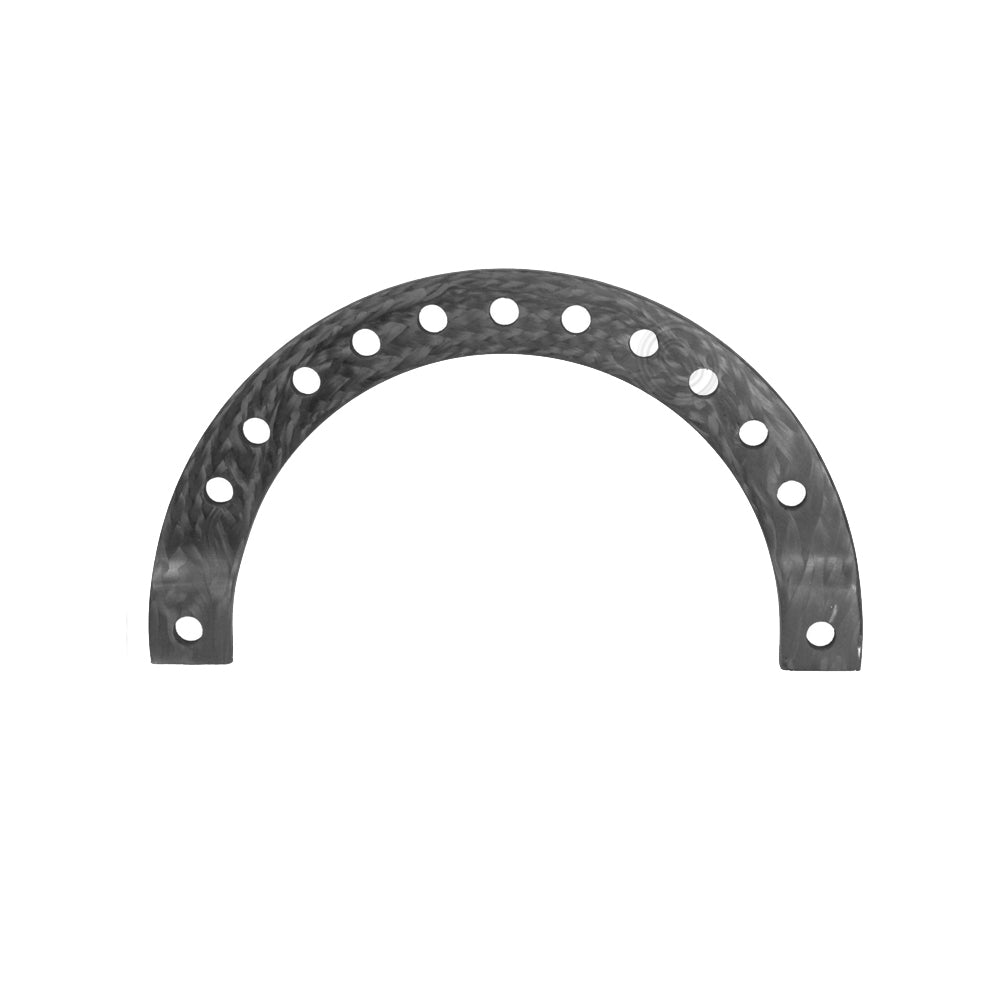

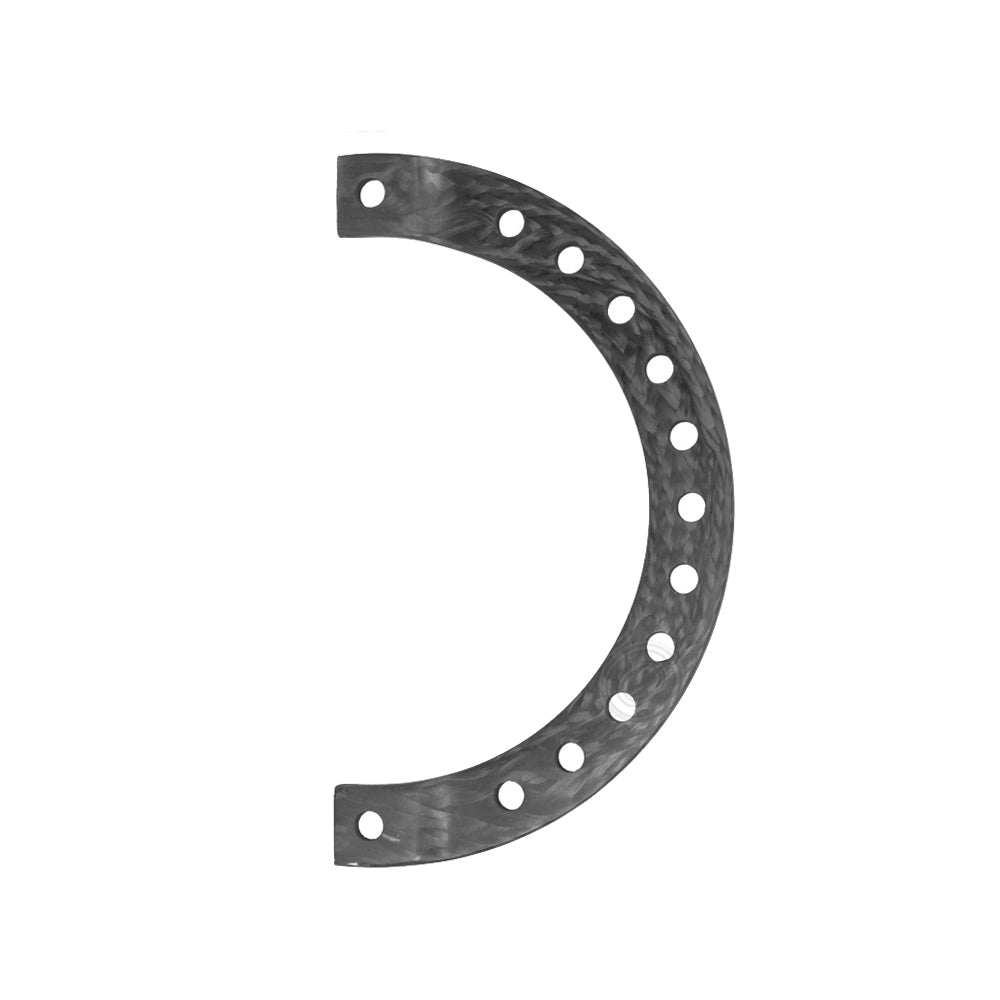

The Carbon Fiber 1 or 2 Ring Pediatric is an orthopedic external fixation component designed for pediatric external fixator systems. The product is offered in four documented ring dimensions, with inner diameters ranging from 80mm to 120mm and corresponding outer diameters from 112mm to 152mm. Each size has a specified number of fixation holes, allowing orthopedic teams to select a ring according to the dimensional requirements of the fixation construct.
The product is identified by SKU PS-OP-5955 and is listed within the Peak Surgicals External Fixators collection. The available configurations provide 13, 14, 17, or 19 holes depending on ring size. The product data also provides a dedicated half-ring reference number for each documented dimension.
The pediatric ring is constructed from carbon fiber and forms part of an orthopedic external fixation system. Circular and half-ring components are used as structural elements within external fixation assemblies, providing attachment locations for other components of the fixation construct. The number of holes increases with ring diameter, giving each documented configuration a size-specific hole pattern.
The smallest documented configuration has an 80mm inner diameter and 112mm outer diameter with 13 holes. The next size provides a 90mm inner diameter, 122mm outer diameter, and 14 holes. The 100mm inner-diameter ring has a 132mm outer diameter with 17 holes, while the largest documented pediatric configuration has a 120mm inner diameter, 152mm outer diameter, and 19 holes.
Four dimensional configurations are documented for this pediatric carbon fiber ring. Selection should be based on the orthopedic surgeon's fixation plan and the dimensional requirements of the external fixation construct. The complete inner diameter, outer diameter, hole count, and half-ring reference should be confirmed before ordering.
This carbon fiber ring belongs to the Peak Surgicals external fixator range and is intended for pediatric orthopedic external fixation systems. External fixation rings provide a structural framework around the treated limb and serve as connection points within the assembled fixation construct. The exact configuration, number of rings, and associated fixation components are determined by the orthopedic surgeon according to the required external fixation technique.
The product name identifies the component for use in one-ring or two-ring pediatric configurations. Its multiple diameter options allow the ring size to be matched to the required construct while maintaining the documented hole arrangement for each configuration. Clinical assembly and placement should follow the surgeon's established external fixation technique and the instructions associated with the fixation system.
| Inner Diameter | Outer Diameter | Number of Holes | Half Ring Reference |
|---|---|---|---|
| 80mm | 112mm | 13 | PS180.80-112 |
| 90mm | 122mm | 14 | PS180.90-122 |
| 100mm | 132mm | 17 | PS180.100-132 |
| 120mm | 152mm | 19 | PS180.120-152 |
Inspect the carbon fiber ring before use for visible damage, cracking, deformation, or deterioration around the fixation holes. The ring and associated components should be handled carefully during assembly, storage, and transport to prevent damage that could affect the external fixation construct.
Cleaning, preparation, and processing should follow the product-specific instructions supplied with the fixation system and the healthcare facility's approved protocols. Generic processing temperatures, exposure times, or sterilization cycles should not be substituted for verified product instructions.
When ordering the Carbon Fiber 1 or 2 Ring Pediatric, confirm the required inner diameter, outer diameter, number of holes, and corresponding half-ring reference. The main product SKU is PS-OP-5955. Peak Surgicals currently displays the product within its External Fixators collection.
The documented inner diameters are 80mm, 90mm, 100mm, and 120mm.
The corresponding outer diameters are 112mm, 122mm, 132mm, and 152mm.
The four documented configurations contain 13, 14, 17, and 19 holes respectively.
The main product SKU is PS-OP-5955.
Yes. Peak Surgicals places this product within its External Fixators collection.
Yes. The documented half-ring references are PS180.80-112, PS180.90-122, PS180.100-132, and PS180.120-152.
