PEAK SURGICALS
SKU:PS-OP-5967
Couldn't load pickup availability

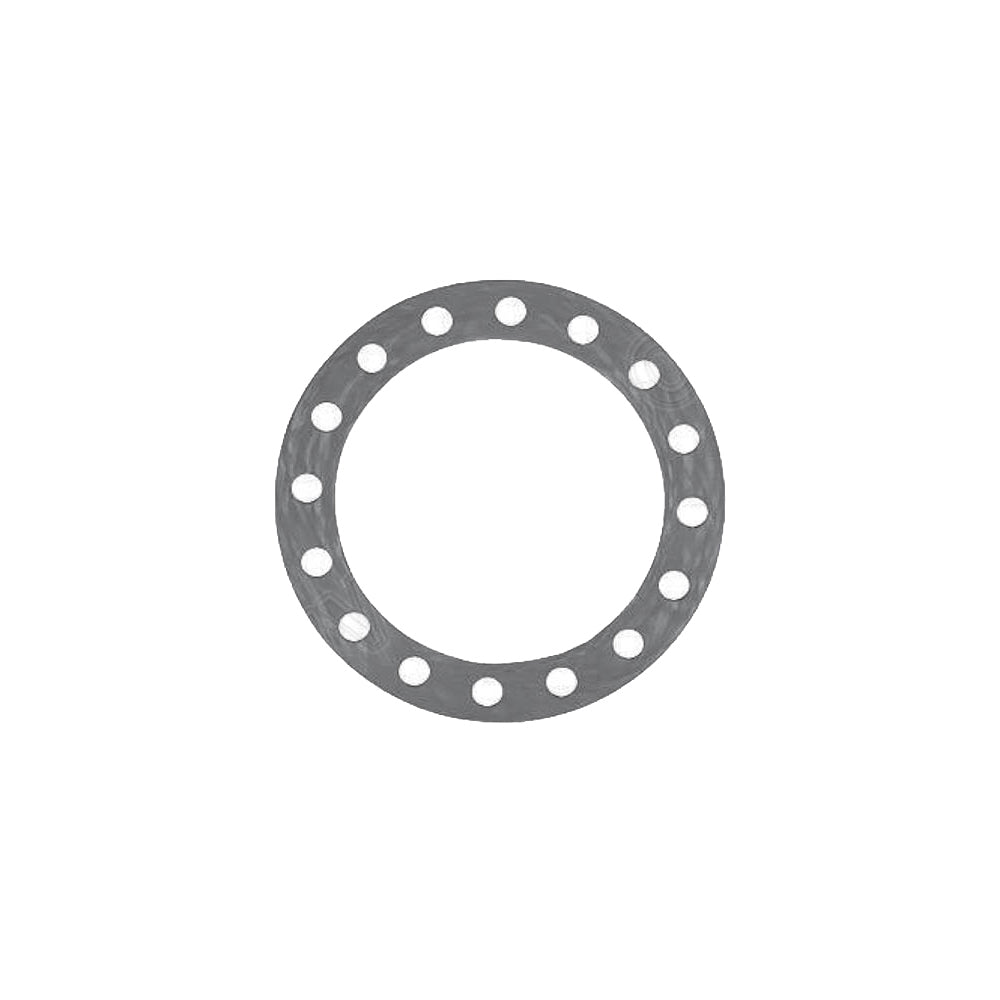

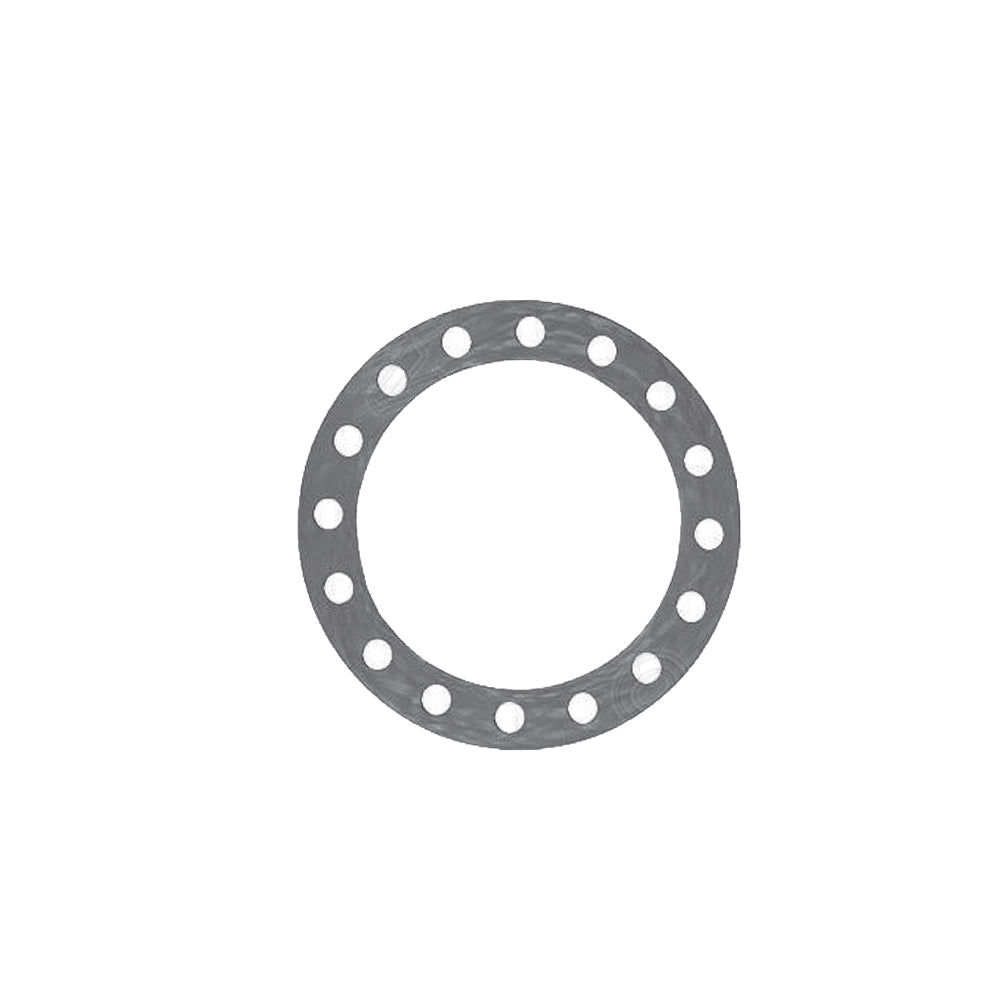

The Carbon Fiber Full Ring is an orthopedic external fixation component available in a broad range of ring dimensions and hole configurations. Peak Surgicals offers this full-ring design in eleven documented sizes, with inner diameters ranging from 80mm to 220mm, outer diameters from 120mm to 260mm, and configurations from 18 to 44 holes.
The ring forms part of the Peak Surgicals external fixation range and provides orthopedic teams with multiple dimensional options for circular fixation setups. Each configuration has its own dedicated full-ring product code, allowing surgeons, hospitals, distributors, and procurement departments to identify the required dimensions precisely when selecting components.
The Carbon Fiber Full Ring uses a complete circular configuration rather than a half-ring or partial-ring design. The product family is organized according to inner diameter, outer diameter, and total number of holes. These measurements provide the key dimensional references required when matching a ring to an external fixation construct.
Every size maintains a 40mm difference between the documented inner and outer diameters. As the ring diameter increases, the number of available holes also increases. The smallest documented configuration has an 80mm inner diameter, a 120mm outer diameter, and 18 holes. The largest documented option has a 220mm inner diameter, a 260mm outer diameter, and 44 holes.
Peak Surgicals assigns a dedicated PS-360 series code to each dimensional configuration. Using the complete product code together with the inner diameter, outer diameter, and hole count helps prevent confusion when ordering replacement components or assembling an external fixation inventory.
Eleven full-ring configurations are documented for this product. The range progresses from compact 80mm inner-diameter rings through larger 220mm inner-diameter configurations. This range allows buyers to select the required ring dimensions rather than relying on one standard size.
| Inner Diameter | Outer Diameter | Number of Holes | Full Ring Code |
|---|---|---|---|
| 80mm | 120mm | 18 | PS-360.80-120 |
| 100mm | 140mm | 22 | PS-360.100-140 |
| 110mm | 150mm | 24 | PS-360.110-150 |
| 120mm | 160mm | 26 | PS-360.120-160 |
| 130mm | 170mm | 28 | PS-360.130-170 |
| 140mm | 180mm | 30 | PS-360.140-180 |
| 150mm | 190mm | 32 | PS-360.150-190 |
| 160mm | 200mm | 34 | PS-360.160-200 |
| 180mm | 220mm | 38 | PS-360.180-220 |
| 200mm | 240mm | 40 | PS-360.200-240 |
| 220mm | 260mm | 44 | PS-360.220-260 |
The Carbon Fiber Full Ring is part of an orthopedic external fixation system. Full rings are incorporated into circular external fixation constructs where ring dimensions and hole positions form part of the planned frame configuration. Selection of the appropriate ring should be based on the orthopedic surgeon's fixation plan and the components required for the individual construct.
The range of inner and outer diameters provides multiple options for different external fixation setups. The documented hole count also gives the surgical team a clear reference when selecting the required ring. The ring code should be checked alongside its dimensional specifications before ordering or adding the component to an external fixation system.
This product can be used within orthopedic departments, trauma centers, hospitals, surgical facilities, and distributor inventories that maintain external fixation components. Because the product family contains eleven distinct configurations, accurate size identification is important for procurement and stock management.
Inspect the full ring before use for visible damage, deformation, surface defects, or other changes that could interfere with its intended role within the fixation construct. Confirm that the required inner diameter, outer diameter, hole count, and product code match the planned configuration before the component is prepared for clinical use.
Cleaning, preparation, handling, and processing should follow the current product instructions and the healthcare facility's approved protocols. Do not substitute generic sterilization temperatures, exposure times, or processing cycles for verified product-specific instructions.
The Carbon Fiber Full Ring has the product SKU PS-OP-5967, while each dimensional configuration carries its own PS-360 full-ring code. The live product page displays a starting price of $55.00 USD. Confirm the required inner diameter, outer diameter, number of holes, and full-ring code before placing an order.
For related components, explore the External Fixators collection from Peak Surgicals.
Eleven documented configurations are available.
The available inner diameters are 80mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 180mm, 200mm, and 220mm.
The available outer diameters range from 120mm to 260mm, depending on the selected configuration.
The documented configurations range from 18 holes to 44 holes.
The main product SKU is PS-OP-5967.
It is part of the Peak Surgicals orthopedic external fixation range.
