PEAK SURGICALS
SKU:PS-OP-5715
CE Certified
FDA Certified
ISO Certified

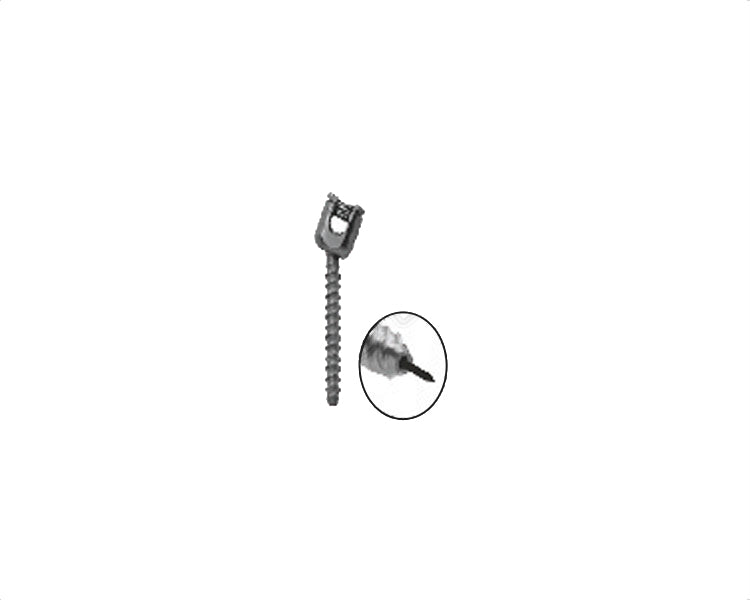

The Cannulated Polyaxial Screw Titanium is an orthopedic implant screw available in multiple diameter and length configurations for surgical fixation systems requiring a cannulated polyaxial screw design. The current Peak Surgicals range provides two screw diameters and six lengths, allowing surgeons and procurement teams to identify the required configuration according to the planned fixation system.
The current Peak Surgicals product is identified as SKU PS-OP-5715. Available configurations include 5.5 mm and 6.5 mm diameters with lengths from 25 mm to 50 mm in 5 mm increments. Each diameter and length combination has its own catalog code.
The product is specifically identified as cannulated, meaning the screw incorporates a central channel as part of its design. Cannulated screw systems can be used with guide-wire-based implantation techniques where compatible instrumentation and the intended fixation system support that approach.
The current Peak Surgicals page does not state the guide-wire diameter, cannulation diameter, insertion technique, or compatible instrumentation. These specifications should therefore be confirmed before ordering when required for a specific surgical system.
The product is also identified as polyaxial. Polyaxial screw systems use a screw-head configuration designed to accommodate angular adjustment within a compatible fixation construct.
The exact range of polyaxial angulation, head geometry, locking mechanism, rod diameter compatibility, and set-screw specification are not provided on the current Peak Surgicals page. These details should not be inferred from another manufacturer's polyaxial screw system.
The current product title specifically identifies this model as a titanium Cannulated Polyaxial Screw. Titanium is therefore the confirmed material designation for the product listing.
The exact titanium alloy or grade is not stated. Hospitals, orthopedic departments, spine centers, implant distributors, and procurement teams requiring a particular titanium specification or material certificate should confirm that documentation before ordering.
The 5.5 mm diameter range is available in six lengths: 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, and 50 mm. Each configuration has a dedicated PS-8795 series catalog number.
This allows the required screw length to be selected while maintaining the same 5.5 mm diameter designation.
The 6.5 mm diameter range is also available in 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, and 50 mm lengths. These configurations use the PS-8796 catalog-number series.
Buyers should confirm both the required diameter and length rather than ordering by product name alone.
The current Peak Surgicals table provides six confirmed screw lengths: 25, 30, 35, 40, 45, and 50 mm. The same length range is available for both the 5.5 mm and 6.5 mm diameter options.
No additional lengths are stated on the current page, so configurations outside this range should be confirmed separately before purchase.
Cannulated polyaxial screw systems are commonly associated with orthopedic spinal fixation systems where multiple screws may be integrated with compatible rods and locking components. The cannulated configuration can also support guide-wire-assisted insertion within systems designed for that technique.
The current Peak Surgicals listing does not explicitly identify a spinal level, pedicle indication, open or minimally invasive approach, compatible rod diameter, or associated implant system for PS-OP-5715. Those details should therefore be confirmed before clinical selection.
Selection of a Cannulated Polyaxial Screw should be based on the required screw diameter, screw length, fixation system, compatible instruments, and the surgeon's operative plan. The catalog code provides the clearest way to distinguish individual variants within the Peak Surgicals range.
Because implant systems depend on component compatibility, buyers should verify the intended rod, locking element, driver, guide wire, and associated instrumentation before ordering this screw for an existing system.
| Product Name | Cannulated Polyaxial Screw Titanium |
|---|---|
| Main SKU | PS-OP-5715 |
| Product Type | Cannulated Polyaxial Orthopedic Screw |
| Material | Titanium |
| Available Diameters | 5.5 mm and 6.5 mm |
| Available Lengths | 25, 30, 35, 40, 45 and 50 mm |
| 5.5 mm × 25 mm | PS-8795.25 |
| 5.5 mm × 30 mm | PS-8795.30 |
| 5.5 mm × 35 mm | PS-8795.35 |
| 5.5 mm × 40 mm | PS-8795.40 |
| 5.5 mm × 45 mm | PS-8795.45 |
| 5.5 mm × 50 mm | PS-8795.50 |
| 6.5 mm × 25 mm | PS-8796.25 |
| 6.5 mm × 30 mm | PS-8796.30 |
| 6.5 mm × 35 mm | PS-8796.35 |
| 6.5 mm × 40 mm | PS-8796.40 |
| 6.5 mm × 45 mm | PS-8796.45 |
| 6.5 mm × 50 mm | PS-8796.50 |
| Titanium Alloy Grade | Not Specified on Current Product Page |
| Rod Compatibility | Not Specified on Current Product Page |
| Sterility Status | Not Specified on Current Product Page |
The Cannulated Polyaxial Screw Titanium is relevant for orthopedic and spine surgery departments, hospitals, implant distributors, surgical centers, and procurement teams sourcing polyaxial fixation components.
For accurate purchasing, buyers should reference SKU PS-OP-5715 together with the required 5.5 mm or 6.5 mm diameter, 25–50 mm length, and corresponding catalog code. Buyers requiring exact titanium alloy grade, thread profile, head angulation, rod compatibility, cannulation diameter, sterilization status, or system-specific instrumentation should confirm those specifications before ordering because they are not stated on the current Peak Surgicals page.
What diameters are available?
The current Peak Surgicals listing provides 5.5 mm and 6.5 mm diameter configurations.
Which screw lengths are available?
Both diameters are listed in 25, 30, 35, 40, 45, and 50 mm lengths.
What is the SKU for this product?
The current main Peak Surgicals SKU is PS-OP-5715.
What material is the screw made from?
The current product title identifies the Cannulated Polyaxial Screw as titanium. The exact titanium alloy grade is not specified.
What is the catalog code for the 6.5 × 40 mm screw?
The listed code is PS-8796.40.
Does Peak specify compatible rods or sterilization status?
No. The current product page does not state rod diameter compatibility, locking-component compatibility, sterilization status, or the exact associated fixation system. These details should be confirmed before ordering.
