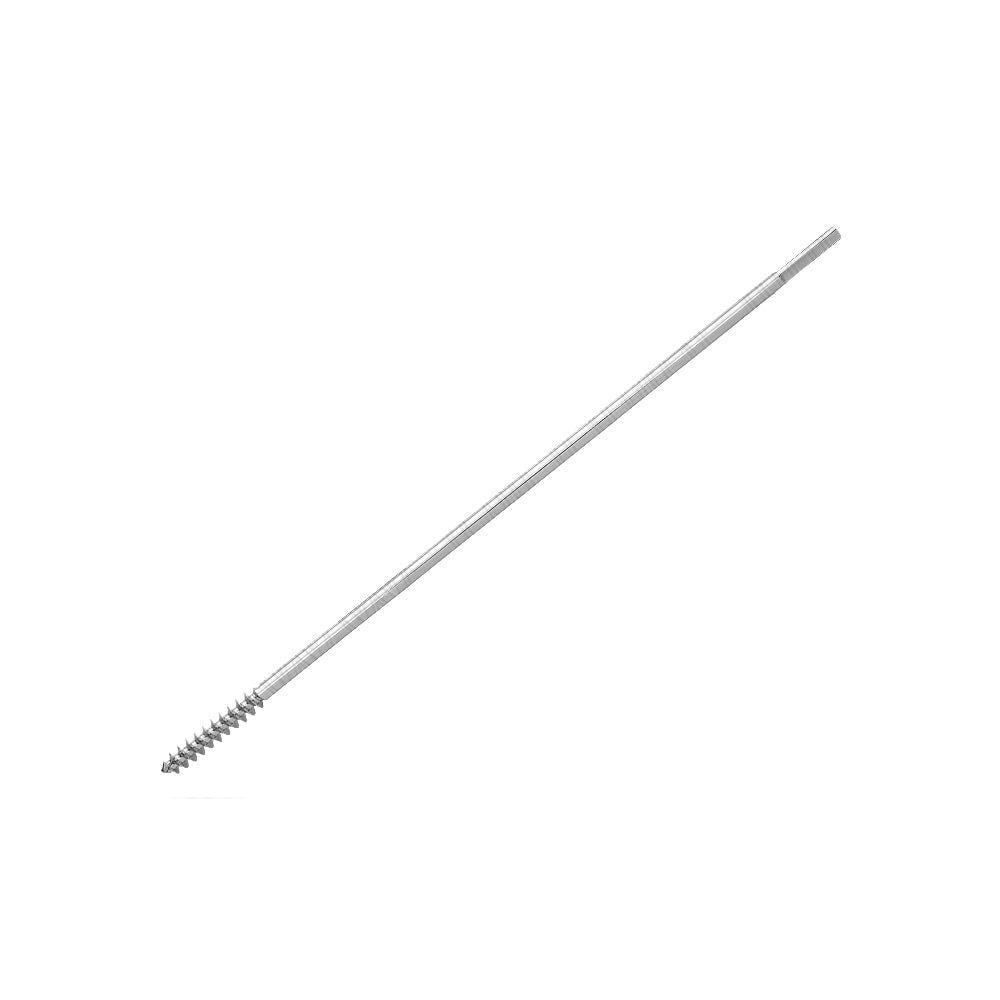

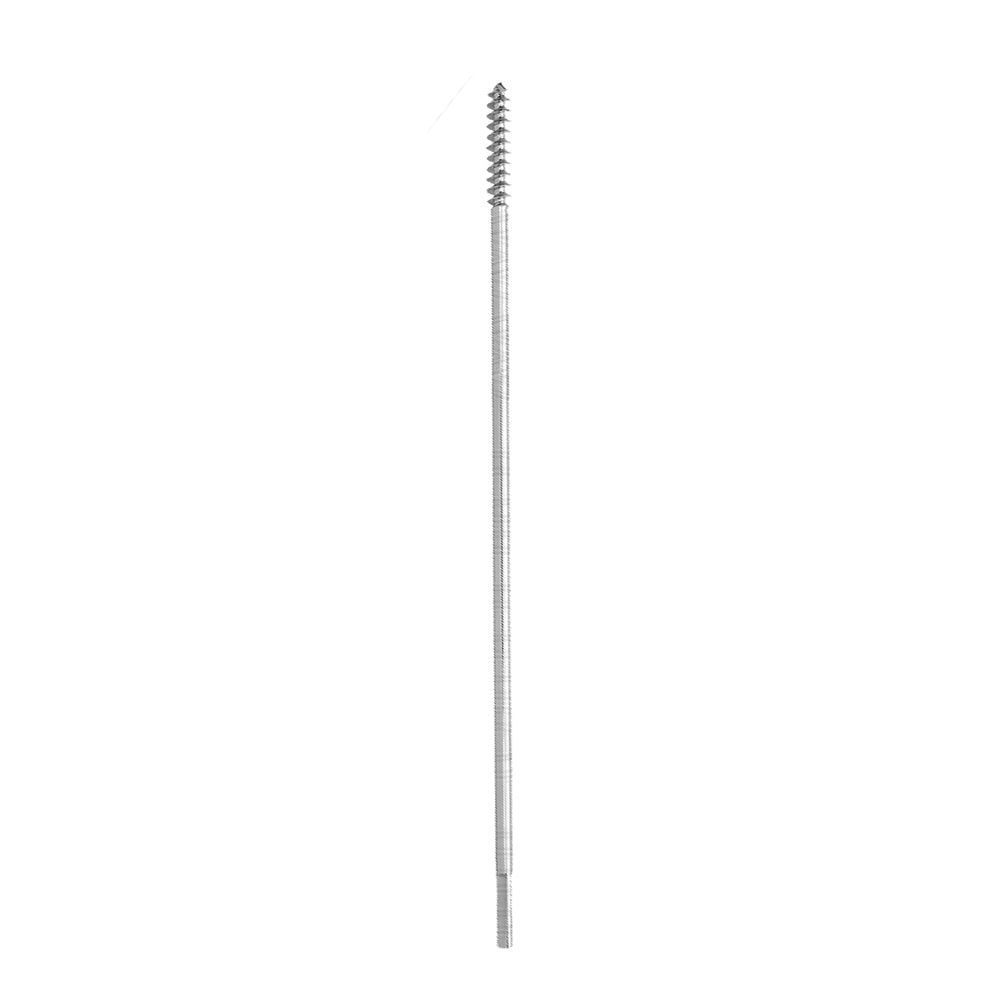

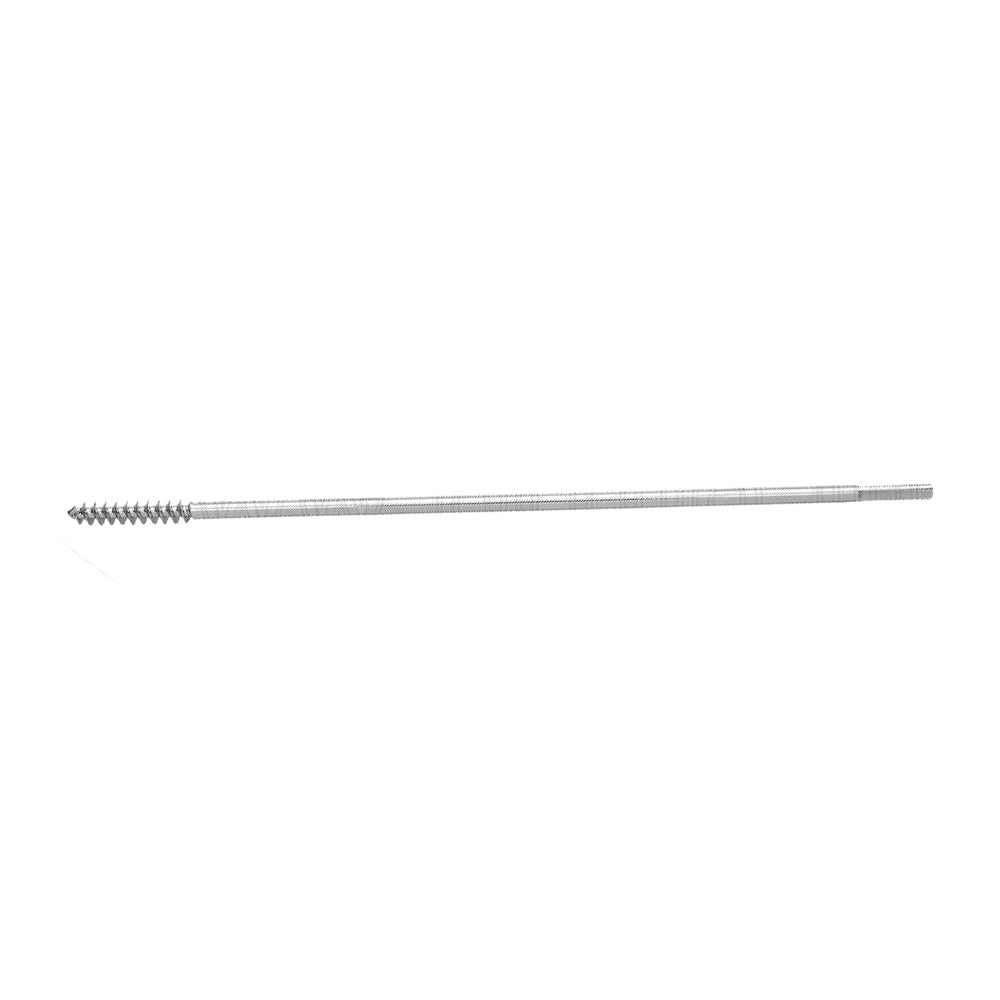

The Cancellous Front Threaded Pin Ø6.5mm SS is an orthopedic fixation pin designed with a cancellous front-threaded section for use within compatible external fixation systems. The current Peak Surgicals configuration has a fixed 6.5 mm diameter and 225 mm overall length, with three different threaded-length options available.
The current Peak Surgicals model is identified as SKU PS-OP-5883. The product is positioned as a stainless-steel orthopedic pin and is available with 16 mm, 32 mm, or 50 mm front-threaded sections to support selection according to the required fixation configuration.
All configurations listed on the current Peak Surgicals page have a confirmed diameter of 6.5 mm. This diameter is one of the primary purchasing specifications for identifying the correct cancellous front-threaded pin within an external fixation instrument and implant system.
The diameter remains constant across all three listed thread-length variants.
The current product table confirms an overall pin length of 225 mm for every listed configuration. This means the available variants differ in threaded-section length rather than total pin length.
Hospitals and orthopedic procurement teams should therefore reference both the 225 mm overall length and the required threaded length when ordering.
The shortest listed threaded configuration has a 16 mm thread length with a 6.5 mm diameter and 225 mm overall length.
The current Peak Surgicals catalog code for this configuration is 212.016.
The intermediate option provides a 32 mm threaded section while maintaining the same 6.5 mm diameter and 225 mm overall length.
The listed catalog code is 212.032.
The longest listed threaded option provides a 50 mm front-threaded section. The pin remains 6.5 mm in diameter and 225 mm in overall length.
The corresponding current Peak Surgicals catalog code is 212.050.
The product is specifically identified as a cancellous front-threaded pin. The threaded working section is located toward the front of the pin and is available in the three defined lengths listed on the current product page.
The page does not state the thread pitch, core diameter, tip geometry, self-drilling capability, or self-tapping specification. These details should therefore be confirmed before ordering when required for a particular fixation system.
Peak Surgicals lists the Cancellous Front Threaded Pin within its External Fixators collection alongside connecting rods and other threaded fixation pins. This places the product within an orthopedic external fixation system context.
Selection should be based on the required fixation system, pin diameter, overall length, threaded length, and compatibility with the associated clamps and frame components.
The product title specifically identifies this configuration as SS, indicating stainless steel. The current page does not state the exact stainless-steel alloy grade.
Hospitals, distributors, and procurement teams requiring a specific stainless-steel specification, material certificate, or implant-grade designation should confirm that information before ordering.
The live storefront includes a Size selector, while the product specification table provides the three actual thread-length combinations. Buyers should distinguish between the fixed 6.5 mm diameter / 225 mm length and the selectable 16 mm, 32 mm, or 50 mm thread length.
Using the catalog code together with the required thread length provides the clearest way to identify the intended variant.
| Product Name | Cancellous Front Threaded Pin Ø6.5mm SS |
| SKU | PS-OP-5883 |
| Product Type | Cancellous Front Threaded Orthopedic Pin |
| Material Positioning | Stainless Steel (SS) |
| Pin Diameter | 6.5 mm |
| Overall Length | 225 mm |
| 16 mm Thread Variant | 6.5 × 225 mm – Code 212.016 |
| 32 mm Thread Variant | 6.5 × 225 mm – Code 212.032 |
| 50 mm Thread Variant | 6.5 × 225 mm – Code 212.050 |
| Orthopedic System Context | External Fixation |
| Thread Pitch | Not Specified on Current Product Page |
| Tip / Drilling Configuration | Not Specified on Current Product Page |
The Cancellous Front Threaded Pin Ø6.5mm SS is relevant for orthopedic departments, trauma services, hospitals, external fixation system suppliers, implant distributors, and procurement teams sourcing threaded pins for compatible fixation frames.
For accurate purchasing, buyers can reference SKU PS-OP-5883, the fixed 6.5 mm diameter and 225 mm overall length, and select the required 16, 32, or 50 mm threaded section. Buyers requiring exact thread pitch, stainless-steel grade, tip design, clamp compatibility, coating specification, or drilling characteristics should confirm those details before ordering because they are not fully stated on the current Peak Surgicals page.
All three configurations listed by Peak Surgicals have a confirmed diameter of 6.5 mm.
Each listed configuration has an overall length of 225 mm.
The current Peak Surgicals table lists 16 mm, 32 mm, and 50 mm threaded-section options.
The listed codes are 212.016, 212.032, and 212.050 for the 16, 32, and 50 mm thread lengths respectively.
Yes. Peak Surgicals lists the product within its External Fixators range.
The current Peak Surgicals storefront SKU is PS-OP-5883.
