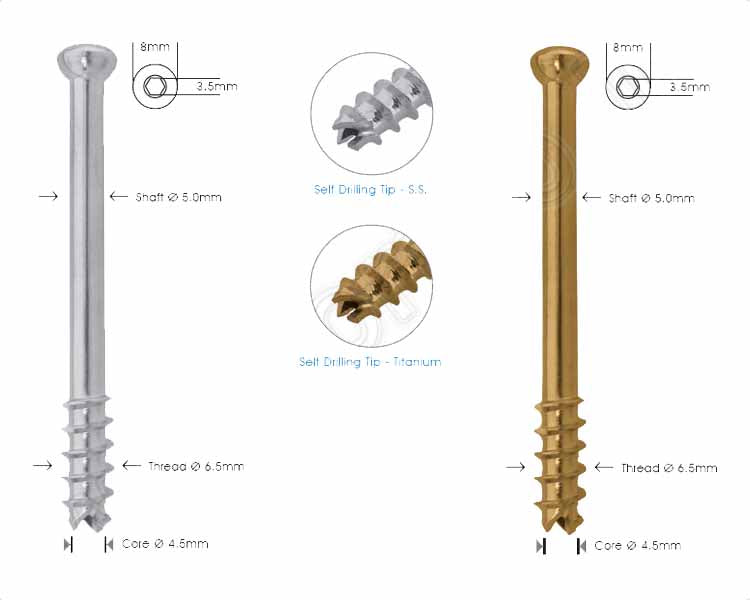

Cancellous Cannulated Screw Ø 6.5mm 16mm Thread

Cancellous Cannulated Screw Ø 6.5mm 16mm Thread

The Cancellous Cannulated Screw Ø 6.5mm with 16mm Thread is an orthopedic implant screw available in an extensive range of lengths for fixation applications requiring a 6.5 mm cannulated cancellous screw configuration. The current Peak Surgicals range combines a 6.5 mm diameter, 16 mm thread, and self-drilling design with separate stainless-steel and titanium options.

The main Peak Surgicals product is identified as SKU PS-OP-010468. Available lengths start at 30 mm and continue to 150 mm in 5 mm increments, providing multiple options for orthopedic implant planning and procurement.

6.5mm Cancellous Cannulated Screw

The product is specifically identified as a Ø 6.5 mm cancellous cannulated screw. The 6.5 mm diameter is part of the defined implant configuration and should be confirmed together with the required length, thread specification, and material before ordering.

The current Peak Surgicals page does not state the internal cannulation diameter, compatible guide-wire diameter, head dimensions, drive type, or exact screw-core diameter. These specifications should therefore be confirmed separately when required for compatibility with an orthopedic fixation system.

16mm Thread Configuration

This model is identified with a 16 mm thread. The thread specification distinguishes it from other cancellous screw configurations that may use a different thread length or a fully threaded design.

Buyers should reference the 16 mm thread configuration specifically when replacing an existing implant or selecting screws for a defined orthopedic system.

Self-Drilling Design

The current Peak Surgicals variant table identifies both the stainless-steel and titanium versions as Self Drilling.

The live page does not provide additional details regarding flute geometry, drilling-tip dimensions, self-tapping characteristics, insertion torque, or recommended instrumentation. These technical details should be confirmed when required for a specific operative system.

Stainless Steel Material Option

The Cancellous Cannulated Screw is available in stainless steel across the complete listed length range. Stainless-steel catalog numbers begin with the 465. series.

The exact stainless-steel alloy or implant grade is not specified on the current product page. Hospitals, distributors, and procurement teams requiring a specific alloy designation or material certificate should confirm that information before ordering.

Titanium Material Option

The same 6.5 mm, 16 mm-thread screw range is also available in titanium. Titanium catalog numbers on the current page use the PS-465. series.

The exact titanium alloy or grade is not stated. Buyers requiring a particular titanium specification should verify the material documentation for the selected implant before purchase.

30mm to 150mm Length Range

The current Peak Surgicals listing provides 25 individual screw lengths, beginning at 30 mm and increasing in consistent 5 mm increments through 150 mm.

This broad range allows procurement teams to identify the required length while retaining the same 6.5 mm diameter, 16 mm thread designation, self-drilling configuration, and selected material.

Orthopedic Implant Selection

The Cancellous Cannulated Screw Ø 6.5mm 16mm Thread is positioned within Peak Surgicals' orthopedic implant range. Selection should be based on the surgical plan and the exact screw diameter, thread configuration, length, material, and fixation-system requirements specified by the operating team.

The current product page does not provide a list of approved anatomical indications or compatibility with a named plate, washer, guide wire, screwdriver, or cannulated screw instrument system. These details should therefore be confirmed before use within a specific implant system.

Material and Length Identification

Because each available length has separate stainless-steel and titanium catalog references, buyers should specify both the required material and exact screw length when ordering.

Using the corresponding catalog number helps distinguish otherwise similar 6.5 mm screws and reduces ambiguity during implant inventory management.

Product Specifications and Available Sizes

Product Name	Cancellous Cannulated Screw Ø 6.5mm 16mm Thread	Main SKU	PS-OP-010468
Screw Diameter	Ø 6.5 mm	Thread	16 mm
Design	Cannulated / Self Drilling	Material Options	Stainless Steel / Titanium
Length	Stainless Steel Code	Titanium Code
30 mm	465.030	PS-465.030
35 mm	465.035	PS-465.035
40 mm	465.040	PS-465.040
45 mm	465.045	PS-465.045
50 mm	465.050	PS-465.050
55 mm	465.055	PS-465.055
60 mm	465.060	PS-465.060
65 mm	465.065	PS-465.065
70 mm	465.070	PS-465.070
75 mm	465.075	PS-465.075
80 mm	465.080	PS-465.080
85 mm	465.085	PS-465.085
90 mm	465.090	PS-465.090
95 mm	465.095	PS-465.095
100 mm	465.100	PS-465.100
105 mm	465.105	PS-465.105
110 mm	465.110	PS-465.110
115 mm	465.115	PS-465.115
120 mm	465.120	PS-465.120
125 mm	465.125	PS-465.125
130 mm	465.130	PS-465.130
135 mm	465.135	PS-465.135
140 mm	465.140	PS-465.140
145 mm	465.145	PS-465.145
150 mm	465.150	PS-465.150

For Orthopedic Hospitals and Implant Procurement

The Cancellous Cannulated Screw Ø 6.5mm 16mm Thread is relevant for orthopedic departments, trauma centers, hospitals, implant distributors, and procurement teams sourcing cannulated cancellous screw systems.

For accurate purchasing, buyers should specify Ø 6.5 mm diameter, 16 mm thread, required length from 30–150 mm, stainless steel or titanium material, and the corresponding catalog code. Buyers requiring exact alloy grade, guide-wire compatibility, drive geometry, head dimensions, washer compatibility, or associated instrumentation should confirm those specifications before ordering because they are not provided on the current Peak Surgicals page.

Frequently Asked Questions

What diameter is this cancellous cannulated screw?

The current Peak Surgicals product is identified as Ø 6.5 mm.

What is the thread length?

The product is listed with a 16 mm thread.

Which screw lengths are available?

The current listing provides lengths from 30 mm through 150 mm in 5 mm increments.

Which materials are available?

Peak Surgicals lists both stainless steel and titanium versions across the available length range.

Is this screw self-drilling?

Yes. The current product table identifies both stainless-steel and titanium configurations as Self Drilling.

What is the main SKU for this product?

The current Peak Surgicals storefront SKU is PS-OP-010468. Individual lengths also have separate stainless-steel and titanium catalog codes.
