SKU:PS-OP-4717
CE Certified
FDA Certified
ISO Certified

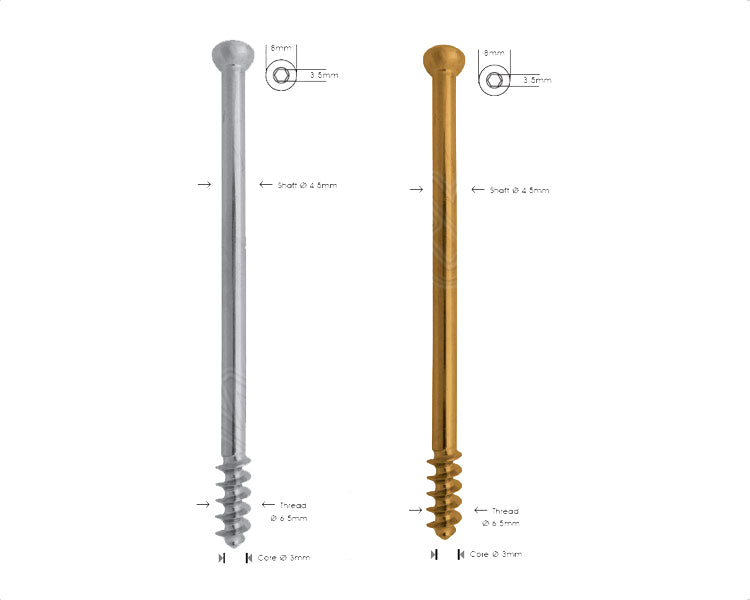

The Cancellous Bone Screw Ø6.5mm 16mm Thread is an orthopedic fixation screw available in multiple overall lengths for procedures requiring a 6.5 mm cancellous screw configuration with a defined 16 mm threaded section. The product is offered in both stainless steel and titanium options, allowing orthopedic teams and procurement departments to select the required material and length.
The current Peak Surgicals product is identified by main SKU PS-OP-4717. Available lengths range from 25 mm to 120 mm, with separate catalog codes provided for stainless steel and titanium versions of each length.
The current product title confirms a nominal screw diameter of Ø6.5 mm. This diameter forms one of the primary identification specifications for the implant and should be confirmed together with the required overall length and material when ordering.
The current product page does not state the thread pitch, core diameter, head dimensions, or compatible driver configuration. These details should therefore be confirmed separately when required for a specific orthopedic fixation system.
This model is specifically identified with a 16 mm thread. The thread length distinguishes this screw from full-thread or other short-thread cancellous screw configurations available within orthopedic implant ranges.
The live Peak Surgicals page does not identify this model as self-tapping and does not provide detailed thread geometry. Those characteristics should not be assumed from other cancellous screw products.
The current Peak Surgicals specification provides a broad range of screw lengths beginning at 25 mm and extending to 120 mm. Lengths increase in 5 mm increments across the listed range.
This allows the required screw length to be selected independently while maintaining the same Ø6.5 mm diameter and 16 mm thread designation.
Stainless steel versions are listed for every available length from 25 mm through 120 mm. The stainless steel catalog codes use the 108.xxx numbering format, with the final digits corresponding to the listed screw length.
The exact stainless-steel alloy grade is not stated on the current product page. Buyers requiring a particular material standard or supporting documentation should confirm that information before ordering.
Titanium configurations are also provided for every listed length. Their catalog codes use the PS-108.xxx format while maintaining the same length sequence as the stainless steel versions.
The exact titanium alloy or grade is not specified on the current page. Hospitals and orthopedic procurement teams requiring a defined titanium specification should confirm the material documentation before purchase.
The Cancellous Bone Screw Ø6.5mm 16mm Thread is part of the Peak Surgicals orthopedic screw range and is intended for orthopedic fixation applications requiring this cancellous screw diameter, threaded-section length, and overall screw length.
The appropriate screw material and length should be selected by the orthopedic surgical team according to the fixation plan, anatomy, and compatible implant system.
The live storefront provides separate Material and Size selectors. When ordering, buyers should confirm the required material together with the exact screw length rather than relying only on the main product SKU.
The individual catalog code provides the clearest purchasing reference for each material and length combination.
| Product Name | Cancellous Bone Screw Ø6.5mm 16mm Thread |
| Main SKU | PS-OP-4717 |
| Product Type | Orthopedic Cancellous Bone Screw |
| Diameter | Ø6.5 mm |
| Thread Length | 16 mm |
| Material Options | Stainless Steel / Titanium |
| 25 mm | Stainless Steel: 108.025 | Titanium: PS-108.025 |
| 30 mm | Stainless Steel: 108.030 | Titanium: PS-108.030 |
| 35 mm | Stainless Steel: 108.035 | Titanium: PS-108.035 |
| 40 mm | Stainless Steel: 108.040 | Titanium: PS-108.040 |
| 45 mm | Stainless Steel: 108.045 | Titanium: PS-108.045 |
| 50 mm | Stainless Steel: 108.050 | Titanium: PS-108.050 |
| 55 mm | Stainless Steel: 108.055 | Titanium: PS-108.055 |
| 60 mm | Stainless Steel: 108.060 | Titanium: PS-108.060 |
| 65 mm | Stainless Steel: 108.065 | Titanium: PS-108.065 |
| 70 mm | Stainless Steel: 108.070 | Titanium: PS-108.070 |
| 75 mm | Stainless Steel: 108.075 | Titanium: PS-108.075 |
| 80 mm | Stainless Steel: 108.080 | Titanium: PS-108.080 |
| 85 mm | Stainless Steel: 108.085 | Titanium: PS-108.085 |
| 90 mm | Stainless Steel: 108.090 | Titanium: PS-108.090 |
| 95 mm | Stainless Steel: 108.095 | Titanium: PS-108.095 |
| 100 mm | Stainless Steel: 108.100 | Titanium: PS-108.100 |
| 105 mm | Stainless Steel: 108.105 | Titanium: PS-108.105 |
| 110 mm | Stainless Steel: 108.110 | Titanium: PS-108.110 |
| 115 mm | Stainless Steel: 108.115 | Titanium: PS-108.115 |
| 120 mm | Stainless Steel: 108.120 | Titanium: PS-108.120 |
The Cancellous Bone Screw Ø6.5mm 16mm Thread is relevant for orthopedic departments, trauma centers, hospitals, implant distributors, and procurement teams sourcing cancellous fixation screws in defined material and length configurations.
For accurate ordering, buyers should reference PS-OP-4717 together with the required stainless steel or titanium material and 25–120 mm length. Buyers requiring exact head design, drive interface, thread pitch, screw-core diameter, alloy grade, sterility status, or compatibility with a particular implant system should confirm those specifications before ordering because they are not stated on the current product page.
The current Peak Surgicals product title specifies a diameter of Ø6.5 mm.
This model has a confirmed 16 mm threaded section.
The live product table lists lengths from 25 mm through 120 mm in 5 mm increments.
The current product table provides both stainless steel and titanium versions.
The current Peak Surgicals main product SKU is PS-OP-4717.
The current product page does not identify this exact Ø6.5 mm, 16 mm thread model as self-tapping, so that feature should not be assumed without additional confirmation.
