Broken Screw Removal Set - Comprehensive Overview

The Broken Screw Removal Instrument Set is an orthopedic surgical instrument set designed for the removal of damaged or broken screws. The set includes multiple instruments for accessing, gripping, and extracting screw fragments during orthopedic procedures.

Key Components of the Broken Screw Removal Instrument Set

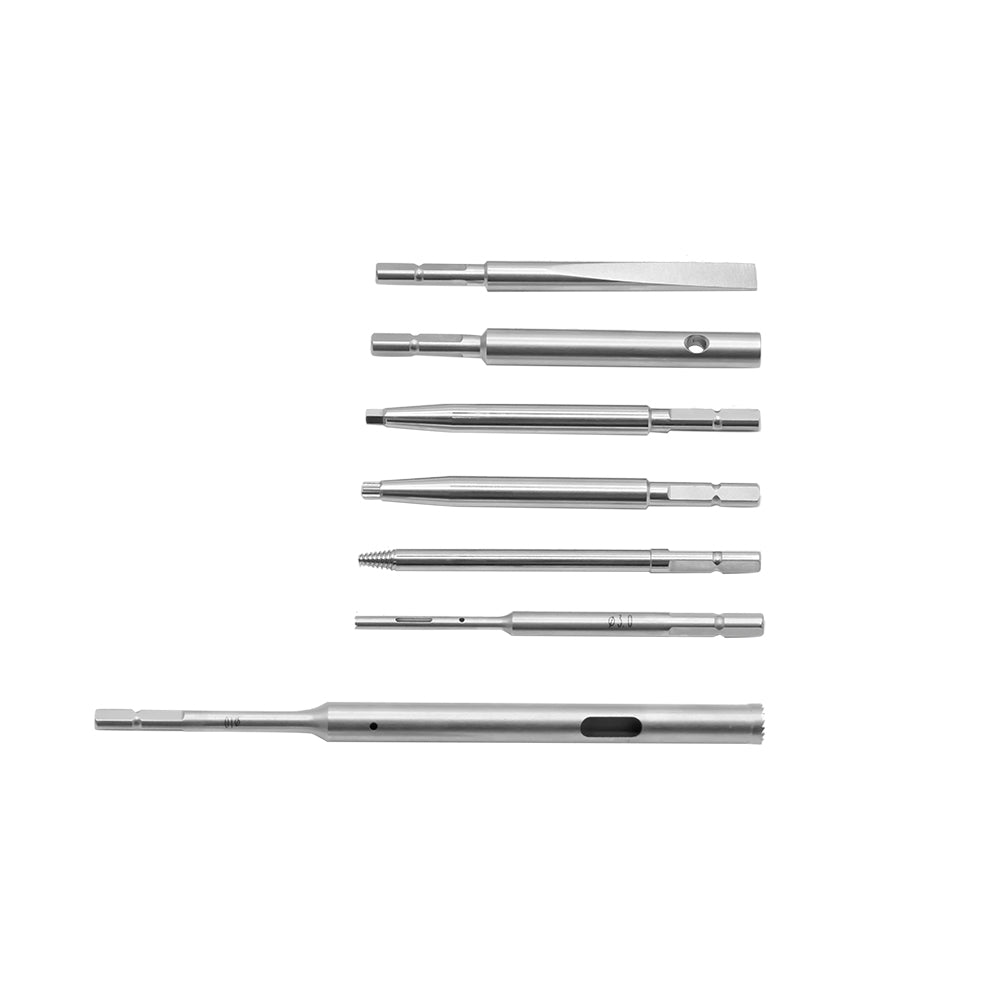

1. Hollow Reamers (REF: 4200-1001 to 4200-1005, 4200-1007, 4200-1008)

   • Hollow reamers are supplied in various sizes from Ph2.7 up to Ph10 and are used to work around damaged screws during removal.

2. Extraction Bolts (REF: 4200-1009 to 4200-1012)

   • Extraction bolts are available in sizes from Ph3.5 up to Ph6.5 and are designed to provide grip when removing screw fragments.

3. Extraction Screws - Hexagonal (REF: 4200-1013 to 4200-1016)

   • Conical extraction screws in multiple sizes are included for extracting damaged screws.

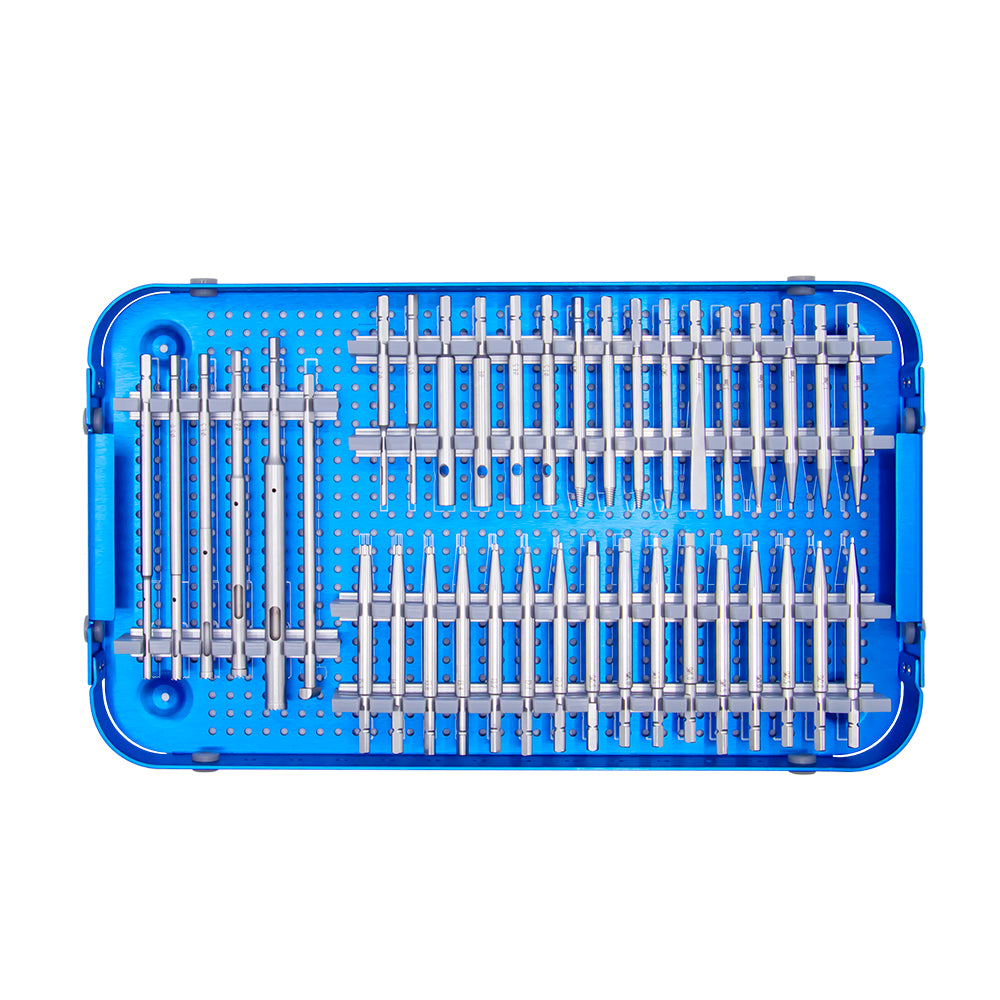

4. Screwdrivers (REF: 4200-1017 to 4200-1038)

   • The set includes a range of screwdrivers, including Phillips, slotted, and star types, for use with different screw configurations.

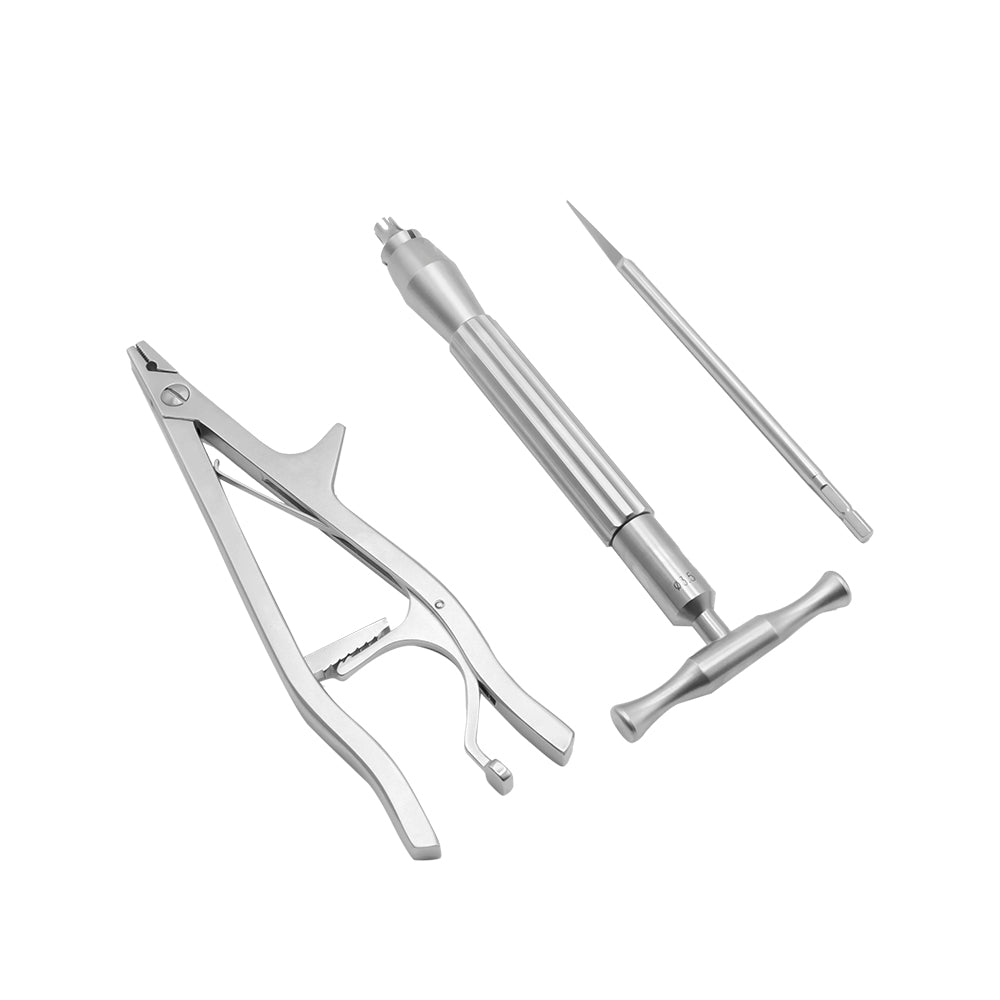

5. Pliers for Screw Removal (REF: 4200-1039)

   • The screw-removal pliers provide controlled gripping during manual screw extraction.

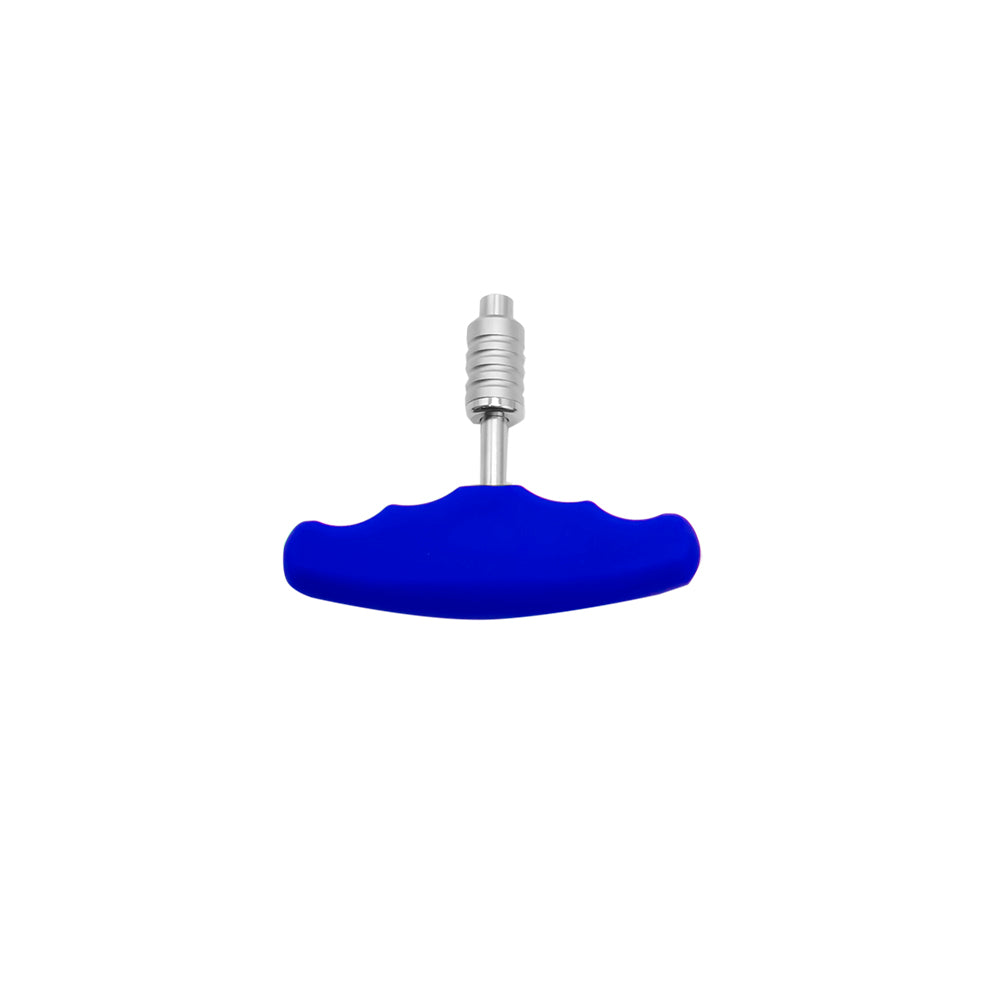

6. T-Shaped and Straight Handle Quick Couplings (REF: 4200-1040, 4200-1042)

   • Quick-coupling handles are included for attaching compatible drill bits and reamers.

7. Screw Extractors (REF: 4200-1043, 4200-1049)

   • Screw extractors are included for gripping and removing screw fragments.

8. High-Speed Drill Bits (REF: 4200-1044 to 4200-1046)

   • High-speed drill bits are included for preparing access to damaged or broken screws during removal procedures.

9. Round Gouge (REF: 4200-1041)

   • The round gouge can be used when access around a damaged screw is required.

10. Sharp Hook and Tip Screwdriver (REF: 4200-1047, 4200-1048)

    • These instruments support controlled manipulation and access to screw fragments.

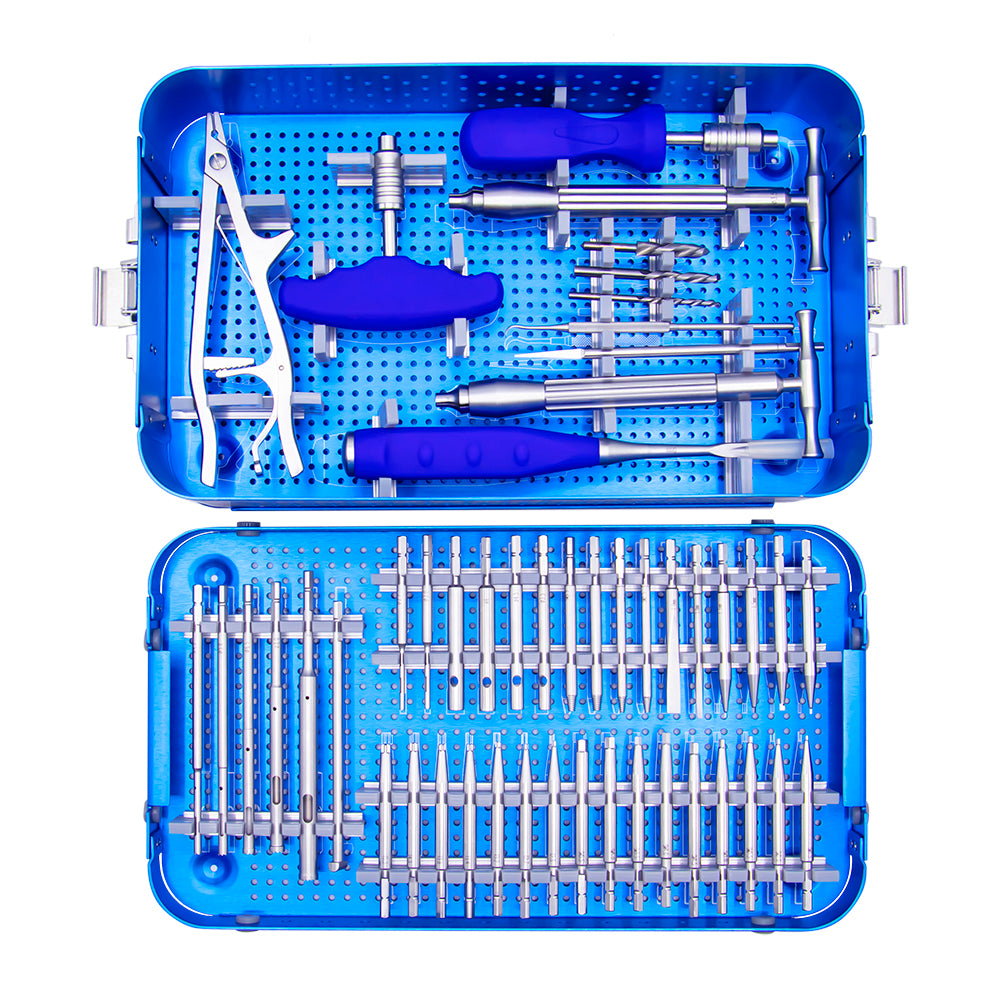

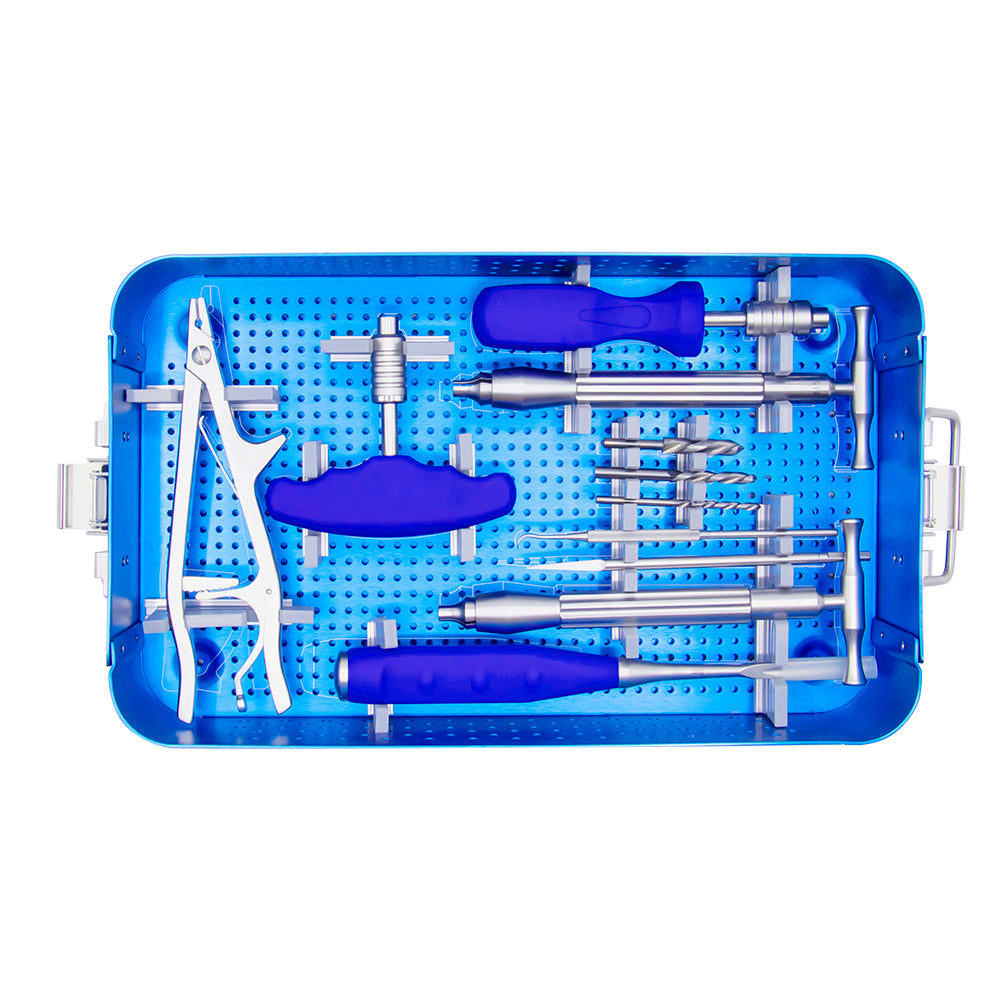

11. Aluminium Box (REF: 4200-1050)

    • The set includes an aluminium box for organized storage and transportation of the instruments.

Applications in Orthopedic Procedures

The Broken Screw Removal Instrument Set is intended for orthopedic procedures involving the removal of damaged or broken screws. Its range of extraction instruments provides multiple options for accessing, gripping, and removing screw fragments according to the requirements of the procedure.

Complete Orthopedic Screw Removal Set

The Broken Screw Removal Set combines hollow reamers, extraction bolts, hexagonal extraction screws, multiple screwdriver types, screw-removal pliers, quick-coupling handles, screw extractors, drill bits, a round gouge, a sharp hook, and a tip screwdriver in an organized aluminium box. Instrument selection and use should be determined by the qualified orthopedic professional according to the specific procedure and screw configuration.
