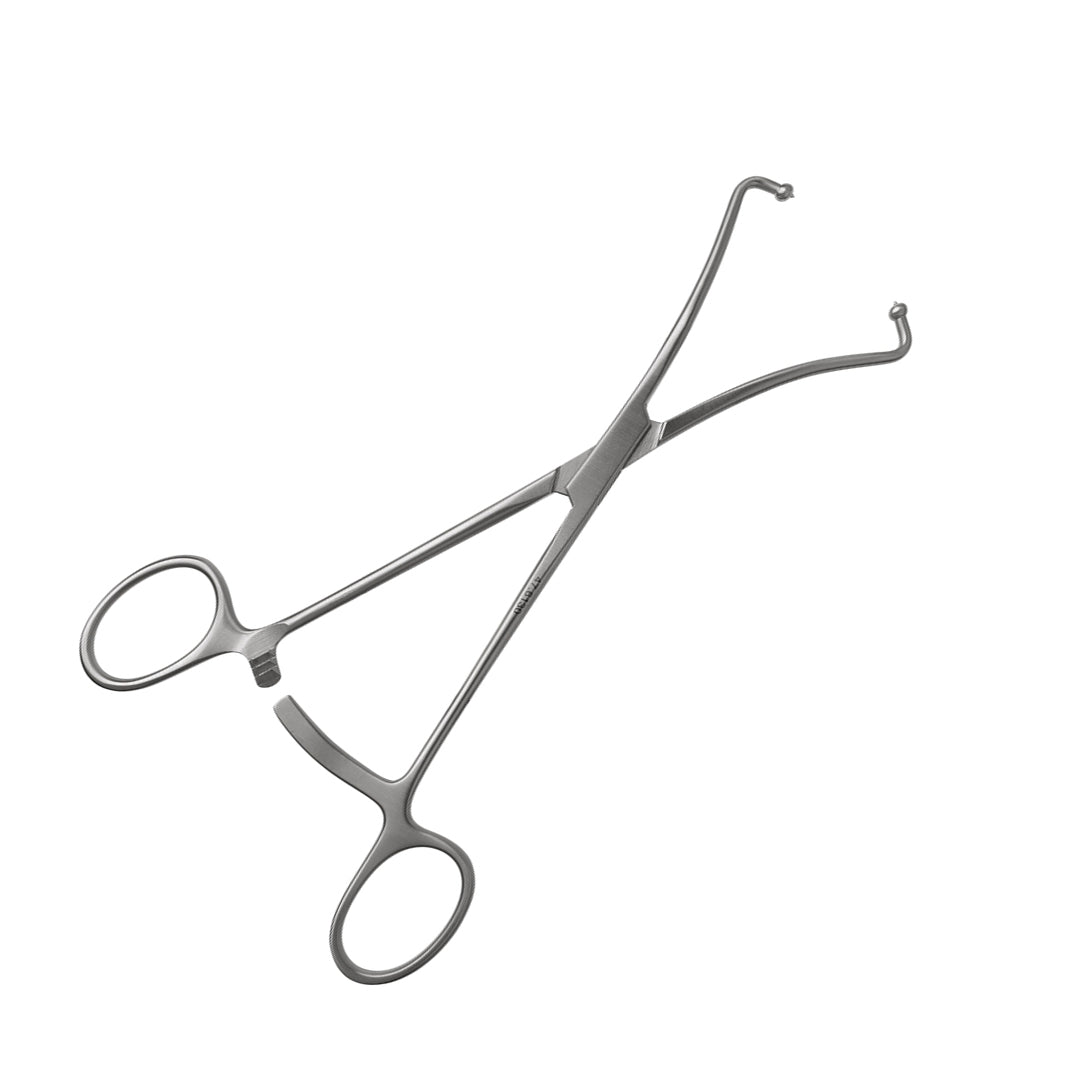

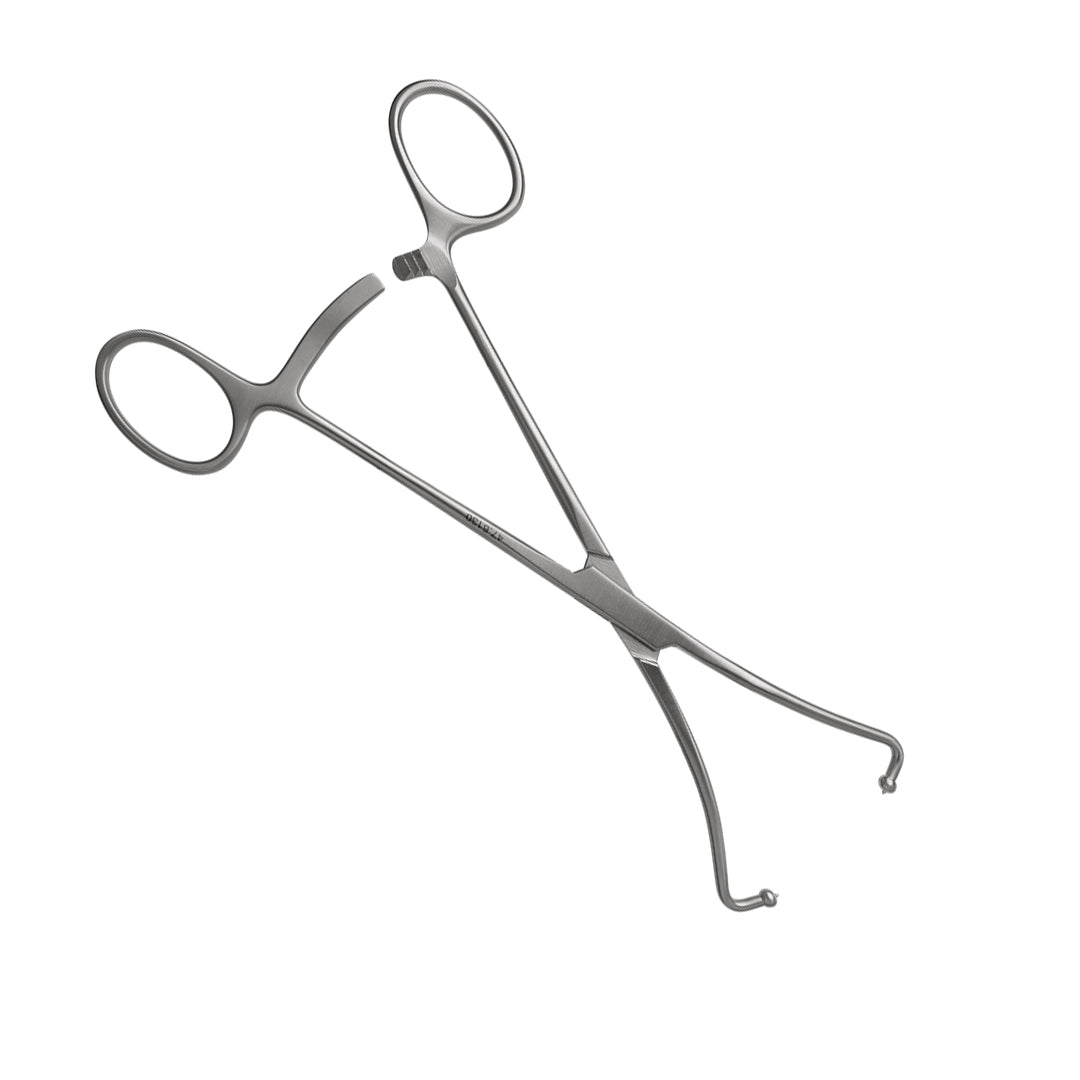

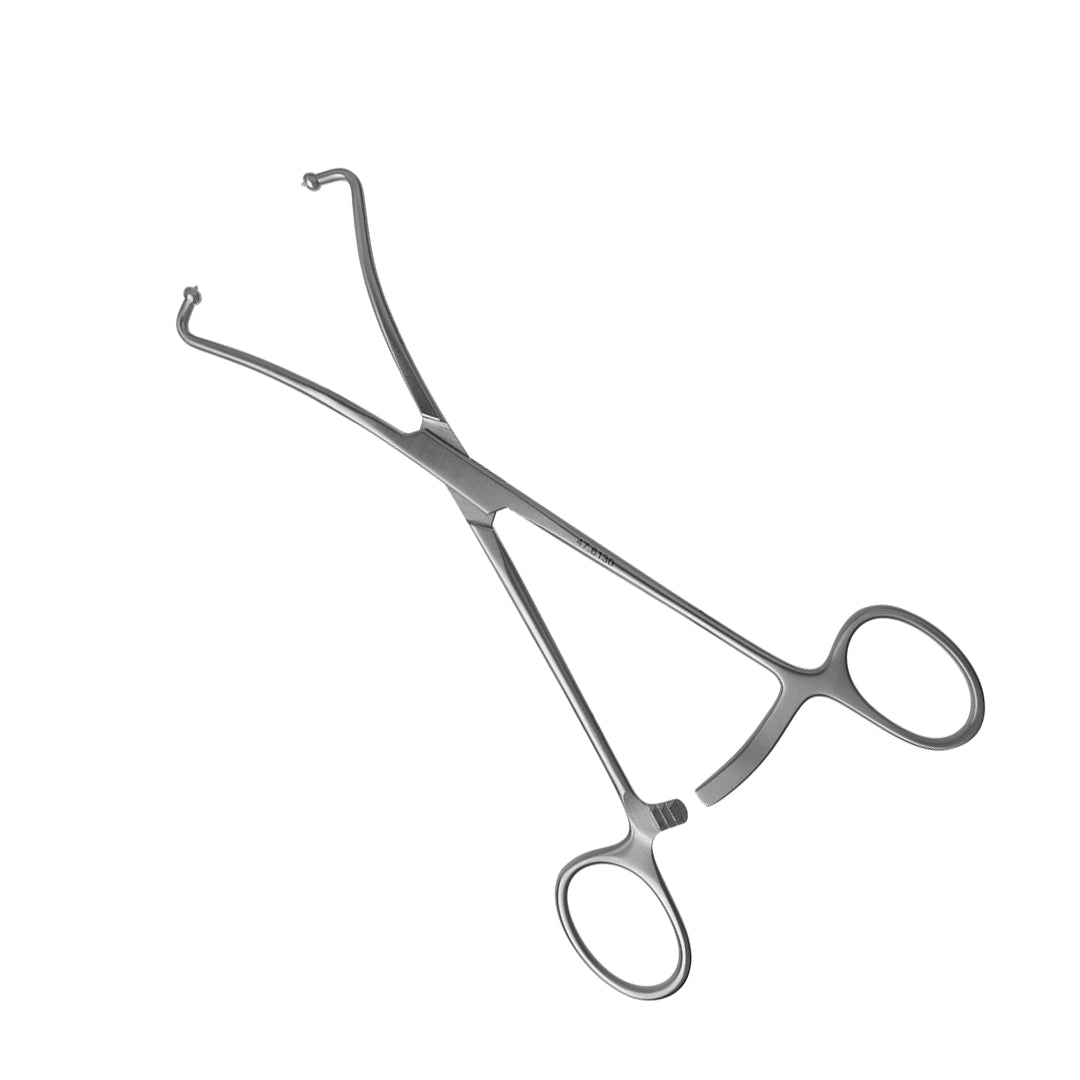

Bone Forceps Curved – 6.5 in, 3 mm Ball Tips for Orthopedic Fracture Reduction

Bone Forceps Curved, SKU PS-000040, are reusable orthopedic bone-fragment forceps manufactured from German surgical stainless steel for controlled reduction, manipulation, and temporary stabilization of osseous fragments during fracture surgery. The instrument measures 6 1/2 in overall and incorporates curved working jaws terminating in 3.0 mm ball tips with a ratchet locking mechanism. The rounded ball-tip geometry provides defined contact with irregular bone surfaces while avoiding the penetrating profile of sharply pointed reduction forceps. Its curved distal configuration allows the jaws to approach fragments from an offset working angle when a straight instrument would interfere with surrounding tissue, fixation hardware, or the surgical approach. Once the required reduction is obtained, the ratchet can maintain the selected jaw relationship without continuous hand compression. This pattern is suited to open fracture reduction, small- and medium-bone stabilization, osteotomy, provisional fixation, plate positioning, and other orthopedic workflows requiring controlled fragment alignment before definitive fixation.

3 mm Ball Tips, Curved Jaws and Ratchet Locking Mechanism

The working design of the Bone Forceps Curved combines curved jaws with 3.0 mm ball tips and a progressive ratchet lock. The rounded distal ends create localized but non-pointed contact against appropriate exposed bone surfaces, allowing the surgeon to hold or manipulate an irregular fragment without relying on sharp spikes for purchase. Curvature through the jaws changes the line of approach between the handles and the osseous contact point, helping preserve clearance around retractors, plates, drill guides, or adjacent instruments. As the finger-ring handles are closed, the ratchet engages progressively and maintains the selected jaw opening once adequate stabilization has been achieved. This self-retaining action can reduce continuous hand fatigue during reduction assessment or fixation. Closure should be increased only until the fragment is securely controlled because excessive ratchet engagement can create unnecessary compression, particularly in thin, comminuted, or osteoporotic bone. If the ball tips are not properly seated, the instrument should be released and repositioned rather than tightened further.

Fracture Reduction and Bone Fragment Stabilization Workflow

During open fracture reduction, the Bone Forceps Curved can be introduced after sufficient surgical exposure has established a safe path to the selected fragments. The surgeon positions the 3 mm ball tips on appropriate visible osseous surfaces and uses the curved jaws to manipulate the fragments toward the desired anatomical relationship. Controlled handle closure establishes temporary purchase, after which the ratchet can maintain the reduction while alignment, rotation, and cortical apposition are assessed through direct visualization or imaging. The forceps can remain engaged during provisional plate positioning, drilling, depth measurement, or selected screw insertion when its location does not interfere with the fixation pathway. In osteotomy or reconstructive procedures, the same mechanism can stabilize a divided bone segment while angular or rotational correction is established. The curved configuration is particularly useful when the required bone contact lies slightly away from the direct axis of the handles. Surrounding periosteum, muscle, vessels, nerves, and other soft tissues should remain clear of the ball tips before locking pressure is applied.

PS-000040 6.5-Inch Length and 3 mm Ball-Tip Selection

PS-000040 identifies the Peak Surgicals Bone Forceps Curved configuration with a 6 1/2 in overall length, 3.0 mm outside-diameter ball tips, curved jaws, and ratchet locking mechanism. This combination corresponds to an established orthopedic bone-fragment clamp pattern designed for controlled manipulation of uneven osseous fragments. The 6.5-inch length provides compact handling while retaining enough reach for routine open fracture and small- to medium-bone procedures. Established bone-fragment clamp families also include smaller 5 1/2-inch instruments with 2 mm tips and larger 8-inch instruments with 4 mm tips, demonstrating how overall length and contact diameter change with intended working capacity. Those configurations should not be substituted automatically for PS-000040. The 3 mm model represents an intermediate contact size that balances localized fragment control with a rounded non-pointed interface. Selection should consider bone dimensions, fracture morphology, operative depth, cortical quality, surrounding tissue, and the space required for definitive fixation instruments.

German Stainless Steel, Reprocessing and Procurement Standards

German surgical stainless steel provides the strength, corrosion resistance, dimensional stability, and surface durability required for reusable orthopedic forceps subjected to repeated clamping and sterilization cycles. Peak Surgicals identifies PS-000040 as Premium OR grade and reusable. Reprocessing should begin promptly following surgery so blood, marrow, bone debris, and other contamination do not dry around the 3 mm ball tips, curved jaws, hinge, ratchet teeth, finger rings, or surface transitions. The instrument should remain open during cleaning so all contacting and moving areas are accessible. Thorough rinsing and complete drying should follow before visual and functional inspection. Sterile-processing personnel should confirm ball-tip integrity, jaw alignment, smooth hinge motion, reliable ratchet engagement and release, and absence of corrosion, cracks, bending, or retained debris. Moving joints may receive appropriate instrument lubricant according to the facility's validated maintenance protocol. Terminal sterilization should follow the healthcare facility's validated process for reusable stainless steel surgical instruments. Peak Surgicals supports CE and ISO 13485 procurement documentation together with applicable FDA-related supplier records.

How do Bone Forceps Curved differ from sharply pointed bone reduction forceps?
Bone Forceps Curved PS-000040 use rounded 3.0 mm ball tips rather than sharply pointed reduction tips. The ball-tip design provides controlled contact against irregular bone surfaces without depending on a penetrating point for purchase. Sharply pointed forceps may provide stronger focal engagement when the operative technique requires precise cortical purchase. The curved ball-tip pattern can be preferable when fragment manipulation and temporary stabilization are required with a broader rounded interface. Both designs can use locking mechanisms to maintain reduction. Selection should depend on fracture geometry, cortical quality, available bone surface, operative approach, and the type of temporary fixation required.

Why select the 6.5-inch configuration with 3 mm ball tips?
The 6 1/2 in length provides compact maneuverability while maintaining sufficient working reach for routine fracture and bone-fragment procedures. Its 3 mm ball tips offer an intermediate contact diameter within commonly available bone-fragment clamp families. Smaller 2 mm tips can provide more focused contact where fragments and operative spaces are limited. Larger 4 mm ball-tip patterns provide greater contact area and are generally paired with larger instruments. PS-000040 therefore provides a practical middle configuration for small- and medium-bone reduction work. Selection should still follow fragment dimensions, cortical strength, surgical depth, and required fixation clearance rather than tip diameter alone.

What do CE, ISO 13485 and FDA references mean for procurement?
Peak Surgicals displays CE, FDA, and ISO-related information for the Bone Forceps Curved product listing. ISO 13485 concerns the quality-management system used for controlled medical-device manufacturing and related processes. CE documentation supports applicable conformity-assessment requirements within relevant medical-device markets. FDA-related records should be reviewed according to the manufacturer, establishment, device classification, and procurement requirements applicable to the order. These references should not be rewritten as an unsupported statement that PS-000040 is individually FDA approved. Hospitals and distributors should retain the exact SKU, supplier documentation, certificates, and applicable regulatory records within their vendor-qualification files.

How does the ratchet mechanism maintain bone-fragment reduction?
The ratchet engages progressively as the finger-ring handles of the Bone Forceps Curved are closed. Each locking position maintains a corresponding relationship between the curved jaws and 3 mm ball tips. This allows the surgeon to establish temporary fragment stabilization without continuously squeezing the handles. Further ratchet engagement increases jaw closure and therefore increases pressure at the osseous contact points. The mechanism should only be advanced until adequate stabilization has been achieved. If fragment position or ball-tip purchase is unsatisfactory, the ratchet should be released and the forceps repositioned rather than tightened excessively.

How should hospitals order and reprocess the Bone Forceps Curved?
Hospitals should order this exact configuration using Peak Surgicals SKU PS-000040 together with the 6 1/2 in length, curved jaws, 3.0 mm ball tips, and ratchet specification. Peak Surgicals currently lists the instrument at $54.99 and displays a 30-day money-back guarantee on eligible purchases. Standard online ordering begins with one piece, while institutional and distributor requirements can be coordinated separately. Following surgery, contamination should be removed promptly from the ball tips, curved jaws, hinge, ratchet teeth, finger rings, and surrounding surfaces. Cleaning should be followed by thorough rinsing, complete drying, and inspection of jaw alignment, tip integrity, and locking performance. Final sterilization should follow the healthcare facility's validated reusable stainless steel instrument process before PS-000040 returns to the orthopedic bone-holding and fracture-reduction tray.
