Bone Plate Bending Tool for Plates Up to 6mm Orthopedic Instrument

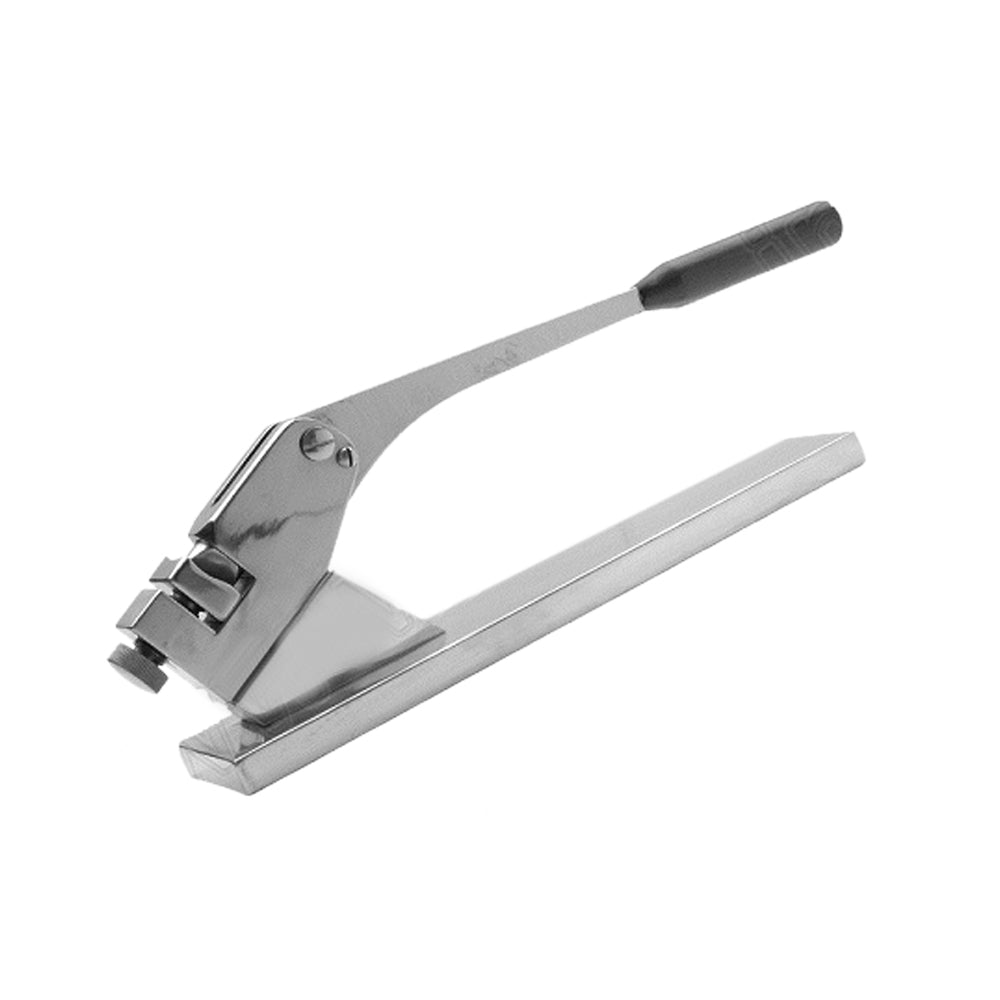

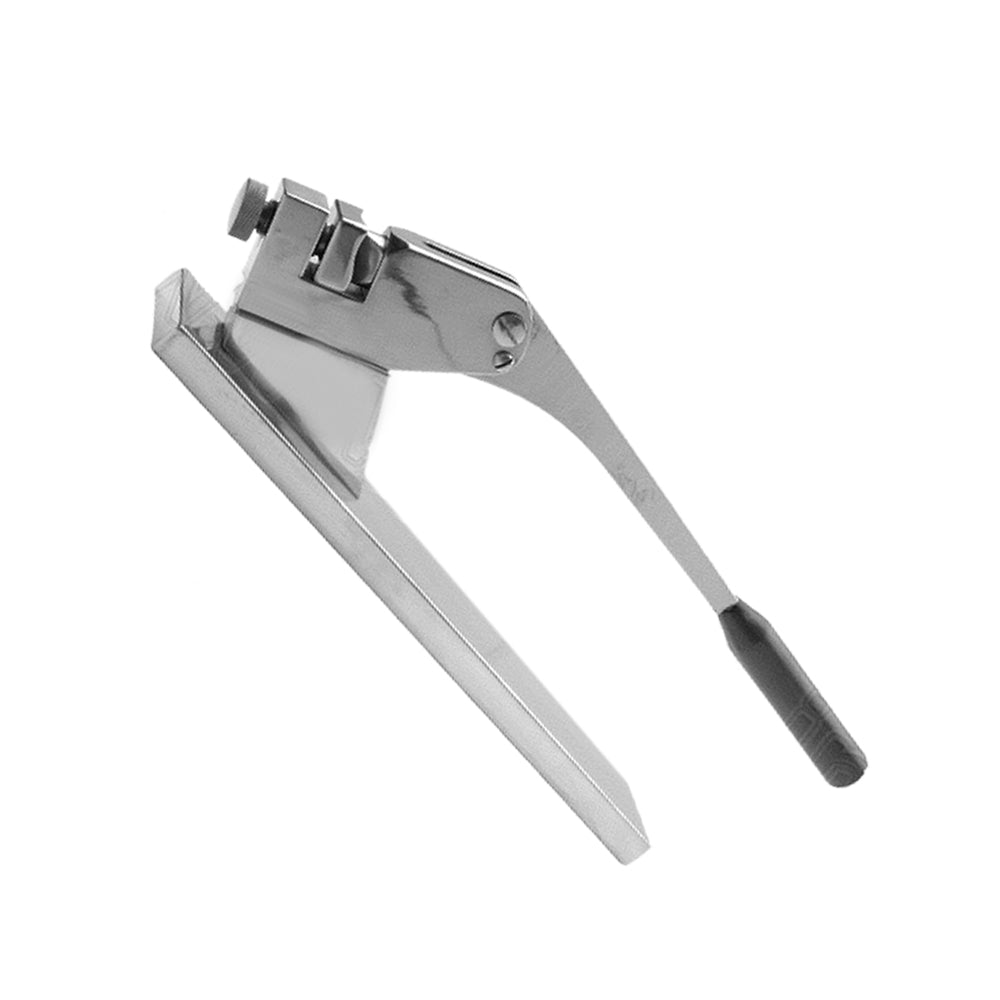

Bone Plate Bending Tool – High-Capacity Lever-Action Desktop Contouring Press

The premier orthopedic implant preparation instrument for high-force, precise anatomical contouring of thick bone fixation plates up to 6mm. The Bone Plate Bending Tool is a heavy-duty, tabletop mechanical press engineered to address the challenging clinical task of bending and contouring rigid stainless steel or titanium bone plates without kinking the screw holes or weakening the metal structure. Featuring a high-ratio lever-action handle and an adjustable anvil base, this tool is a mechanical necessity for surgical teams and central sterile processing staff preparing large fragment plates for femur, tibia, and pelvic reconstruction surgeries. Its stable, low-profile architecture converts manual arm force into a controlled downward press, enabling precise adjustments to match the patient’s unique bone geometry.

Key Features for Professional Medical Management

• High-Capacity 6mm Pass-Through Anvil: Engineered with an expanded, reinforced bending die slot that can comfortably fit heavy-construction dynamic compression plates (DCP) and locking plates up to 6mm thick. This robust capacity is a mechanical necessity for preparing large-fragment trauma systems without jamming.
• High-Ratio Mechanical Lever Arm: Designed with an extended structural handle that uses basic physics to amplify manual force. This long lever is a mechanical necessity that allows surgical techs or surgeons to easily bend dense medical-grade titanium or cobalt-chromium implants with minimal effort.
• Micro-Adjustable Contour Gauge: Equipped with a fine-threaded alignment screw or adjustable press pin at the working junction. This precise setup is a mechanical necessity for making tiny, incremental angle changes, preventing over-bending and micro-fractures in the plate.
• Counter-Weighted Structural Base Plate: Formed with a long, flat, heavy-set metal anchor bar that rests completely flat on instrument preparation tables. This wide footprint is a mechanical necessity that prevents the press from tipping, rocking, or sliding mid-bend, ensuring absolute user safety and true angles.
• Ergonomic Comfort Grip Handle: Finished with a thick, textured, slip-resistant sleeve at the end of the leverage handle. This tactile boundary is a mechanical necessity that provides users with a secure, anti-fatigue grip during long instrument set configurations.
• Solid-State Surgical Steel Chassis: Forged entirely from ultra-dense, non-corrosive, industrial-grade medical alloys. This hard material composition is a mechanical necessity for resisting structural bending, finish clouding, or joint stiffening over thousands of high-vacuum steam autoclave processing cycles.

Detailed Product Description

The Lever-Action Bone Plate Bending Tool (for plates up to 6mm) represents the industry standard for safe, accurate implant modification in high-impact trauma surgery and fracture fixation. Every patient’s bone shape is slightly different, but mass-produced internal fixation plates are manufactured completely flat or with generic curves. Screw-fastening a straight, rigid plate onto a curved bone cortex can pull the fracture out of alignment or place uneven stress on the bone. This specialized tabletop press acts as a precise mechanical cold-rolling mill, smoothly altering the plate’s shape without damaging the internal threading of its locking screw holes.

At its core, the tool is engineered for structural safety and predictable shaping control. Unlike basic handheld bending irons, which rely entirely on hand strength and can easily twist the plate sideways, this lever-action press applies perfectly centered vertical pressure. This balanced force distribution is a mechanical necessity for keeping the plate perfectly aligned during bending, ensuring the screw holes remain true and do not warp. By letting the technician precisely increase the bending pressure, the tool helps create a perfect fit against the bone, providing the exact contour needed for stable fixation, even load sharing, and faster healing.

Built to exceed international quality standards for medical hardware, this heavy-duty bending press is fully reusable and easy to maintain. Its open unibody slots, heavy pivot bolts, and weld-free frame make it an indispensable asset for ensuring safe, predictable, and high-precision results in all large-fragment trauma, orthopedic reconstruction, and implant prep sets.

Technical Specifications & Geometry

Feature Details

Instrument Style Lever-Action Tabletop Implant Bending Press

Maximum Thickness Capacity 6mm (0.6cm / 0.24”) Bone Plates

Mechanical System High-Ratio Single-Pivot Lever Action

Base Configuration Extended Flat Counter-Weighted Stabilization Bar

Adjustment System Fine-Threaded Precision Anvil Screw

Material Base Ultra-Hardened Bio-Inert Surgical Stainless Steel

Reprocessing Limits Fully Autoclavable / High-Vacuum Steam-Safe

Certifications CE, ISO Professional Medical Device Grade

Primary Clinical Applications:

• Large Fragment Plate Contouring: Bending straight reconstruction plates to match the natural curves of the adult femur or tibia shaft.
• Pelvic Ring Reconstruction Prep: Shaping long dynamic compression plates (DCP) across multiple planes to fit the complex, curving bone borders of the pelvis.
• Periprosthetic Fracture Management: Adjusting wide, heavy spanning plates to clear old joint implants while maintaining solid bone contact.
• Corrective Osteotomy Alignment: Pre-bending fixation hardware to the exact corrective angle calculated before surgery to hold cut bone segments in place.
• Surgical Tray Customization: Shaping titanium or stainless steel bone plates in the sterile core or central processing room before the patient is draped.

Why Orthopedic Central Sterile Departments Choose this Press?

• True Vertical Pressure Control: The solid single-pivot lever transfers power straight down, serving as a mechanical necessity for preventing the plate from twisting or warping sideways.
• Warp-Free Hole Protection: The curved anvil rollers evenly cradle the plate margins, serving as a mechanical necessity to protect delicate locking screw threads from collapsing during deep bends.
• Zero-Slip Benchtop Stability: The extended, heavy steel base plate keeps the tool firmly anchored on worktables, providing a mechanical necessity for steady, one-handed lever operation.
• Open-Architecture Decontamination: The weld-free chassis features visible joints and open access slots, making it a mechanical necessity for fast cleaning, lubrication, and complete steam penetration in hospital autoclaves.

FAQ Section

Q: Why use a desktop lever press instead of standard handheld bending irons?

A: Handheld bending irons require immense upper-body strength and are prone to slipping, which can cause uneven curves or twist the plate out of plane. This desktop lever press provides far superior mechanical advantage and applies a perfectly balanced, vertical force. This steady control is a mechanical necessity for safely shaping heavy plates up to 6mm thick without warping the screw holes.

Q: Can this tool safely bend both titanium and stainless steel plates?

A: Yes. The hardened surgical steel press face can handle both medical-grade titanium and stainless steel alloy implants. Because titanium has greater "spring-back” than steel, the micro-adjustable anvil screw is a mechanical necessity that allows users to slightly over-bend the plate to achieve the desired final shape.

Q: Will the tool scratch or damage the smooth satin coating of a locking plate?

A: The press faces and anvil slot are machined with perfectly smooth, rounded edges to minimize friction marks. To eliminate surface marring on sensitive locking plates, it is a professional standard to place a thin protective sheet or cloth between the plate and the metal press face.

Q: How often do the pivot joints require maintenance or oiling?

A: It is a professional standard to apply a few drops of medical-grade, water-soluble instrument lubricant (“instrument milk”) to the main pivot hinge after every cleaning cycle. This routine lubrication is a mechanical necessity for keeping the lever action smooth and preventing internal friction wear.

Q: What is the approved sterilization protocol for this heavy press assembly?

A: The unibody surgical steel assembly is a mechanical necessity built for rigorous hospital reuse. It is fully rated to undergo standard high-vacuum steam autoclave cycles at 134°C (273°F). Leaving the lever handle in the open position during the cycle ensures total steam access to all internal hinge faces.
