PEAK SURGICALS
SKU:PS-OP-7093
CE Certified
FDA Certified
ISO Certified
The Angled Blade Plate 130° With Dynamic Compression Holes is an orthopedic implant plate available in a broad range of plate and blade lengths. The current Peak Surgicals range includes 4, 6, 9, and 12-hole configurations, with multiple blade-length options to support selection according to the required orthopedic fixation system.
The main Peak Surgicals product is identified as SKU PS-OP-7093. Both stainless steel and titanium versions are listed, with individual catalog codes assigned to each combination of hole count, plate length, blade length, and material.

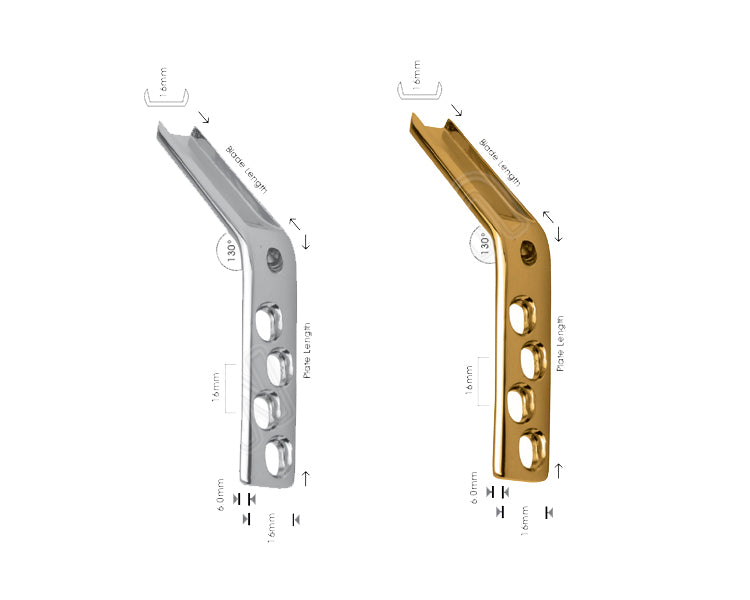

The defining feature of this implant is its 130° angled blade plate configuration. The blade and plate form a fixed angular relationship within the implant design, distinguishing this product from straight plates and other angled blade plate configurations.
Selection of the required blade length, plate length, hole count, and material should be based on the planned orthopedic fixation system and surgeon requirements.
The product is specifically identified as an angled blade plate with dynamic compression holes. This hole pattern forms part of the plate design and differentiates it from plates using other screw-hole configurations.
The current Peak Surgicals page does not specify screw diameter, screw type, hole spacing, or exact compression-system compatibility. These details should therefore be confirmed before ordering when required for a specific fixation system.
The 4-hole configuration has a confirmed plate length of 60 mm. Available blade lengths are 50, 60, 70, 75, 80, 85, 90, 95, and 100 mm.
Separate stainless-steel and titanium catalog codes are provided for every blade-length option.
The 6-hole configuration has a plate length of 104 mm. It is available with blade lengths of 50, 60, 70, 75, 80, 85, 90, 95, and 100 mm.
This provides nine listed blade-length combinations in both stainless steel and titanium.
The 9-hole plate has a confirmed length of 152 mm. Peak Surgicals lists blade lengths of 50, 60, 70, 75, 80, 85, 90, and 95 mm for this configuration.
A 100 mm blade option is not listed for the 9-hole configuration on the current product page.
The longest listed plate configuration is the 12-hole, 200 mm plate. Current blade-length options are 50, 60, 70, and 80 mm.
Separate catalog codes are again provided for stainless-steel and titanium versions.
The current product page lists a complete range of stainless-steel Angled Blade Plate 130° configurations. Stainless-steel product codes use the 163.xxx format shown in the product specification table.
The exact stainless-steel alloy grade is not provided. Hospitals, orthopedic centers, distributors, and procurement teams requiring a particular alloy specification or material certificate should confirm that information before ordering.
Peak Surgicals also lists corresponding titanium versions of the angled blade plate. Titanium catalog numbers use the PS-163.xxx format.
The exact titanium alloy or grade is not stated on the current product page and should be confirmed if a particular implant-material specification is required.
The broad range of hole counts, plate lengths, and blade lengths allows buyers to distinguish between multiple Angled Blade Plate 130° configurations within one product family.
For accurate selection, the required material, number of holes, plate length, blade length, and corresponding catalog code should all be confirmed before ordering.
| Holes | Plate Length | Blade Length | Stainless Steel | Titanium |
| 4 | 60 mm | 50 mm | 163.041 | PS-163.041 |
| 4 | 60 mm | 60 mm | 163.042 | PS-163.042 |
| 4 | 60 mm | 70 mm | 163.043 | PS-163.043 |
| 4 | 60 mm | 75 mm | 163.045 | PS-163.045 |
| 4 | 60 mm | 80 mm | 163.044 | PS-163.044 |
| 4 | 60 mm | 85 mm | 163.046 | PS-163.046 |
| 4 | 60 mm | 90 mm | 163.047 | PS-163.047 |
| 4 | 60 mm | 95 mm | 163.048 | PS-163.048 |
| 4 | 60 mm | 100 mm | 163.049 | PS-163.049 |
| 6 | 104 mm | 50 mm | 163.061 | PS-163.061 |
| 6 | 104 mm | 60 mm | 163.062 | PS-163.062 |
| 6 | 104 mm | 70 mm | 163.063 | PS-163.063 |
| 6 | 104 mm | 75 mm | 163.050 | PS-163.050 |
| 6 | 104 mm | 80 mm | 163.064 | PS-163.064 |
| 6 | 104 mm | 85 mm | 163.051 | PS-163.051 |
| 6 | 104 mm | 90 mm | 163.052 | PS-163.052 |
| 6 | 104 mm | 95 mm | 163.053 | PS-163.053 |
| 6 | 104 mm | 100 mm | 163.054 | PS-163.054 |
| 9 | 152 mm | 50 mm | 163.091 | PS-163.091 |
| 9 | 152 mm | 60 mm | 163.092 | PS-163.092 |
| 9 | 152 mm | 70 mm | 163.093 | PS-163.093 |
| 9 | 152 mm | 75 mm | 163.080 | PS-163.080 |
| 9 | 152 mm | 80 mm | 163.094 | PS-163.094 |
| 9 | 152 mm | 85 mm | 163.081 | PS-163.081 |
| 9 | 152 mm | 90 mm | 163.082 | PS-163.082 |
| 9 | 152 mm | 95 mm | 163.083 | PS-163.083 |
| 12 | 200 mm | 50 mm | 163.001 | PS-163.001 |
| 12 | 200 mm | 60 mm | 163.002 | PS-163.002 |
| 12 | 200 mm | 70 mm | 163.003 | PS-163.003 |
| 12 | 200 mm | 80 mm | 163.004 | PS-163.004 |
The Angled Blade Plate 130° With Dynamic Compression Holes is relevant for orthopedic departments, hospitals, implant distributors, surgical centers, and procurement teams sourcing angled blade plate configurations.
For accurate purchasing and inventory identification, buyers should reference SKU PS-OP-7093 together with the required material, hole count, plate length, blade length, and individual catalog code. Buyers requiring exact plate thickness, screw diameter, hole spacing, implant-system compatibility, sterilization status, stainless-steel grade, or titanium alloy grade should confirm those specifications before ordering because they are not stated on the current Peak Surgicals page.
The current Peak Surgicals product is identified as a 130° Angled Blade Plate.
The live product page lists 4, 6, 9, and 12-hole configurations.
The corresponding plate lengths are 60 mm, 104 mm, 152 mm, and 200 mm.
Depending on the hole configuration, listed blade lengths range from 50 mm to 100 mm.
The current Peak Surgicals listing provides both stainless steel and titanium options.
The current Peak Surgicals storefront SKU is PS-OP-7093.
