PEAK SURGICALS
SKU:PS-OP-7109
CE Certified
FDA Certified
ISO Certified

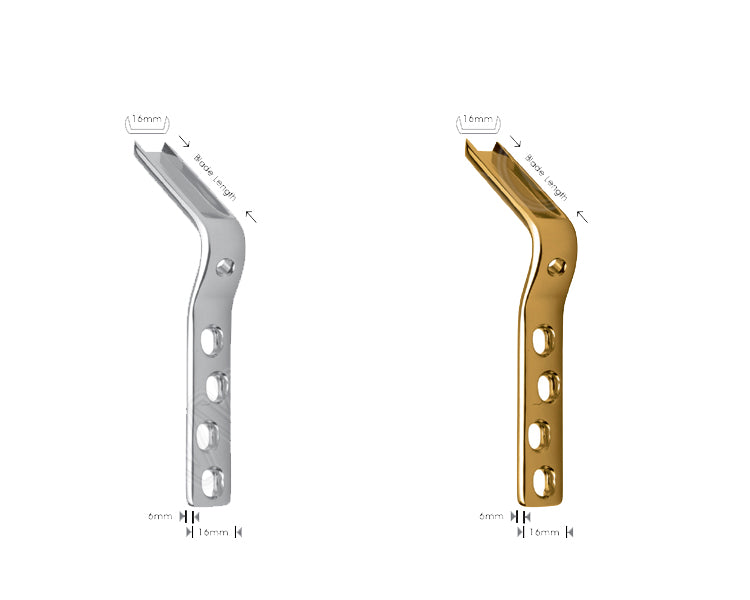

The Angled Blade Plate is an orthopedic fixation plate offered by Peak Surgicals for intertrochanteric femoral osteotomy applications. The current range provides multiple blade lengths and three defined plate angles, allowing the required configuration to be selected according to the planned orthopedic procedure.
The main Peak Surgicals product is identified as SKU PS-OP-7109. Both stainless steel and titanium configurations are listed, with blade angles of 110°, 120°, and 130° and blade lengths ranging from 60 mm to 105 mm.
The 110° configuration is available with blade lengths of 65 mm, 75 mm, and 85 mm. Each blade length has a dedicated catalog number for stainless steel and a corresponding titanium code.
This angle should be selected only when it matches the required surgical plan and implant specification.
The 120° range includes six blade lengths: 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, and 85 mm. This provides the widest group of shorter and intermediate blade options within the current Peak Surgicals table.
Each size is listed in both stainless steel and titanium.
The 130° configuration provides the broadest blade-length range, starting at 65 mm and extending through 70, 75, 80, 85, 90, 95, 100, and 105 mm.
This allows orthopedic teams and procurement departments to distinguish the required plate by both angle and blade length rather than ordering by angle alone.
The complete Peak Surgicals range spans blade lengths from 60 mm to 105 mm. Not every blade length is available at every angle, so the selected angle and length should be checked together against the catalog table.
The blade-length measurement is one of the key identifying specifications provided on the current product page.
The live product table provides a complete stainless steel range across the listed 110°, 120°, and 130° plate configurations.
Stainless-steel catalog numbers are listed without the PS prefix, including codes in the 171.xxx series. The exact stainless-steel alloy grade is not stated on the current product page and should be confirmed if required for procurement documentation.
The same angle and blade-length combinations are also listed in titanium. Titanium catalog numbers use corresponding PS-171.xxx codes.
The exact titanium alloy or grade is not stated on the current Peak Surgicals page. Hospitals and distributors requiring a specific alloy designation should confirm it before ordering.
The live Peak Surgicals product title specifically identifies this Angled Blade Plate for intertrochanteric femoral osteotomies in adults.
Selection of plate angle, blade length, material, and associated fixation components should be determined by the orthopedic surgeon according to the planned procedure and required implant configuration.
The live storefront includes separate Material and Size selectors. Buyers should confirm the required material together with the exact blade angle and length before placing an order.
The current page does not state plate length, plate thickness, hole count, screw diameter, screw compatibility, blade width, sterility status, or detailed implant-system compatibility. These specifications should therefore be confirmed when required.
| Product Name | Angled Blade Plate for Intertrochanteric Femoral Osteotomy |
| Main SKU | PS-OP-7109 |
| Product Type | Orthopedic Angled Blade Plate |
| Material Options | Stainless Steel / Titanium |
| Plate Angles | 110°, 120°, 130° |
| Blade Length Range | 60–105 mm |
| 110° / 65 mm | Stainless Steel 171.265 / Titanium PS-171.265 |
| 110° / 75 mm | Stainless Steel 171.275 / Titanium PS-171.275 |
| 110° / 85 mm | Stainless Steel 171.285 / Titanium PS-171.285 |
| 120° / 60 mm | Stainless Steel 171.060 / Titanium PS-171.060 |
| 120° / 65 mm | Stainless Steel 171.065 / Titanium PS-171.065 |
| 120° / 70 mm | Stainless Steel 171.070 / Titanium PS-171.070 |
| 120° / 75 mm | Stainless Steel 171.075 / Titanium PS-171.075 |
| 120° / 80 mm | Stainless Steel 171.080 / Titanium PS-171.080 |
| 120° / 85 mm | Stainless Steel 171.085 / Titanium PS-171.085 |
| 130° / 65 mm | Stainless Steel 171.565 / Titanium PS-171.565 |
| 130° / 70 mm | Stainless Steel 171.570 / Titanium PS-171.570 |
| 130° / 75 mm | Stainless Steel 171.575 / Titanium PS-171.575 |
| 130° / 80 mm | Stainless Steel 171.580 / Titanium PS-171.580 |
| 130° / 85 mm | Stainless Steel 171.585 / Titanium PS-171.585 |
| 130° / 90 mm | Stainless Steel 171.590 / Titanium PS-171.590 |
| 130° / 95 mm | Stainless Steel 171.595 / Titanium PS-171.595 |
| 130° / 100 mm | Stainless Steel 171.510 / Titanium PS-171.510 |
| 130° / 105 mm | Stainless Steel 171.515 / Titanium PS-171.515 |
The Angled Blade Plate range is relevant for orthopedic departments, hospitals, surgical centers, implant distributors, and procurement teams sourcing plate configurations for intertrochanteric femoral osteotomy procedures.
For accurate purchasing, buyers should reference SKU PS-OP-7109 together with the required material, plate angle, blade length, and catalog code. Buyers requiring exact plate dimensions, hole count, screw compatibility, material alloy grade, sterility status, or detailed system compatibility should confirm those specifications before ordering because they are not provided on the current Peak Surgicals page.
The current Peak Surgicals listing provides 110°, 120°, and 130° configurations.
Blade lengths range from 60 mm to 105 mm, depending on the selected plate angle.
The live product table lists both stainless steel and titanium configurations.
The current Peak Surgicals storefront SKU is PS-OP-7109.
The 110° plate is listed with 65 mm, 75 mm, and 85 mm blade lengths.
No. Screw compatibility, plate hole count, plate thickness, and several other implant dimensions are not stated on the current product page and should be confirmed before ordering if required.
