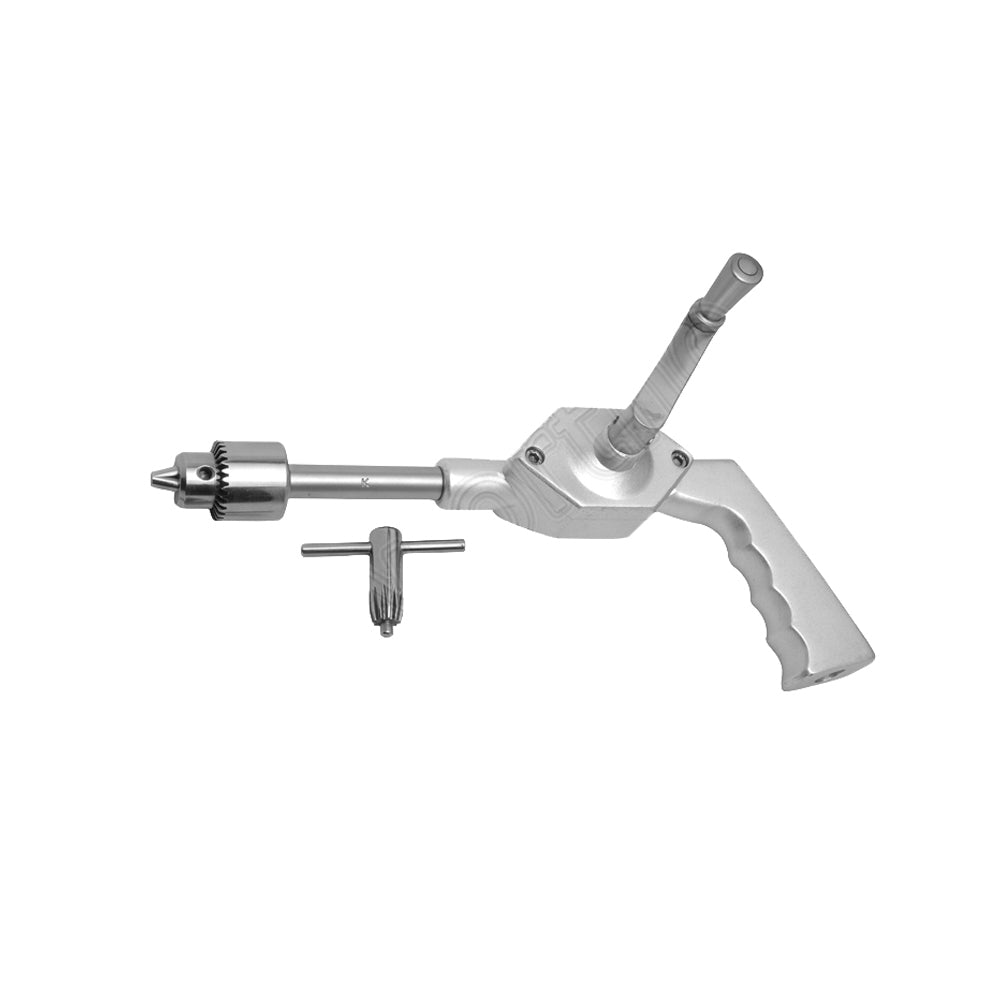

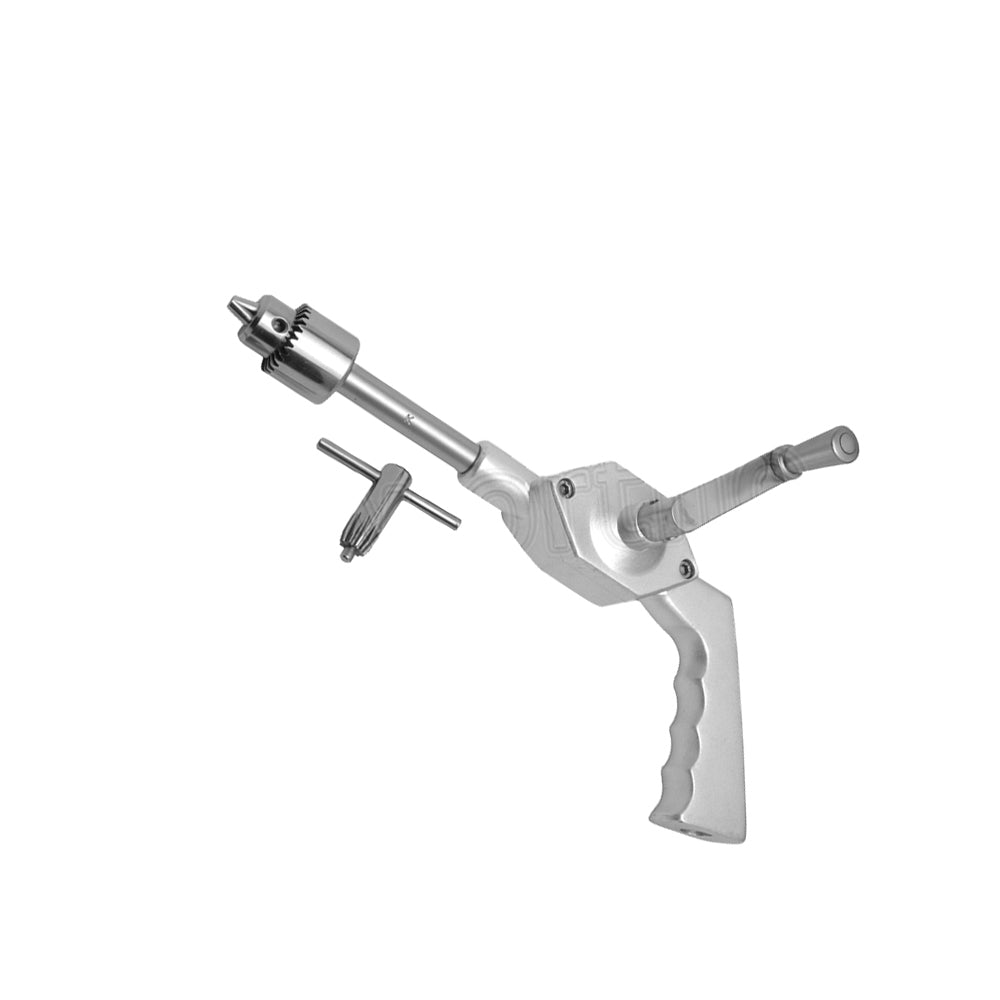

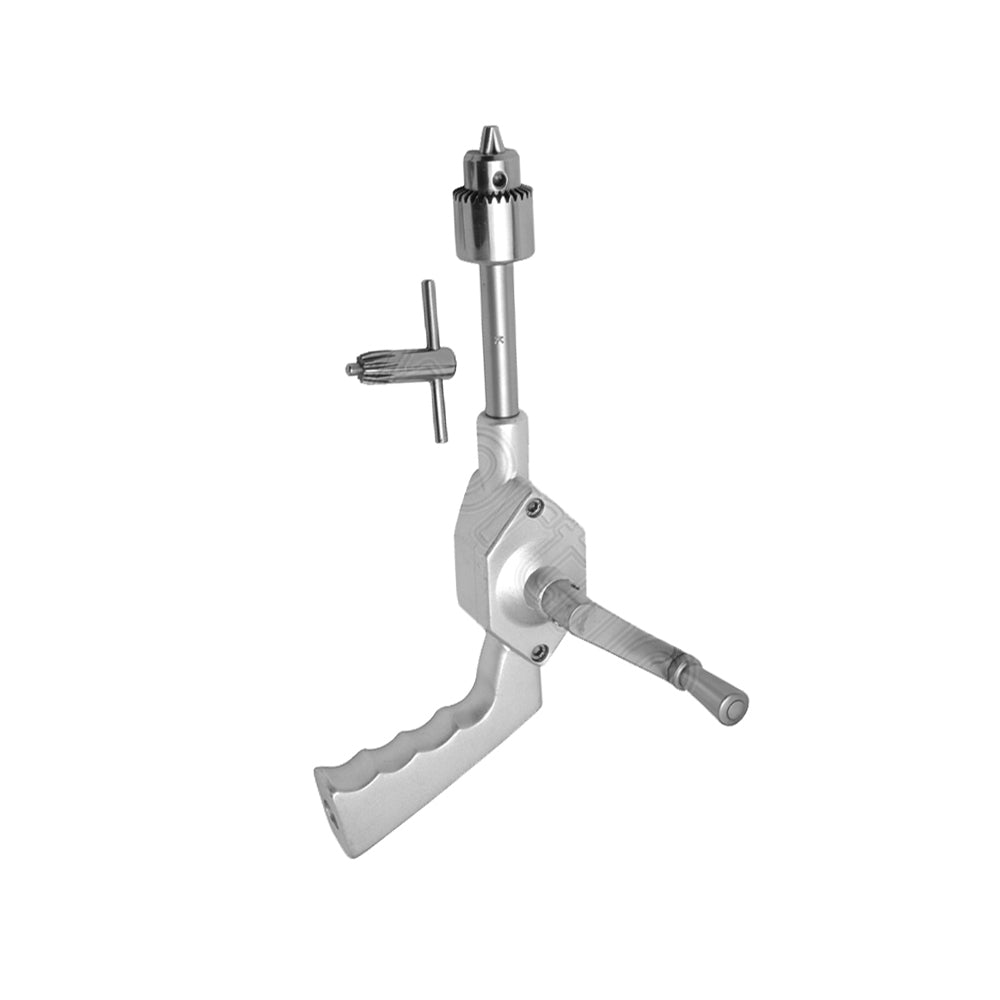

Universal Bone Drill with Closed Stainless-Steel Gears for Orthopedic Fixation

Universal Bone Drill, SKU PS-OP-5830 and catalog model PS-320.010, is a manually operated orthopedic drilling instrument manufactured from German stainless steel with a closed stainless-steel gear mechanism. The hand-driven assembly transfers crank rotation through the enclosed transmission to the distal spindle, allowing the surgeon to prepare controlled bone channels without an electric, battery-powered, or pneumatic drive unit. Its primary procedural roles include drilling pilot holes during open reduction and internal fixation, plate-and-screw osteosynthesis, fracture stabilization, corrective osteotomy fixation, and selected reconstructive operations. The stabilizing handle supports axial alignment, while the rotating crank controls spindle movement as the mounted drill bit engages cortical or cancellous bone. Enclosing the gear train separates the transmission from direct contact during routine handling and creates a compact mechanical housing. The instrument is relevant to orthopedic trauma surgeons, hand surgeons, foot and ankle surgeons, veterinary orthopedic specialists, and operating-room teams in hospitals, surgical centers, trauma facilities, and clinics. This listing covers the hand drill configuration; compatible drill bits, guides, depth gauges, taps, screws, plates, chuck keys, and instrument cases are separate unless expressly included in the purchase order.

Closed-Gear Transmission and Two-Handed Drilling Control

The Universal Bone Drill converts manual crank movement into spindle rotation through a stainless-steel gear train contained within a closed housing. Turning the lateral crank activates the internal driving gear, which transfers rotational force to the spindle and attached orthopedic drill bit. The enclosure keeps the transmission together as an integrated mechanical assembly and distinguishes this pattern from an open-gear hand drill. The surgeon holds the support handle with the non-driving hand to stabilize the instrument while operating the crank with the opposite hand. This two-handed arrangement separates axial guidance from rotational input, supporting deliberate alignment through a plate hole or matching drill guide. The distal chuck retains the selected bit and transmits rotational force along the intended drilling axis. When used with a correctly matched guide, the bit follows the planned screw trajectory while the guide limits lateral displacement and separates the rotating shaft from nearby soft tissue. Manual rotation provides direct tactile feedback as cutting resistance changes between cortical and cancellous bone. Before operative use, the crank, housing, spindle, chuck, and handle interfaces must be inspected for secure engagement, smooth movement, concentric rotation, and absence of mechanical play. Binding, slippage, corrosion, or impaired rotation requires removal from service and technical assessment.

Bone-Channel Preparation During Internal Fixation

The Universal Bone Drill is used during orthopedic fixation when the operative plan calls for manual creation of a pilot channel. In open reduction and internal fixation, the fracture is exposed and reduced before the selected plate is positioned against the bone. The surgeon seats a compatible drill guide within the plate hole, inserts the specified drill bit, and aligns the handpiece with the intended screw path. Controlled crank rotation advances the bit through the near cortex and into cancellous bone; bicortical fixation continues toward the far cortex according to the planned trajectory. After drilling, a depth gauge determines channel length, a tap prepares threads when required by the implant system, and the corresponding cortical or cancellous screw is inserted. This workflow applies to appropriately selected fixation procedures involving the radius, ulna, metacarpals, phalanges, fibula, malleoli, metatarsals, or other surgically exposed bones. The instrument can also support corrective osteotomy fixation and veterinary fracture repair when the bit, guide, plate, and screw dimensions match the operative system. Manual drilling does not replace procedural control: the surgeon must maintain guide contact, monitor resistance, restrict penetration beyond the far cortex, and preserve the planned relationship between channel diameter, screw core, implant position, and surrounding anatomy.

Catalog Configuration and Compatible Drilling Components

Catalog model PS-320.010 identifies the Universal Bone Drill with closed stainless-steel gears, while PS-OP-5830 is the Shopify inventory SKU displayed on the Peak Surgicals product page. The listing presents one handpiece configuration rather than multiple length, size, or gauge variants. Instrument selection therefore depends on the required drill bit, chuck fit, guide bore, fixation plate, and screw system. Smaller drill diameters correspond to mini-fragment or small-fragment constructs commonly used in phalangeal, metacarpal, wrist, forearm, fibular, and foot fixation. Larger bone channels require the matching bit and guide prescribed for the implant system; these components cannot be selected solely from the handpiece name. The drill bit must seat concentrically within the chuck so the cutting flutes rotate around the planned axis without eccentric movement. A matched drill guide supports trajectory control, seats against the cortex or plate hole, and limits contact between the rotating shaft and adjacent tissue. Unicortical preparation terminates at the depth specified by the fixation plan, whereas bicortical drilling crosses the far cortex under controlled advancement. The Universal Bone Drill is the driving instrument only. Bits, drill guides, depth gauges, taps, screws, plates, keys, adapters, and storage trays are included only when documented in the quotation or order configuration.

German Stainless Steel, Reprocessing, and Compliance Records

The Universal Bone Drill is manufactured from German stainless steel and incorporates the closed stainless-steel gear assembly specified for catalog model PS-320.010. This construction provides the mechanical rigidity needed to transfer crank-generated rotational and axial forces during manual bone drilling. Its metallic surgical finish supports visual inspection of accessible surfaces for retained soil, corrosion, staining, deformation, and mechanical wear. The reusable instrument must be cleaned, rinsed, dried, inspected, function-tested, packaged, and sterilized according to the manufacturer’s reprocessing instructions and the healthcare facility’s validated protocol. Particular attention is required around the chuck, spindle, crank connection, handle junctions, housing seams, and accessible recesses. The gear enclosure must not be dismantled during routine processing unless the supplied instructions specifically authorize disassembly. Before packaging, personnel should confirm smooth crank movement, secure chuck retention, stable handle engagement, and concentric spindle rotation. Peak Surgicals supports CE and ISO 13485 documentation for institutional procurement assessment. FDA establishment registration, device listing, clearance, and approval are distinct regulatory concepts; FDA-related wording must correspond to the documentation applicable to this instrument and market. Hospitals and distributors should retain the model, SKU, invoice, batch information, declaration, reprocessing instructions, and service records within their purchasing and quality-management systems.

How does the Universal Bone Drill differ from a Universal Open Hand Drill?
The Universal Bone Drill houses its stainless-steel gears within a closed mechanical casing. A Universal Open Hand Drill leaves the gear train visibly exposed. Both patterns transfer manual crank rotation to a spindle holding the selected orthopedic drill bit. The closed configuration presents an integrated housing, while the open version provides direct visual access to the gear teeth during inspection and cleaning. Selection depends on the surgeon’s handling preference, the facility’s instrument standardization, and the approved reprocessing workflow. Neither configuration determines the drill-bit diameter, which must correspond to the plate, guide, and screw system.

How should the drill bit and guide be selected for this model?
The product has no listed handpiece size variants, so selection centers on the compatible bit, drill guide, and fixation implant. Mini-fragment and small-fragment systems require drill diameters specified for their corresponding screws. Metacarpal, phalangeal, wrist, forearm, fibular, and foot fixation can involve different channel dimensions. The drill guide’s internal bore must match the selected bit and seat correctly within the plate hole or against the cortex. The bit must lock concentrically in the Universal Bone Drill chuck without slipping during rotation. Channel depth is determined by the planned unicortical or bicortical fixation and measured with a compatible depth gauge.

What do CE, ISO 13485, and FDA references mean for procurement?
CE documentation supports assessment against the applicable European medical-device requirements. ISO 13485 concerns the manufacturer’s medical-device quality-management system rather than serving as product-specific clinical approval. FDA establishment registration, device listing, clearance, and approval have different regulatory meanings. The Universal Bone Drill should not be described as FDA approved without a supporting product-specific approval record. United States procurement teams should review the documents relevant to the device classification and supply route. Peak Surgicals can provide available commercial and regulatory records for evaluation before institutional purchase.

How is the closed-gear crank mechanism operated during drilling?
The surgeon stabilizes the Universal Bone Drill through its support handle and turns the crank with the opposite hand. Crank movement activates the enclosed gear train, which rotates the spindle and retained drill bit. The supporting hand maintains trajectory while the driving hand regulates rotational speed and advancement. Axial pressure is directed through the drill guide rather than applied laterally against the shaft. The surgeon monitors tactile resistance as the bit passes through cortical and cancellous regions. Before use, the crank, housing, spindle, chuck, and handle must rotate securely without binding, slippage, or excessive play.

What should hospitals and distributors assess before ordering and sterilizing the drill?
Procurement teams should confirm SKU PS-OP-5830, model PS-320.010, quantity, documentation, and compatibility with the intended fixation system. The facility must obtain the applicable cleaning and sterilization instructions before placing the instrument into service. Reprocessing personnel should inspect the chuck, spindle, crank, housing seams, and handle junctions for retained material or damage. The closed gear casing should not be opened unless authorized by the manufacturer’s instructions. The Universal Bone Drill requires functional testing before packaging and processing through the validated sterilization cycle. Model, batch, invoice, regulatory, reprocessing, and maintenance records should remain within the institution’s quality-control system.
