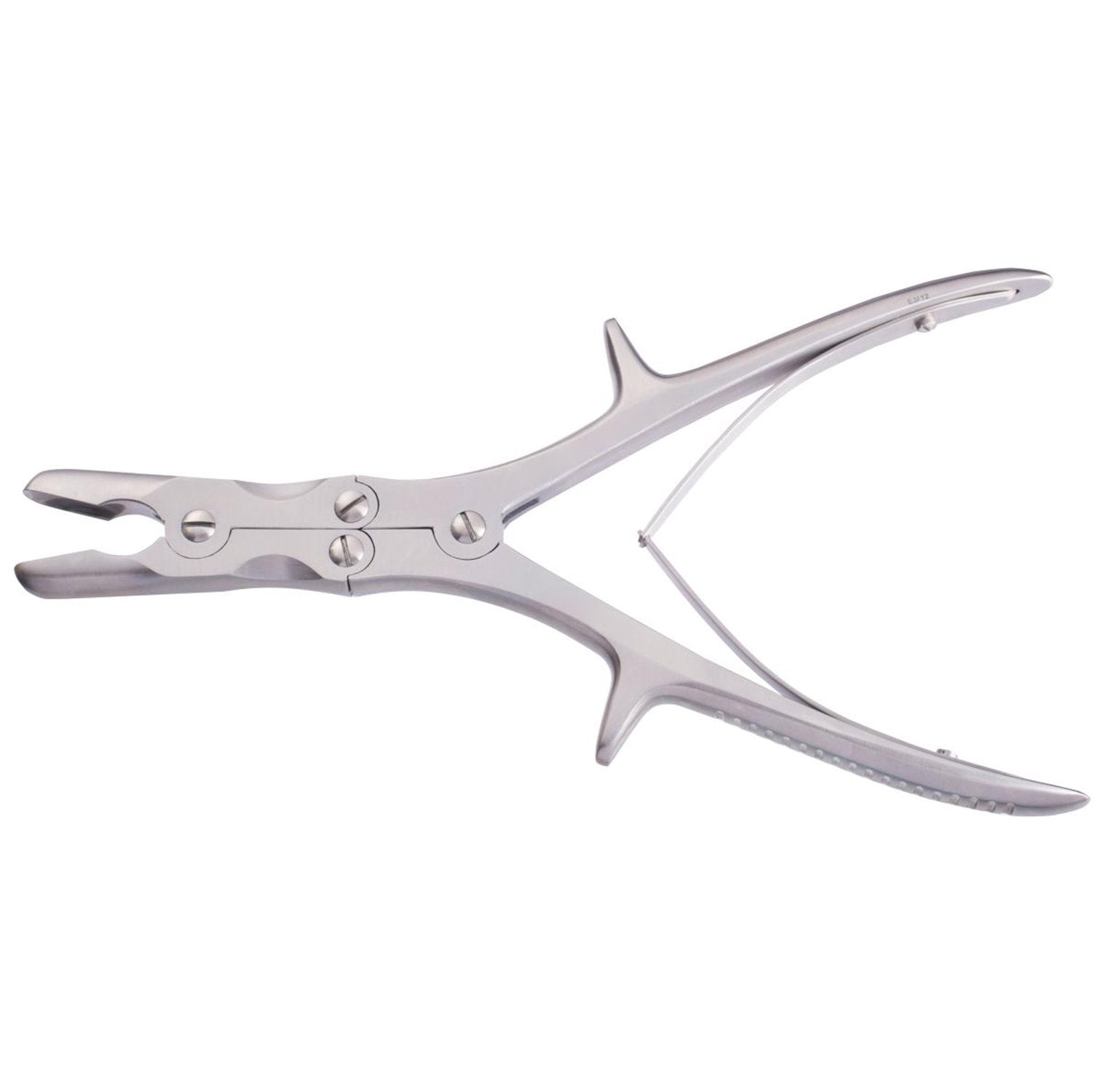

Stille Luer Type Rongeur Forceps for Straight and Curved Bone Nibbling

Stille Luer Type Rongeur Forceps, SKU PS-OT-01487, Model PS-9450, is a bone rongeur forceps manufactured from German stainless steel for controlled osseous nibbling, cortical edge trimming, cancellous fragment removal, and open-field bone contouring. The available variants are PS-9450 Straight jaws and PS-9451 Curved jaws, allowing surgeons to select direct-line access or angled bite placement according to the exposed bone margin and operative corridor. The instrument has opposing cupped jaws, a compound pivot assembly, screw-secured linkage, curved spring handles, broad palm contact surfaces, and a return spring that reopens the handles after each compression cycle. The working end captures exposed bone fragments, osteophyte projections, exostotic margins, cortical ledges, and cancellous irregularities before removal through measured jaw closure. It is used in orthopedic bone contouring, exostectomy, osteophyte reduction, fracture edge refinement, cancellous bone debridement, hand surgery, foot surgery, podiatric procedures, maxillofacial bone work, and operating room bone preparation. This rongeur supports orthopedic surgeons, podiatric surgeons, maxillofacial surgeons, trauma teams, hospitals, surgical centers, and procurement teams maintaining reusable bone instrument trays.

Compound Pivot Bite and Spring Handle Return

The instrument works through a forceps-style cutting mechanism that transfers manual compression through a compound pivot system into closure at the opposing cupped jaws. The jaw cups are placed over a defined bone edge, spur, loose fragment, exostotic projection, or localized cortical prominence, then closed to remove the selected section in a controlled bite. The compound pivot improves mechanical leverage compared with a simple hinge, supporting trimming where dense cortical resistance is present. Screw-secured linkage keeps the jaw path aligned during repeated compression cycles and stabilizes contact between the upper and lower working surfaces. Curved handles distribute pressure across the palm and fingers, allowing steady force application during open-field contouring. The return spring reopens the handles after each bite so the surgeon can reposition the working end without manually separating the arms. The cupped jaw profile helps contain the removed fragment during cutting. This design is selected for incremental bone reduction, edge refinement, and fragment removal where tactile feedback and controlled placement are required.

Orthopedic and Maxillofacial Bone Removal Workflow

In operative workflow, Stille Luer Type Rongeur Forceps is introduced after exposure, retraction, soft tissue protection, and identification of the osseous margin requiring reduction. During fracture exposure, the surgeon can remove small loose fragments and refine sharp cortical edges after reduction planning. In exostectomy, the cupped jaws are positioned over the bony prominence and closed in repeated increments before final smoothing with a rasp or bone file. During osteophyte reduction, the working end is placed at the projecting margin and advanced bite by bite until the contour is reduced. In hand and foot surgery, the straight jaw supports direct access around smaller bones and joint-adjacent cortical surfaces. In podiatric procedures, the curved variant assists removal of exostotic or cancellous fragments where the access line is restricted by soft tissue or retractors. In maxillofacial bone work, it can remove accessible irregular margins after flap elevation and direct visualization. The rongeur is used with periosteal elevators, osteotomes, curettes, rasps, bone files, retractors, suction, irrigation instruments, and hemostatic forceps.

PS-9450 Straight and PS-9451 Curved Jaw Selection

PS-9450 Straight jaws are selected when the surgeon needs direct axial access to visible cortical edges, flat cancellous surfaces, accessible exostoses, fracture fragments, or open orthopedic bone margins. The straight working profile supports controlled jaw placement where the target lies in the same axis as the instrument body. PS-9451 Curved jaws are selected when the operative target lies around a raised contour, under a shallow recess, beside a retractor, or behind a soft tissue margin where a straight profile would reduce access. The curved geometry assists bite placement during hand, foot, podiatric, maxillofacial, and localized orthopedic contouring. Across both variants, the cupped jaws provide the cutting surface, the compound pivot transfers force, screw-secured joints stabilize alignment, and the spring handles reopen after compression. In surgical tray planning, this pattern occupies the open-field bone-nibbling role beside Leksell rongeurs, Luer rongeurs, McIndoe rongeurs, Cicherelli rongeurs, Liston cutters, bone files, curettes, osteotomes, and periosteal elevators.

Reusable German Steel and Procurement Documentation

German stainless steel provides the rigidity required for repeated jaw closure, bone contact, spring movement, compound joint loading, and operating room reprocessing. The reusable construction supports surgical workflows involving manual cleaning, ultrasonic cleaning where used, drying, inspection, packaging, and steam autoclave sterilization between procedures. Satin, dull, and mirror finish options support operating room and sterile processing preferences; reduced-glare surfaces assist visibility under surgical lighting, while mirror surfaces support inspection after cleaning. Reprocessing focuses on the cupped jaws, cutting margins, screw-secured pivots, linkage recesses, return spring, and handle surfaces because bone dust, blood, tissue, saline, and irrigation fluid can collect around these areas during use. The Class I classification reflects a reusable manual surgical instrument with mechanical cutting action. CE marking and ISO 13485 documentation support regulated purchasing records for hospitals, surgical centers, and distributors. FDA compliance information supports procurement files for regulated healthcare markets. The one-year warranty, MOQ of one piece, OEM availability, carton box packing, rust-free listing, and return or replacement support fit operating room replenishment workflows.

How does Stille Luer Type Rongeur Forceps differ from a Kerrison rongeur?
Stille Luer Type Rongeur Forceps uses opposing cupped jaws and compound forceps-style compression for open-field bone nibbling. A Kerrison rongeur uses a fixed footplate and sliding punch jaw for confined spinal decompression. The Stille Luer pattern is placed over an exposed bone edge, spur, or fragment and closes from both sides. The Kerrison pattern advances beneath a laminar, foraminal, or ligament margin and removes tissue through a punch bite. Stille Luer Type Rongeur Forceps is selected for accessible cortical trimming, exostectomy, osteophyte reduction, and localized orthopedic contouring. The two instruments can appear in bone trays, but their access strategy, bite direction, and target exposure are different.

How are the straight and curved jaw variants selected?
PS-9450 Straight jaws are selected when the surgeon needs direct-line bite control on visible cortical edges, exposed cancellous margins, fracture fragments, or accessible exostoses. PS-9451 Curved jaws are selected when the target sits around a raised contour, behind a soft tissue margin, or beside an instrument that limits a straight approach. The straight pattern favors axial placement and stable open-field trimming. The curved option improves access around hand, foot, podiatric, maxillofacial, and localized orthopedic contours. Stille Luer Type Rongeur Forceps is selected according to jaw direction, exposure size, bone density, and planned reduction. Variant choice follows the exposed target and access angle rather than procedure name alone.

How do CE, ISO 13485, and FDA documentation support procurement?
CE marking supports product conformity documentation for hospital purchasing and distributor review. ISO 13485 indicates that the manufacturing system follows medical device quality management and traceability requirements. FDA compliance information supports procurement records for regulated healthcare supply channels. Hospitals, surgical centers, and orthopedic instrument distributors use these documents during vendor approval, tender documentation, and tray standardization. Stille Luer Type Rongeur Forceps can be entered into purchasing systems with recognized compliance references. This documentation supports international healthcare buyers comparing reusable orthopedic rongeurs across multiple suppliers.

How is the compound pivot and spring handle used intraoperatively?
The compound pivot transfers handle compression into controlled jaw closure at the cutting end. During use, the surgeon places the cupped jaws over a small bone edge, spur, fragment, or irregular cortical margin. As the handles close, the working end bites and removes a measured section of bone. The spring handle reopens the rongeur after each compression, allowing repositioning for the next cut. Screw-secured linkage helps maintain jaw alignment through repeated cutting cycles. Stille Luer Type Rongeur Forceps depends on the pivot and spring system for controlled open-field bone removal.

What should operating room teams know about sterilization and ordering?
This product is reusable and suitable for standard surgical instrument reprocessing workflows. Cleaning focuses on the cupped jaws, cutting margins, screw pivots, linkage recesses, spring mechanism, and handle surfaces before sterilization. The jaws are opened, brushed, rinsed, dried, and inspected for retained debris before packaging. Steam autoclave processing follows the facility’s approved cycle for reusable stainless steel surgical instruments. Clinics and hospitals can order one piece because the MOQ is one piece. Stille Luer Type Rongeur Forceps is supplied with OEM availability, one-year warranty coverage, and return or replacement after-sale support.
