Orthopedic Hand Drill Small Pattern for Hand Surgery

Orthopedic Hand Drill Small Pattern – Manual Micro-Perforation

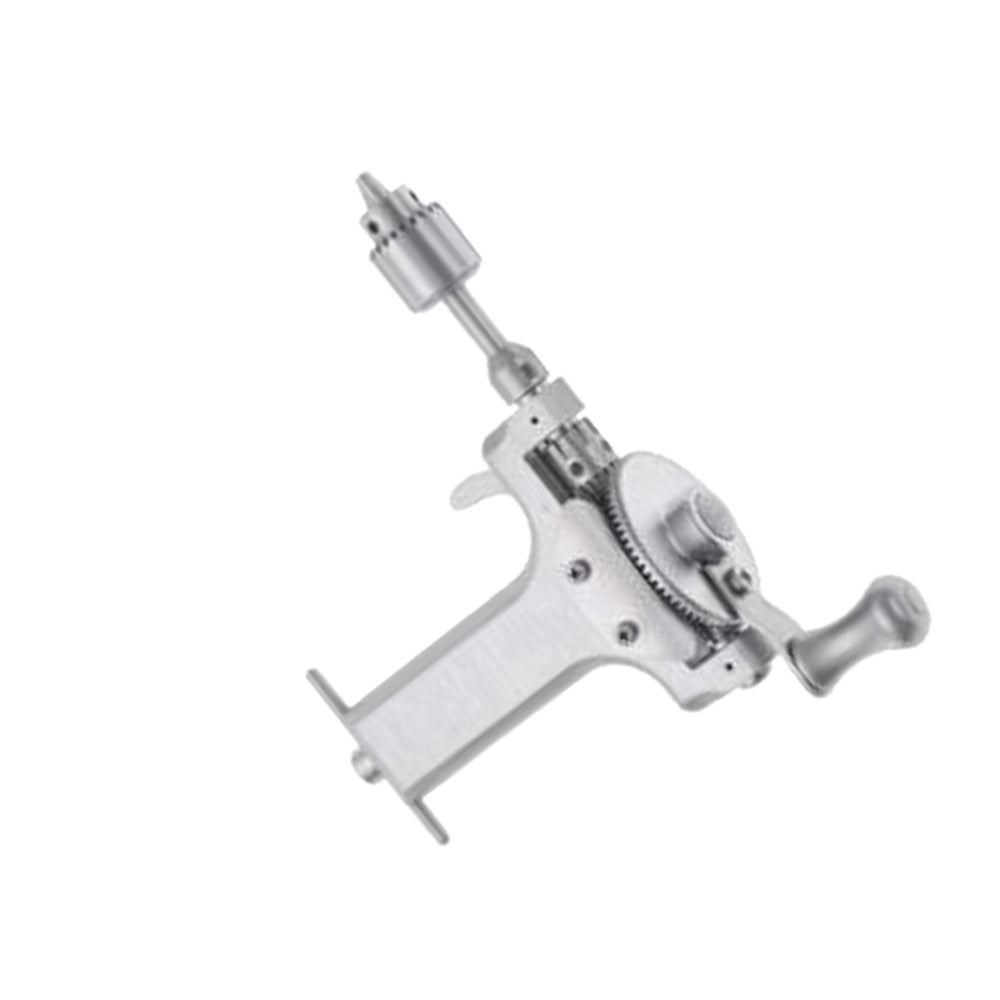

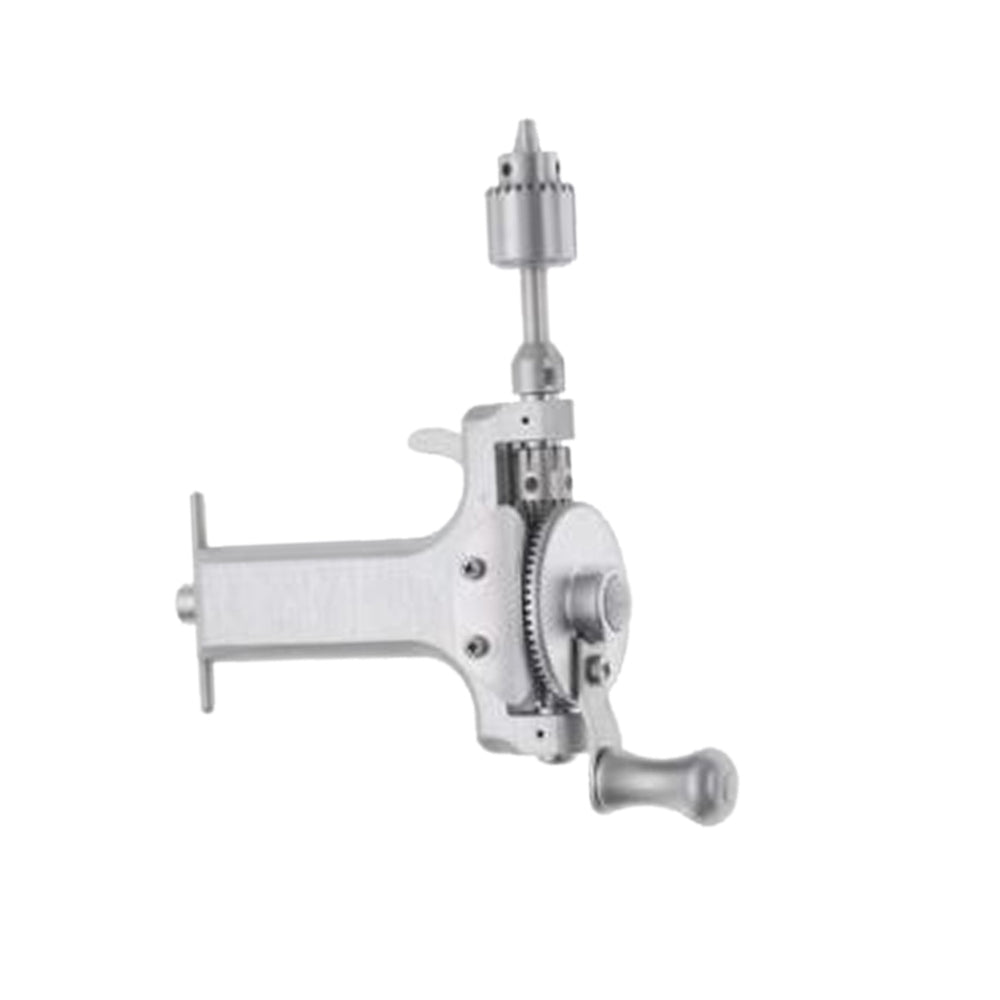

The professional surgical solution for delicate manual bone drilling and high-tactile fixation in hand and podiatric surgeries. The Orthopedic Hand Drill Small Pattern is a compact, gear-driven manual instrument engineered to solve the mechanical challenge of drilling micro-pilot paths in small, delicate bones without risking the micro-fractures, structural shattering, or thermal necrosis caused by high-RPM power tools. Featuring an ultra-smooth hand-crank mechanism and a precision-adjustable chuck, this instrument is a mechanical necessity for surgeons performing Kirschner wire (K-wire) placements, mini-screw fixations, and delicate osteotomies within restricted anatomical spaces.

Key Features for Professional Medical Management

• Low-Friction Gear-Driven Crank: Features a synchronized, hand-operated side crank that smoothly drives the internal gear system. This configuration is a mechanical necessity for giving the surgeon micro-adjustable control over rotational velocity, matching speed perfectly to bone density.
• Precision Adjustable Chuck Mechanism: Engineered with a heavy-duty, adjustable three-jaw chuck system that locks down tightly on variable drill bit shanks or K-wires. This secure connection is a mechanical necessity for eliminating bit slippage, wobbling, or axial deflection during active perforation.
• Anatomical Pistol-Grip Frame: Designed with an ergonomic, down-set handle profile that fits comfortably within a single hand. This steady stabilization base is a mechanical necessity for applying targeted axial downward force while keeping the drill bit aligned along a fixed trajectory.
• Compact Small-Pattern Footprint: Intentionally scaled down in mass and length compared to standard orthopedic drills. This compact geometry is a mechanical necessity for maximizing surgical site visualization and navigating small corridors, such as the metacarpals, metatarsals, and phalanges.
• Solid-State Monoblock Housing: Built with a fully enclosed, high-strength metallic housing that shields the internal gear drive. This structural integrity is a mechanical necessity for ensuring perfect gear mesh, preventing internal mechanical play, and ensuring uniform torque transmission.
• Premium Surgical Stainless Steel: Forged from high-tensile, bio-inert medical steel alloys. This material composition is a mechanical necessity for resisting corrosion, maintaining mechanical tolerances, and tolerating high-frequency steam sterilization without degradation.

Detailed Product Description

The Orthopedic Hand Drill Small Pattern represents the pinnacle of specialized, ultra-controlled manual osteotomy instrumentation. In highly sensitive reconstructive procedures—such as hand fracture management, wrist arthrodesis, or complex podiatric corrections—the speed and momentum of automated power systems can easily over-penetrate, strip fragile bone tunnels, or burn surrounding tissues. This hand-cranked drill serves as a high-durability mechanical extension of the surgeon’s hands, providing tactile feedback and immediate “stopping power” that motorized medical equipment cannot match.

At its core, the instrument is engineered for maximum operational safety and strict procedural control. The hand-operated system eliminates frictional heat buildup, protecting the fragile endosteal and periosteal blood supplies within small bones. This intentional thermal protection is a mechanical necessity for preventing focal bone resorption and ensuring that small-diameter screws or stabilization wires seat within crisp, non-degraded cortical structures.

Built to exceed international quality standards for medical hardware, this manual small-pattern drill is completely reusable, structurally straightforward to clean, and perfect for integration into core hand, foot, and plastic surgery trauma trays. Its resilient profile and specialized “Grip-Locked” frame make it an indispensable asset for ensuring safe, organized, and high-precision results in all specialized orthopedic environments.

Specifications & Clinical Applications

Feature Details

Drive Mechanism Manual Mechanical Hand-Crank / Internal Gear

Chuck Architecture Three-Jaw Adjustable Chuck (Key-Locked)

Handle Profile Ergonomic Pistol-Grip

Pattern Size Small Pattern (Optimized for Small Fragments)

Material Body Premium Surgical Stainless Steel

Reprocessing Fully Autoclavable / High-Vacuum Steam-Safe

Certifications CE, ISO, Professional Surgical Grade

Primary Use Cases:

• Hand Fracture Fixation: Boring precise pilot paths for mini-screws and plates in metacarpal and phalangeal fractures.
• K-Wire Placement: Driving thin Kirschner wires across unstable joints or fractured fragments in wrist and ankle reconstructions.
• Podiatric Osteotomies: Performing controlled drilling for bunion corrections and mid-foot fusions.
• Pediatric Small-Bone Trauma: Providing a gentle, hand-controlled drilling method for the softer, growing bone matrices of young patients.
• Maxillofacial and Plastic Reconstruction: Navigating tight cranial or facial corridors where power tool heads would block visualization.

Why Professionals Choose the Small Pattern Hand Drill?

• Instant Tactile Feedback: The manual crank allows the clinician to feel the precise transition from hard cortical bone to softer cancellous marrow, providing a mechanical safeguard against over-drilling or soft-tissue plunging.
• Zero Thermal Trauma: Eliminates power-induced bone burning completely, making it a mechanical necessity for maintaining osteocyte viability and accelerating overall post-operative healing.
• Superior One-Handed Stabilization: The ergonomic pistol grip allows the surgeon to hold the drill body completely steady with one hand while smoothly operating the crank with the other, ensuring linear path accuracy.
• Streamlined Central Decontamination: The open, accessible gear layout and solid-state construction feature no complex electronics or internal batteries, which are mechanical necessities for absolute sterilization security and fast tray turnaround.

FAQ Section

Q: What range of drill bit sizes can the chuck accommodate?

A: The adjustable three-jaw chuck is a mechanical necessity designed to securely grip standard small-fragment orthopedic drill bits and K-wires, typically ranging from 0.5mm up to 4.0mm in diameter.

Q: Do I need a separate key to tighten the chuck mechanism?

A: Yes. It is a professional standard to use the included matching chuck key. Firmly tightening the chuck jaws with the key is a mechanical necessity for preventing bit slippage when drilling high-density cortical bone.

Q: Can this drill rotate in both directions?

A: Yes. Rotating the crank handle backward reverses the gear drive. This dual-direction capability is a mechanical necessity for smoothly backing out threaded pins, K-wires, or fluted bits without binding or galling the bone path.

Q: How should the internal gears be lubricated after cleaning?

A: It is a professional standard to apply a few drops of medical-grade, water-soluble surgical instrument lubricant to the gear joints after washing and before autoclaving. Keeping the gears lubricated is a mechanical necessity for ensuring smooth, snag-free manual operation.

Q: What is the exact autoclave sterilization protocol for this tool?

A: The premium surgical steel construction is a mechanical necessity for heavy clinical reuse. It is fully rated to undergo standard high-vacuum steam autoclave cycles at 134°C (273°F) without experiencing corrosion, finish clouding, or gear misalignment.
