Odontoid Screw Fixation Set — Cannulated C1–C2 Instrument System

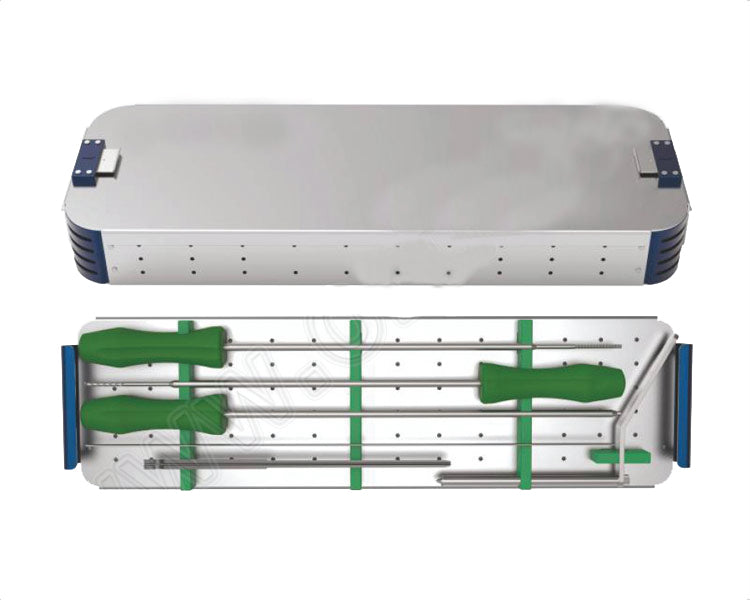

Odontoid and Trans-Articular Screw Fixation Set, SKU PS-OP-5712, is a seven-instrument German stainless steel system for cannulated screw preparation and insertion across the odontoid process or atlantoaxial articulation. The configuration comprises the PS1707.001 cannulated tap, PS1707.006 cannulated drill, PS1707.011 cannulated screwdriver, PS1707.016 sleeve, PS1707.021 trocar, PS1707.026 guide wire, and PS1707.031 depth gauge, with one unit of each component. It supports anterior odontoid screw fixation for selected type II dens fractures and posterior C1–C2 transarticular fixation when preoperative imaging confirms an acceptable osseous corridor and vertebral artery relationship. The guide wire establishes the planned trajectory, while the sleeve protects the access route and constrains the drilling axis. The drill prepares the bony channel, the gauge determines implant length, the tap forms the thread path, and the driver advances the selected cannulated screw. This reusable orthopedic instrument set is intended for spine surgeons, orthopedic trauma surgeons, neurosurgeons, hospital spinal units, trauma centers, and specialist operating rooms managing upper cervical instability. Implant choice, trajectory planning, reduction, and fixation technique remain governed by the treating surgeon’s assessment and the compatible implant system.

Cannulated Guidance and Axial Bone Preparation

The system works around a guide-wire-controlled axis so that sequential preparation instruments follow the trajectory established under fluoroscopic imaging. The PS1707.026 guide wire is advanced through the intended osseous corridor and serves as the central reference for the cannulated drill, tap, and screwdriver. In anterior odontoid fixation, this trajectory generally begins at the anteroinferior C2 body and advances toward the apical dens fragment. For posterior transarticular placement, the planned route crosses the C2 pars and C1–C2 articulation toward the lateral mass of the atlas. The PS1707.016 sleeve maintains alignment at the entry point while shielding adjacent soft tissue from rotating instrumentation. Its internal bore accommodates the trocar during initial placement and subsequently receives the guided preparation tools. The PS1707.021 trocar provides a firm leading element for introducing the sleeve through the operative corridor. Once the access channel is positioned, the trocar is withdrawn without disturbing sleeve alignment. Cannulation permits the drill and tap to translate over the wire instead of relying on freehand axial control. The matching screwdriver then transfers rotational input to the implant while retaining the established path. This arrangement is designed to reduce lateral deviation during successive drilling, measuring, tapping, and insertion stages.

Upper Cervical Fixation Workflow

During anterior odontoid screw fixation, the fracture is reduced before instrumentation and the C2 entry point is established through the anterior cervical approach. Biplanar fluoroscopy is used to control the guide wire as it crosses the fracture line and enters the dens fragment without breaching the posterior cortex. The sleeve maintains the working portal while the cannulated drill prepares the tract over the retained wire. The PS1707.031 depth gauge is used after trajectory preparation to determine the required screw length from the prepared channel. Where the implant system requires pretapping, the PS1707.001 instrument cuts a corresponding thread path before the screw is introduced with the cannulated driver. In posterior C1–C2 transarticular fixation, reduction and exposure precede placement through the C2 pars, across the facet joint, and into the C1 lateral mass. Preoperative CT assessment is essential because a high-riding vertebral artery, narrow pars, destructive bone loss, or unsuitable alignment can preclude this trajectory. The same wire-guided sequence supports bilateral preparation, with each side controlled independently under imaging. Surgeons use the set for selected traumatic odontoid nonunion, atlantoaxial instability, and fixation constructs in which the compatible implant system specifies cannulated preparation. It does not replace reduction instruments, implants, fluoroscopy, navigation, or patient-specific trajectory assessment.

Functions of the Seven Included Instruments

The PS1707.001 cannulated tap forms internal threads along the guide wire when the selected screw and bone condition call for a prepared thread path. The PS1707.006 cannulated drill creates the pilot channel while its axial lumen keeps the cutting path centered over the previously placed wire. PS1707.011 is the cannulated screwdriver used to engage and advance a compatible fixation screw without abandoning the controlled trajectory. The PS1707.016 sleeve isolates the rotating drill or tap from the incision and stabilizes instrument entry against the C2 starting point. PS1707.021 functions as the obturating trocar for controlled sleeve introduction before drilling begins. The pointed leading profile separates tissue along the access route rather than leaving the sleeve edge to perform this task. PS1707.026 establishes the drilling and insertion line and remains the reference for the hollow preparation instruments. PS1707.031 measures the prepared depth so the surgeon can select an implant that achieves the planned bony purchase without unintended cortical projection. Each component is supplied as one unit, creating a seven-piece sequence rather than a collection of interchangeable sizes. Selection between odontoid and transarticular technique depends on fracture morphology, reduction, bone stock, vascular anatomy, and compatibility with the intended screw system.

German Stainless Steel Reprocessing and Procurement Control

German stainless steel construction provides the hardness, corrosion resistance, and dimensional stability required for reusable drills, taps, drivers, sleeves, and measuring instruments. Cutting surfaces require particular inspection because retained debris, edge damage, or corrosion can increase drilling force and alter tactile feedback. Cannulated components must be flushed through their full internal lumen immediately after use so blood and bone residue do not dry inside the bore. Manual cleaning should include compatible enzymatic detergent, lumen irrigation, nonabrasive brushing, rinsing, and complete drying before automated processing where the healthcare facility permits it. Hingeless components should be arranged so steam can contact external surfaces and pass through every cannulation. Sterilization must follow the healthcare institution’s validated steam cycle and the manufacturer’s reprocessing instructions for the supplied configuration. A satin surgical finish limits reflective glare beneath operating lights and assists visual inspection for staining or surface damage. CE documentation and ISO 13485 quality-management records support European and institutional purchasing review. For United States procurement, FDA establishment, listing, device classification, and import documentation are evaluated according to the marketed device and supply route; FDA compliance is not equivalent to product approval. Hospitals and distributors should retain traceability records linking SKU PS-OP-5712, lot information, inspection history, and sterilization release.

Specifications

How does this set differ from a standard anterior cervical screw instrument set?
A standard anterior cervical screw system is designed primarily for plate fixation to cervical vertebral bodies. Its drills, taps, guides, and drivers correspond to the plate manufacturer’s screw geometry and typically use shorter trajectories. The Odontoid and Trans-Articular Screw Fixation Set is arranged around a guide wire for long, narrow osseous corridors through C2 and the upper cervical articulation. Its cannulated drill, tap, and screwdriver retain axial reference during sequential preparation. The sleeve and trocar also establish a constrained access route toward the selected C2 entry point. This configuration is intended for compatible odontoid or C1–C2 transarticular implants, not routine anterior cervical plate screws.

How are the instruments selected during odontoid or C1–C2 fixation?
The set contains one coordinated instrument sequence rather than multiple diameter or length variants. The guide wire is selected first to establish the planned course through the C2 body and dens or across the C1–C2 articulation. The sleeve and trocar are used during access, after which the cannulated drill prepares the channel over the wire. The depth gauge determines the tract length before implant selection. The tap is used when the compatible implant technique specifies pretapping, particularly where controlled thread formation is required. The Odontoid and Trans-Articular Screw Fixation Set screwdriver completes insertion while preserving the guide-wire axis.

What do CE, ISO 13485, and FDA references mean for procurement?
CE documentation supports conformity assessment for placement within the applicable European regulatory framework. ISO 13485 concerns the manufacturer’s medical-device quality management system rather than the clinical outcome of an individual procedure. United States buyers assess FDA establishment registration, device listing, classification, labeling, and importer documentation applicable to the supplied product. FDA registration or listing does not mean that the agency has approved the instrument set. Procurement teams evaluating the Odontoid and Trans-Articular Screw Fixation Set should match certificates and declarations to the manufacturer, device identity, validity period, and destination market. These records should be retained with supplier qualification, incoming inspection, and traceability documentation.

How does the guide-wire control mechanism function intraoperatively?
The guide wire defines the intended fixation axis after reduction and imaging confirmation. The cannulated drill passes over it so channel preparation follows the established line instead of creating an independent freehand path. The hollow tap repeats that alignment while forming threads in the prepared tract. The screwdriver can then deliver the compatible screw over the same central reference. The sleeve stabilizes the entry point and separates rotating surfaces from the operative corridor. Throughout use of the Odontoid and Trans-Articular Screw Fixation Set, the surgeon monitors wire position and instrument advancement with the selected imaging protocol.

How should a hospital reprocess and inspect this cannulated set?
The operating room should keep the lumens moist after use and transfer the instruments for decontamination without allowing blood or bone material to dry. Reprocessing personnel should flush and brush each cannulation with a diameter-compatible device before thorough rinsing. The drill and tap require inspection for damaged cutting edges, while the screwdriver interface is checked for deformation or incomplete engagement. The sleeve, trocar, wire, and depth gauge are examined for straightness, surface defects, and unobstructed passages. After cleaning and drying, the Odontoid and Trans-Articular Screw Fixation Set should be packaged and steam sterilized through the facility’s validated process. Each cycle requires the institution’s prescribed monitoring, release, traceability, and storage controls.
