Lahey Gall Duct Forceps for 19.1-23cm Biliary Duct Traction

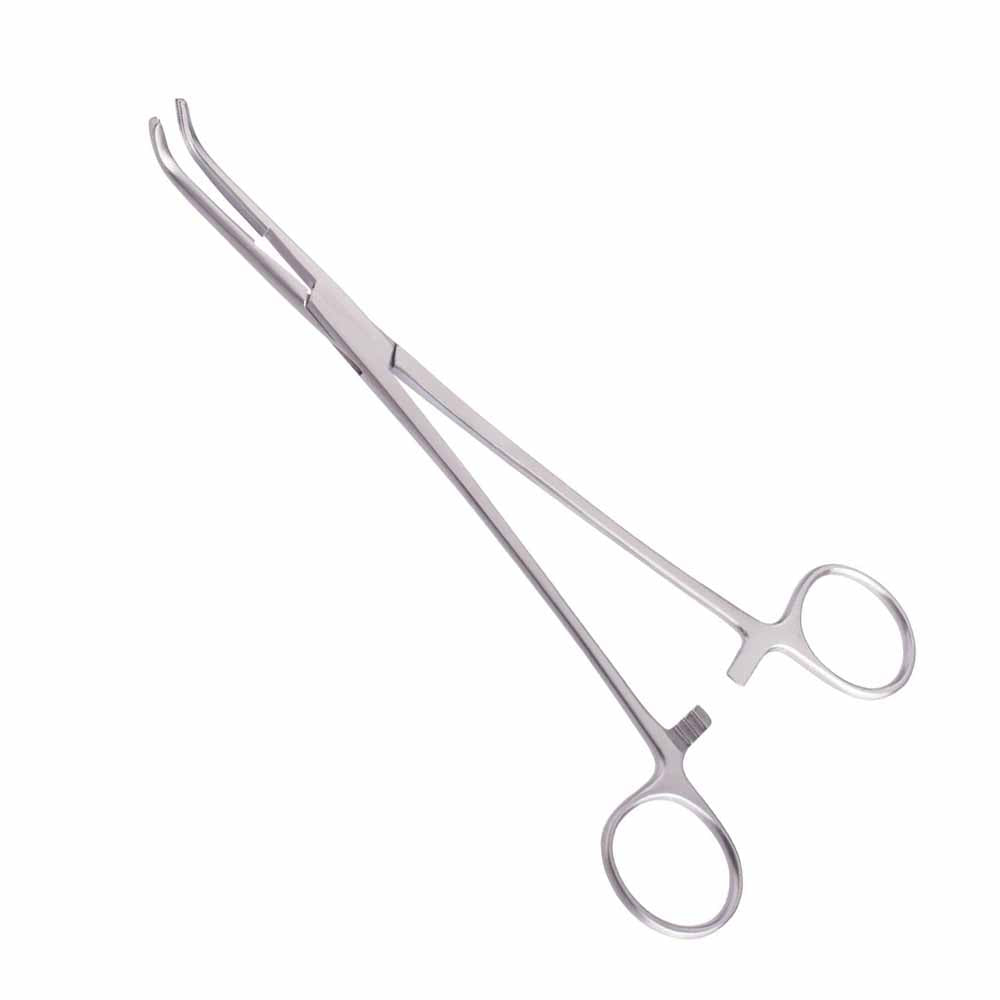

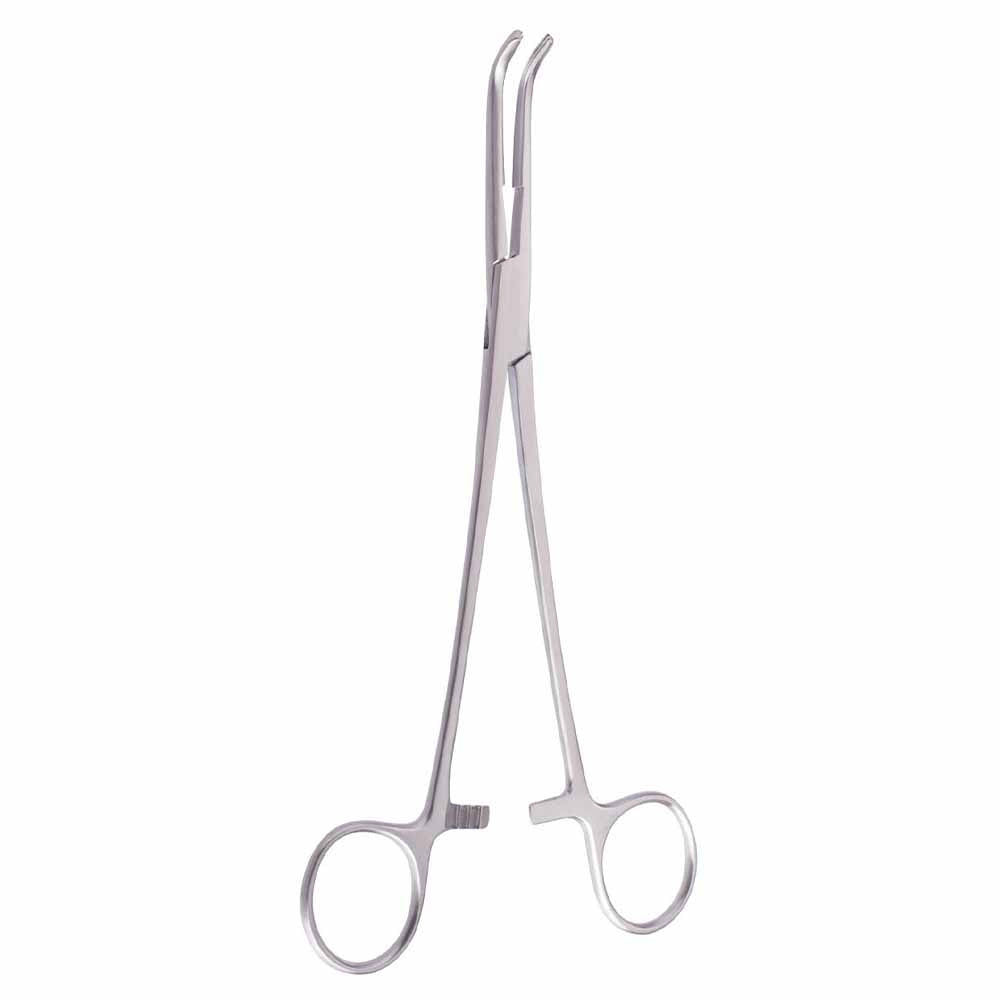

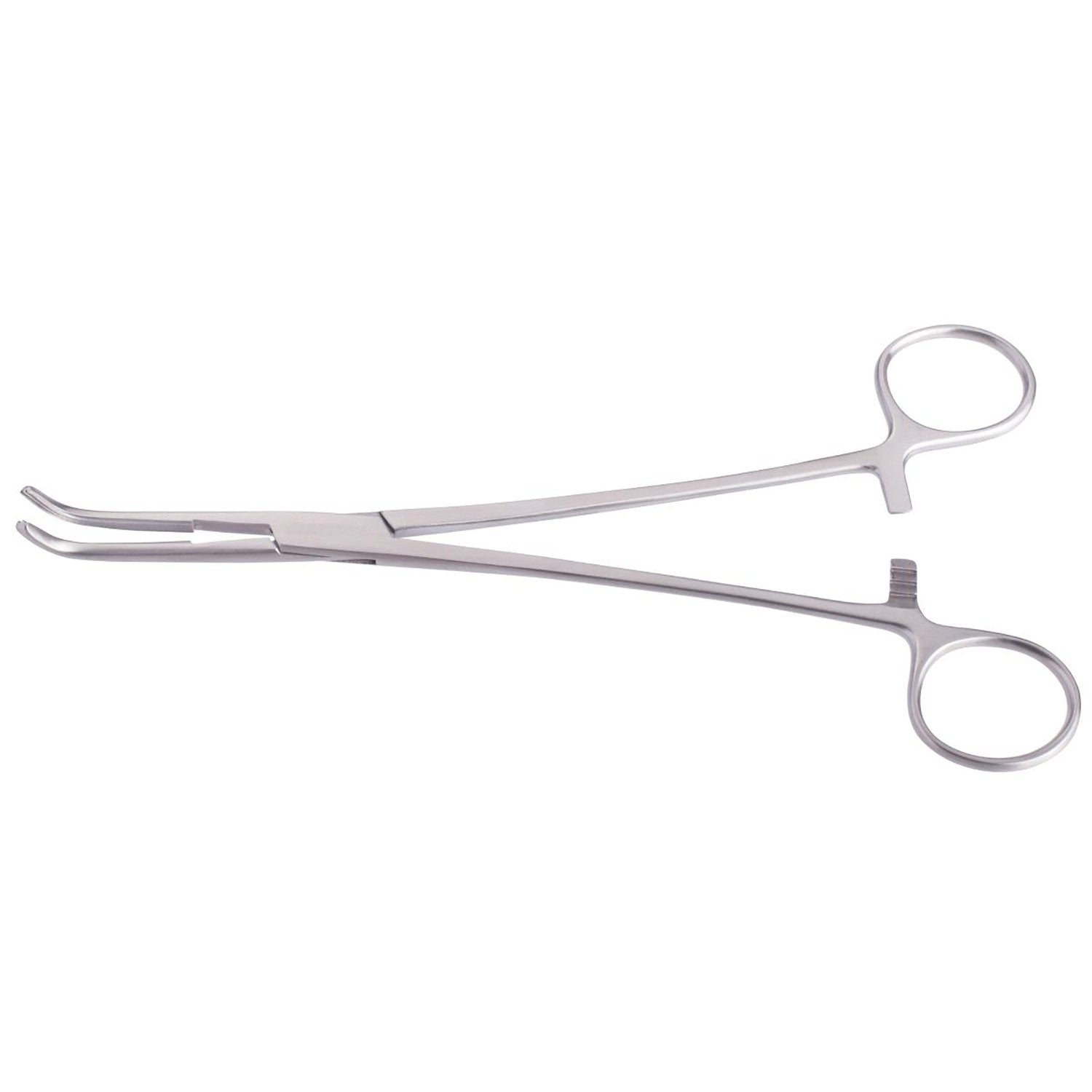

Lahey Gall Duct Forceps, SKU PS-OT-0871, are reusable biliary and gall duct forceps manufactured from German stainless steel for controlled grasping, traction, clamping support, and tissue handling during open gallbladder and biliary surgery. The available variants are PS-1356 with angled serrations and 9" (23cm) overall length, and PS-1355 with angled serrations and 7 1/2" (19.1cm) overall length. The image shows curved angled jaws, serrated working surfaces, long shanks, a box-lock joint, finger-ring handles, and a ratchet locking mechanism for maintained closure after placement. General surgeons, hepatobiliary surgeons, gastrointestinal surgeons, pediatric surgeons, veterinary surgeons, and operating room staff use this pattern during open cholecystectomy, common bile duct exploration, cystic duct handling, choledochotomy support, gallbladder traction, Calot’s triangle exposure, biliary stone access, T-tube placement support, ductal tissue stabilization, ligature placement, and closure-stage field control in hospitals, surgical centers, veterinary theaters, teaching laboratories, and reusable biliary procedure trays.

Angled Serrated Jaw Purchase and Ratchet-Controlled Handling

The working action is produced by two opposing angled jaws joined through a box-lock joint that transfers ring-handle compression into aligned distal closure. The curved jaw profile allows the surgeon to approach biliary tissue from an oblique path without forcing the hand into the central operative line. Angled serrations improve purchase on ductal tissue, gallbladder tissue, fibrous bands, and selected soft-tissue structures during traction, exposure, and temporary holding. The jaw curvature supports work around the cystic duct, gallbladder neck, common bile duct region, and adjacent operative instruments. Long shanks keep the handles outside the immediate biliary field while maintaining access for suction, retractors, scissors, dissectors, needle holders, and ligature material. The box lock keeps both arms centered during closure and reduces lateral jaw movement while the working end is seated. Ring handles provide controlled thumb and finger movement during placement and release. The ratchet near the handles locks at staged closure points, maintaining grasp while dissection, ligation, duct inspection, or closure work continues.

Biliary Exposure and Duct Manipulation Workflow

During open cholecystectomy, Lahey Gall Duct Forceps are applied after exposure of the gallbladder, cystic duct region, and operative field has been established. The angled jaws support controlled traction on selected gallbladder or ductal tissue while the surgeon defines Calot’s triangle, identifies ductal orientation, and coordinates dissection around adjacent vessels and connective tissue. In common bile duct exploration, the instrument assists with localized tissue stabilization during choledochotomy exposure, stone access, duct inspection, and T-tube placement support. The serrated working surface helps maintain purchase when ductal or fibrous tissue must remain controlled during ligature placement or suture handling. In veterinary abdominal surgery, the same mechanism supports gallbladder and biliary soft-tissue manipulation where curved access is required. The forceps are positioned only after the target structure is visually identified and seated within the jaw line. The ratchet is engaged after the required closure level is reached, keeping the selected tissue stable while suction, retractors, clamps, scissors, or needle holders remain active in the same field.

PS-1356 and PS-1355 Length Selection

PS-1355 with 7 1/2" (19.1cm) overall length is selected when the surgeon needs compact-to-intermediate reach for open gallbladder exposure, superficial biliary dissection, cystic duct handling, and procedure trays where close hand control is required. This model is useful when the target tissue lies near the wound opening and the operative field already contains retractors, suction tubing, or assistant instruments. PS-1356 with 9" (23cm) overall length is selected when deeper access is required around the gallbladder fossa, common bile duct region, or abdominal wound depth. The longer model keeps the hand outside the operative line while preserving angled jaw control. Both variants use angled serrations, ring handles, a box-lock joint, and ratchet closure, so selection depends on access depth, tissue position, wound width, retractor placement, patient habitus, and required hand clearance. Stocking both lengths supports hepatobiliary trays, general abdominal sets, gastrointestinal surgery packs, pediatric surgical setups, veterinary biliary instruments, and teaching-lab procedure kits.

German Steel Reprocessing and Procurement Documentation

German stainless steel construction supports repeated clinical use by maintaining jaw alignment, serration definition, corrosion resistance, box-lock stability, and ratchet function through cleaning and steam sterilization cycles. Satin, dull, and mirror finish options allow procurement teams to match surface preference with glare control, visual inspection, and established biliary or general surgery tray standards. After use, the jaws should be opened and cleared of blood, bile residue, tissue fragments, fat, suture debris, dressing fibers, and lint before enzymatic cleaning. Processing can include manual brushing, ultrasonic decontamination, washer-disinfector exposure, rinsing, drying, box-lock inspection, ratchet review, serration inspection, packaging, and steam autoclave sterilization according to facility protocol. The angled jaw grooves, joint area, and locking teeth require careful cleaning because retained residue can affect grip, closure, and release. CE marking, ISO 13485 documentation, and FDA procurement context support purchasing records for hospitals, clinics, surgical centers, veterinary facilities, distributors, and teaching programs. Class I classification, reusable construction, carton-box packing, 1-piece MOQ, OEM availability, 1-year warranty, and return and replacement service support institutional replacement ordering.

How are Lahey Gall Duct Forceps different from Mixter Gall Duct Forceps?
Mixter Gall Duct Forceps are the closest alternative because both instruments are used in biliary and gallbladder surgery. Mixter patterns are commonly selected for right-angle passage around ducts, vessels, and deep tissue planes. Lahey Gall Duct Forceps use angled serrated jaws for controlled grasping, traction, and tissue stabilization around the gallbladder and ductal field. This makes the Lahey pattern useful when the surgeon needs maintained purchase on selected tissue during exposure and ligature workflow. Both instruments use ring handles, a box-lock joint, and ratchet-controlled closure. The clinically relevant difference is jaw geometry, approach angle, and whether the step requires right-angle dissection or serrated angled tissue holding.

How should PS-1356 and PS-1355 be selected?
PS-1355 at 19.1cm is selected for compact-to-intermediate open gallbladder exposure when the target lies closer to the wound opening. It supports cystic duct handling, gallbladder neck traction, and localized biliary tissue stabilization. PS-1356 at 23cm is selected when deeper reach is required around the gallbladder fossa, common bile duct region, or larger abdominal exposure. Lahey Gall Duct Forceps should be matched to access depth, ductal position, retractor layout, wound width, tissue density, and hand clearance. The shorter model gives closer control near the operative field. The longer model keeps the hand farther from the central biliary working area while maintaining angled jaw placement.

What do CE, ISO 13485, and FDA details mean for procurement?
CE documentation supports international conformity records for reusable surgical instrument purchasing. ISO 13485 indicates manufacturing under medical device production controls covering inspection, process consistency, and traceability. FDA procurement context supports U.S. purchasing files for Class I reusable surgical instruments. Lahey Gall Duct Forceps can be entered into hospital, clinic, veterinary, distributor, and operating room catalogs with documented material, finish, model variants, warranty, MOQ, OEM availability, and after-sale service. These records support purchasing teams, receiving departments, and sterile processing units during inventory approval. The certification profile supports tender files, replacement stock, biliary surgery trays, gastrointestinal sets, veterinary abdominal packs, and institutional supply programs.

How do the ratchet and box-lock joint control intraoperative use?
The box-lock joint is the central hinge that keeps both forceps arms aligned during opening and closure. The ratchet is the locking feature near the handles that holds the angled jaws at staged compression points. During use, the surgeon positions the serrated jaws on the selected gallbladder, cystic duct, ductal tissue, or fibrous structure, then closes the handles to the required purchase. This allows Lahey Gall Duct Forceps to maintain biliary tissue control while ligatures, scissors, suction, retractors, or needle holders are used in the same field. Release is controlled by separating the ratchet teeth before reopening the jaws. Cleaning around the box lock, angled serrations, and ratchet is important because retained blood, bile residue, tissue fragments, or lint can affect locking and release.

Are these forceps suitable for reusable sterile processing and distributor stock?
Yes, Lahey Gall Duct Forceps are reusable German stainless steel instruments suitable for hospital, clinic, veterinary, distributor, surgical center, and operating room supply workflows. After use, the angled serrated jaws, box lock, and ratchet should be opened and inspected so blood, bile residue, tissue fragments, fat, lint, and suture debris can be removed before sterilization. Processing can include manual cleaning, ultrasonic decontamination, washer-disinfector exposure, drying, joint inspection, ratchet review, serration inspection, packaging, and steam autoclaving. The 1-piece MOQ supports replacement ordering for clinics, procedure rooms, hepatobiliary trays, gastrointestinal sets, and veterinary operating packs. OEM availability supports distributor branding, institutional packing, and bulk purchasing programs. The 1-year warranty and return and replacement service support procurement teams managing recurring gall duct forceps inventory.
