Küntscher Nails Instrument Set for 7–14 mm Intramedullary Canal Preparation

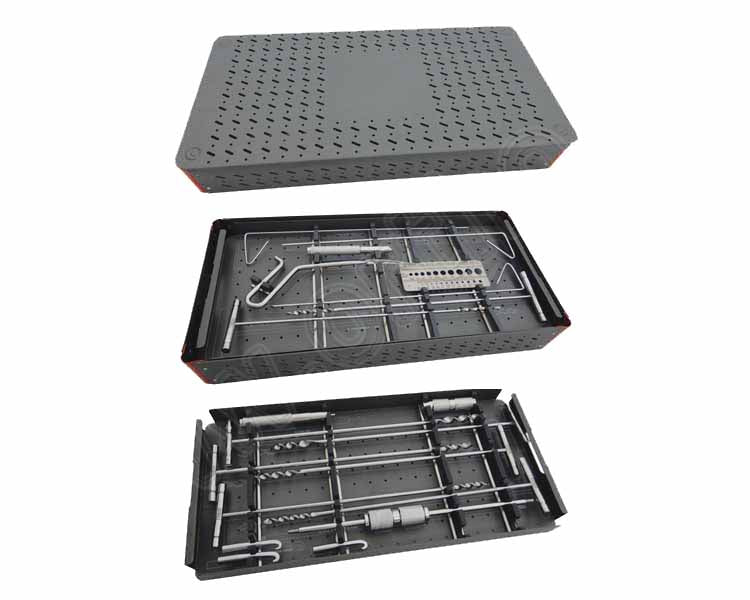

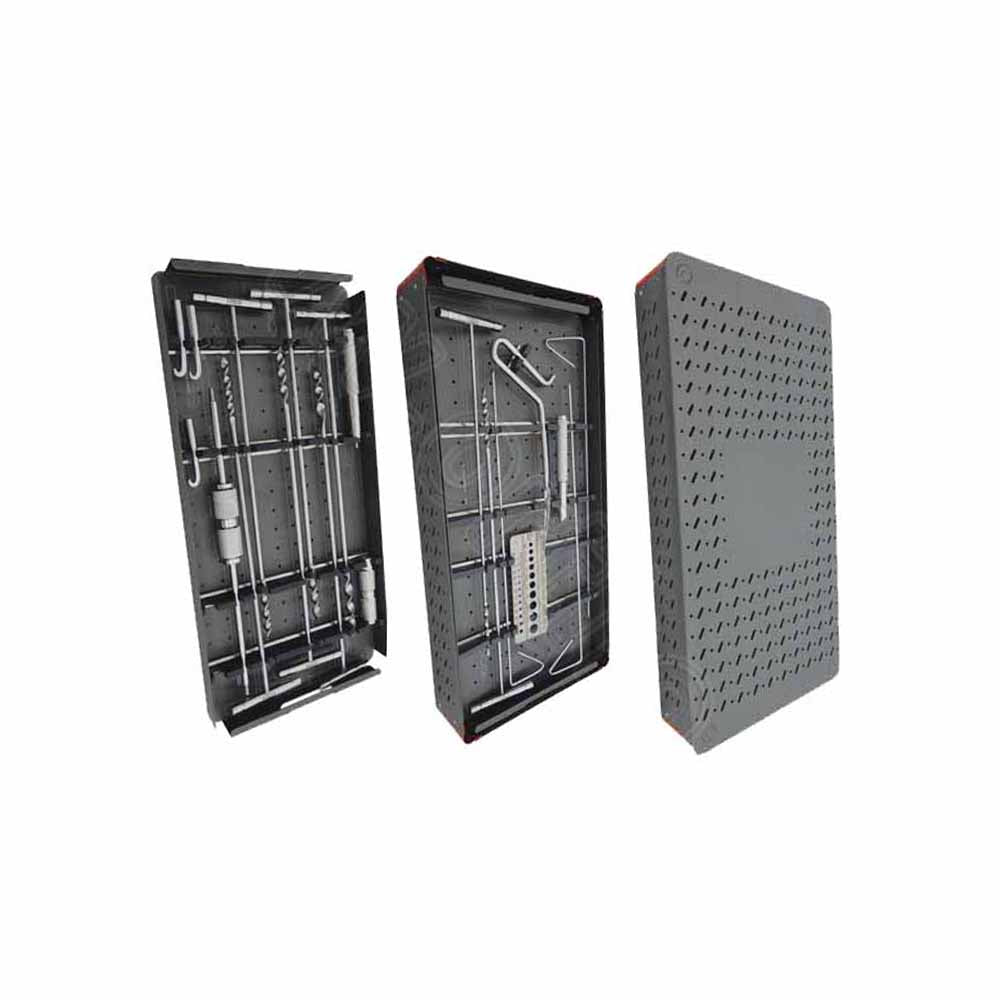

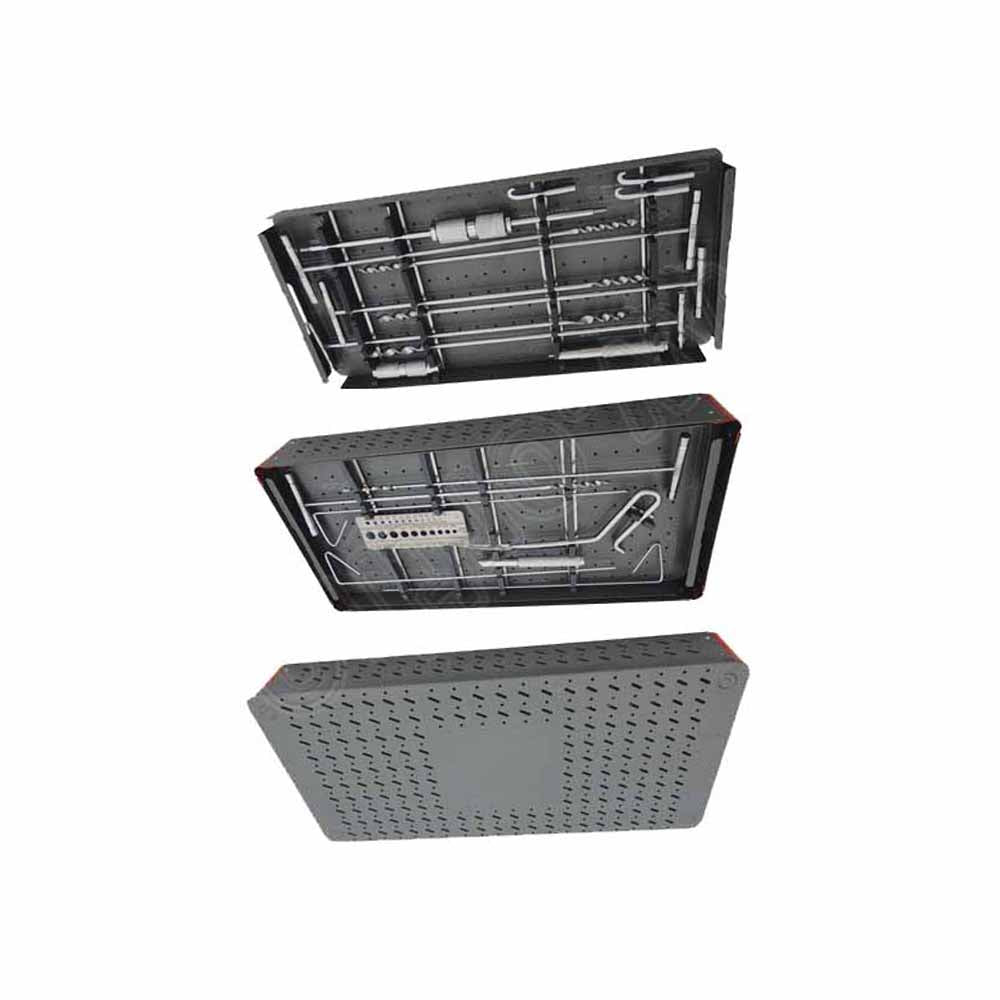

Küntscher Nails Instrument Set, SKU PS-OP-5235, is a reusable orthopedic intramedullary nailing kit manufactured from German stainless steel for femoral and tibial shaft fixation, nail exchange, and implant removal. Its 17 coded instruments and one container comprise the 208.15 diamond-pointed tibial bone awl; 384.008 K.Nail measuring gauge; 384.006 two-hook extractor; 384.004 impactor/setting device; 384.002 driver; 384.014 3.0 mm guide wire for 8 and 9 mm nails; 384.016 4.0 mm wire for 10 and 11 mm implants; 384.018 4.5 mm wire for 12 and 13 mm implants; 384.022, 384.024, 384.026, 384.028, 384.030, 384.032, 384.034, and 384.036 reamers in 7, 8, 9, 10, 11, 12, 13, and 14 mm diameters; 384.040 replacement extractor hook; and 905.001 storage container. Orthopedic trauma surgeons use this configuration during closed or limited-open antegrade intramedullary stabilization of selected long-bone diaphyseal fractures and during elective or revision removal of a Küntscher nail. The set supports canal entry, trajectory control, progressive medullary preparation, length assessment, coupled driving, controlled final seating, and axial extraction in trauma operating rooms, fracture units, and hospital orthopedic departments.

Mechanical Architecture for Canal Preparation and Nail Control

The diamond-pointed awl concentrates manual force at four cutting facets to establish a defined cortical portal at the proximal tibial entry site. Once the chosen guide wire is advanced along the medullary axis, each cannulated reamer tracks over it; circumferential cutting flutes remove endosteal bone while the central bore constrains lateral drift. Sequential diameters enlarge the canal in controlled increments rather than forcing a single oversized cutter through dense cortex. The K.Nail driver couples to the proximal implant end and transfers mallet energy along the nail axis, helping the surgeon advance the cloverleaf implant across a reduced diaphyseal fracture. Near final depth, the impactor/setting device concentrates shorter, controlled blows at the same longitudinal interface, allowing seating without striking the implant directly. The measuring gauge relates the prepared path to the planned implant length before insertion. During removal, two opposed hooks on the extractor engage the proximal eye or slot so withdrawal force remains aligned with the canal instead of levering against cortical bone. The replacement hook restores this paired engagement when a hook is exchanged. Together, these geometries address the central mechanical requirement of Küntscher fixation: accurate preparation for elastic cortical contact without the targeting arms, transverse drills, or locking-screw drivers used with an interlocking nail system.

Femoral and Tibial Nailing Workflow

For selected femoral or tibial diaphyseal fractures treated with a Küntscher-type nail, the surgeon first reduces the shaft and establishes the intended antegrade entry under imaging. The 208.15 awl opens the proximal tibial cortex when a tibial approach is selected. A diameter-matched wire is passed through the canal and across the fracture into the distal fragment, providing a reference axis for progressive reaming. The operator advances the 7 mm cutter first when it engages the canal, then proceeds in one-millimetre steps until the preparation matches the planned implant and desired cortical fit. The 384.008 gauge is used before implantation to select a length that spans both main fragments while respecting the proximal and distal endpoints. The driver then transmits axial mallet blows to advance the nail, and the setting device controls its terminal position. This sequence is used in orthopedic trauma theatres and fracture services by surgeons familiar with non-locking intramedullary fixation. During planned hardware removal after union, exchange nailing, or revision requiring implant retrieval, the operative team exposes the proximal nail feature, seats both extractor hooks, and applies longitudinal withdrawal force. The 905.001 container supports preoperative count, sterile presentation, and post-procedure reconciliation of every instrument and detachable hook.

Guide-Wire, Reamer, and Extraction Component Selection

Model 384.014 is the 3.0 mm guide wire for 8 and 9 mm nails, giving a centered path for the smaller canal preparation sequence. Model 384.016 increases wire stiffness to 4.0 mm for 10 and 11 mm implants, while 384.018 provides a 4.5 mm trajectory for 12 and 13 mm devices where larger reamers impose greater lateral load. Reamers 384.022, 384.024, 384.026, 384.028, 384.030, 384.032, 384.034, and 384.036 correspond respectively to 7, 8, 9, 10, 11, 12, 13, and 14 mm canal diameters. The surgeon selects the initial cutter according to canal access and advances through successive sizes, using resistance and imaging to guide the terminal diameter rather than skipping increments. Code 208.15 creates the tibial portal; 384.008 measures the prepared length; 384.002 drives the selected implant; and 384.004 refines final depth. Code 384.006 provides two-point purchase for extraction, with 384.040 retained as its spare hook so the paired engagement can be maintained. The 905.001 container separates long wires, fluted cutters, impact tools, and measuring hardware for count control and reprocessing. This configuration covers 8–13 mm nail pairings while the 7–14 mm reamer span permits progressive preparation across the supplied diameter range.

German Stainless Steel, Reprocessing, and Procurement Controls

German stainless steel provides the hardness and dimensional stability required at the awl facets, reamer flutes, coupling surfaces, and extractor hooks, while supporting corrosion resistance through repeated cleaning and steam exposure. A satin, non-reflective surgical finish limits glare under operating lights and gives staff a clear surface for inspection. After use, the team should remove marrow and bone debris promptly, flush every cannulated cutter, brush the flutes and guide-wire bores, rinse with treated water, dry completely, and inspect edges, straightness, couplings, and hook integrity. The dismantled or opened components are then arranged in the 905.001 container and steam sterilized at the validated 134°C pre-vacuum cycle specified by the facility and manufacturer instructions. Reprocessing records should link the set identity, cycle, load release, and instrument count. CE marking supports conformity documentation for relevant European procurement; ISO 13485 identifies the quality-management framework governing manufacture and traceability. FDA context concerns establishment, listing, registration, and device documentation applicable to United States supply, rather than a blanket claim that the set is FDA approved. Hospital buyers and distributors can request conformity records for tender review. The commercial configuration is reusable, carries a one-year warranty, has a one-set MOQ, supports OEM or private-label orders, and includes return-and-replacement after-sale service.

How does this set differ from an interlocking intramedullary nail instrument set?
The Küntscher Nails Instrument Set prepares and drives a cloverleaf nail that obtains stability through elastic cortical contact. A modern interlocking intramedullary nail set adds proximal and distal targeting guides, sleeves, drills, depth gauges, and screwdrivers for transverse locking screws. This configuration instead centers on a tibial awl, diameter-matched wires, sequential reamers, a measuring gauge, driver, impactor, and extractor. It therefore does not provide the screw-targeting workflow used to control length and rotation in an interlocking construct. Its two-hook extractor engages the proximal feature of a Küntscher implant, whereas contemporary systems use implant-specific extraction bolts or threaded adapters. Selection between the systems follows the planned implant design, fracture pattern, canal anatomy, and surgeon’s operative protocol.

How are the guide wires and reamers selected for femoral or tibial canal preparation?
The Küntscher Nails Instrument Set pairs the 3.0 mm wire with 8 and 9 mm nails. The 4.0 mm model supports 10 and 11 mm implants, while the 4.5 mm model serves 12 and 13 mm implants. The stiffer wires resist deflection as larger cutters encounter greater lateral load in the femoral or tibial medullary canal. Reaming begins with the smallest diameter that engages the prepared canal and progresses through the 7–14 mm sequence in one-millimetre steps. The terminal cutter is chosen from preoperative imaging, intraoperative resistance, implant dimensions, and the fixation technique. The surgeon maintains imaging control across the diaphyseal fracture while advancing each cannulated reamer over the selected wire.

What do CE, ISO 13485, and FDA references mean for procurement?
The Küntscher Nails Instrument Set is supplied with CE-marking context for applicable European device conformity. ISO 13485 identifies the medical-device quality-management system used for controlled manufacture, inspection, traceability, and set assembly. FDA procurement context concerns the registration, listing, and device documentation applicable to supply in the United States. It does not mean that every reusable manual instrument carries an individual FDA approval decision. Hospital procurement teams should match certificates, manufacturer identity, SKU, labeling, and intended market before purchase authorization. Distributors can include the relevant conformity and quality records in tender, import, and vendor-qualification files.

How are the driver, setting device, and two-hook extractor used intraoperatively?
The Küntscher Nails Instrument Set uses the driver as the primary implant-coupling control during insertion. Once coupled to the proximal nail, it transmits mallet force along the medullary axis while the surgeon monitors reduction and depth. The impactor/setting device is used near the final position for shorter, controlled advancement without direct blows to the implant end. For removal, both extractor hooks are seated securely in the proximal eye or slot. Paired engagement keeps the withdrawal vector longitudinal and reduces asymmetric levering at the cortical entry portal. The spare hook replaces a detachable extractor component when required, and every coupling surface is inspected before use.

How should an operating-room team process and account for the complete set?
The Küntscher Nails Instrument Set should enter decontamination with marrow and bone debris kept moist until cleaning begins. Staff flush the cannulated reamers, brush each flute and bore, clean the guide wires, and inspect the awl, hooks, driver, and impactor for deformation. After rinsing and complete drying, the components are placed in the 905.001 container with all codes visible for reconciliation. The assembled load is steam sterilized using the facility’s validated 134°C pre-vacuum cycle and the manufacturer’s instructions. Before release, sterile-processing personnel document cycle acceptance and confirm 17 coded instruments or components plus the container. The circulating team repeats the count before incision and after closure, while procurement retains the one-year warranty, return-and-replacement terms, and OEM configuration record.
