Kerrison Punches PS-OP-00101 for Lamina and Foraminal Bone Removal

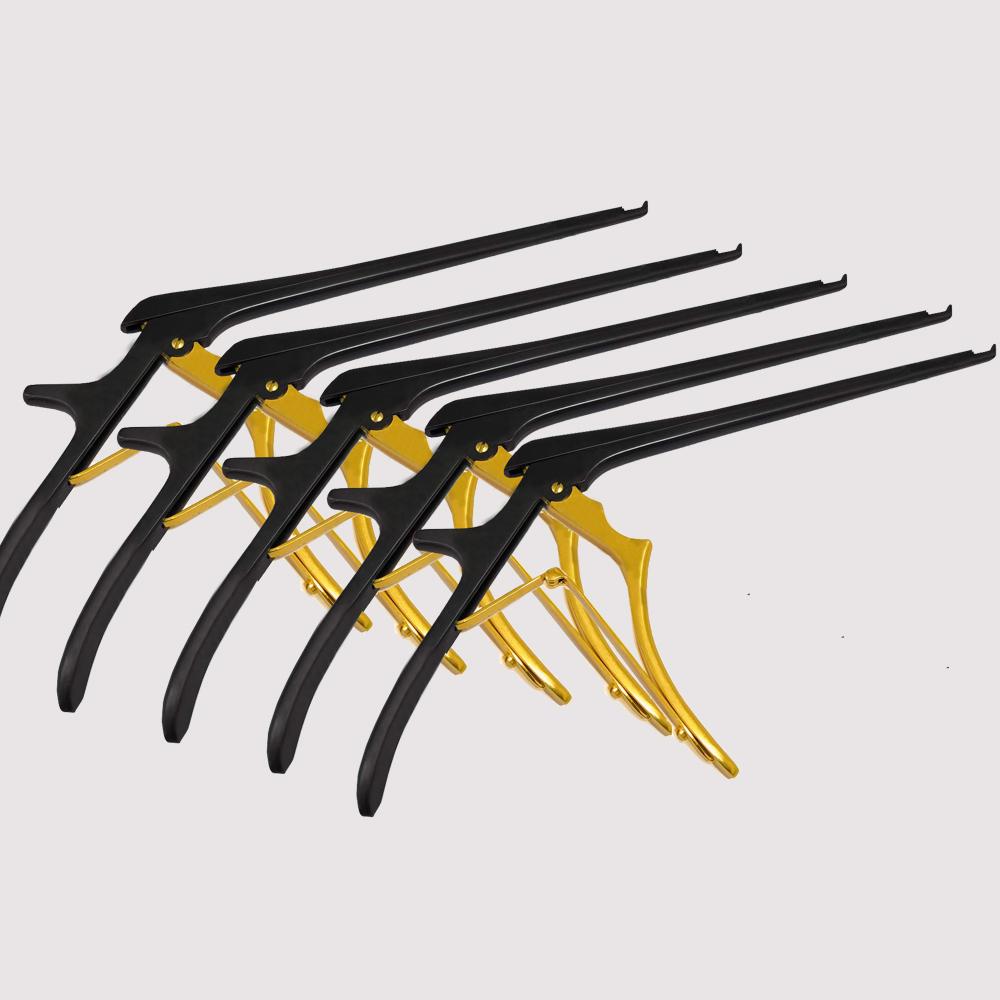

Kerrison Punches PS-OP-00101 are orthopedic and spinal punch instruments made from German stainless steel for controlled removal of lamina, ligamentum flavum, foraminal bone, and posterior spinal margins. The product is listed under model PS-OP-00100 as a reusable Kerrison punch pattern for laminectomy, laminotomy, foraminotomy, posterior spinal decompression, interlaminar window enlargement, microdiscectomy exposure, and trimming of hypertrophic facet or laminar edges. The instrument uses a distal footplate, sliding punch jaw, long shaft, pivoted handle mechanism, and spring return to remove bone or ligament in sequential bites inside confined operative corridors. It is used by spine surgeons, orthopedic surgeons, neurosurgeons, hospital operating rooms, ambulatory surgical centers, trauma units, and procurement teams maintaining reusable decompression trays. The visible set-style image shows multiple Kerrison punches with elongated shafts and trigger handles, supporting tray assembly where different reach and bite requirements are needed during cervical, thoracic, or lumbar exposure.

Footplate and Sliding Punch Mechanism

The Kerrison pattern works by placing the distal footplate beneath the edge of lamina, ligamentum flavum, foraminal bone, or a prepared interlaminar window. When the handle is compressed, the sliding punch jaw advances over the footplate and removes the captured segment in a defined bite. This mechanism allows bone or ligament removal from a narrow spinal corridor without requiring a broad open-field grasp. The long shaft keeps the surgeon’s hand outside the wound while preserving space for retractors, suction, microscope optics, nerve root protection, and assistant instrumentation. The angled distal working end helps the footplate enter under a bony edge while the handle remains in a stable position. The pivoted trigger mechanism transfers controlled hand pressure into linear jaw movement. The spring return reopens the punch after each compression cycle so the surgeon can continue decompression in repeated increments. This design is clinically important where the dura, exiting nerve root, facet joint, or epidural venous plexus lies close to the bite plane.

Spinal Decompression Workflow

During laminectomy, Kerrison Punches are introduced after exposure, retraction, hemostasis, and identification of the laminar margin selected for removal. The footplate is advanced beneath the bone edge and the punch is closed to enlarge the decompression window in controlled bites. In laminotomy, smaller sequential bites help preserve adjacent posterior elements while creating access to the ligamentum flavum and epidural space. During foraminotomy, the instrument removes hypertrophic bone around the neural foramen after the nerve root has been protected and the working plane is visualized. In microdiscectomy exposure, it can enlarge the interlaminar opening before disc fragment retrieval with pituitary forceps or disc rongeurs. For ligamentum flavum resection, the footplate supports the ligament edge while the punch removes tissue along the decompression line. The instrument works alongside Penfield dissectors, curettes, nerve root retractors, suction, bipolar forceps, pituitary rongeurs, and spinal exposure sets in cervical, thoracic, and lumbar procedures.

PS-OP-00100 Pattern and Component Selection

The PS-OP-00100 Kerrison punch pattern is selected according to working depth, spinal level, exposure width, and the amount of bone or ligament intended for each bite. In cervical decompression, surgeons generally favor smaller bite profiles because the canal is narrow and neural tissue lies close to the laminar margin. In lumbar laminectomy or wider interlaminar exposure, a broader working end can remove more bone once the dura and nerve root are protected. A shorter shaft supports direct posterior access, while a longer shaft is useful when retractor depth, patient habitus, or microscope position increases the hand-to-target distance. The distal footplate defines the bite plane and protects the undersurface when correctly seated. The sliding jaw performs the cutting action, the shaft transmits force, the pivot controls leverage, and the spring handle returns the mechanism to the open position. Procurement teams can use this pattern for spine tray replacement, decompression set expansion, and hospital orthopedic punch standardization.

Steel, Finish, Sterilization, and Compliance

German stainless steel gives Kerrison Punches the rigidity, corrosion resistance, and reusable surface required for repeated spinal and orthopedic bone work. The satin, dull, or mirror finish options support different tray preferences; satin and dull finishes reduce glare under operating lights or microscope illumination, while mirror polish allows rapid surface inspection after cleaning. After use, the distal footplate, sliding jaw, shaft channel, pivot, spring, and handle recesses should be cleaned carefully because bone dust, ligament fragments, and blood can collect around moving parts. Sterile processing should include decontamination, brushing, rinsing, drying, functional jaw inspection, packaging, and steam autoclave sterilization according to facility protocol. CE marking, ISO 13485 manufacturing controls, and FDA procurement context support hospital purchasing, distributor review, and operating room supply documentation. The reusable Class I classification, one-year warranty, MOQ of one piece, OEM availability, carton box packing, rust-free listing, and return or replacement service make PS-OP-00101 suitable for institutional spine and orthopedic tray procurement.

How are Kerrison Punches different from Leksell rongeurs?
Kerrison Punches use a distal footplate and sliding punch jaw for controlled bite removal inside a narrow spinal corridor. A Leksell rongeur uses opposing cupped jaws for open-field bone nibbling where the target edge is more exposed. The Kerrison footplate is advanced beneath lamina, ligamentum flavum, or foraminal bone before the punch closes. The Leksell pattern closes around bone from both sides and is less suited for protected undercutting near the dura. Kerrison Punches are selected for laminectomy, laminotomy, foraminotomy, and posterior decompression. The two instruments can appear in orthopedic and spine trays, but their access strategy and bite mechanics are clinically different.

How should jaw width and shaft selection be approached?
Selection depends on spinal level, exposure depth, and proximity to neural tissue. In cervical decompression and tight foraminal work, a smaller bite profile supports controlled removal close to the dura and exiting nerve root. In lumbar laminectomy, a larger bite can be used after exposure is adequate and the decompression plane is protected. A shorter shaft favors direct posterior access and close tactile feedback. A longer shaft is useful when retractor depth, patient body habitus, or microscope position creates a deeper operative corridor. Kerrison Punches should be selected so the footplate can seat under the target edge without forcing the shaft against bone, dura, or retractor blades.

What do CE, ISO 13485, and FDA mean for procurement?
CE marking supports conformity documentation for medical device purchasing in regulated markets. ISO 13485 indicates that manufacturing follows a medical device quality management framework with traceability controls. FDA procurement context supports review by hospitals, clinics, distributors, and operating room supply teams. Kerrison Punches PS-OP-00101 are listed as reusable Class I surgical instruments. The SKU, model PS-OP-00100, price of $55.00 USD, and one-year warranty give clear catalog data for purchasing systems. MOQ of one piece, OEM availability, and return or replacement support help with tray replenishment and distributor inventory planning.

How does the footplate control intraoperative use?
The footplate is placed beneath the laminar edge, ligamentum flavum margin, or foraminal rim before the handle is compressed. This creates a defined bite plane and helps the surgeon remove tissue from the selected edge. The sliding jaw closes over the footplate, separating a small segment of bone or ligament. The spring return then reopens the mechanism for the next sequential bite. Correct footplate placement is important because the dura, nerve root, and epidural structures may lie immediately beneath the working surface. In Kerrison Punches, the footplate and sliding jaw are the main control features that distinguish the instrument from open rongeurs.

How should sterile processing teams clean and sterilize these punches?
The distal jaw, footplate, shaft channel, pivot, spring, and handle recesses should be cleaned after every procedure. Bone dust and ligament fragments can collect around the sliding mechanism if cleaning is delayed. Manual brushing should be followed by rinsing, drying, and functional inspection before packaging. The jaw should open and close smoothly before the instrument returns to a spinal or orthopedic tray. Steam autoclave sterilization can be used after complete cleaning and inspection according to facility protocol. Kerrison Punches are reusable German stainless steel instruments suitable for hospital sterile supply workflows and distributor replacement programs.
