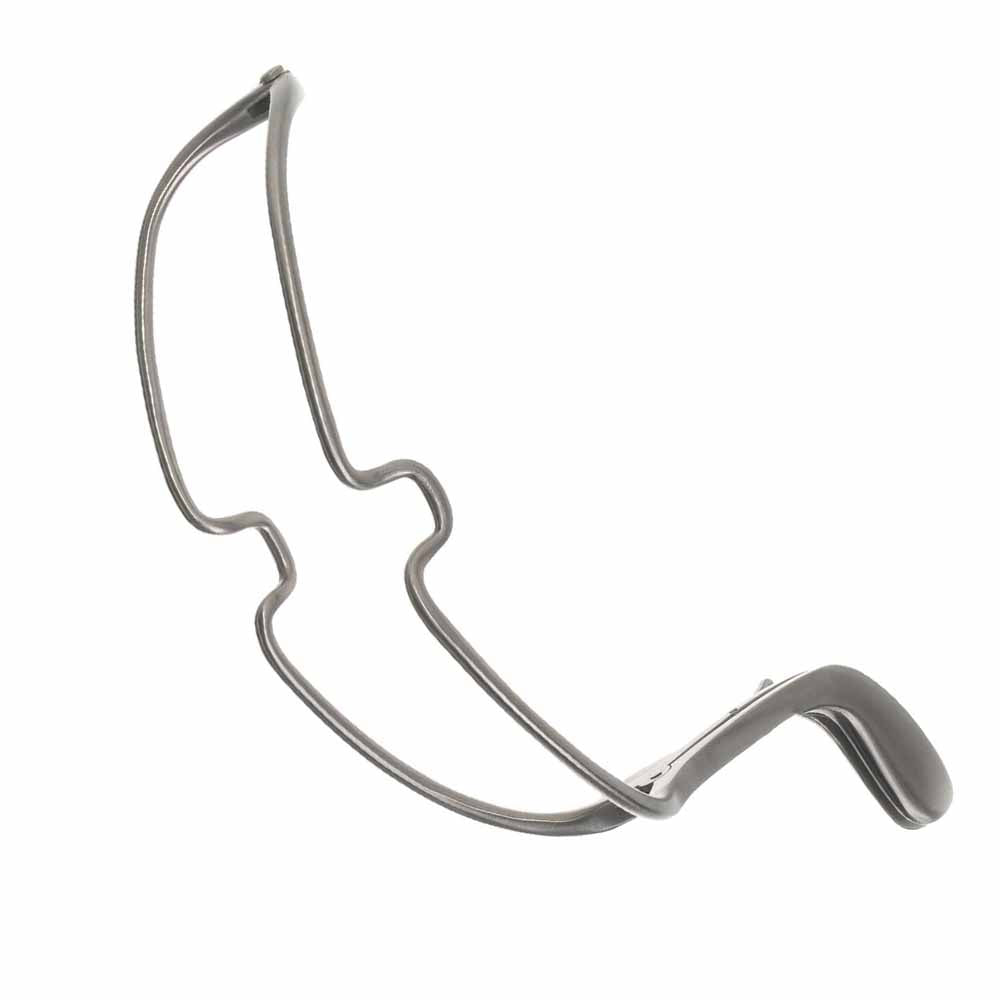

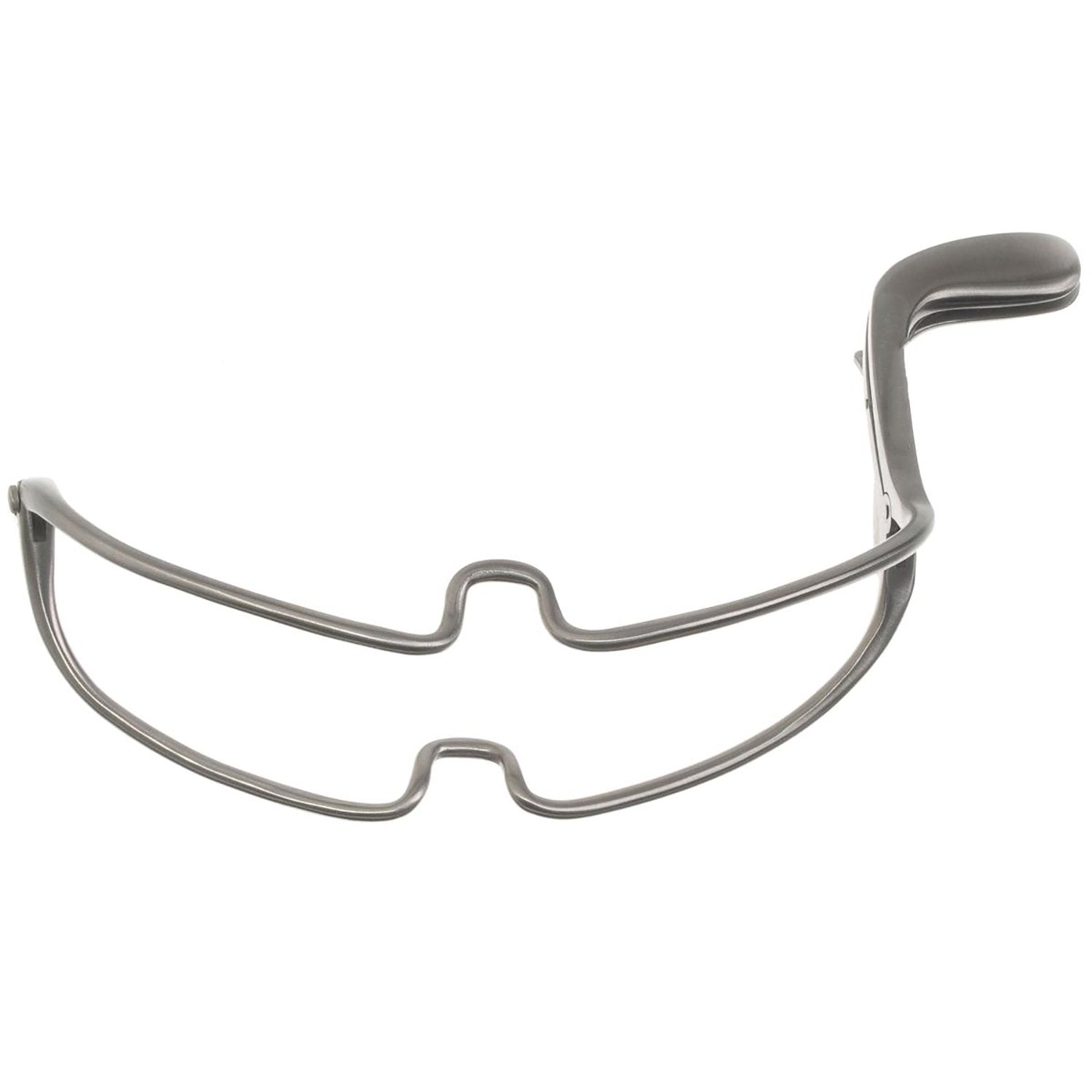

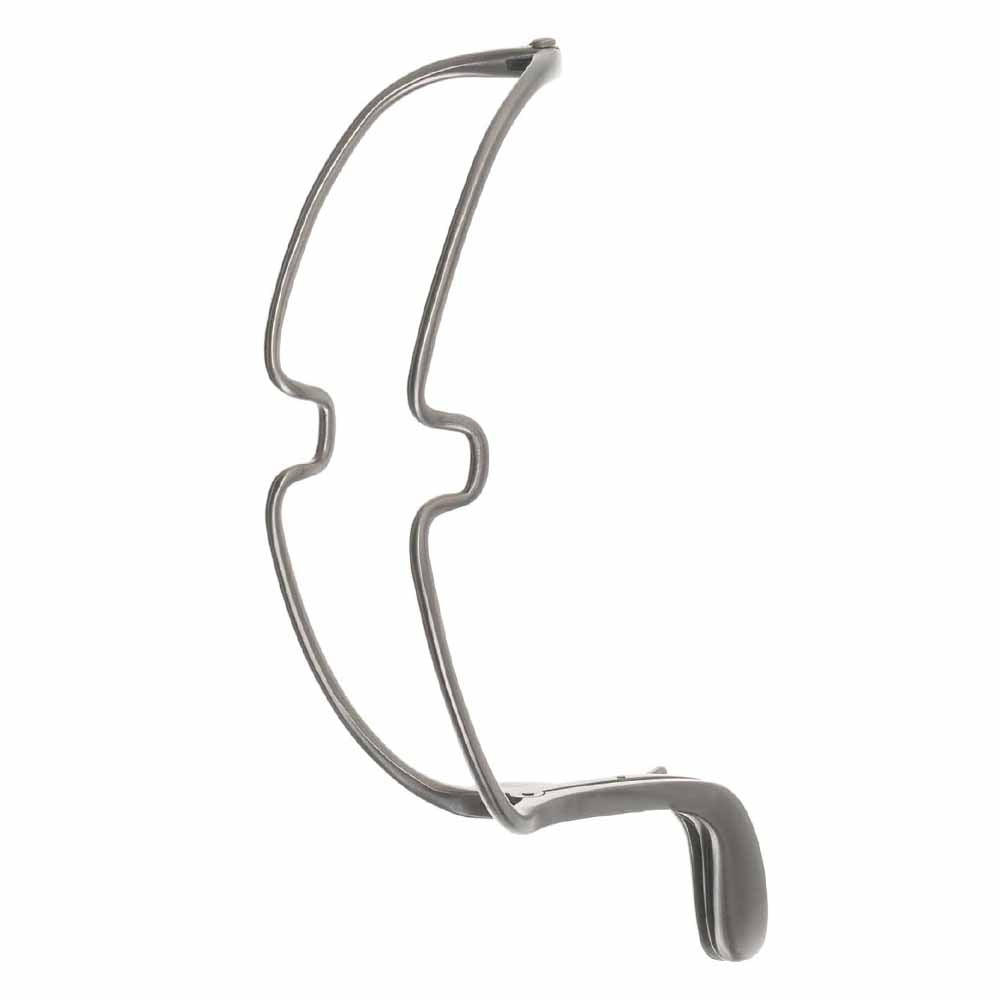

Jennings Mouth Gag – German Stainless Steel Interdental Bite-Block Gag in Child (7") and Adult (8") Sizes (PS-7708)

The Jennings Mouth Gag (PS-7708) is a reusable German stainless steel interdental bite-block mouth gag available in two sizes — Child (PS-7709, overall length 7"/17.8cm) and Adult (PS-7710, overall length 8"/20.3cm) — designed to maintain mouth opening by direct placement between the upper and lower teeth on one side of the mouth, providing oral access for dental, oral surgical, ENT, and general anesthetic procedures where tongue retraction is not the primary requirement. Unlike frame-and-blade gags that depress the tongue to create a working space, the Jennings gag's two hinged arms each terminate in a bite block that is positioned between the molar or premolar teeth, with the gag's spring or ratchet action holding the jaws apart at the selected opening once the bite blocks are seated — providing a stable, hands-free interdental prop that prevents jaw closure during the procedure without occupying the tongue space or central oral cavity. The two sizes address the substantially different arch dimensions and bite block clearance requirements between pediatric and adult patients: the Child size (7"/17.8cm) is proportioned for smaller oral cavities and primary or mixed dentition, while the Adult size (8"/20.3cm) accommodates full adult dental arches. Manufactured from German stainless steel for the corrosion resistance and dimensional stability required of a reusable instrument that bears sustained interdental load and undergoes repeated steam autoclave sterilization. Used by anesthesiologists, oral and maxillofacial surgeons, ENT surgeons, dentists, and operating room teams in hospital operating theaters, dental surgeries, and ENT units. Sold as 1 piece per size selected.

Interdental Bite-Block Design: How the Jennings Gag Differs from Frame-and-Blade Gags

The Jennings gag belongs to a distinct category of mouth gag design — the interdental bite-block type — that achieves mouth opening through a fundamentally different mechanism than frame-and-blade gags such as the McIvor or Boyle-Davis designs used primarily in tonsillectomy. A frame-and-blade gag spans the entire mouth, with a tongue blade depressing the tongue into the floor of the mouth and the frame's lateral arms resting against the lips or cheeks, creating a large central working space for procedures on the tonsils, soft palate, and oropharynx. The Jennings gag, by contrast, consists of two hinged arms, each terminating in a bite block that is placed between the occlusal surfaces of the upper and lower teeth on one side of the mouth — typically in the premolar or molar region. The gag's locking mechanism, whether spring-loaded or ratchet-based, holds the two arms at a fixed separation once the bite blocks are seated against the teeth, propping the jaws open at that separation without any component occupying the tongue space, the palate, or the contralateral side of the mouth. This design is suited to procedures where the working field is the teeth, gingiva, or anterior/lateral oral structures rather than the oropharynx — dental extractions and restorative procedures under general anesthesia, oral examination under anesthesia, and as an airway adjunct that prevents the patient from biting down on an oral airway, endotracheal tube, or the operator's fingers during a procedure where the patient's level of consciousness does not guarantee voluntary cooperation.

Child (7"/17.8cm) and Adult (8"/20.3cm) Sizing: Pediatric and Adult Anatomical Considerations

The two sizes of the Jennings gag — Child at 7 inches (17.8cm) overall length and Adult at 8 inches (20.3cm) — reflect the substantial anatomical differences between pediatric and adult oral cavities that affect both the dimensions of the gag itself and the placement of the bite blocks. The pediatric oral cavity is smaller in all dimensions, the primary and mixed dentition has different tooth dimensions and spacing compared to the permanent adult dentition, and the mandibular range of motion and the forces that pediatric jaw musculature can generate differ from adult patients. A gag sized for adult use placed in a pediatric patient risks the bite blocks contacting soft tissue rather than seating correctly against the dental arches, excessive opening relative to the pediatric temporomandibular joint's safe range of motion, and an overall instrument profile that is simply too large for the pediatric oral cavity to accommodate alongside the other equipment — airway devices, suction, dental instruments — that may be present simultaneously. The Adult size (8"/20.3cm) provides the bite block separation and overall instrument dimensions appropriate for adult dental arches and the greater opening ranges that may be required for adult oral and dental procedures. Both sizes share the same fundamental hinged bite-block design and locking mechanism, differing in their overall dimensions and the corresponding bite block geometry appropriate to pediatric versus adult dentition. Facilities performing both pediatric and adult procedures under general anesthesia — common in hospital-based dental and oral surgery units — benefit from stocking both sizes to ensure the correctly proportioned gag is available regardless of patient age.

Clinical Applications: Dental, Oral Surgical, and Anesthetic Airway Adjunct Use

The Jennings gag's interdental bite-block design suits it to several distinct clinical applications across dental, oral surgical, and anesthetic practice. In dental procedures performed under general anesthesia — common for pediatric patients requiring extensive restorative or extraction work that cannot be completed under local anesthesia with behavioral management alone, and for adult patients with severe dental anxiety or special needs — the Jennings gag maintains mouth opening throughout the procedure, allowing the dental team to work without an assistant continuously holding the mouth open, and providing a consistent reference opening that does not vary with operator fatigue. In oral and maxillofacial surgical procedures, the gag provides access for procedures on the teeth, alveolar bone, and adjacent soft tissues where the primary working field does not require the oropharyngeal exposure that a frame-and-blade gag provides, making the more compact and unilateral Jennings design preferable when bilateral access or tongue retraction is not needed. As an anesthetic airway adjunct, the Jennings gag — or similar interdental bite blocks — is used to prevent the patient from biting down on an oral airway, laryngeal mask airway, or endotracheal tube during induction, emergence, or any period where the patient's bite reflex may be present despite reduced consciousness; an unprotected airway device can be damaged or occluded by an unintentional bite, and the interdental bite block prevents this by maintaining a fixed separation between the teeth at a location away from the airway device itself. In ENT examination and minor procedures, the gag can provide mouth opening for oral cavity and oropharyngeal examination in patients who cannot maintain voluntary mouth opening.

German Stainless Steel Construction and Sterilization Workflow

The Jennings Mouth Gag is manufactured from German stainless steel, providing the corrosion resistance and dimensional stability required of a reusable instrument that bears sustained interdental load — the closing force generated by the patient's jaw musculature against the bite blocks throughout the duration of the procedure — and undergoes repeated steam autoclave sterilization between cases. The hinge mechanism connecting the two arms, and the locking mechanism that holds the selected opening, are the components subject to the greatest mechanical stress during use and should receive particular attention during reprocessing: debris accumulation at the hinge can stiffen the gag's action, while wear or damage to the locking mechanism can result in the gag failing to maintain the selected opening under load — a failure that, during a procedure, could allow unintended jaw closure with consequences ranging from procedure interruption to injury of instruments or tissue caught between the closing teeth. The bite blocks themselves should be inspected for surface integrity at each reprocessing cycle, as damaged or rough bite block surfaces increase the risk of dental trauma to the teeth against which they are seated. The instrument is fully compatible with steam autoclave sterilization at 134°C pre-vacuum parameters, the standard method for reusable dental, oral surgical, and anesthetic instruments. Available in satin, dull, or mirror surface finish.

CE Mark, ISO 13485, and FDA Certification for Dental and Oral Surgery Instrument Procurement

The Jennings Mouth Gag (PS-7708, with Child variant PS-7709 and Adult variant PS-7710) is manufactured under a quality management system certified to ISO 13485, governing German stainless steel material sourcing, precision machining of the hinge and locking mechanisms and bite block components, dimensional inspection at both the Child (7"/17.8cm) and Adult (8"/20.3cm) sizes, surface finishing, and packaging. CE Mark certification confirms conformity with European Medical Device Regulation requirements for Class I reusable surgical instruments distributed within EU and associated regulatory territories. FDA compliance documentation is maintained for United States distribution, satisfying regulatory requirements for reusable dental, oral surgical, and anesthetic instruments procured by US hospitals, dental surgical units, and surgical instrument distributors. These certifications satisfy procurement and tender documentation requirements of institutional buyers in the USA, India, Pakistan, Vietnam, and across international surgical instrument supply frameworks. Certificates of conformity and quality management system documentation are available on request. OEM manufacturing and custom sizing are available within the same certified manufacturing framework.

Product Specifications

Frequently Asked Questions

What is a Jennings mouth gag, and how does its design differ from a McIvor or other frame-and-blade gag?
The Jennings mouth gag is an interdental bite-block instrument consisting of two hinged arms, each ending in a bite block that is placed directly between the upper and lower teeth on one side of the mouth, with a spring or ratchet locking mechanism holding the jaws apart at the selected separation once the bite blocks are seated. This is mechanically distinct from frame-and-blade gags such as the McIvor design, which spans the entire mouth with a frame and uses a tongue blade to depress the tongue, creating a large central oropharyngeal working space for procedures such as tonsillectomy. The Jennings gag occupies a much smaller footprint — positioned at one side of the dental arches rather than spanning the mouth — and does not depress the tongue or create central oropharyngeal access. This makes the Jennings gag suited to procedures where the working field is the teeth and adjacent structures rather than the oropharynx: dental procedures under general anesthesia, oral examination, and as a bite block protecting an airway device. A facility's instrument inventory would typically include both gag types, selected according to the specific procedure: a frame-and-blade gag for tonsillectomy and oropharyngeal access, and an interdental bite-block gag such as the Jennings for dental and airway-protection applications.

How should the Child (PS-7709, 7") versus Adult (PS-7710, 8") size be selected?
Size selection is based primarily on patient age and the corresponding dental arch dimensions, with the Child size (7"/17.8cm overall length) proportioned for pediatric patients with primary or mixed dentition and the Adult size (8"/20.3cm overall length) proportioned for adult patients with permanent dentition. The pediatric oral cavity is smaller in all dimensions, and an adult-sized gag placed in a pediatric patient risks the bite blocks failing to seat correctly against the smaller pediatric teeth, contacting soft tissue instead, or producing an opening that exceeds the safe range of motion for the pediatric temporomandibular joint. Conversely, a child-sized gag in an adult patient may not provide the bite block separation or surface area appropriate for adult dental arches. For facilities performing procedures across a range of patient ages — common in hospital-based pediatric and adult dental and oral surgery units, and in general anesthesia services that cover both pediatric and adult caseloads — stocking both sizes ensures the appropriately proportioned gag is available for each patient. At $38.50 per piece, stocking both sizes represents a modest total cost relative to the clinical benefit of always having the correctly sized instrument available.

What is the role of the Jennings gag as an airway adjunct during anesthesia?
During general anesthesia, particularly at induction and emergence when the depth of anesthesia is changing and the patient's protective reflexes — including the bite reflex — may be intermittently present, there is a risk that the patient could bite down on an oral airway, laryngeal mask airway, endotracheal tube, or the fingers or instruments of the anesthesia or surgical team. An unprotected bite on an airway device can damage the device, potentially compromising the airway, and a bite on fingers or instruments poses an obvious injury risk. The Jennings gag, placed between the teeth at a location away from the airway device itself, provides a fixed interdental separation that prevents the jaws from closing far enough to bite down on the protected airway device or on instruments and fingers positioned elsewhere in the mouth. This bite-block function is a recognized application of interdental gags in anesthetic practice, used in addition to — not as a replacement for — appropriate airway device selection and anesthetic depth management. The compact, unilateral design of the Jennings gag makes it practical for this application, as it does not interfere with the airway device's position in the way a larger frame-and-blade gag spanning the mouth might.

What sterilization protocol is recommended for this instrument?
The Jennings Mouth Gag is fully compatible with steam autoclave sterilization at 134°C pre-vacuum parameters, the standard method for reusable dental, oral surgical, and anesthetic instruments. The hinge mechanism connecting the two arms should be cleaned thoroughly at each reprocessing cycle, as debris accumulation at the hinge can stiffen the gag's action and affect the smoothness of opening and closing. The locking mechanism — whether spring or ratchet based — should be tested through its full range at each reprocessing cycle to confirm it reliably maintains the selected jaw separation under load; a locking mechanism that slips under load is a safety-critical failure for this instrument, as loss of the maintained opening during a procedure could result in unintended jaw closure. The bite block surfaces should be inspected for damage or roughness, as compromised bite block surfaces increase the risk of dental trauma to the teeth against which they are seated during use.

What certifications does this instrument carry, and are bulk or OEM orders available?
The Jennings Mouth Gag (PS-7708, with Child variant PS-7709 and Adult variant PS-7710) is manufactured under an ISO 13485-certified quality management system covering German stainless steel material procurement, precision machining of the hinge, locking mechanism, and bite block components, dimensional inspection at both sizes, and packaging. CE Mark certification confirms conformity with European Medical Device Regulation requirements for Class I reusable surgical instruments. FDA compliance documentation supports United States distribution. Certificates of conformity are available on request for hospital procurement and tender documentation. Bulk orders are accepted with a minimum of 1 piece per size, with volume pricing available for hospitals, dental surgical units, anesthesia departments, ENT units, and surgical instrument distributors — both Child and Adult sizes can be ordered individually or together to equip facilities serving mixed pediatric and adult caseloads. OEM manufacturing for custom sizing or private-label branding is available within the same ISO 13485-certified framework. Free shipping applies on orders of $99 or more.
