Flexible Reamer Set with 7.5–15 mm Heads for Medullary Canal Preparation

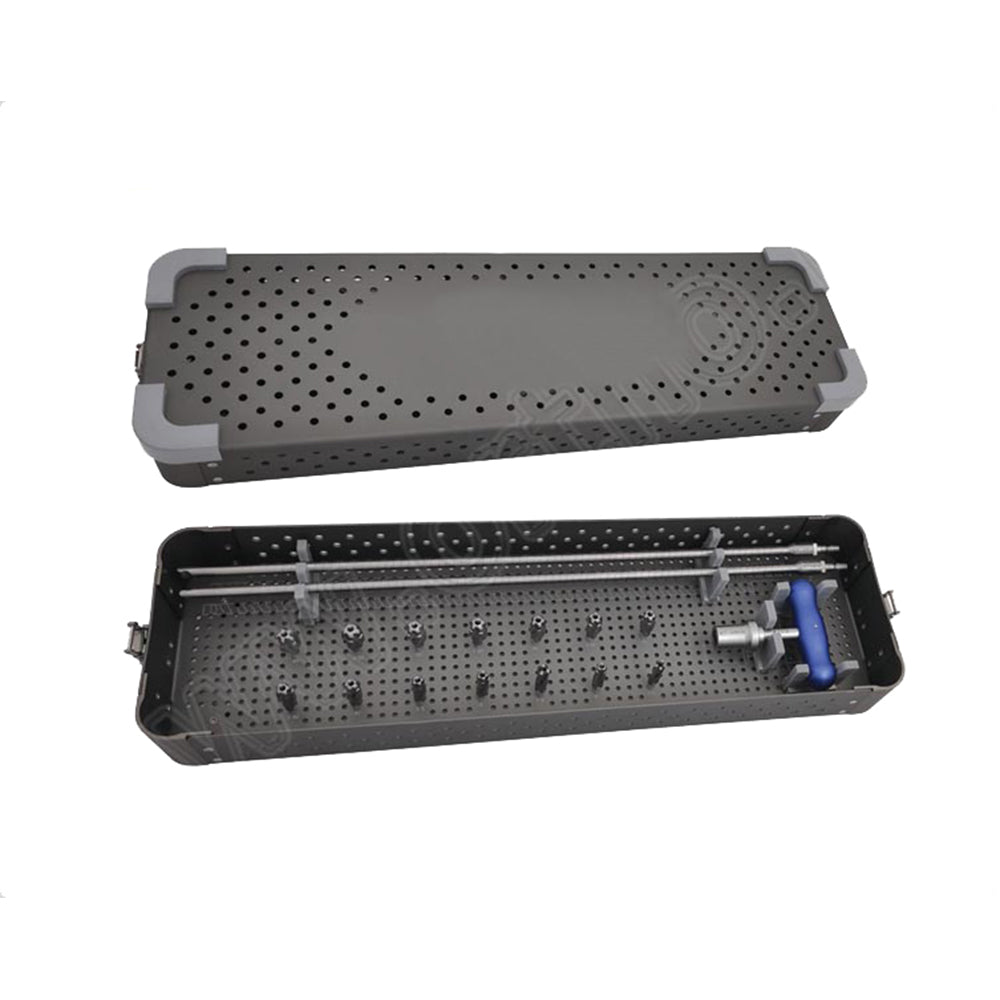

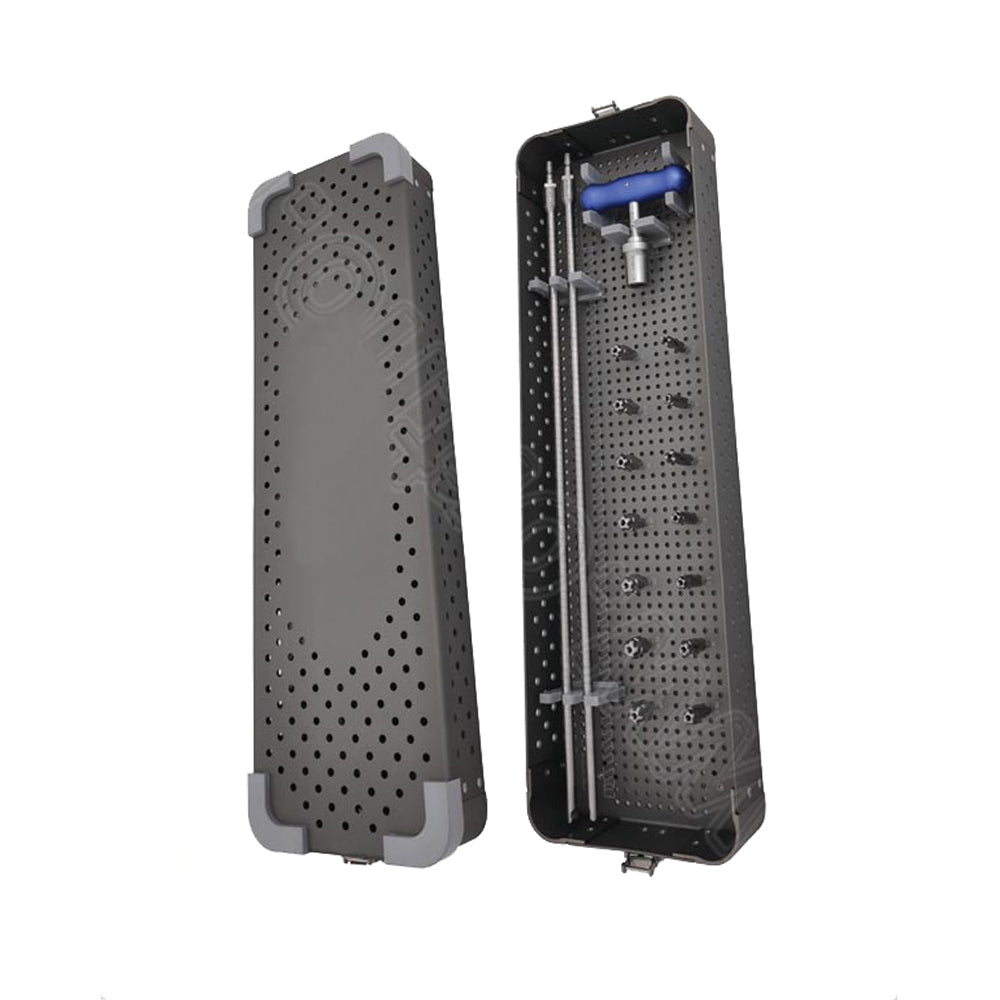

Flexible Reamer Set, SKU PS-OP-5129, is a reusable German stainless steel orthopedic system for progressive medullary canal preparation during intramedullary nailing. Set code PS-507 contains PS-507.01, the flexible shaft for reamer heads through 13 mm; PS-507.02, the companion shaft for 13.5–15 mm heads; PS-507.03, the T-handle; PS-507-7.5, 7.5 mm; PS-507-8.0, 8 mm; PS-507-8.5, 8.5 mm; PS-507-9.0, 9 mm; PS-507-9.5, 9.5 mm; PS-507-10.0, 10 mm; PS-507-10.5, 10.5 mm; PS-507-11.0, 11 mm; PS-507-11.5, 11.5 mm; PS-507-12.0, 12 mm; PS-507-12.5, 12.5 mm; PS-507-13.0, 13 mm; PS-507-13.5, 13.5 mm; PS-507-14.0, 14 mm; PS-507-14.5, 14.5 mm; PS-507-15.0, 15 mm; and PS-507.000, the storage container. Orthopedic trauma surgeons use the assembly after fracture reduction and guide-wire placement to enlarge the femoral or tibial canal before antegrade or retrograde nail insertion. Its 0.5 mm progression supports controlled diameter increases at the diaphyseal isthmus. The set is intended for trauma operating rooms, orthopedic hospitals, teaching centers, and implant-service inventories managing adult femoral and tibial shaft fixation.

Flexible Shaft Transmission and Modular Head Control

The working assembly combines an interchangeable medullary reamer head with a torsion-transmitting flexible shaft. Shaft compliance allows the distal segment to follow the bowed axis of a reduced femur or the longitudinal course of the tibial canal while the cutting head remains centered on the established guide-wire trajectory. This geometry reduces the tendency of a rigid straight instrument to impose an eccentric path against the endosteal cortex. Each head advances rotationally, with its cutting profile removing cancellous bone first and contacting the cortical isthmus as diameter increases. The surgeon detects that transition through audible and tactile chatter, then controls advancement according to the selected nail system and fluoroscopic findings. PS-507.01 carries heads from 7.5 through 13 mm, whereas PS-507.02 provides the specified interface for 13.5 through 15 mm diameters, keeping the shaft-to-head pairing within its designed load range. PS-507.03 supplies a transverse hand grip for coupling, assembly control, and manual rotation where the operative technique calls for hand-driven manipulation. The modular layout lets the scrub team exchange only the distal head between passes. Secure seating at every connection is essential because torque moves from the handle or compatible drive source through the wound shaft to the cutting element. The container organizes the two shafts, handle, and graded heads for counting and reprocessing.

Sequential Canal Preparation During Intramedullary Nailing

In antegrade femoral nailing, retrograde femoral nailing, infrapatellar tibial nailing, and suprapatellar tibial nailing, this system enters the workflow after the fracture has been reduced, the entry portal opened, and a compatible ball-tipped guide wire positioned centrally across the fracture into the distal fragment. The initial diameter is selected from preoperative templating, fluoroscopic canal assessment, and the narrowest isthmus. Reaming then proceeds in 0.5 mm steps rather than by a large single increase. The flexible shaft follows the wire while the head enlarges the cancellous passage and subsequently engages the endosteal surface. During each pass, the surgeon preserves reduction, monitors AP and lateral imaging, advances without excessive thrust, and intermittently withdraws enough to clear bone debris from the flutes. A soft-tissue protection sleeve from the compatible nailing system protects the entry corridor, particularly in a suprapatellar approach. The final head is chosen in relation to planned implant diameter and the nail manufacturer’s operative technique; commonly the canal is prepared slightly larger than the implant to permit passage without force. Lower diameters address narrow tibial or humeral canals and the opening sequence, while the upper range supports larger adult femoral canals. Use belongs with orthopedic trauma teams trained in intramedullary fixation, not as an independent implant or entry-point instrument.

Head Diameters, Shaft Pairing, and Selection Logic

The sixteen cutting heads cover 7.5–15 mm in exact 0.5 mm increments. PS-507-7.5, PS-507-8.0, PS-507-8.5, PS-507-9.0, PS-507-9.5, PS-507-10.0, PS-507-10.5, PS-507-11.0, PS-507-11.5, PS-507-12.0, PS-507-12.5, and PS-507-13.0 mount on PS-507.01. These smaller and intermediate diameters establish the passage through a narrow tibial isthmus, prepare a humeral canal when the compatible nailing system permits, or begin femoral enlargement before the cortex is contacted. PS-507-13.5, PS-507-14.0, PS-507-14.5, and PS-507-15.0 mount on PS-507.02 for larger femoral canals and for final preparation when preoperative measurement and intraoperative resistance support a wider nail pathway. Selection is progressive: the operator starts with a head that passes without force, observes the cutting response, then moves one coded increment at a time. The final choice remains linked to measured canal diameter, fracture pattern, cortical thickness, implant design, and the over-reaming allowance specified for that nail. PS-507.03 affords manual coupling and rotational leverage during assembly or hand-controlled use. PS-507.000 keeps each calibrated component in an identified position, helping the scrub nurse detect a missing head before closure and the sterile-processing department reconcile the full twenty-piece inventory after decontamination.

German Stainless Steel, Reprocessing, and Procurement Controls

German stainless steel provides the hardness required at the reamer head, torsional resilience along the flexible shaft, and corrosion resistance needed for repeated hospital processing. A satin, non-reflective surgical finish limits glare beneath operating-room lights and leaves the cutting geometry visible during pre-use inspection. These are reusable instruments and require immediate post-procedure point-of-use soil control, followed by disassembly, validated cleaning, thorough flushing of accessible channels and junctions, rinsing, drying, inspection, packaging, and steam sterilization under the facility’s approved cycle. Reprocessing personnel should examine every cutting flute for retained debris or edge damage, check each head-to-shaft interface for secure engagement, and reject shafts showing kinks, separation, permanent deformation, or irregular rotation. Lubricants, detergents, water quality, load configuration, and autoclave parameters must follow the hospital protocol and device reprocessing instructions. CE marking supports European medical-device conformity documentation, while manufacture under an ISO 13485 quality-management system provides traceability and controlled production records for procurement review. FDA-compliant procurement refers to supply documentation and the regulatory pathway applicable to the destination market; it is not a substitute for a facility’s product evaluation or national registration requirements. Peak Surgicals supports hospitals and distributors with one-set MOQ, OEM configuration, commercial warranty coverage, and post-sale replacement assistance.

Product Specification

How does this set differ from rigid medullary reamers?
The Flexible Reamer Set uses a compliant drive shaft that tracks the guide-wire path through a bowed femoral or tibial canal. A rigid medullary reamer maintains a straighter mechanical axis and is less able to accommodate long-bone curvature. This modular system also separates the cutting heads from the two reusable shafts, allowing diameter changes without replacing the entire drive element. Its heads progress from 7.5 to 15 mm in 0.5 mm steps, whereas a rigid set’s range and increment pattern depend on its design. Flexible geometry supports centered progression when reduction and wire placement are correct, but it still requires fluoroscopic control and careful torque management. Rigid instrumentation can remain relevant for opening work or anatomies where its trajectory matches the planned access. The choice is governed by the nail system, operative technique, canal morphology, and surgeon judgment.

How should the 7.5–15 mm head range be selected?
Selection begins with preoperative templating and measurement of the narrowest medullary isthmus on calibrated imaging. During tibial or femoral nailing, the surgeon starts with a head that enters the prepared canal without force and remains centered on the guide wire. Diameters from 7.5 through 13 mm pair with PS-507.01, while 13.5 through 15 mm require PS-507.02. The Flexible Reamer Set permits enlargement in 0.5 mm steps so cortical contact and resistance can be assessed between passes. Smaller heads suit the initial passage and narrow canals; larger heads are reserved for anatomy and implant plans that support additional enlargement. Final preparation follows the selected nail’s technique, often ending slightly above implant diameter to permit smooth insertion. Fluoroscopy, tactile chatter, fracture stability, cortical thickness, and thermal control remain part of the decision.

What do CE, ISO 13485, and FDA-compliant procurement mean for this product?
CE marking identifies conformity documentation applicable to European medical-device supply. ISO 13485 indicates that the Flexible Reamer Set is produced within a medical-device quality-management framework covering controlled manufacture and traceability. For United States procurement, FDA status is evaluated through the regulatory classification, establishment, listing, labeling, and documentation applicable to the supplied device and transaction. These terms address different parts of conformity and cannot be treated as interchangeable certificates. Hospital buyers should retain the quotation, product identification, lot or batch records, and supplied regulatory documents in the vendor file. Distributors should also align labeling and import records with the destination market. Peak Surgicals can support procurement review with commercial and product documentation.

How do the T-handle and flexible-shaft coupling control intraoperative use?
PS-507.03 provides a transverse grip that converts hand input into controlled rotational torque at the shaft. The head is seated on PS-507.01 or PS-507.02 according to its diameter before the assembly enters the operative field. As the T-handle turns, torque travels through the flexible wound segment while that segment conforms to the guide-wire trajectory. The Flexible Reamer Set therefore separates directional compliance from the cutting action at the distal head. Before every pass, the scrub and operating teams check that the selected head is fully engaged and that the shaft rotates without visible irregularity. Manual feedback helps the surgeon recognize rising resistance or cortical chatter, but it does not replace imaging or the implant manufacturer’s technique. A loose interface, kinked shaft, or damaged coupling removes the assembly from service.

What should an operating-room supply team check before sterilization and issue?
The team should reconcile all twenty coded items: two shafts, one T-handle, sixteen heads, and one container. The Flexible Reamer Set must be disassembled so cleaning chemistry and mechanical action can reach each flute, coupling, surface, and accessible channel. After rinsing and drying, inspect the cutting edges for dullness or impact damage and examine shafts for kinking, unwinding, corrosion, or permanent set. Confirm that every head couples securely to its specified shaft and that identifiers remain legible. Package the dry components in the container and run the validated steam cycle authorized by the facility. Release records should link the set identity, sterilizer load, inspection result, and service history. Hospitals and distributors can order from one set, request OEM configuration, and use the after-sale channel for documented replacement needs.
